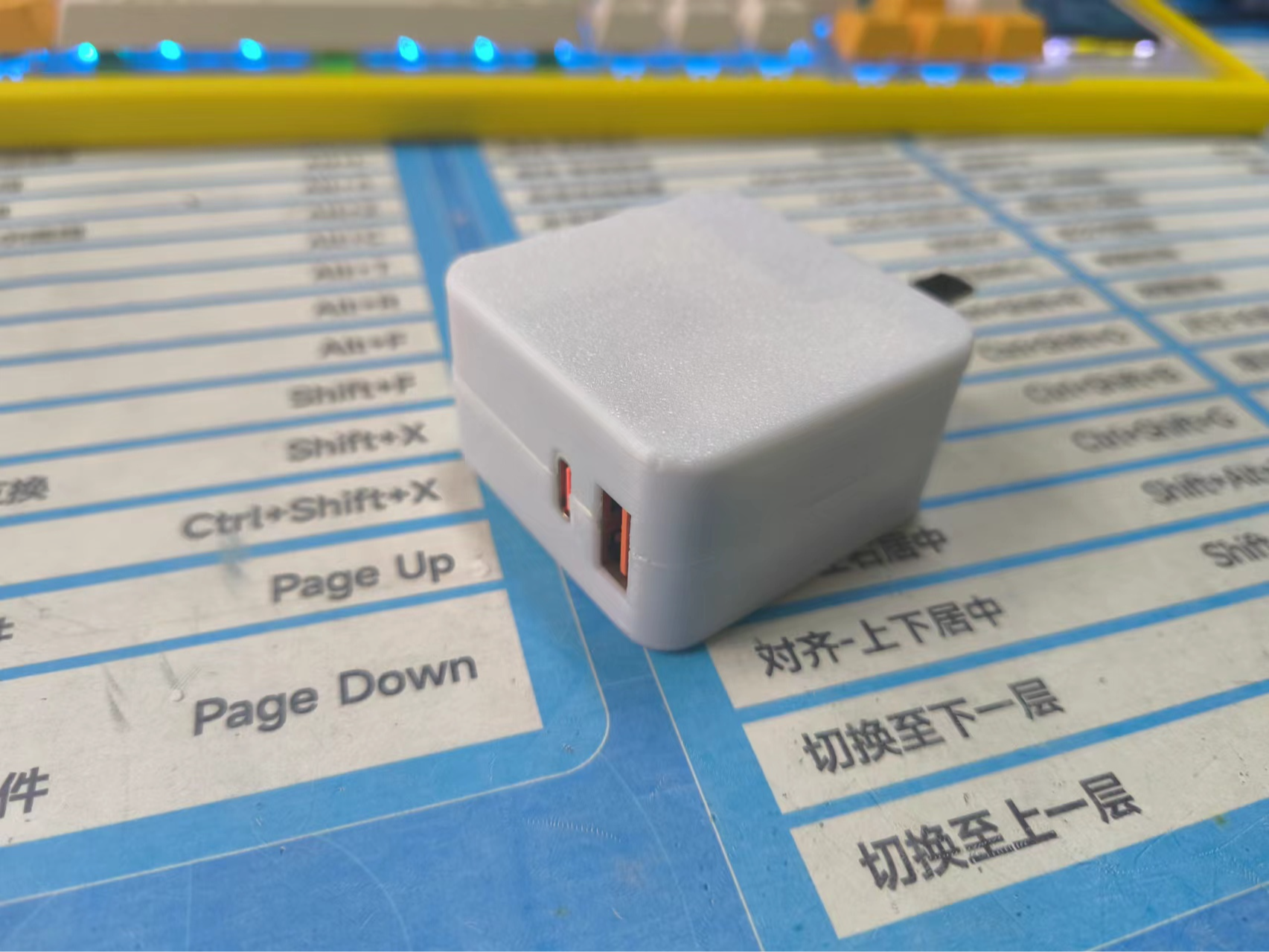

Lao Wu 65W Charger Housing

Updated https://makerworld.com.cn/zh/models/996319-lao-wu-65w-1a1c-chong-dian-tou

The plug accessories used are consistent.

Improvements:

1. Smaller housing volume, 2mm thinner than the V2 version, and symmetrical!
2. Plug is reversible.
3. The plug's load-bearing component is not suspended, the load is evenly distributed, and the load direction is vertical, making it less prone to breakage.

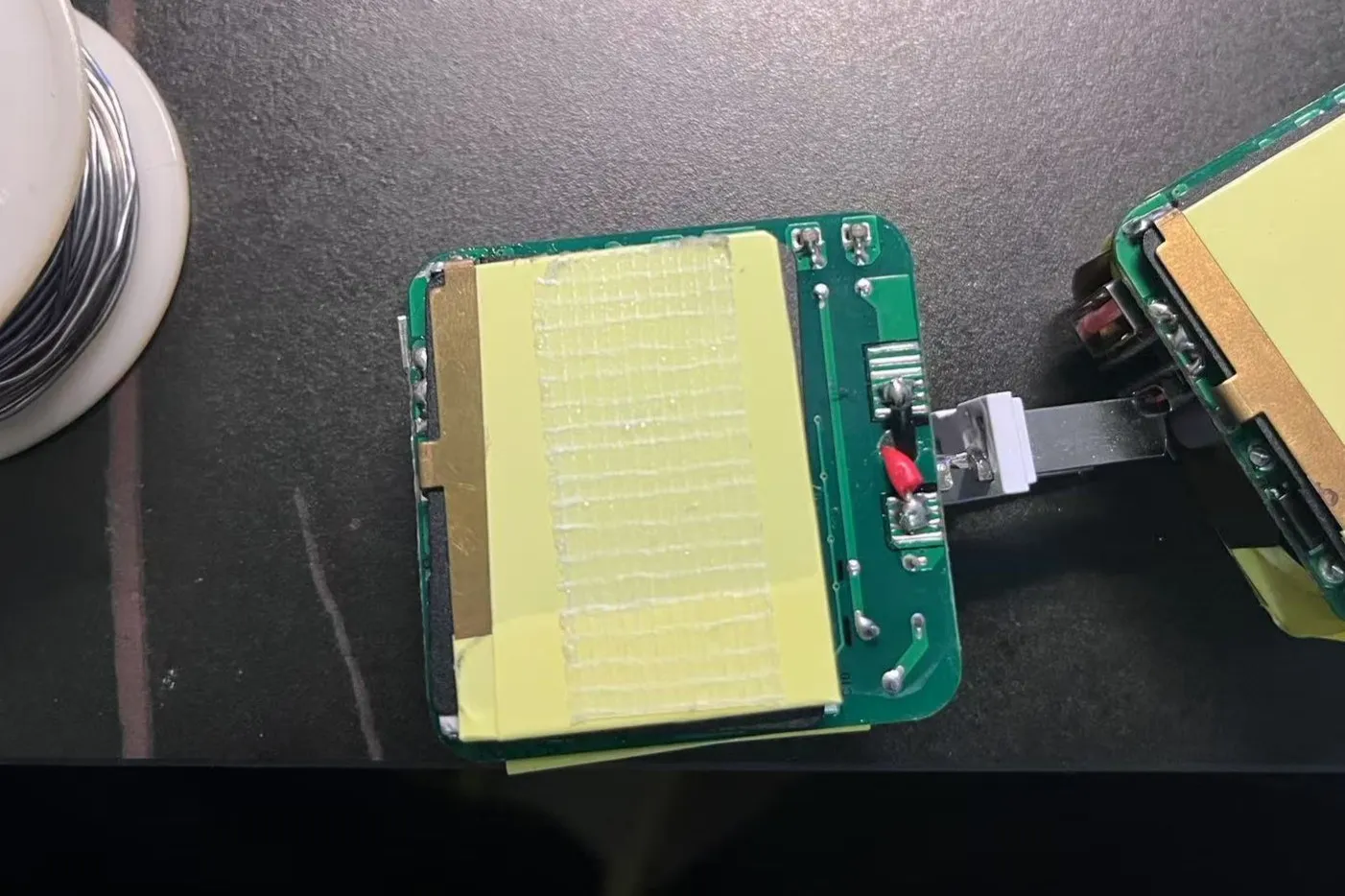

4. It was discovered that solder joint heating on the plug could cause loosening; a 1 mm partition has been added to prevent the plug from retracting and bursting the capacitor (May 10, 2025).

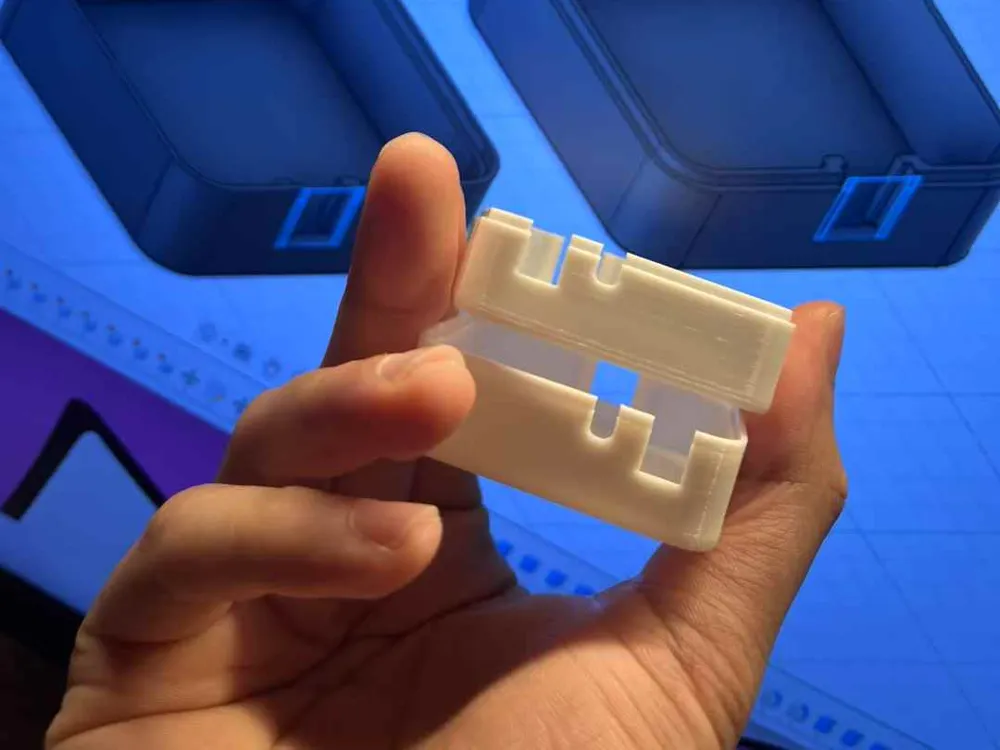

Assembly:

1. The opening must be consistent with the original sticker.
2. Apply glue or double-sided tape to the bottom of the plug to prevent loosening.
3. First insert the plug side PCB into the plug opening, securing it at the bottom, then attach the top housing.
4. Embed the plug and secure it with adhesive.

Opening example and adhesive placement:

Non-commercial use unless boosted
