Modular top secret box with mesh tray

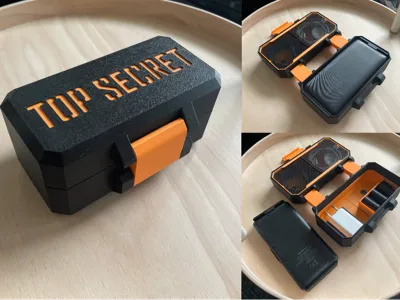

TOP SECRET BOX - a small box that has both sophistication and style.

With dimensions of 15.5 × 9 × 7 cm, it is compact, easily portable and ideal for everyday use at home, at work and on the go. But don't let its size fool you - inside lies a sophisticated and fully modular system that you can tailor to your exact specifications.

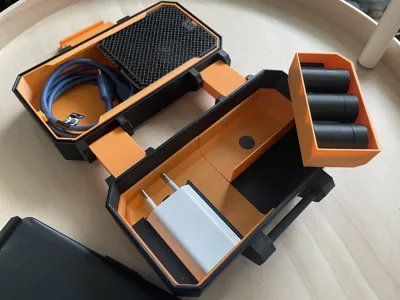

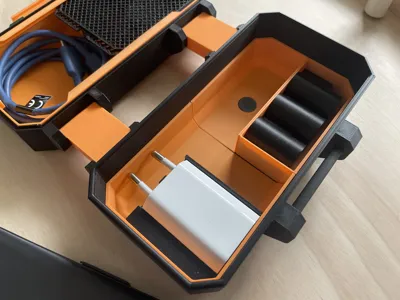

The bottom offers space for three lockable medicine tubes and an Apple charger holder. Three types of compartments are included, making it easy to create the layout you need. Whether it's medications, cables or small accessories, you'll always have organization under control.

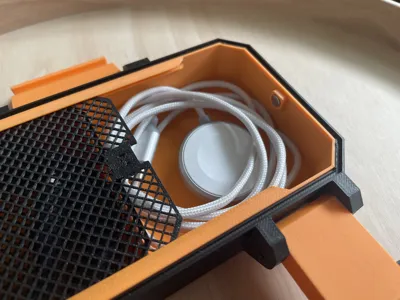

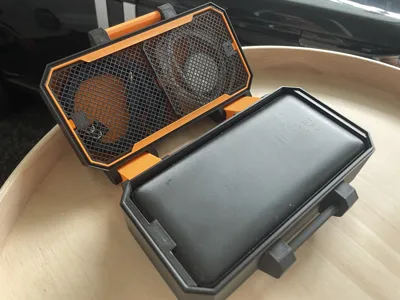

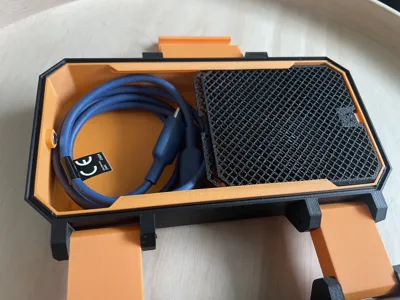

The lid includes a handy mesh divided into two smaller compartments. The entire netting is held in place with magnets - it stays firmly in place, but is easy to remove or move if necessary. So when you open the box, the contents stay in place and you have instant access to everything important. This clever detail significantly expands the storage space without increasing the volume.

There is also a reliable snap mechanism that ensures the box does not open spontaneously. What's more, you'll find the distinctive "Top Secret" lettering on the lid, which adds flair and personality to the entire design. For the minimalist, there is also a lid option without the lettering, perfect for customizing or a clean, sleek look.

The TOP SECRET BOX is more than just a storage box - it's a clever solution that combines functionality, variability and style in one compact package.

3D printed modular box assembly instructions

Follow the steps and proceed carefully. The result will be a solid, functional and aesthetically pleasing box.

1. Assembling the bottom part
   Modular compartments
   After printing out all the parts, you can assemble the bottom section according to your needs. The compartments are designed to be modular, so they can be arranged freely according to what you want to store in the box.

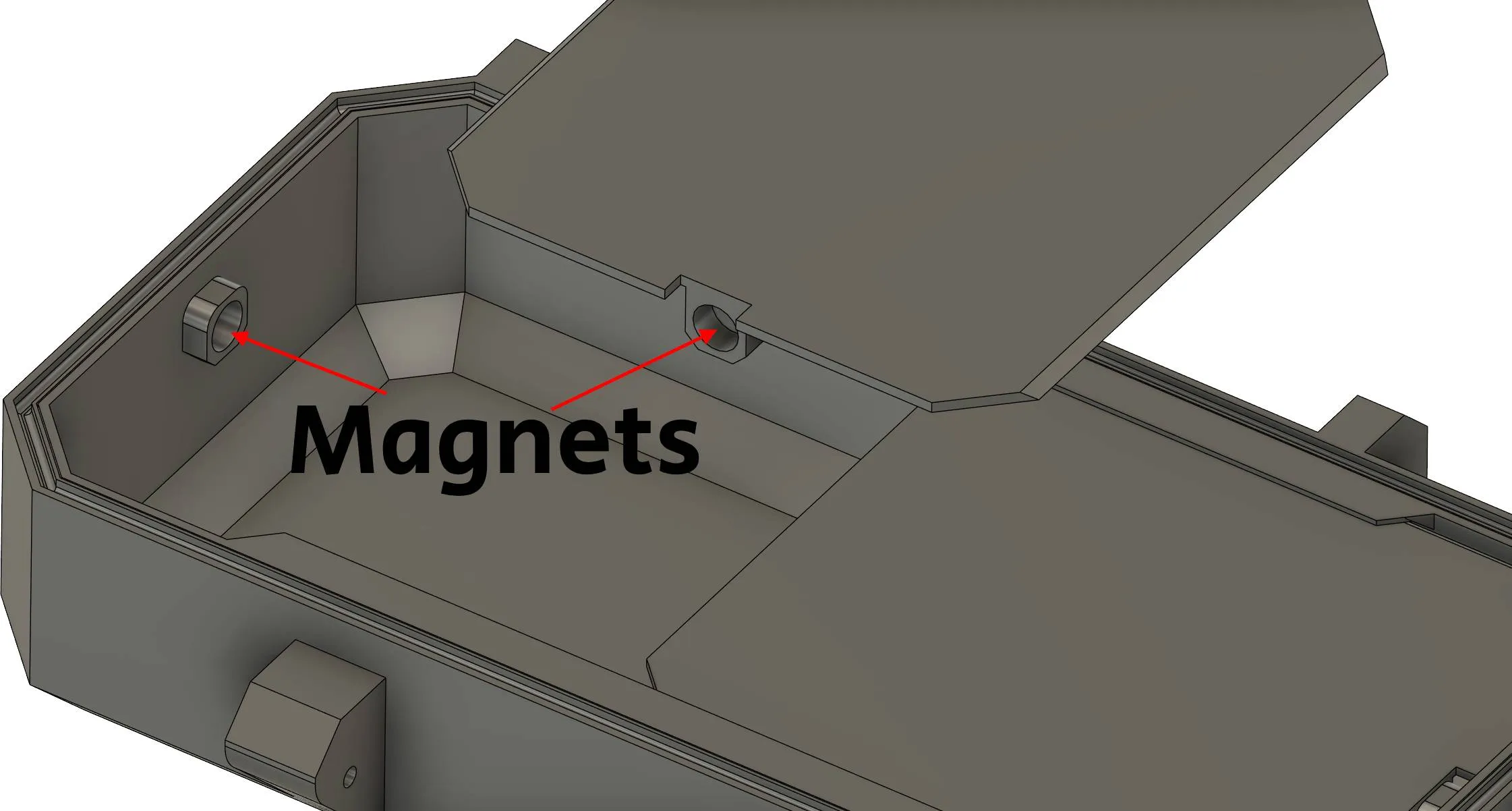

2. Location of magnets
   Precise placement of magnets
   Place the magnets in the marked places. It is recommended to use a drop of glue (e.g. instant glue) for a firmer hold.
   Repeat the same procedure on the other side.





3. Mesh tray deployment
   Snap into lid
   The mesh tray needs to be gently squeezed to fit smoothly into the rails inside the lid.
   Make sure that the height of the mesh tray matches the height of the magnets - otherwise the lid may not fit properly.

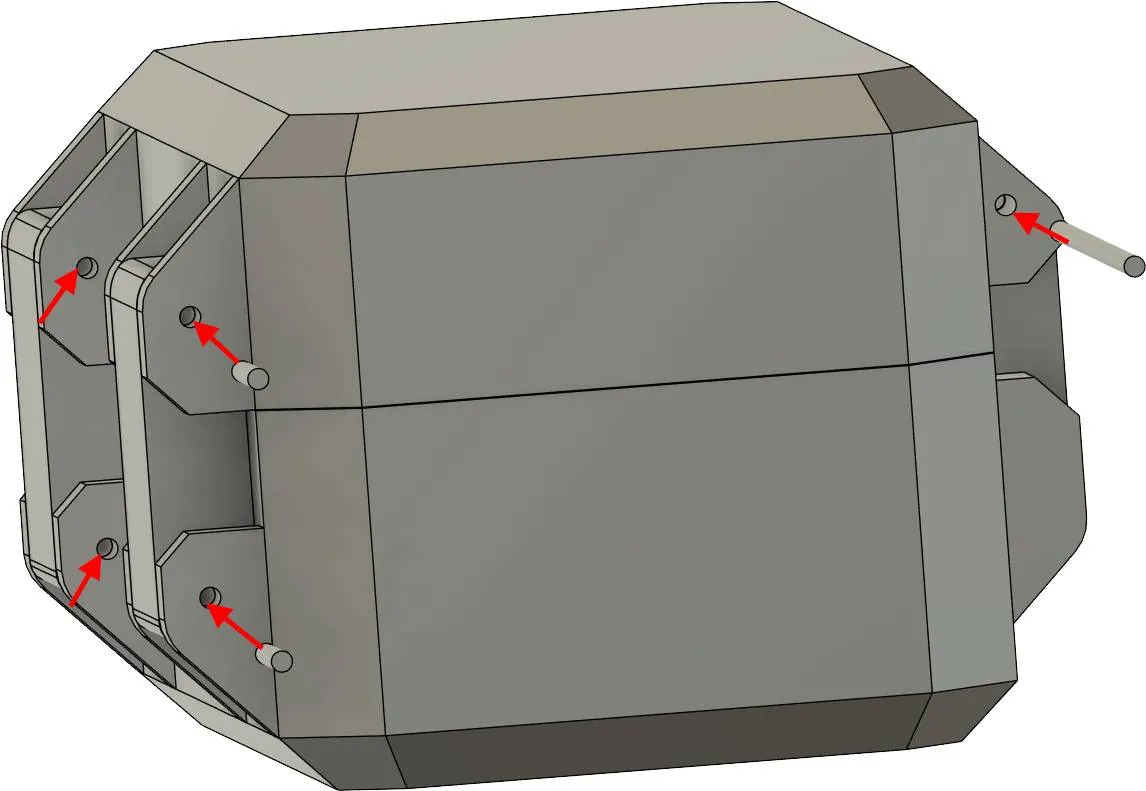

4. Connecting all parts together
   Using a piece of filament
   Use small pieces of filament as pins to connect the parts.
   Insert them into the designated holes according to the illustration or model.
   This will create a solid yet disassembled connection.





5. Your box is now complete. It should be sturdy, functional and ready to serve its purpose - whether as an organiser, storage box or design accessory.

Happy printing.
