Benchy Blueprint

This design commemorates 10 years of the iconic 3D Benchy, presenting it in an unprecedented manner—a pristine technical blueprint!

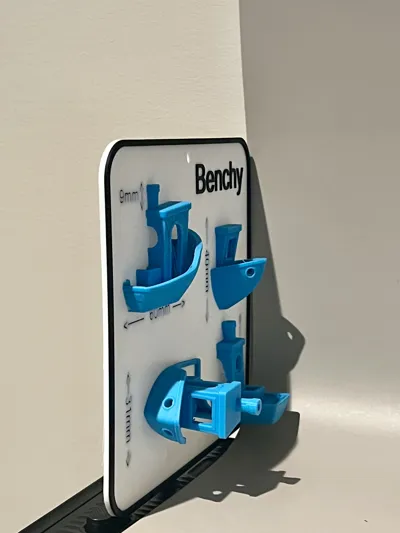

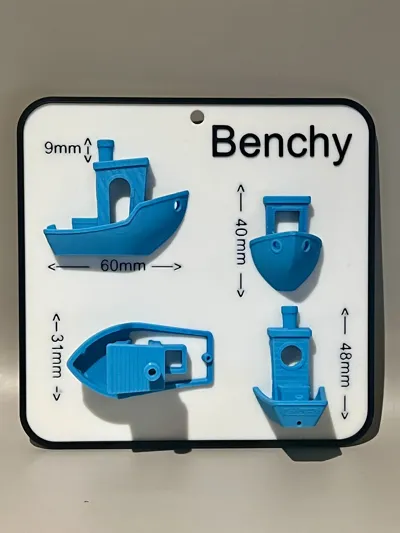

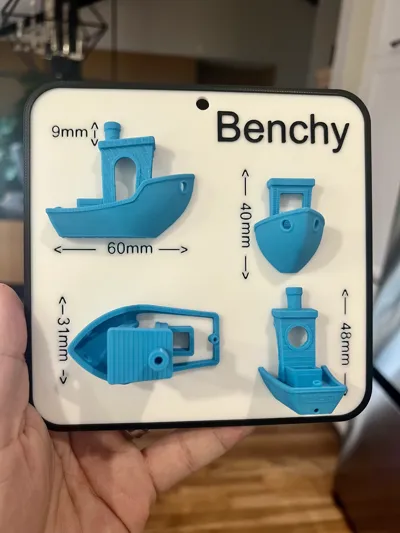

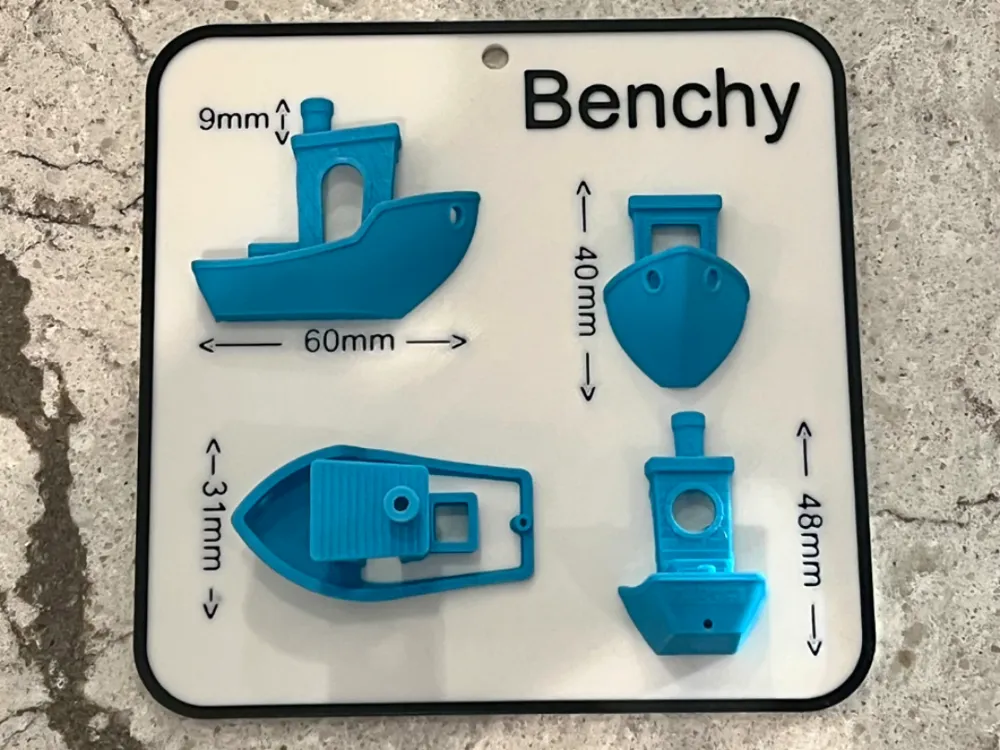

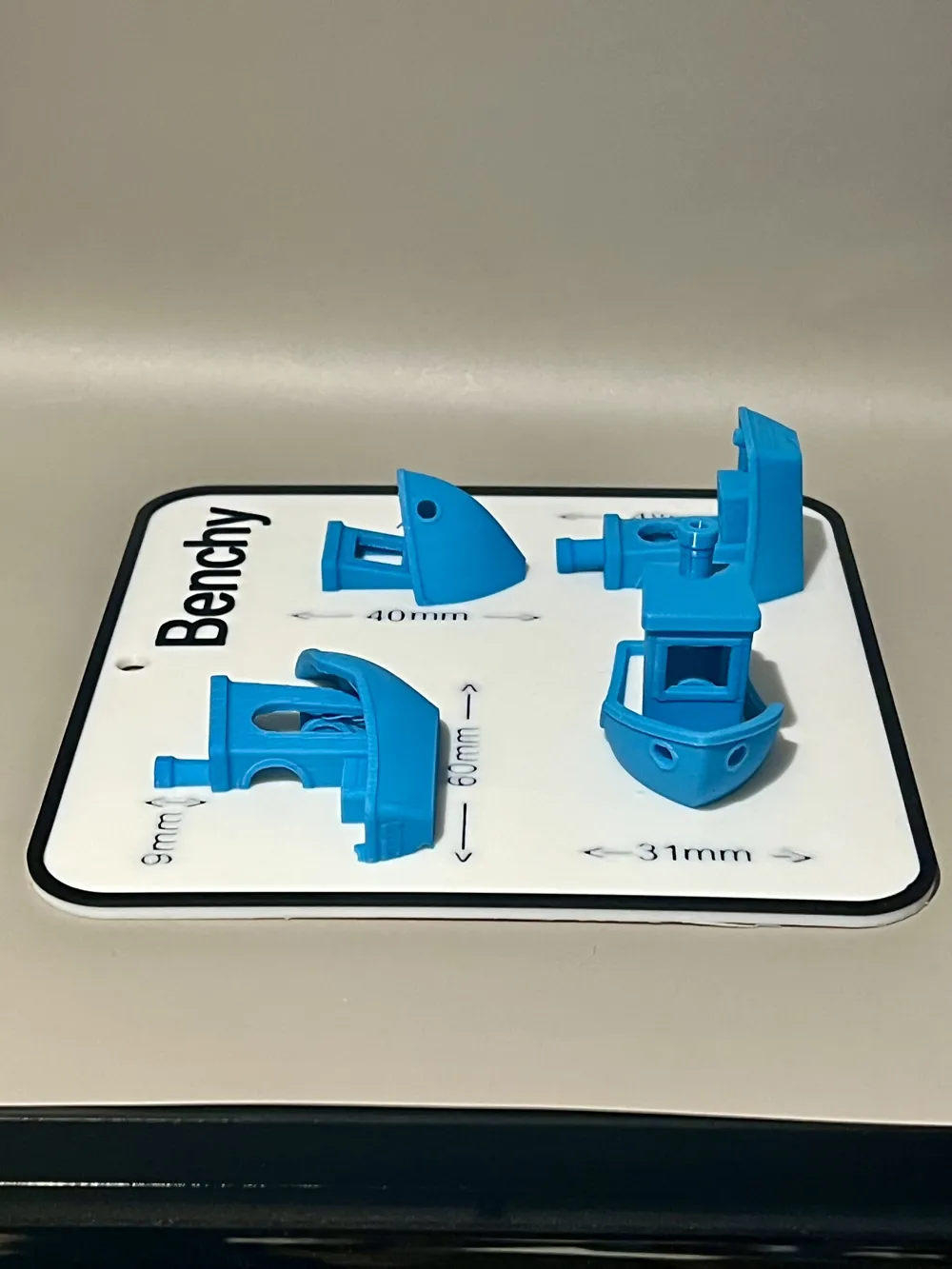

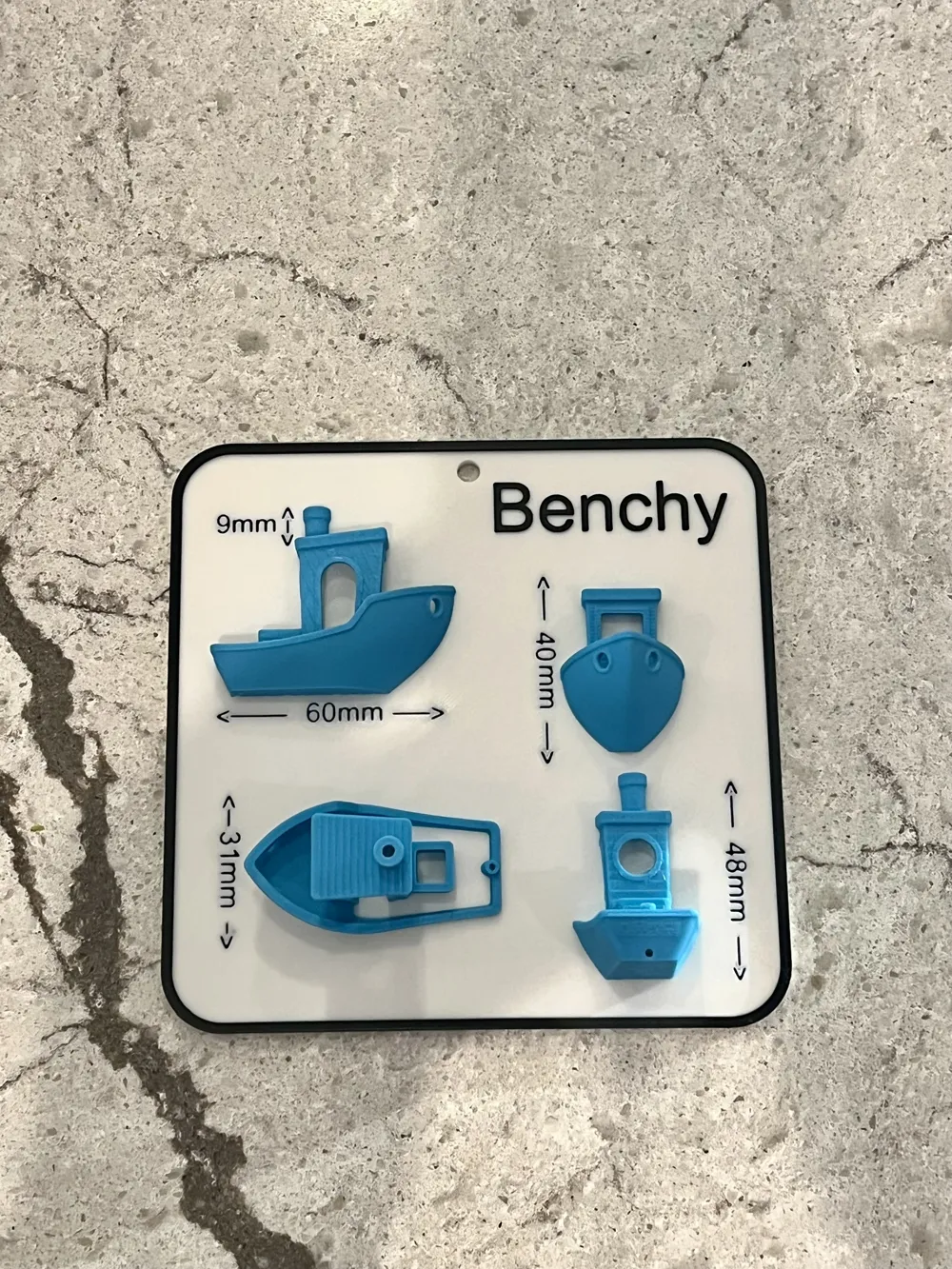

“Benchy Blueprint” showcases the classic model from four pivotal perspectives (side, front, top, and rear), complete with meticulously labeled dimensions highlighting the legendary calibration points that cemented Benchy’s status.

It transcends mere decorative appeal; it serves as a practical reference for verifying print scaling, overhangs, intricate details, and more. Ideal for makers eager to elegantly exhibit their printer's precision.

Multicolor compatible
Support-free
Wall-mount hole included

Measurement Clarifications:

Inquiries have arisen regarding the chimney's 9 mm height, the model's 40 mm front height, and the 48 mm rear height. This discrepancy stems from the rooftop section supporting the chimney being 1 mm lower than the front. Consequently, the boat's actual rear height, excluding the chimney, measures 39 mm. Adding the 9 mm chimney yields the total 48 mm. This design quirk is intentional—a playful challenge for discerning minds. 😊

Original Benchy model: https://makerworld.com/en/models/1272656-original-3dbenchy-public-domain-cad-step-file#profileId-1336828

To celebrate the 10th anniversary of the renowned 3D Benchy, we present “Benchy Blueprint”—a distinctive rendition of this emblematic vessel, conceived as a technical schematic!
This playful wall plaque displays Benchy from four key angles (profile, front, top, and rear), accompanied by precise measurements illustrating its iconic calibration points.

It functions as both an engaging decorative element and a valuable reference for validating print scaling, overhangs, and fine details.

Multicolor compatible
Support-free
Integrated mounting hole

Certain individuals have inquired about the chimney's 9 mm height, the model's 40 mm front height, and the 48 mm rear height. This disparity arises because the rooftop section where the chimney is situated is 1 mm lower than the front. Therefore, the boat's actual rear height, sans chimney, is 39 mm. Including the 9 mm chimney results in the 48 mm total. This intentional design element serves as a minor cognitive exercise. 😊

Original Benchy model: https://makerworld.com/en/models/1272656-original-3dbenchy-public-domain-cad-step-file#profileId-1336828
