GearMorph
Print Profile(1)
Description

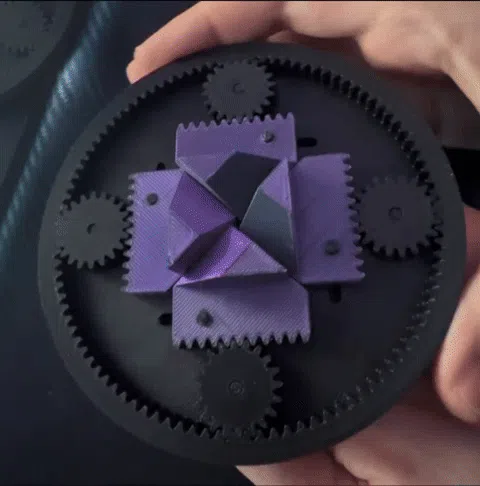

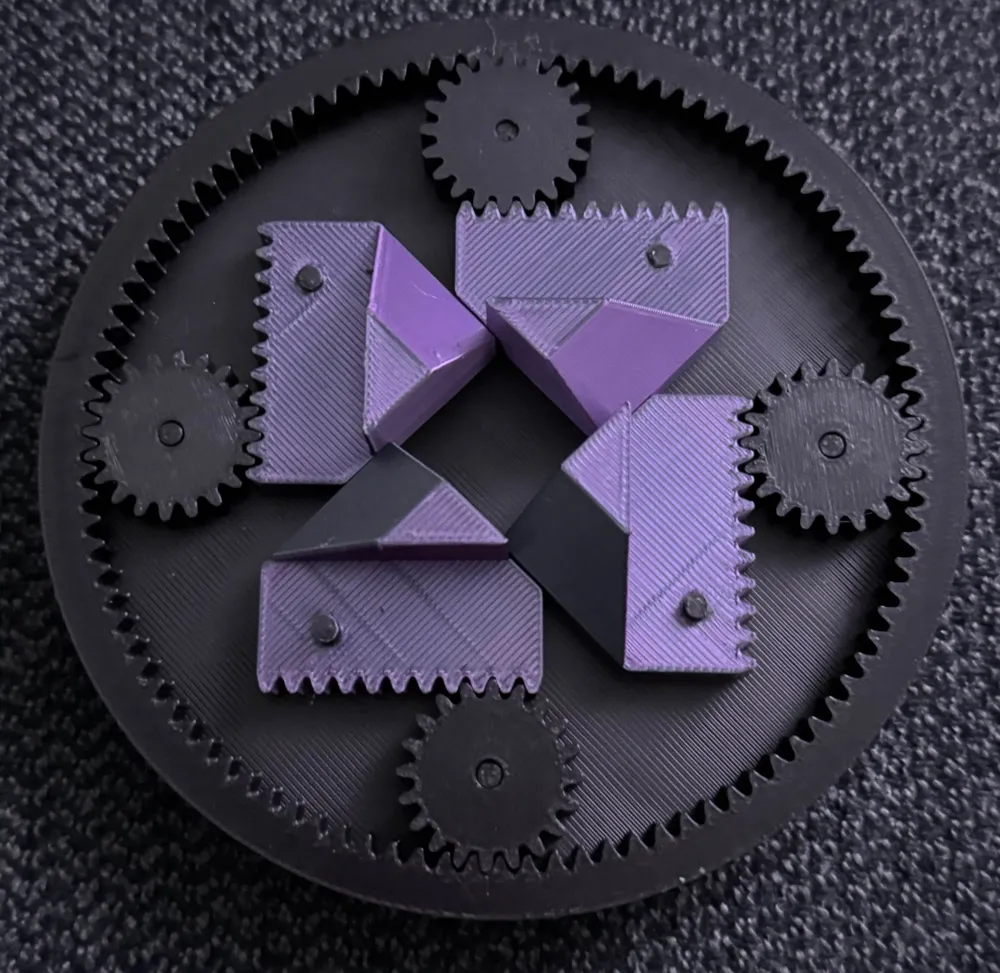

Smooth gear-driven expansion. No support needed.
Assembly Guide:
Place the base plate flat and the outer ring gear around the base. This will be the foundation where everything is built on.

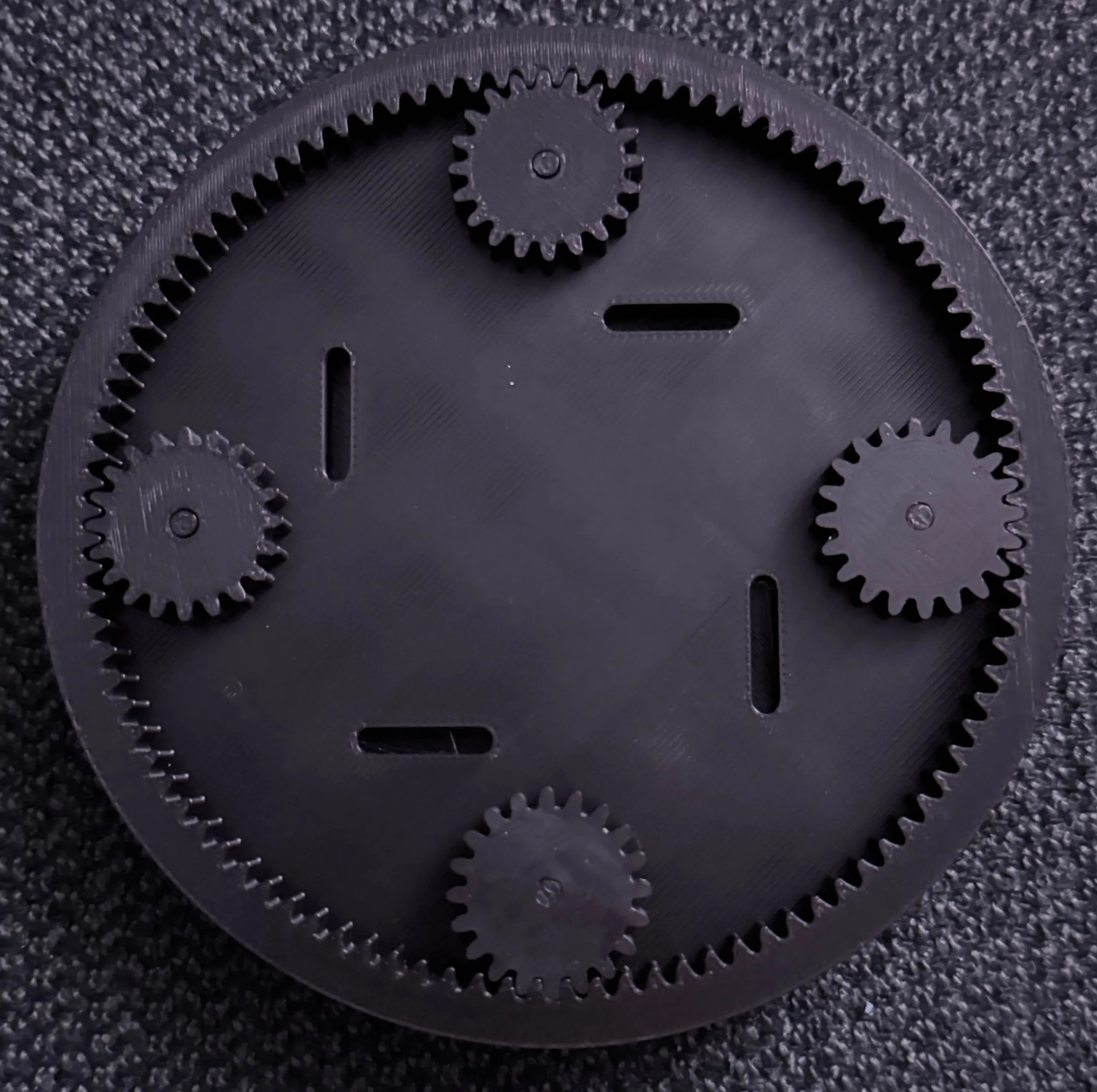

Insert the four small gears onto the four pegs of the base. Make sure the teeth align with the outer ring gear area same as the picture below.

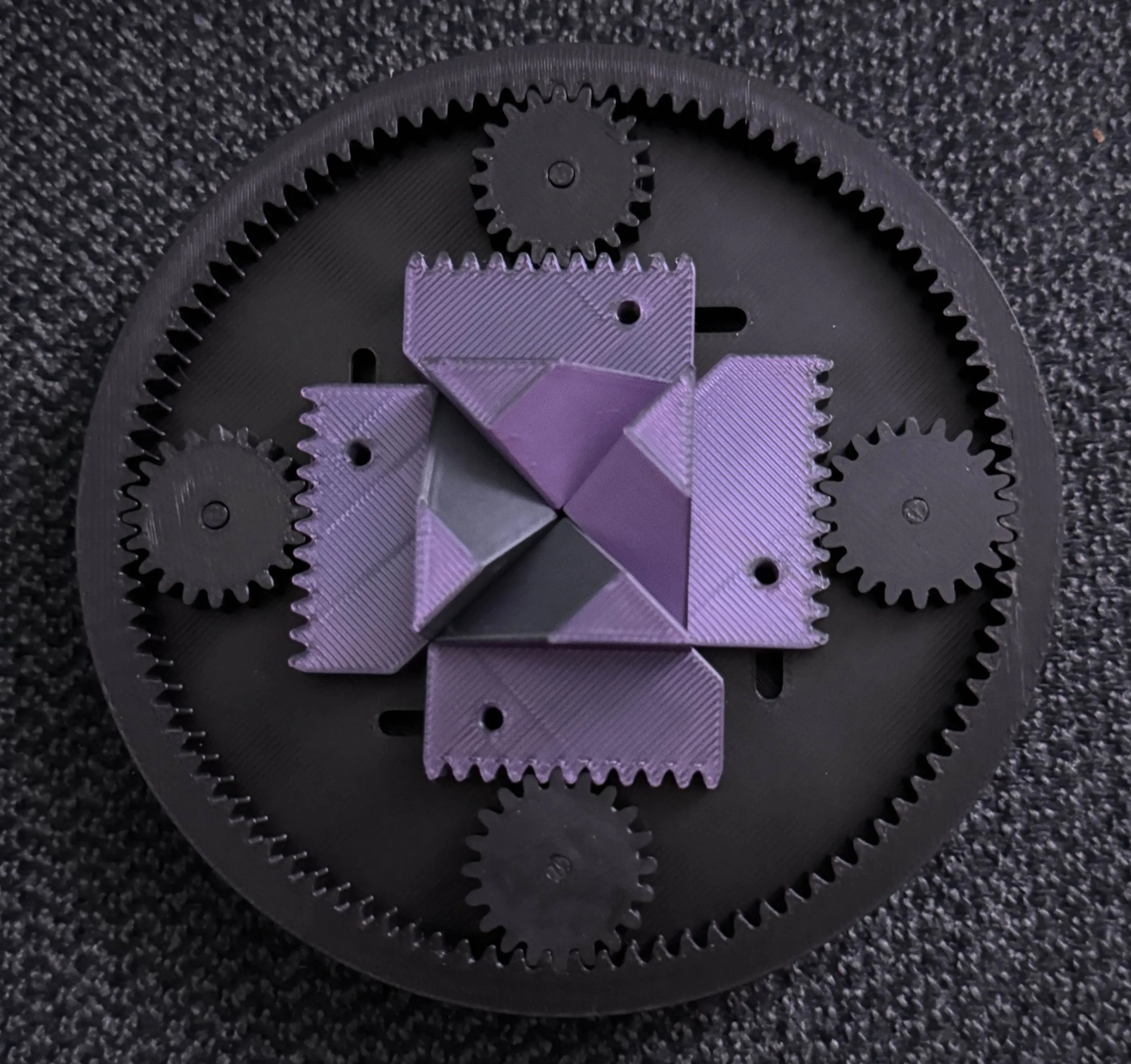

Attach the four rack arms (the purple pieces) onto the pegs through the slotted holes. They should slide freely in and out while engaging with the small gears.

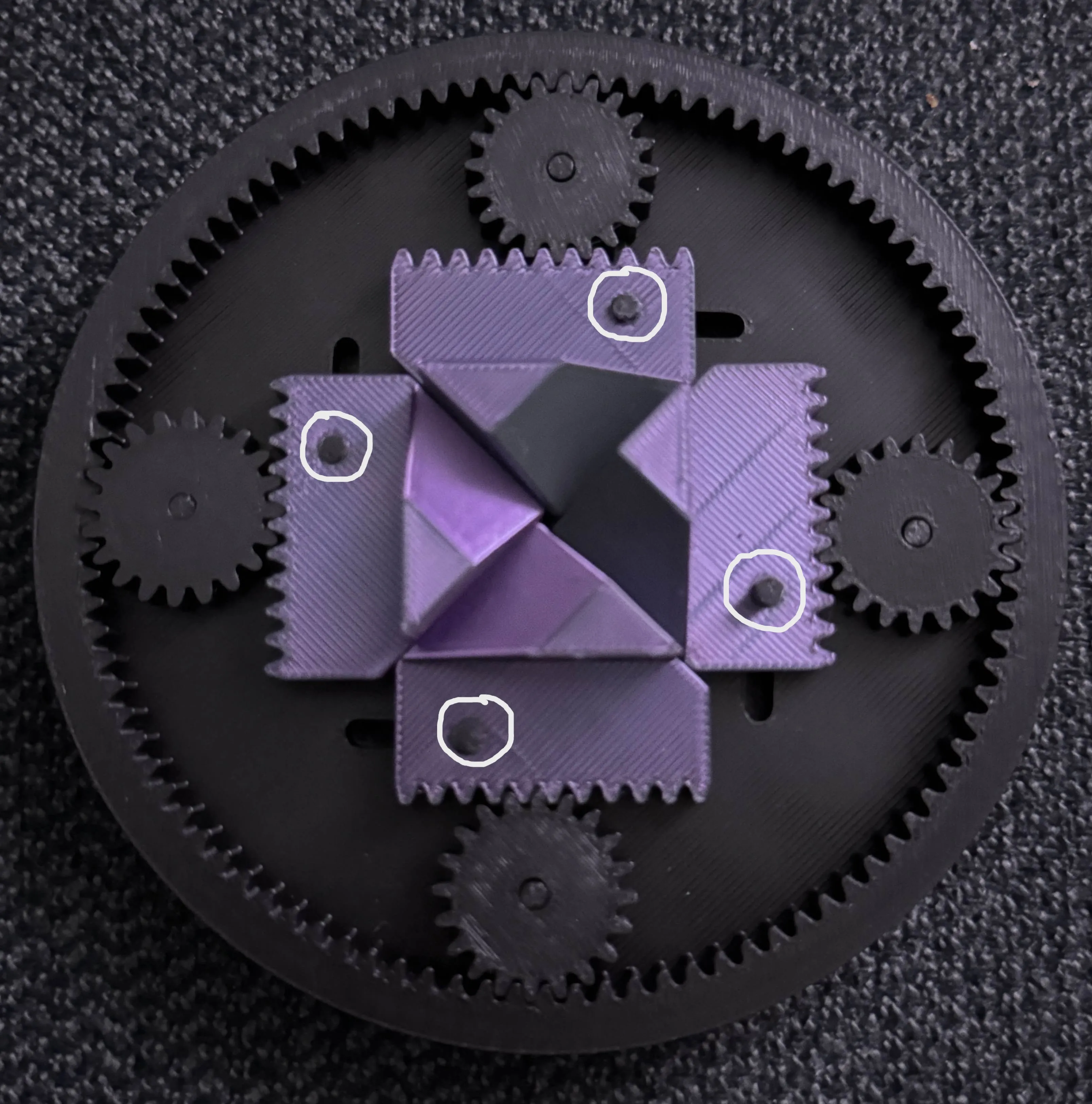

Secure the rack arms by pushing pins through the small holes. This will hold them in place while allowing them to slide.
