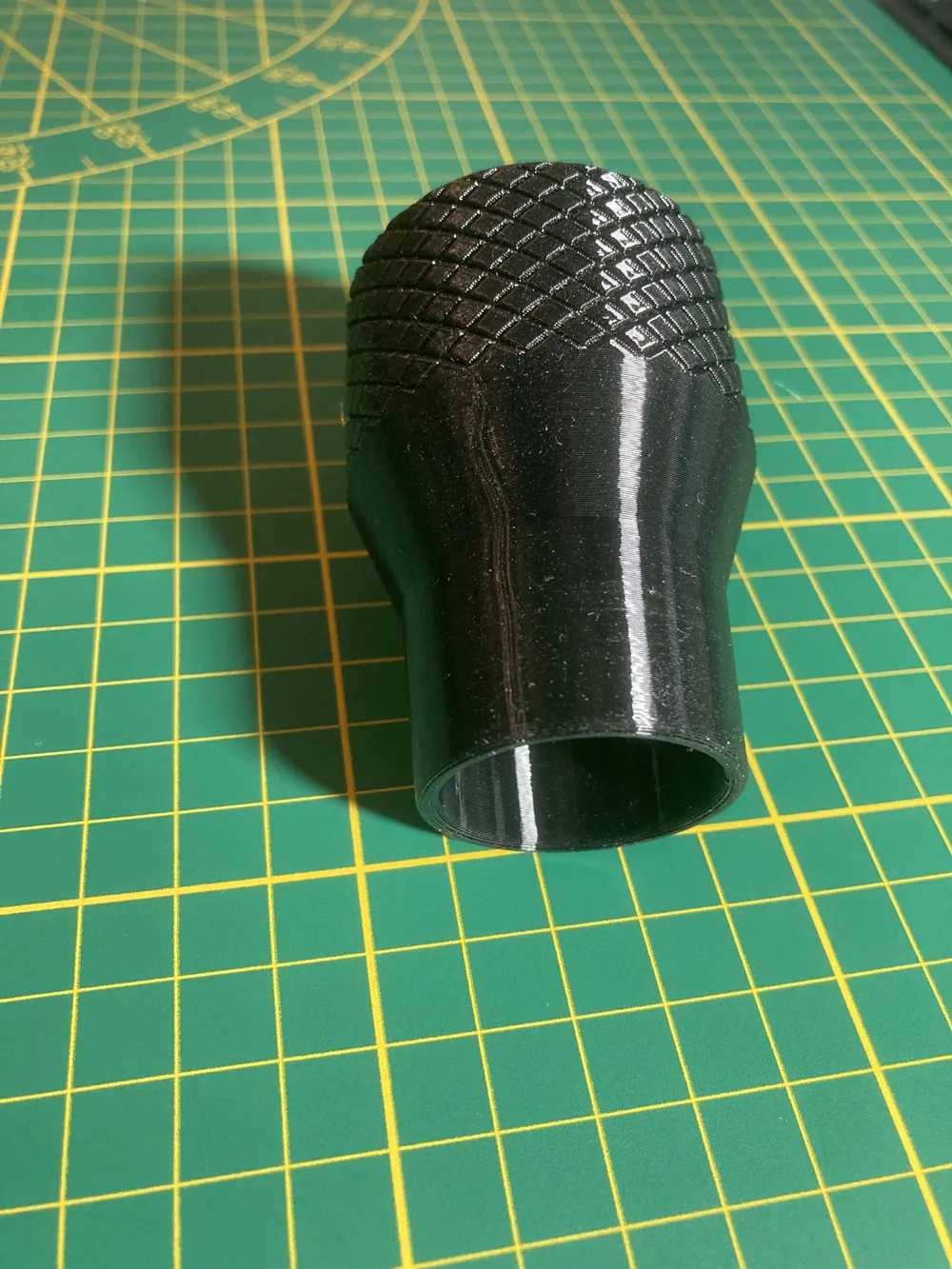

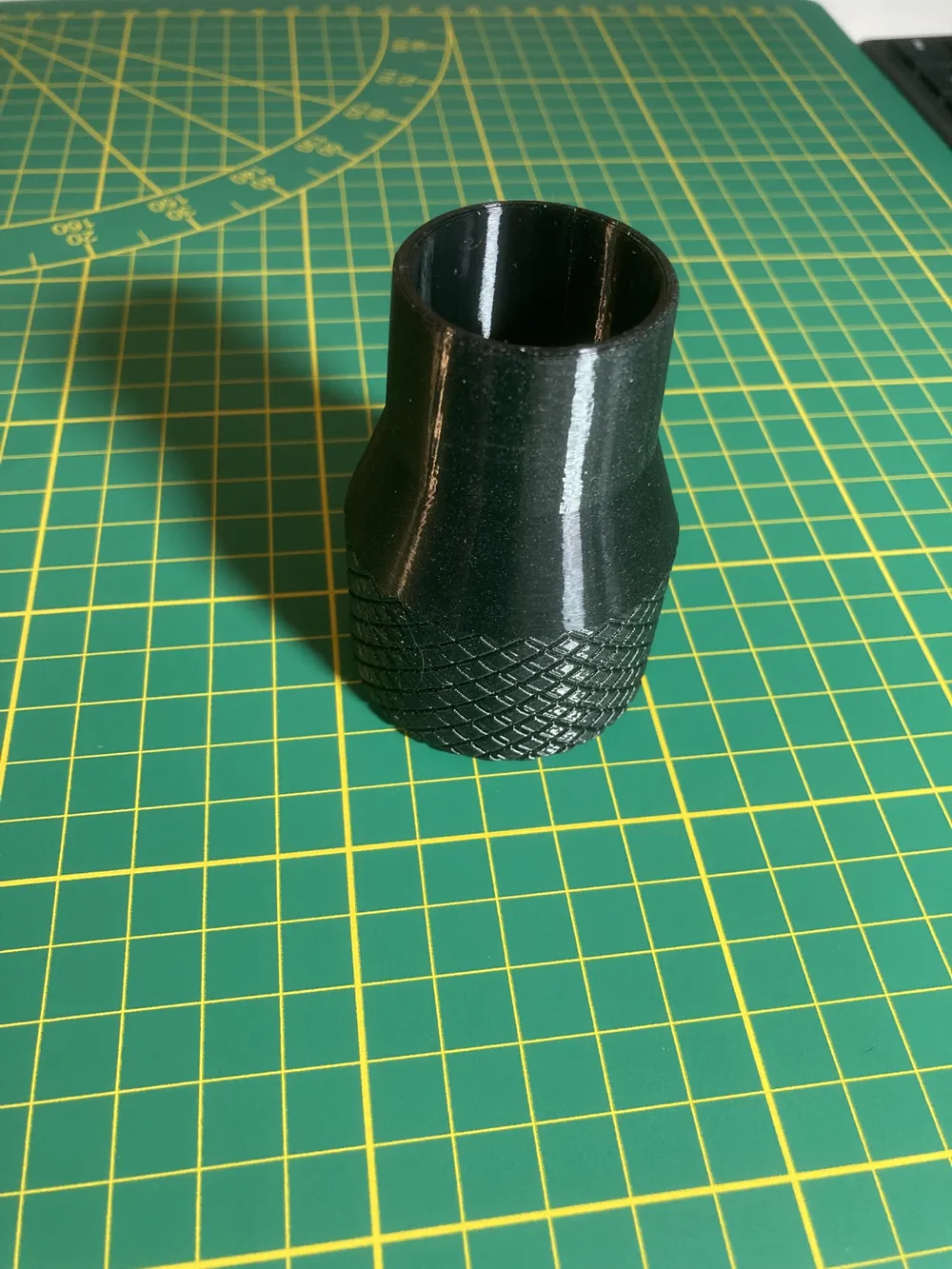

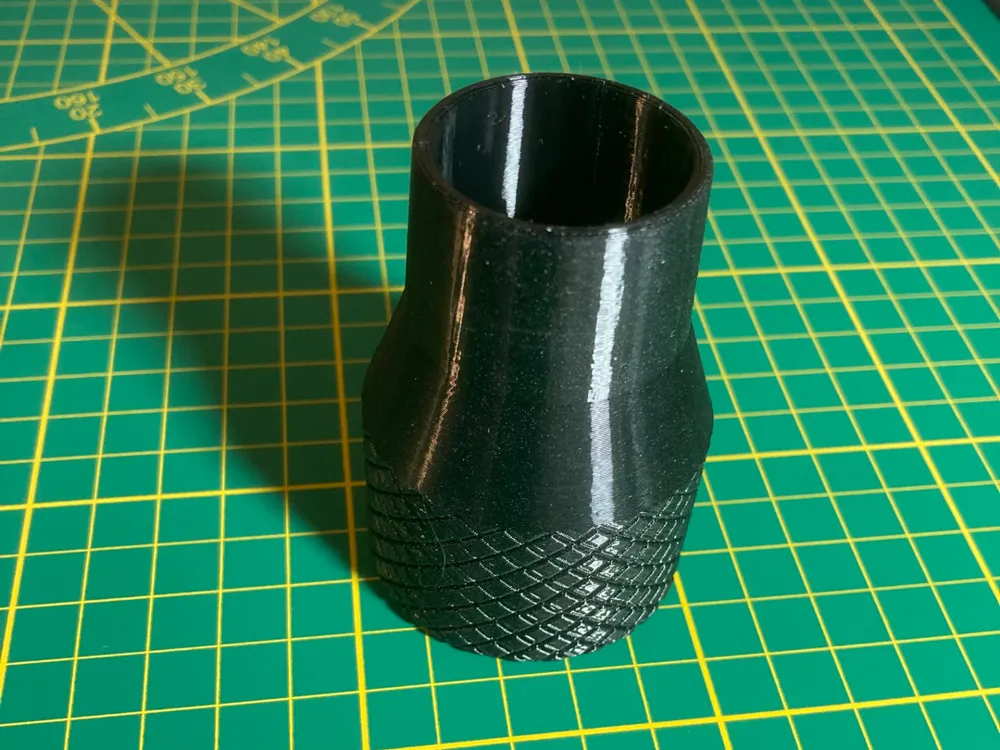

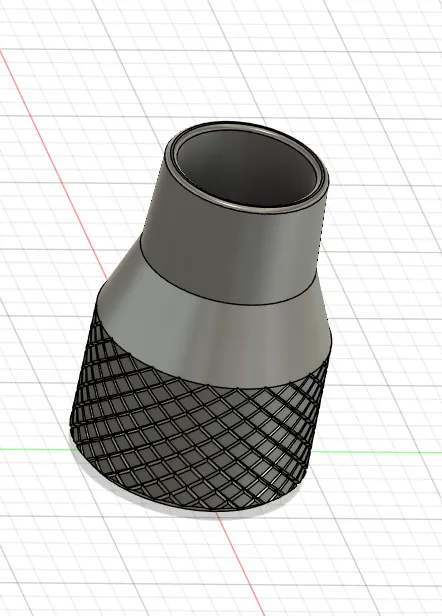

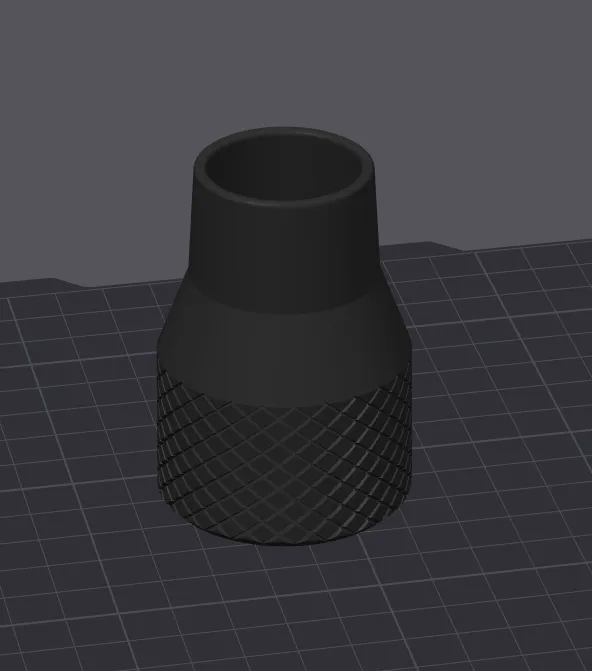

Vacuum Hose Adapter DN35

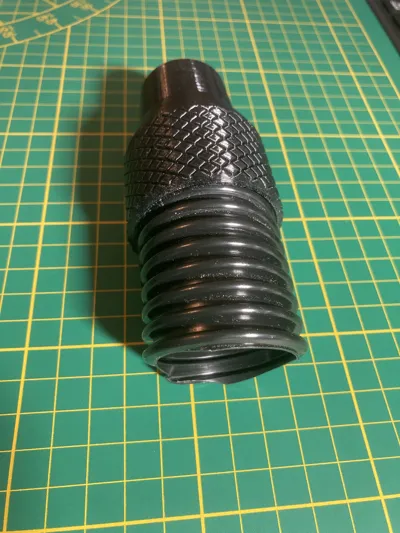

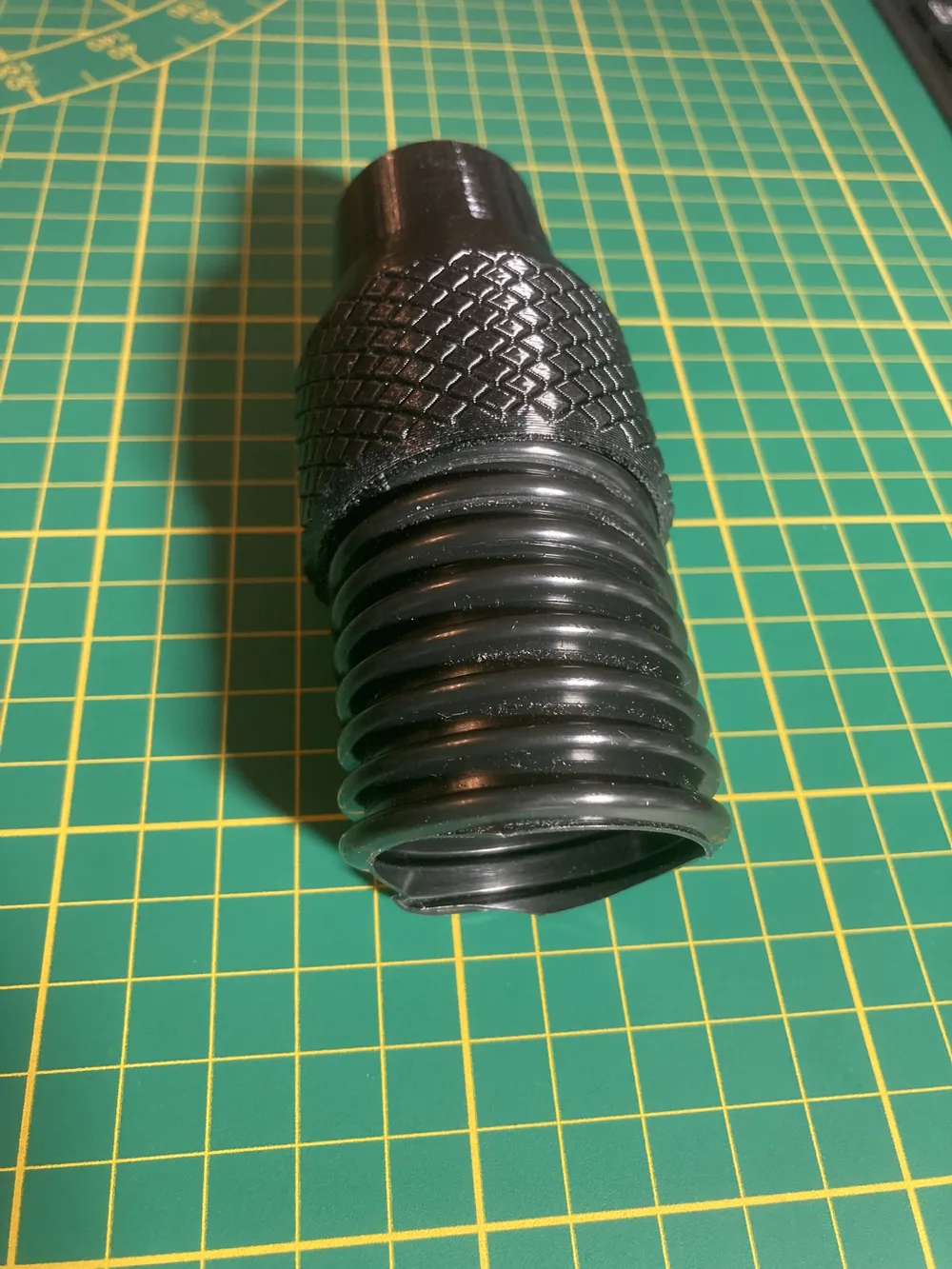

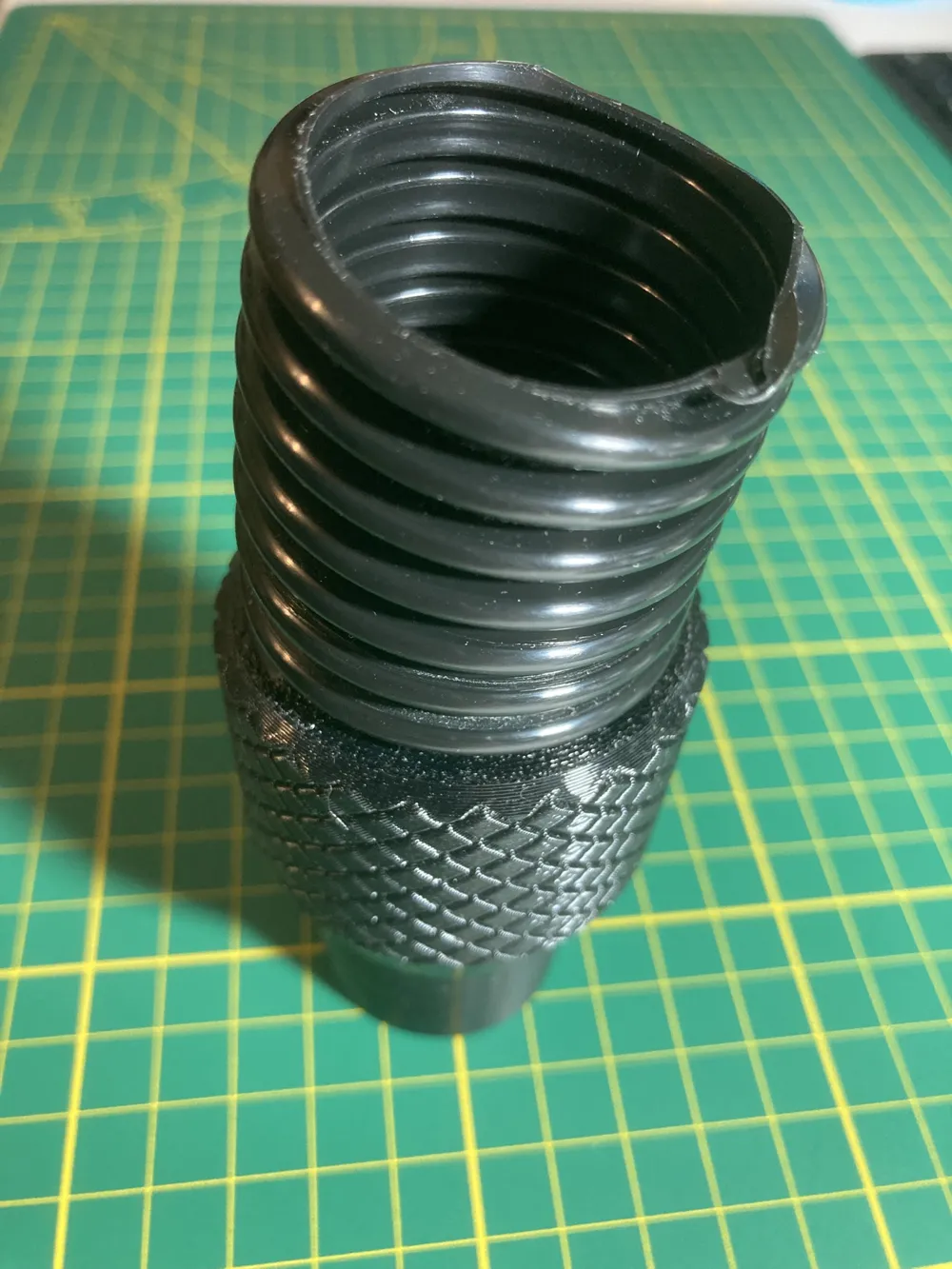

I designed the "Vacuum Hose Adapter" to mount my new hose to the sanding tool easily and securely.
Dimensions:
Base dimensions: approx. 70x49x49mm (HxWxD)
Diameter for suction hose: OD= 42mm // ID= 35mm
Diameter of the push-on/plug flange: OD= 34-36.2mm // ID= 29mm

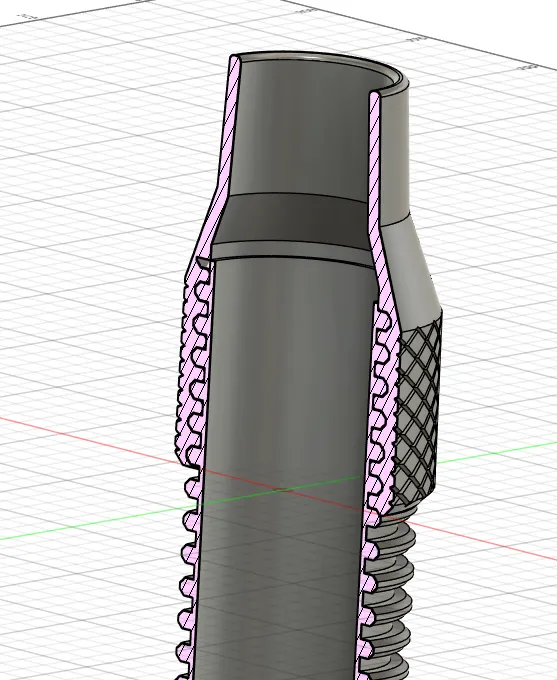

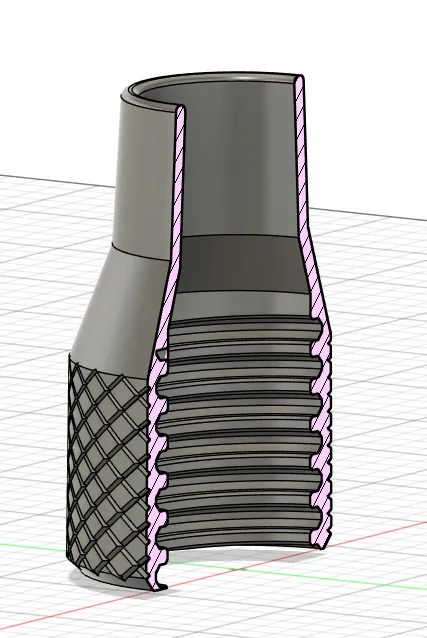

The adapter has a left-hand thread
Screw-in length of the hose approx. 30mm
Push-on length on the tool side approx. 22mm
Thread pitch on the hose: approx. 5.5mm
Thread depth on the hose: approx. 3.0mm
Printed in PETG
Suction hose used:
https://www.amazon.de/dp/B08H2FLLHW?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1
Good luck with printing and have fun with the product.
