DJI Osmo Action Remote Mount for Motorcycles

To conveniently operate my DJI OSMO Action 4 remote control while riding a motorcycle, I designed this mount. The wrist strap included with the remote is too short to wear the remote over a jacket.

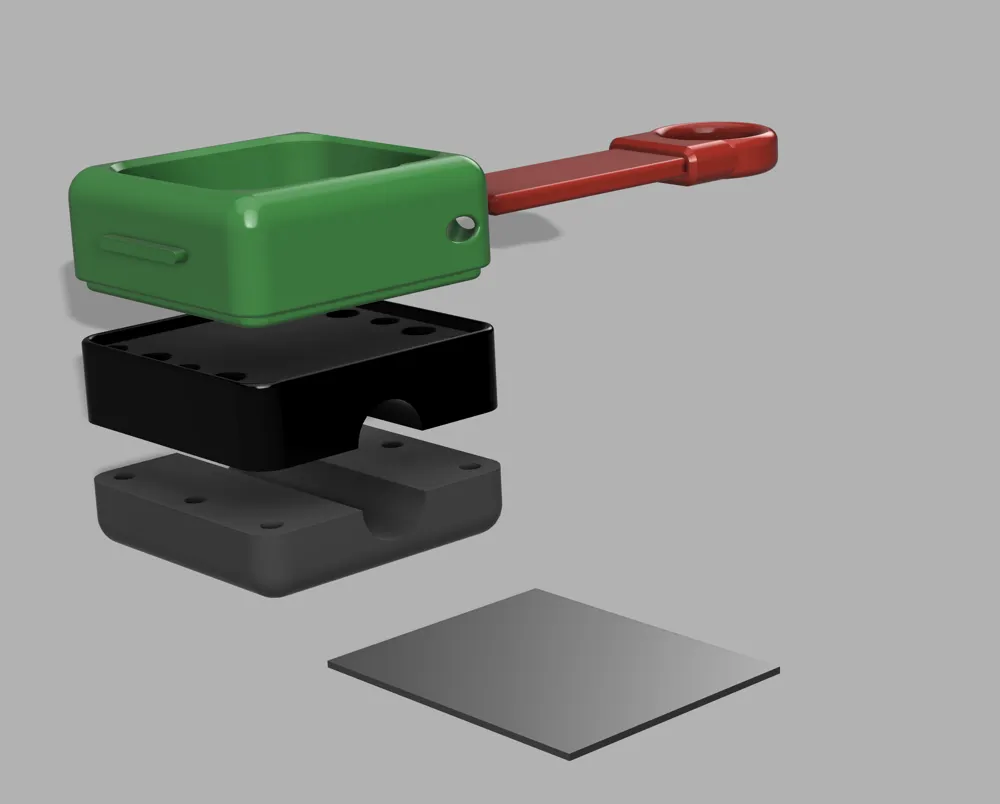

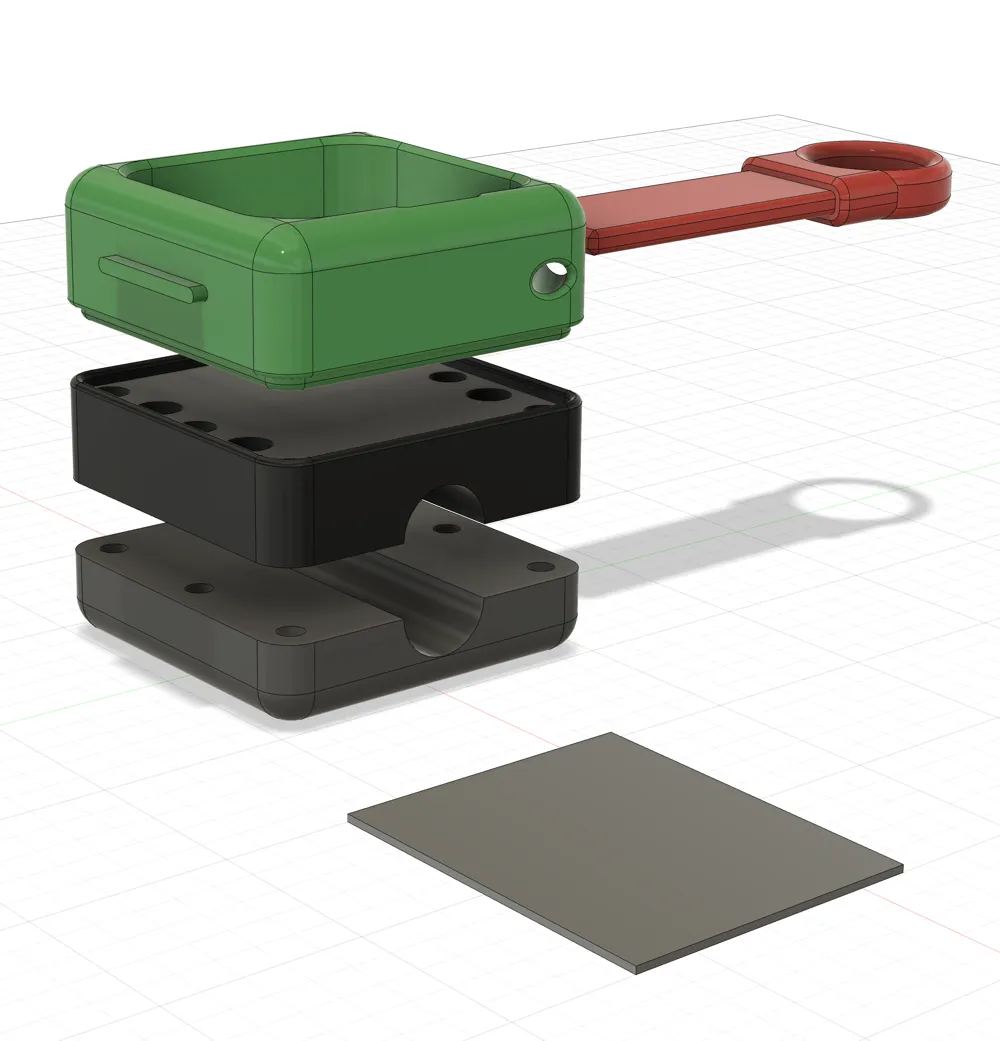

The mount consists of a total of five parts.

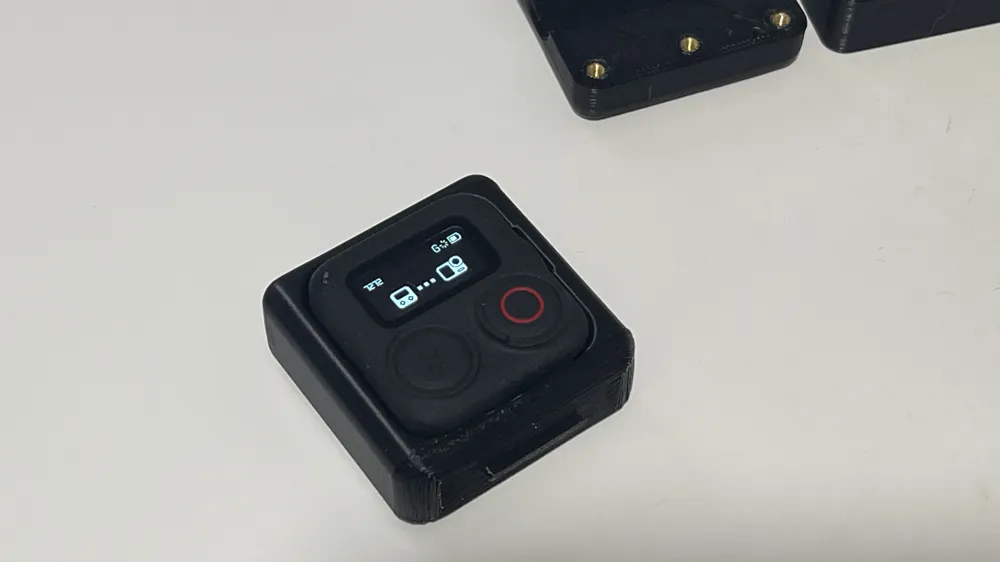

1. The remote control mount
2. The securing pin to prevent the remote control from falling out
3. The magnet mount
4. The lower part of the mount
5. A TPU pad to prevent slipping on the handlebar.

Due to its outdoor application, I printed it in ABS

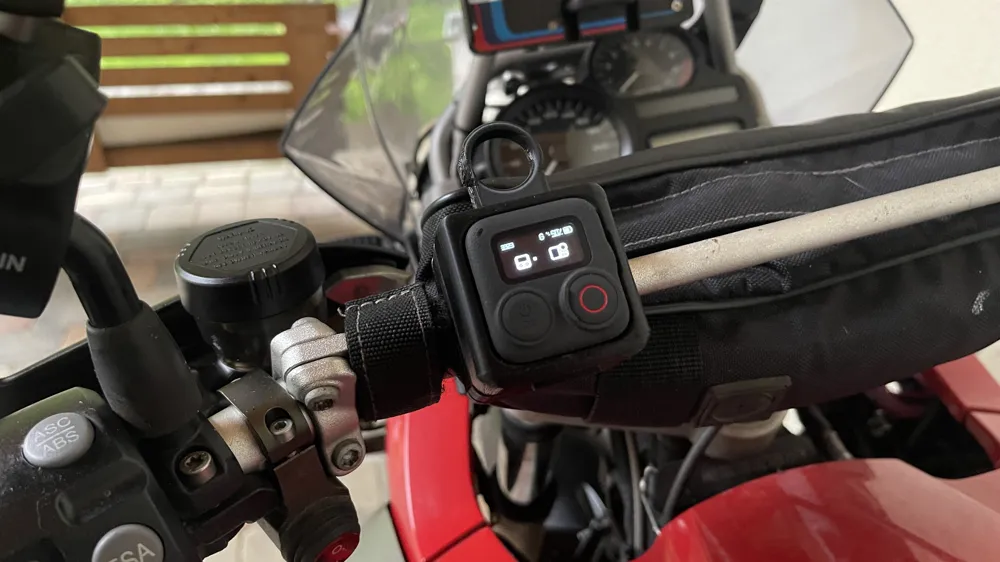

This is designed for handlebar mounts between 12 & 13 mm.

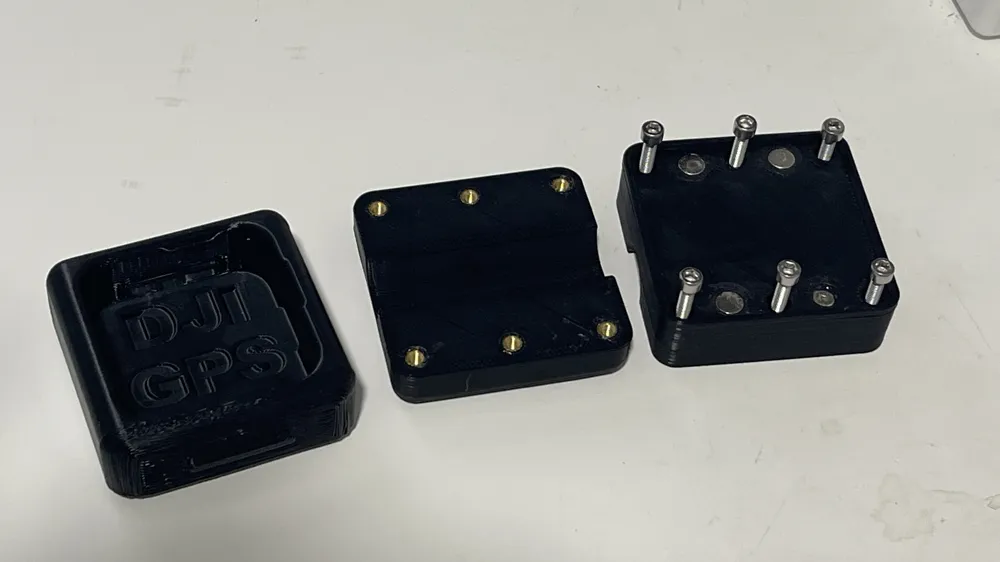

Additionally, 6x M3 heat-set inserts, 6x M3 x 16 screws, and 8x 6x4mm magnets are required.
