Watering planter bottle adaptor, for Coke bottles

IP Report

Print Profile(1)

All
A1 mini
H2D
X1 Carbon
A1
X1E
X1
P1P
P1S
H2D Pro
H2S
P2S
H2C
X2D
A2L

0.16mm layer (IMPORTANT for the thread), 3 walls, 15% infill
0.16mm layer (IMPORTANT for the thread), 3 walls, 15% infill
Designer
1.8 h
1 plate
4.8(158)

Open in Bambu Studio
Boost
1030
3100
201
63
3.2 k
2.3 k
ReleasedĀ

Bill of Materials

Bambu Filaments
Select all
Jade White (10100) / Refill / 1kg
Matte Ivory White (11100) / Refill / 1kg

Description

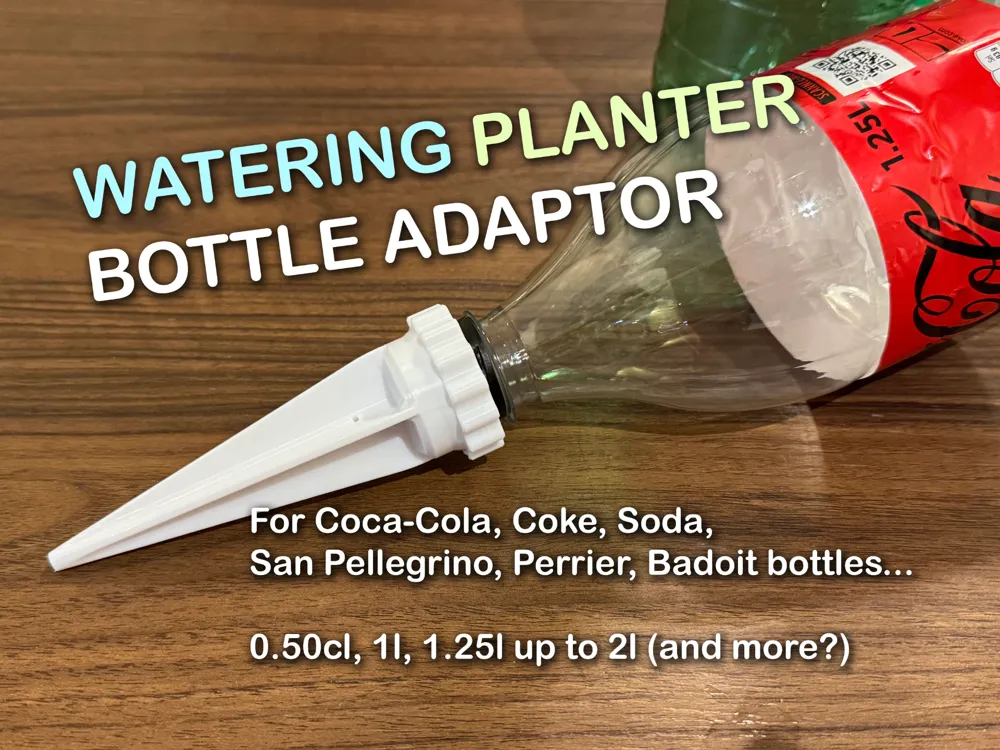

🌱 Enjoy this Watering planter bottle adaptor, made for Coke bottles : Coca-Cola, San Pellegrino, Perrier, Badoit, Coke bottles.

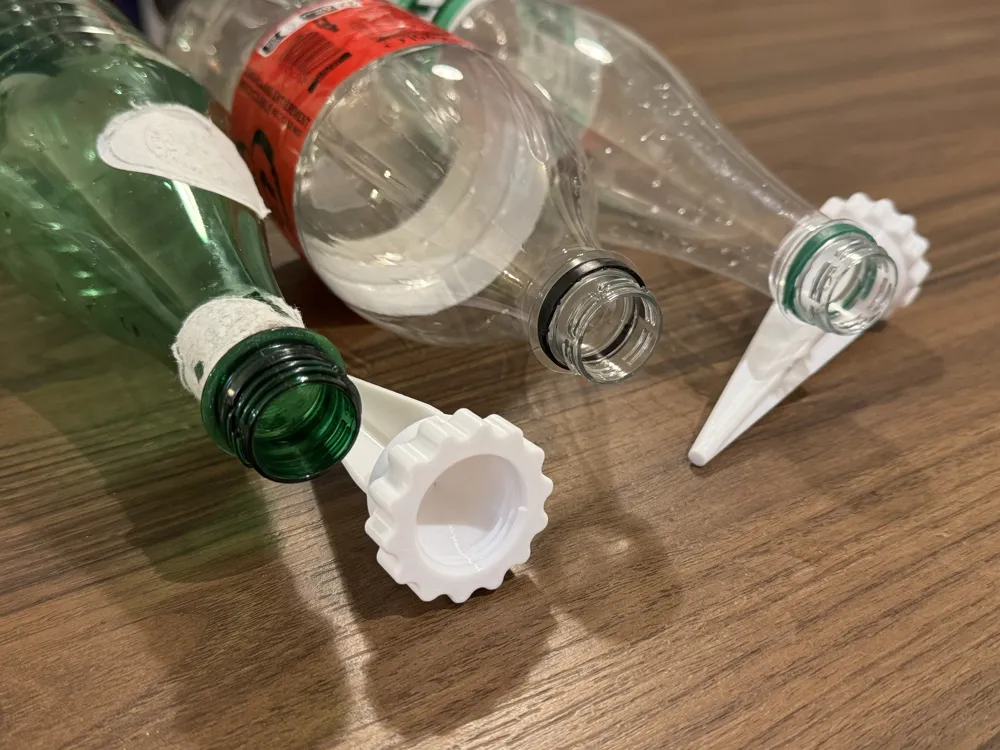

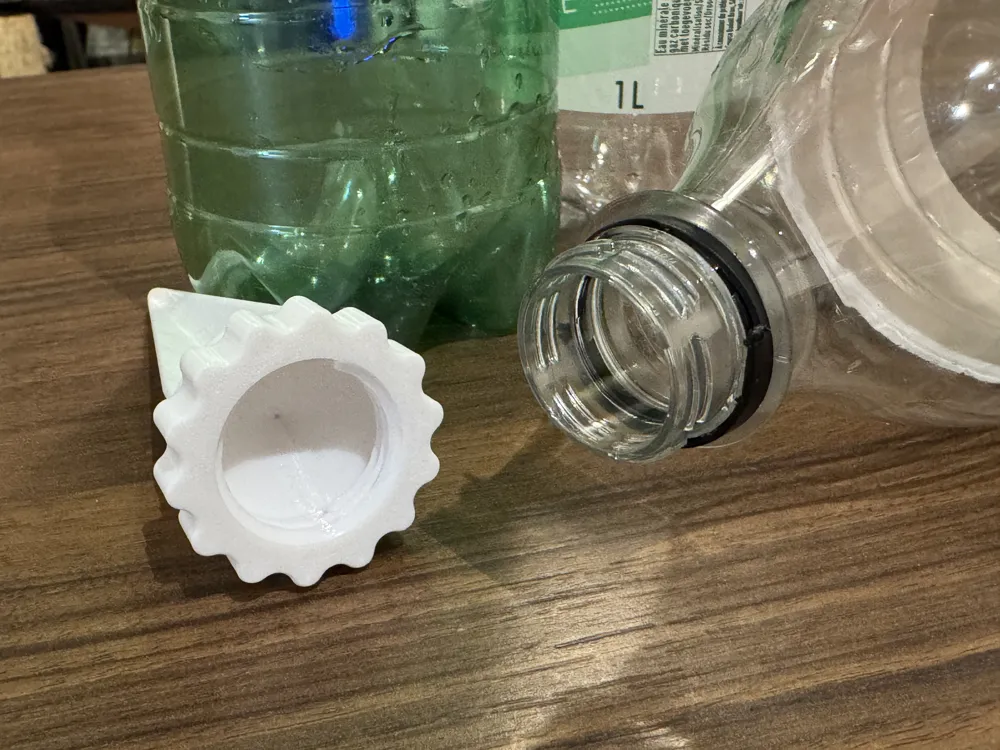

Compatible bottles : outside thread maximum diameter : 27.5mm (Not suitable for soft/flat/basic water bottle).

šŸ‡ŖšŸ‡ŗ (Worked nicely on "EU" variant, the photos i posted shows the thread type).



āš ļø IMPORTANT : Print with 0.16mm or lower layer height line at maximum to avoid stringing on the screw/thread part (No support needed). āœ… Printed nicely with PLA , no problems with the water flow. Inspect the holes to be sure they are not blocked by filing a bit of water inside a bottle and watching if drips are formed when keeping everything in the airšŸ’§.



How to use :

1/ Add water in the bottle, screw the ā€œWatering planter bottle adaptorā€.

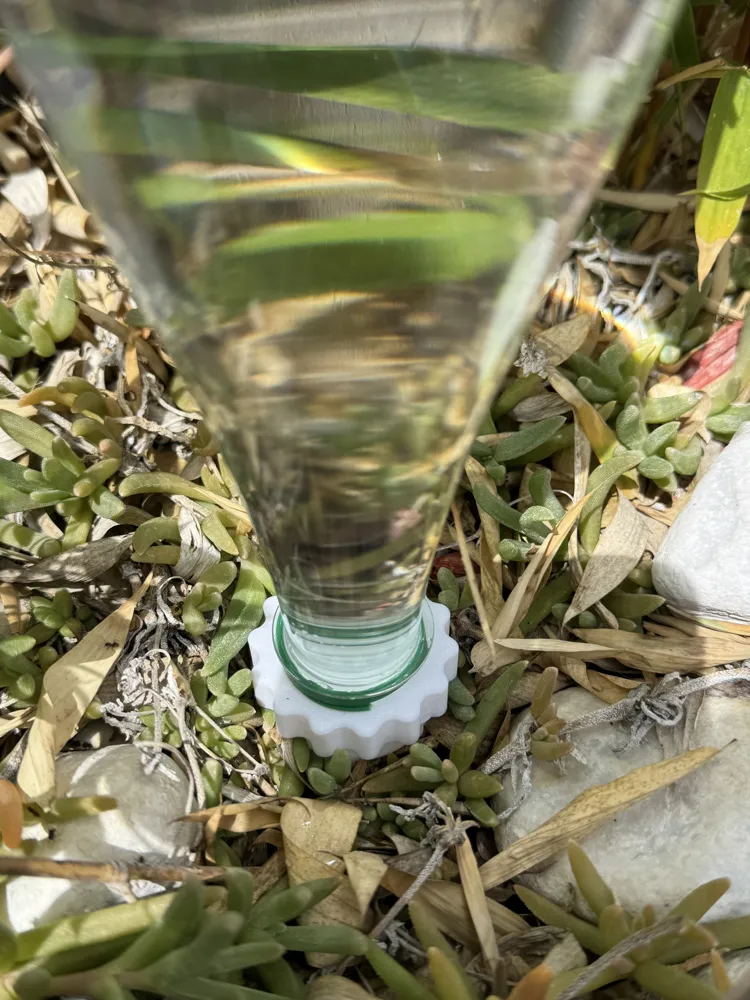

2/ Stick it near a plant (not too close to avoid cutting the roots of the plant), for better stability fully insert the blades inside the soil.

Don't worry if some water leaks at the top of the screw when sticking it, it will settle down and the water will start dripping slowly on the soil. You can use from 0.50cl up to 2l bottles (or more?). No need to poke a hole on the bottle.

3/ When the bottle is empty pull out the ā€œWatering planter bottle adaptor + bottleā€, unscrew the bottle, check that the holes are not blocked and go back to step 1. Need less flow ? Read tip bellow šŸ˜‰

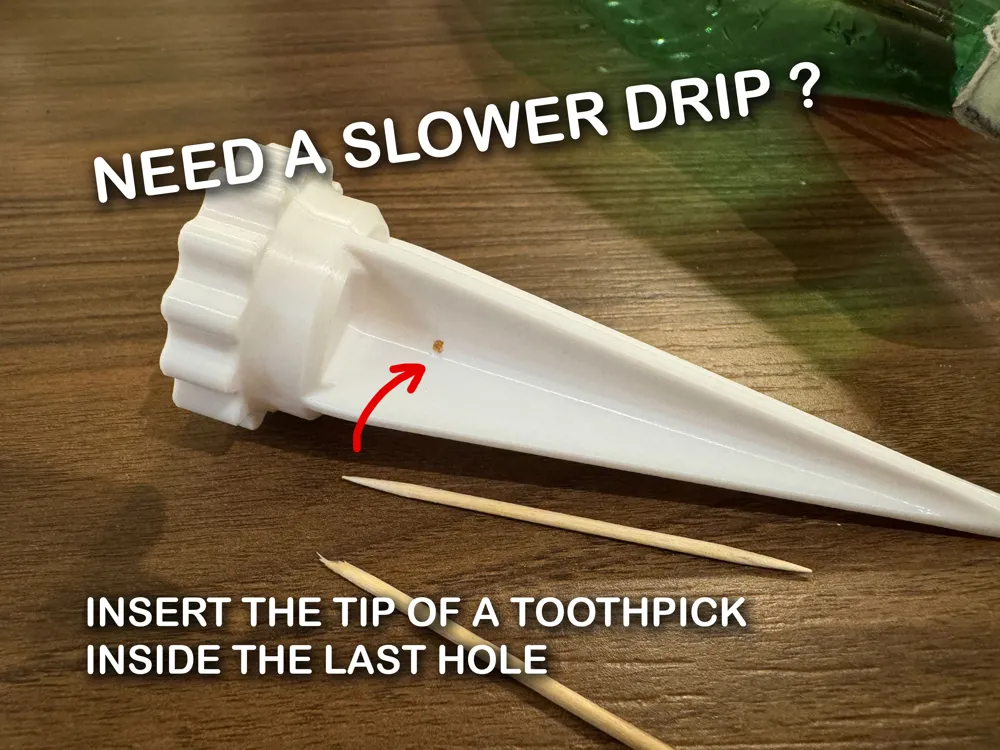

šŸ’¦ TIP : Need a slower drip ? Use a toothpick and insert the tip inside the last holes (BEWARE : dont stop the general flow that is near the handle).Ā

Boost Me (for free)

Enjoyed this design? Support me. Happy Gardening.

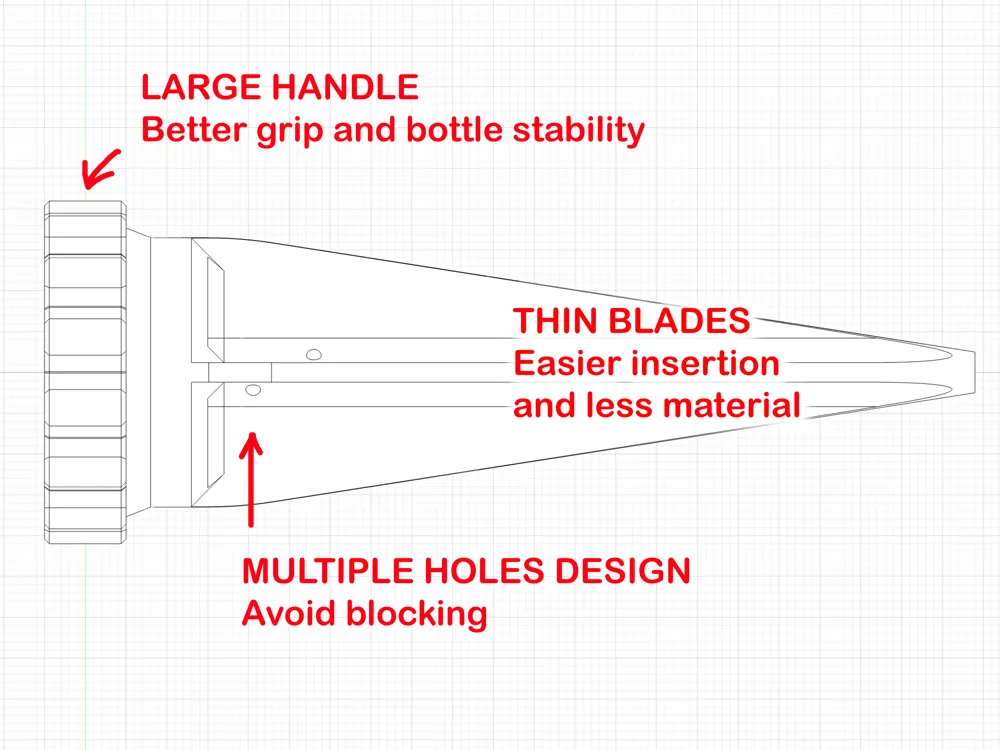

Multiple holes design to avoid any blocking of the flow inside the soil.

Thin blades for a better insertion and to avoid damaging the plants roots.

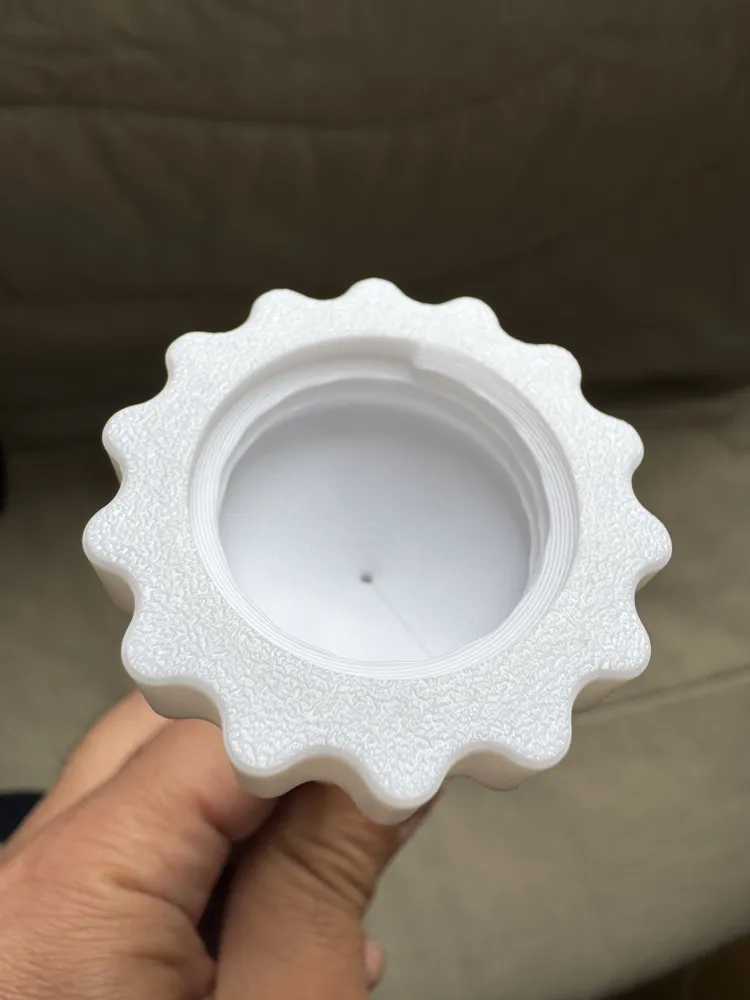

Textured handle for better grip and added bottle stability.
