Ricoh GR III Lens cap
IP Report
Print Profile(2)
Lens cap without foam seal
Designer
18 min
1 plate
Lens cap with foam seal (extra parts needed!)
Designer
17 min
1 plate
Open in Bambu Studio
Boost
43
137
7
3
228
185
Released
Description

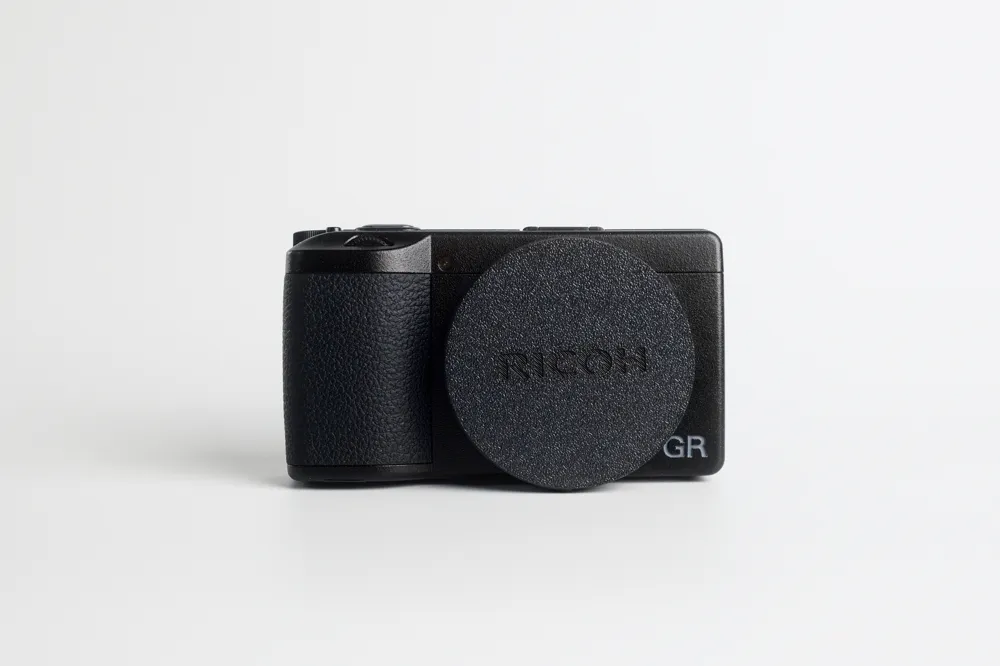

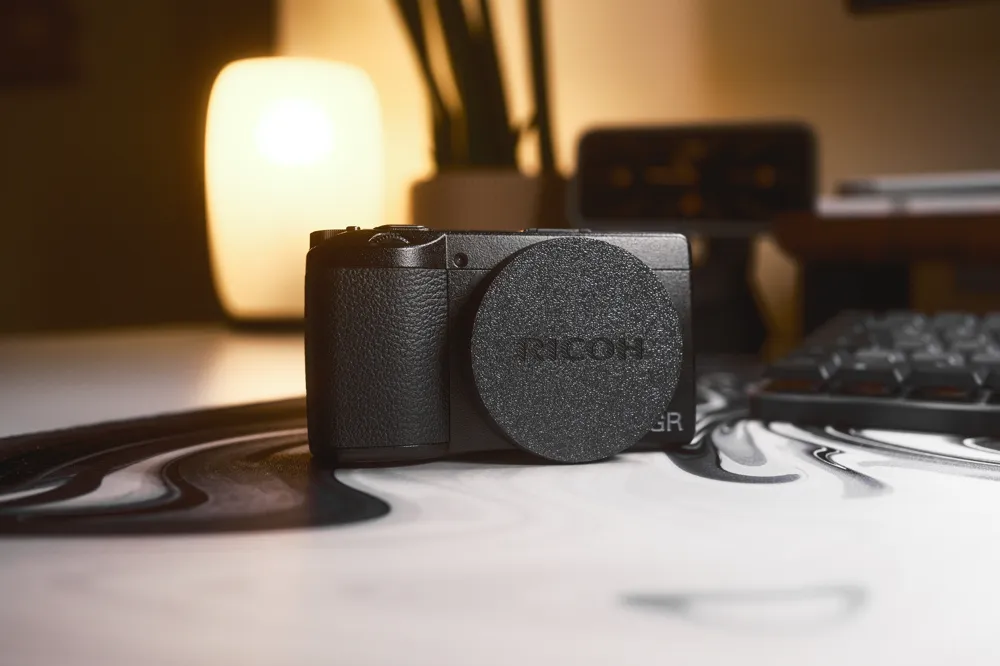

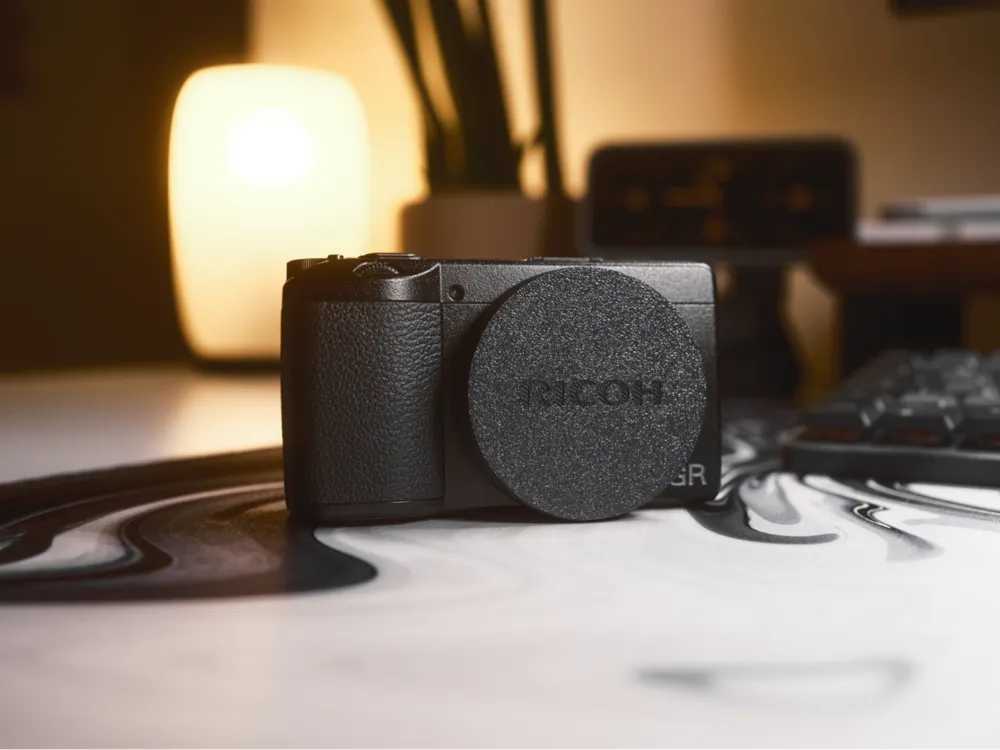

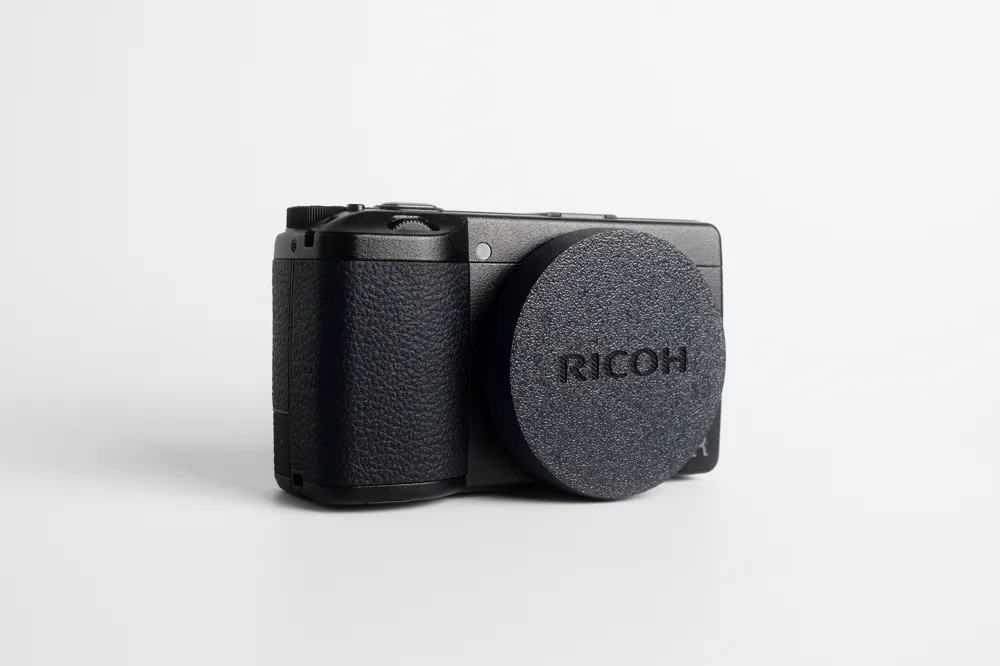

A simple lens cap for the Ricoh GRIII/GRIII X (+HDF) for protection against dust and scratches.

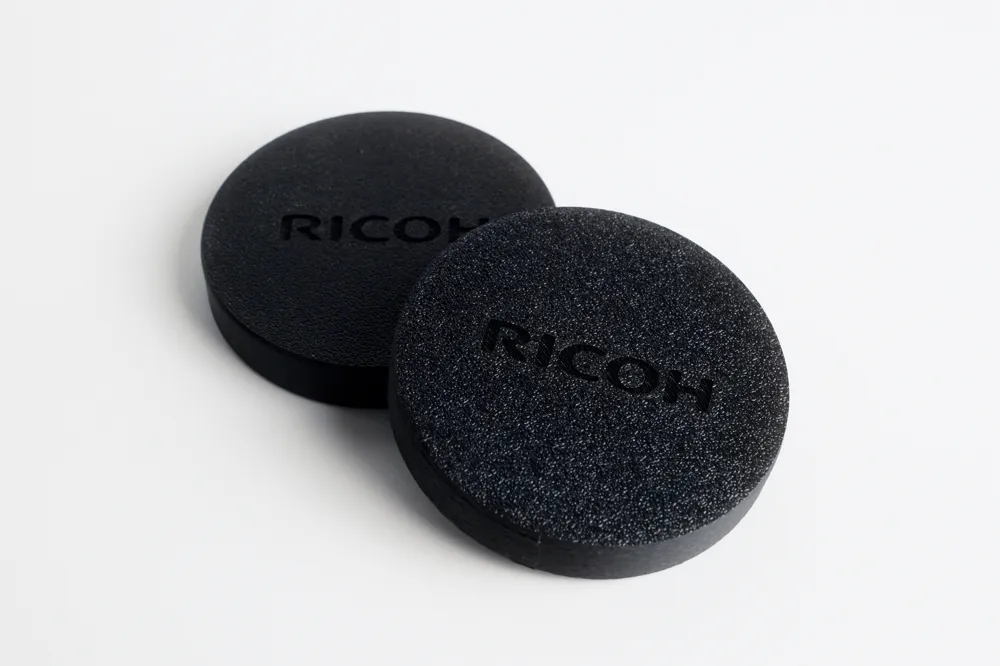

There are two versions

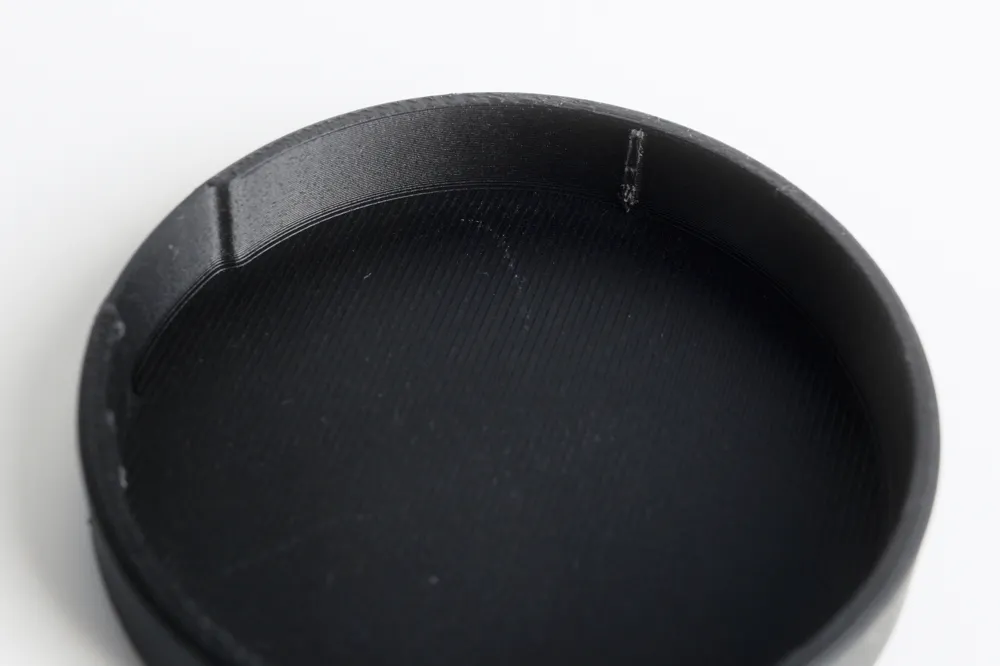

GR3_Lenscap_onlyprint:
This requires no extra parts. Can be printed directly in PLA or TPU.

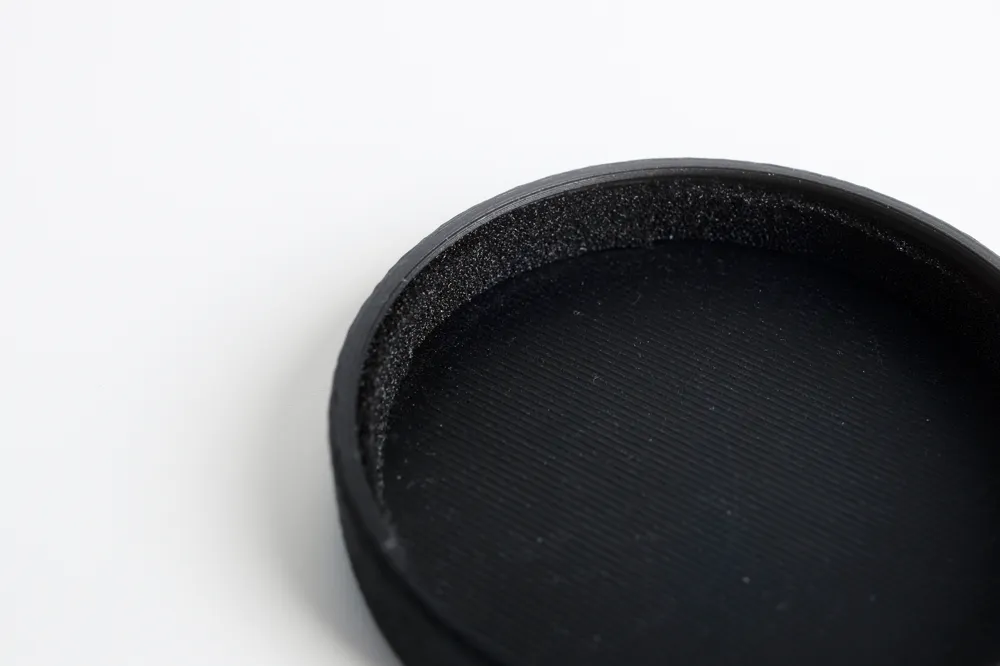

GR3_Lenscap_foamneeded (better dustproofing):
This version requires a 1.5mm thick self-adhesive foam sheet (shown as in the pictures).
Print settings:
Material = PLA, TPU or any other Filaments of your choice
Layerheight = 0.2mm
Walls = 2-3 perimeters
Infill = 5-10%
Support = Off
