Big Brake Adaptor PC32
IP Report
Print Profile(0)
Add the first print profile to earn points
Boost
3
7
0
0
6
0
Released
Description

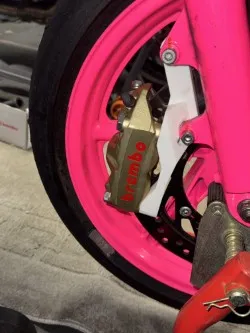

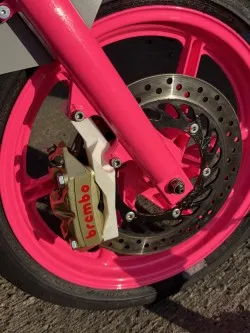

Radial Caliper Adaptor for PC32 CB500 (1994-2003)
this file is for mockup purposes only, and the file can then be used to have an adaptor machined (i recommend 7075 aluminum)
some minor modification may be required dependent on caliper used etc.
this was designed around a 100mm Brembo M4 Radial Calliper from a 2012 Aprilia RSV4 1000, but all 100mm callipers should fit.
Again, THIS IS NOT THE FINAL PRODUCT AND IS FOR MOCKUP AND REFERENCE ONLY!!!
Cant believe i need to say that, but such is the world we live in.
to complete mockup you will require;
M10 standard pitch tap
M8 standard pitch tap
recommend 4 wall loops to allow for tapped holes
