Rain Gauge Grid and Float

IP Report

Print Profile(1)

All
P1S
P1P
X1
X1 Carbon
X1E

0.12mm layer, 12 walls, 15% infill
0.12mm layer, 12 walls, 15% infill
Designer
31 min
1 plate
4.0(1)

Open in Bambu Studio
Boost
22
49
1
2
50
12
Released

Description

Content has been automatically translated.
Show original

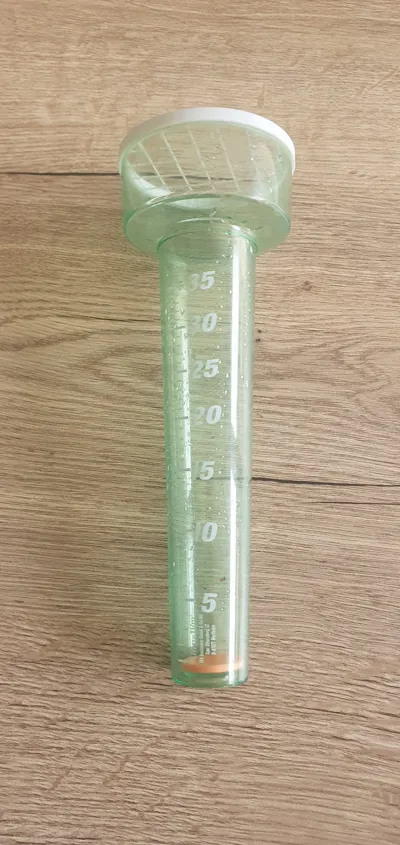

For rain gauge with 84mm outer Ø

It is possible to change the model's scale to fit other rain gauge sizes

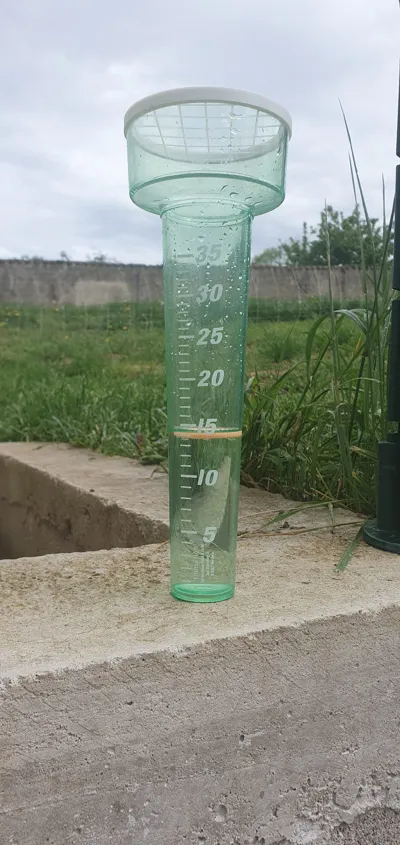

I created this to be able to see the rain level from further away.

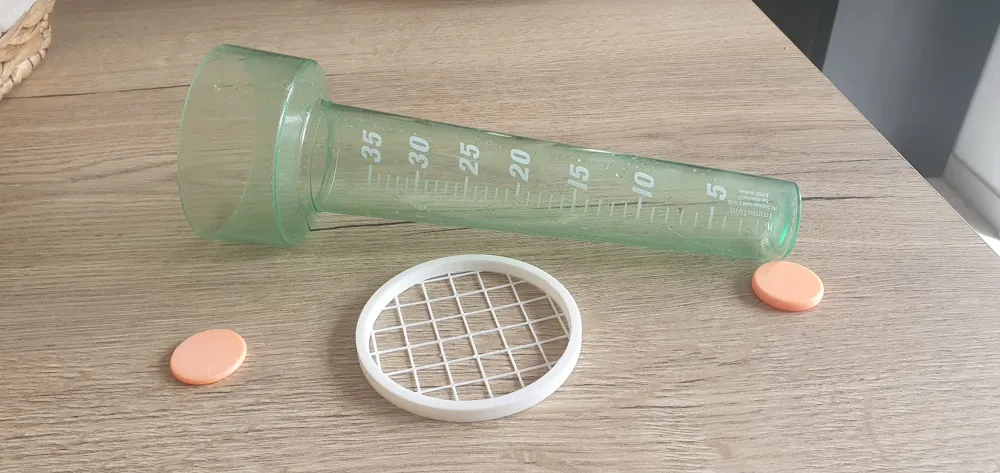

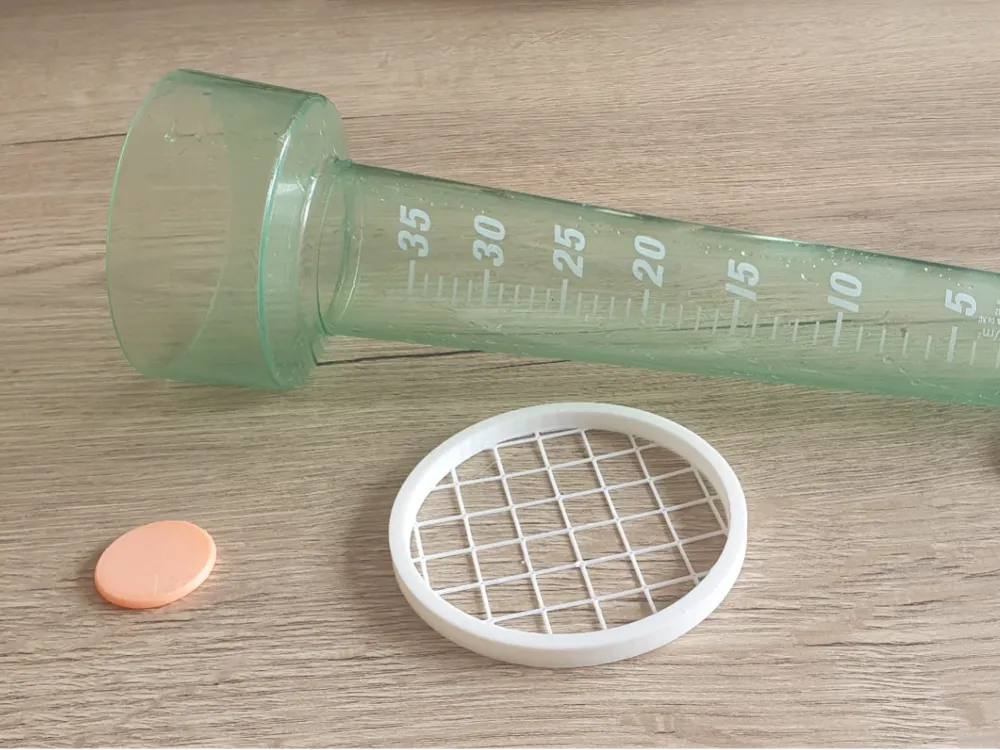

(a 3mm float is sufficient for my case, another 5mm one is also proposed in the Bambu Studio model)

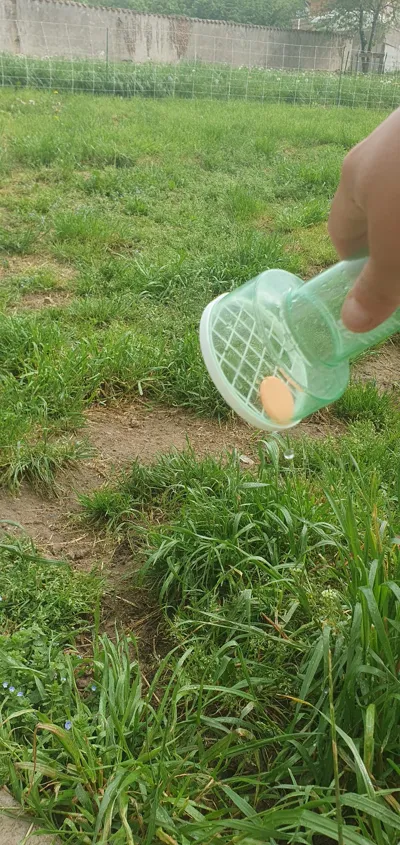

The grid is there both to protect the rain gauge from things that could get stuck in it, protect insects and also to prevent the float from falling when emptying the rain gauge.



For now it is in PLA but it would be preferable to print it in ABS or PETG to avoid problems related to UV

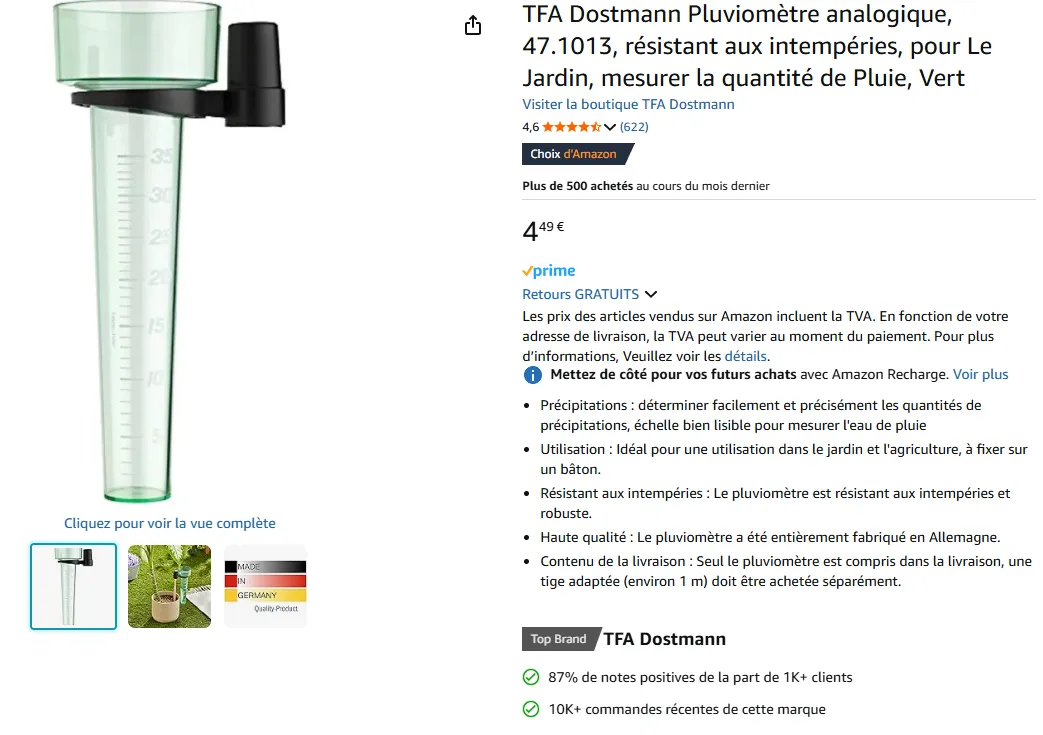

https://www.amazon.fr/dp/B00C1BOXA4?ref=ppx_yo2ov_dt_b_fed_asin_title
