P1S / P1P Pen Plotter attachment
Print Profile(1)
Description
An updated version of this model is available here.
Improvements in the new version
- Easier installation and removal.
- Prints 3x faster and requires 4x less filament
- Added Documentation in the model description.
Decreased risk of printer damage on collision.
Overview

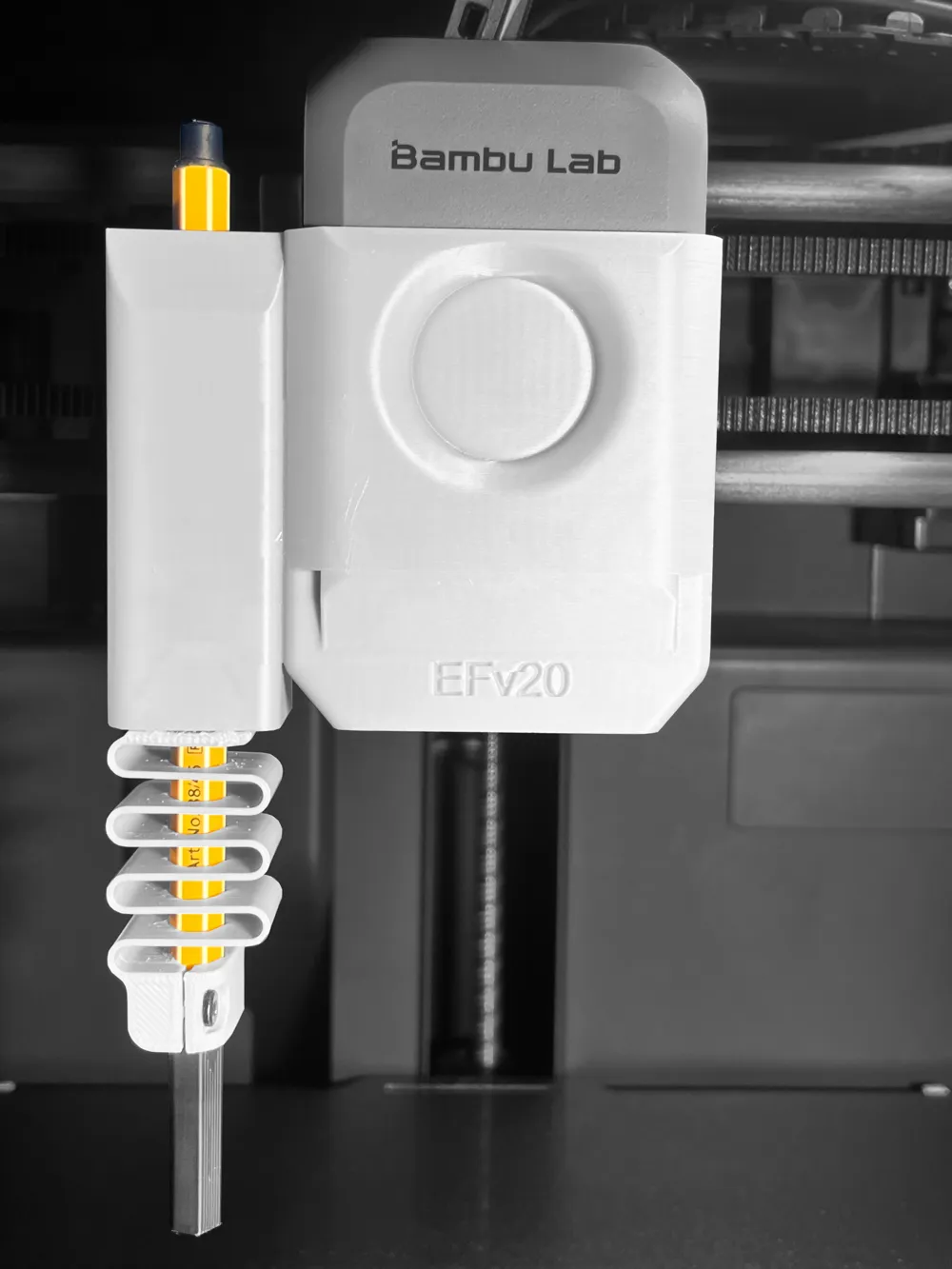

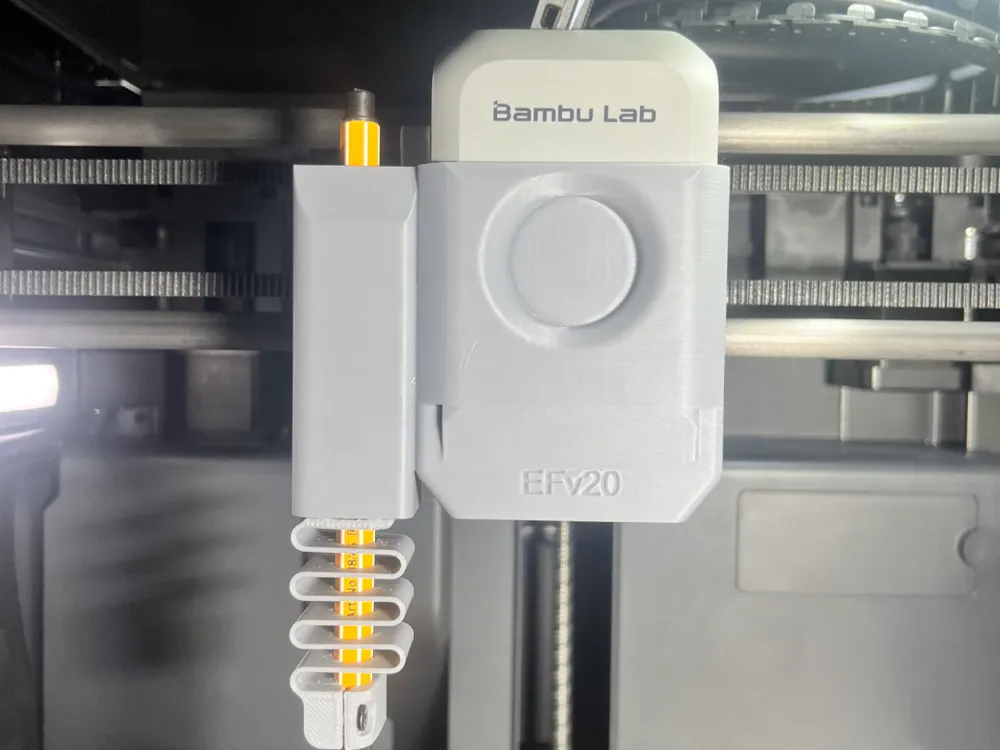

This add-on turns your P1 series printer into a pen plotter. It prints support-free and snaps directly onto the extruder. It’s designed specifically for the popular Stabilo® fine-liner.
Not supported models: P2S, X1C, X1E, X2C, H2S, H2D, H2C, A1 mini, A1
Installation
- Snap the larger mount onto the extruder. (It may require some light force)
- Insert the pen into the spring-loaded part and secure it using a spare screw (you’ll find one in your printer’s accessory box).
- Home the printer.
- Snap the spring-loaded pen holder into the mount already attached to the extruder.
Happy Plotting! (Check the comments on how to convert an image to G-Code.)
Boost Me (for free)
If you like this model, giving it a boost is a free and an easy way to support my work. Thanks!
Warning
If used incorrectly this attachment could damage your 3D-Printer.
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
