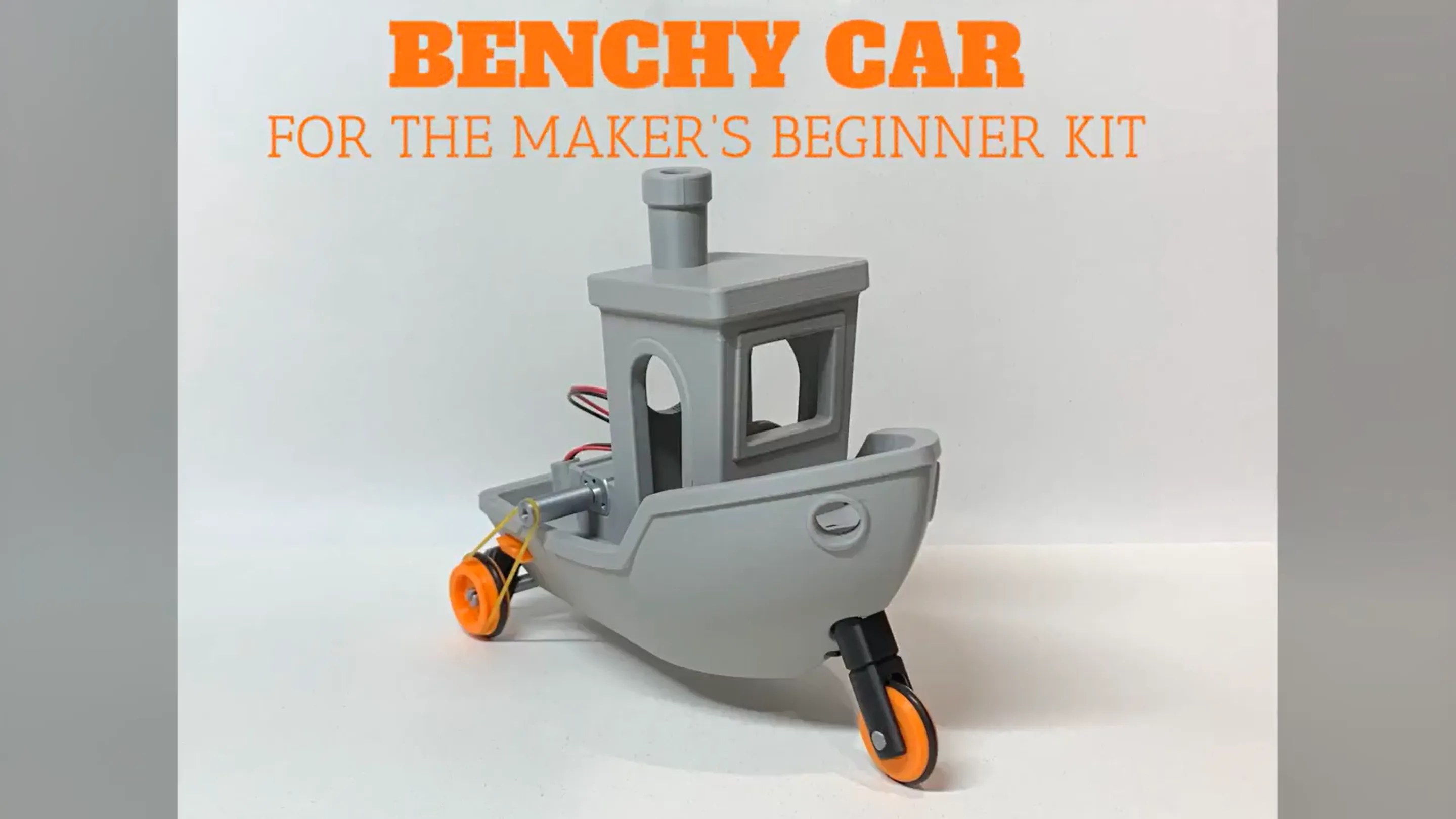

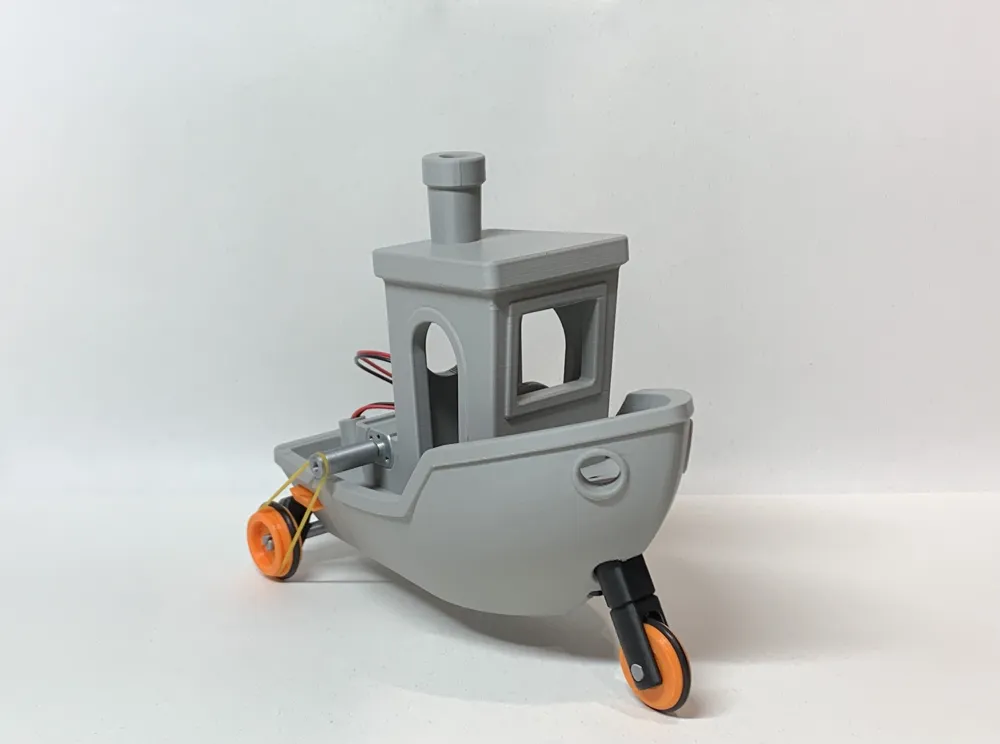

Benchy Car (For The Maker's Beginner Kit - ZC002)

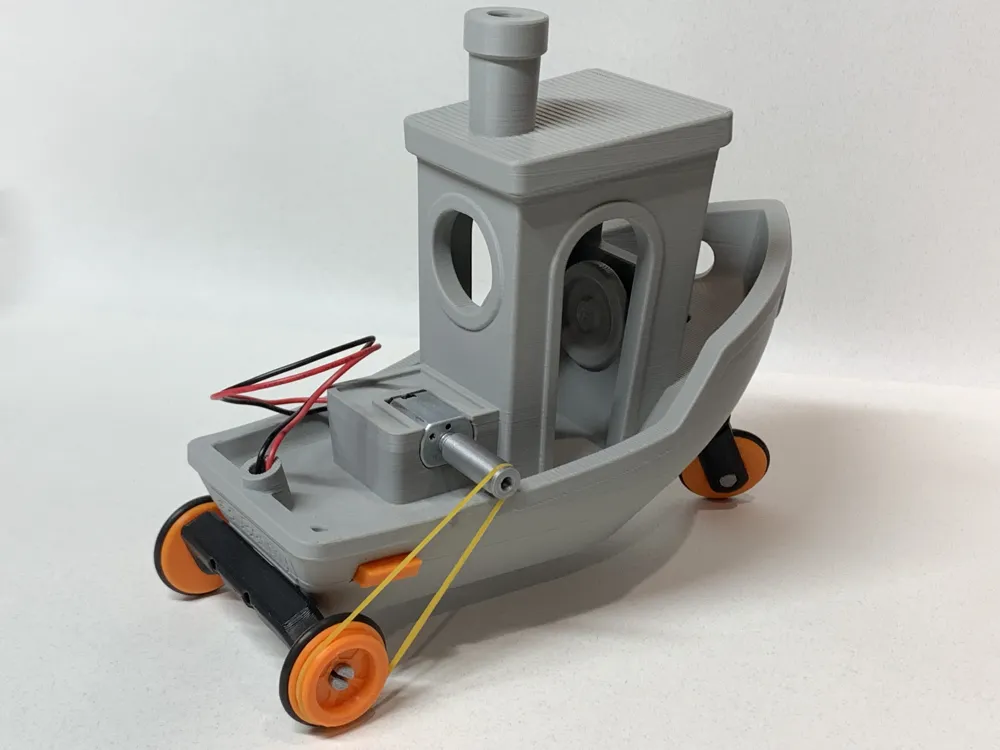

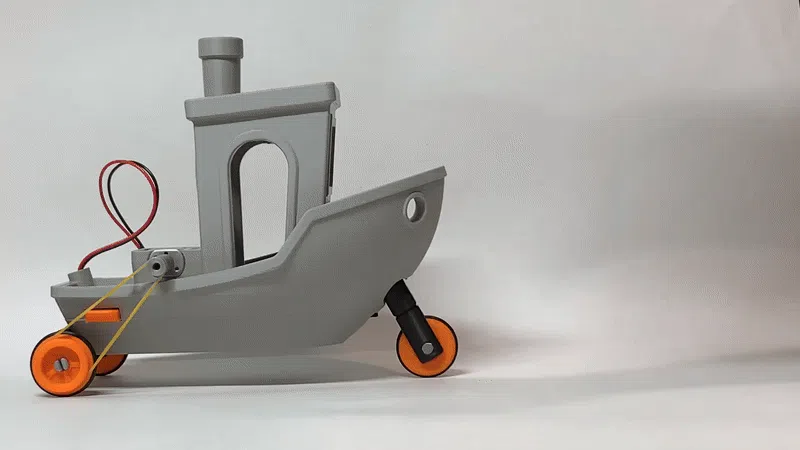

This motorised 3D Benchy Car construction kit makes use of parts from the Maker's Beginner Kit - ZC002 both to put it together and power it with the included 030 micro DC motor. For Assembly ensure that you take a look at the attached Assembly Video (Found Below).

Main Features

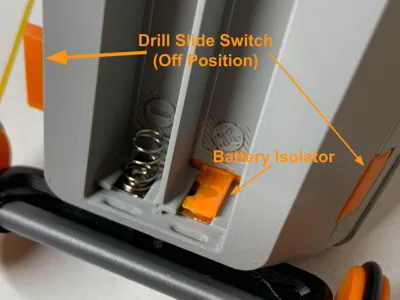

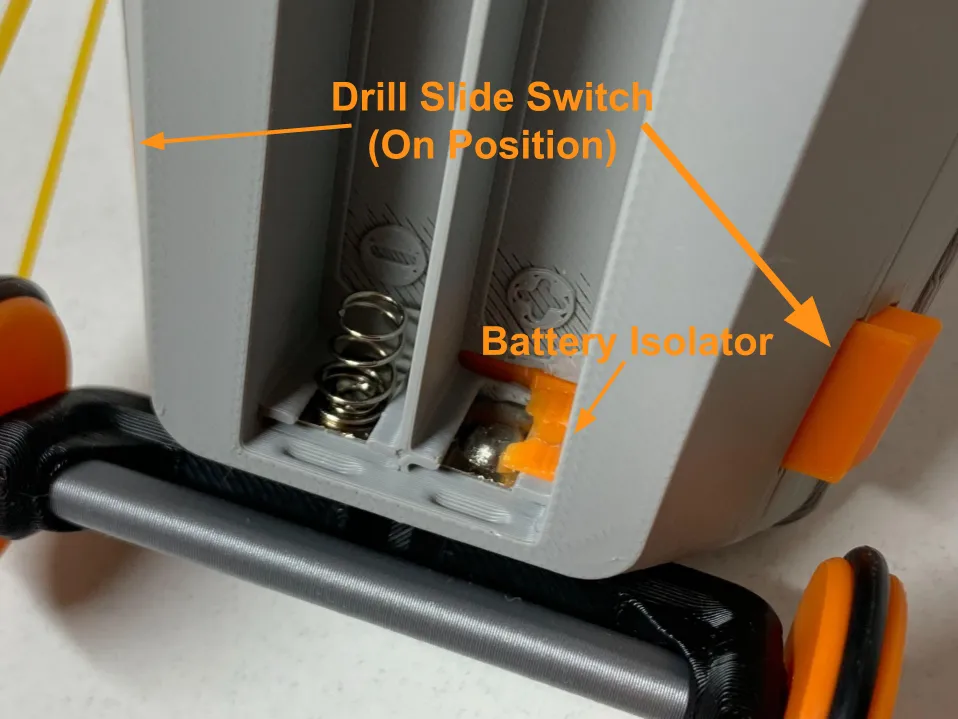

Drill Style Slide Switch - Makes it easier to switch the model on and off even with one hand.

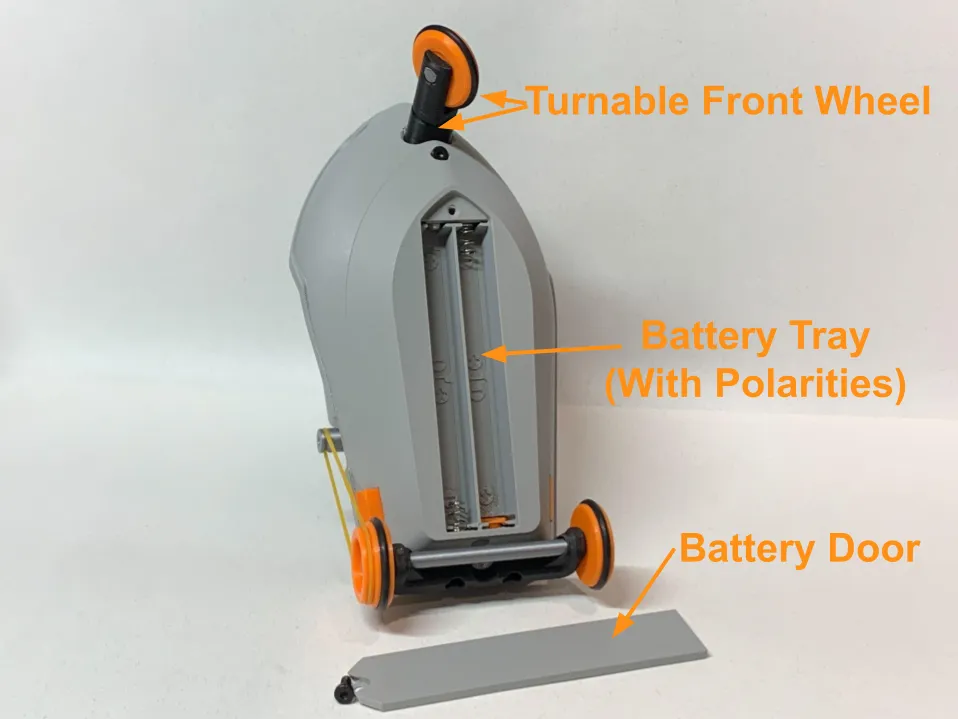

Battery Tray - The internal battery tray has been designed as a part of the model allowing for easier replacement of batteries.

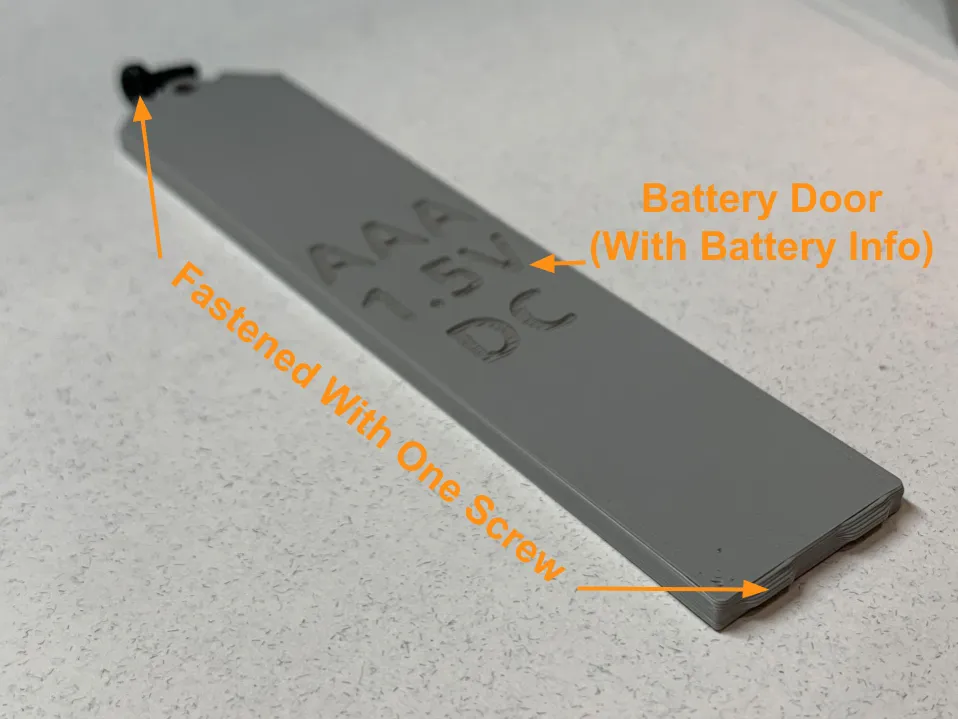

Battery Door - Only requires one screw it fasten it securely in place.

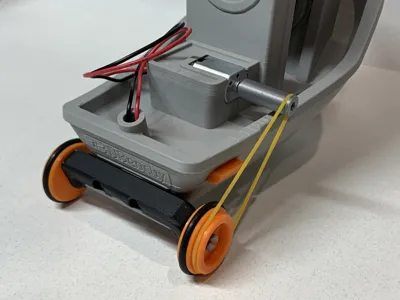

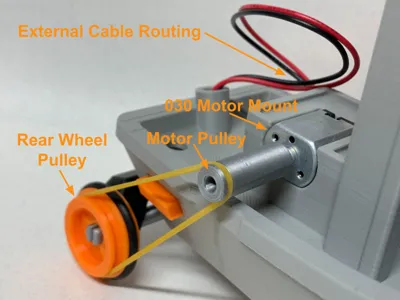

030 DC motor mount - No screws required as it is held in place with the plastic and elasticity of the rubber band.

Cable Routing - Enables cables to be routed in the open for easy installation.

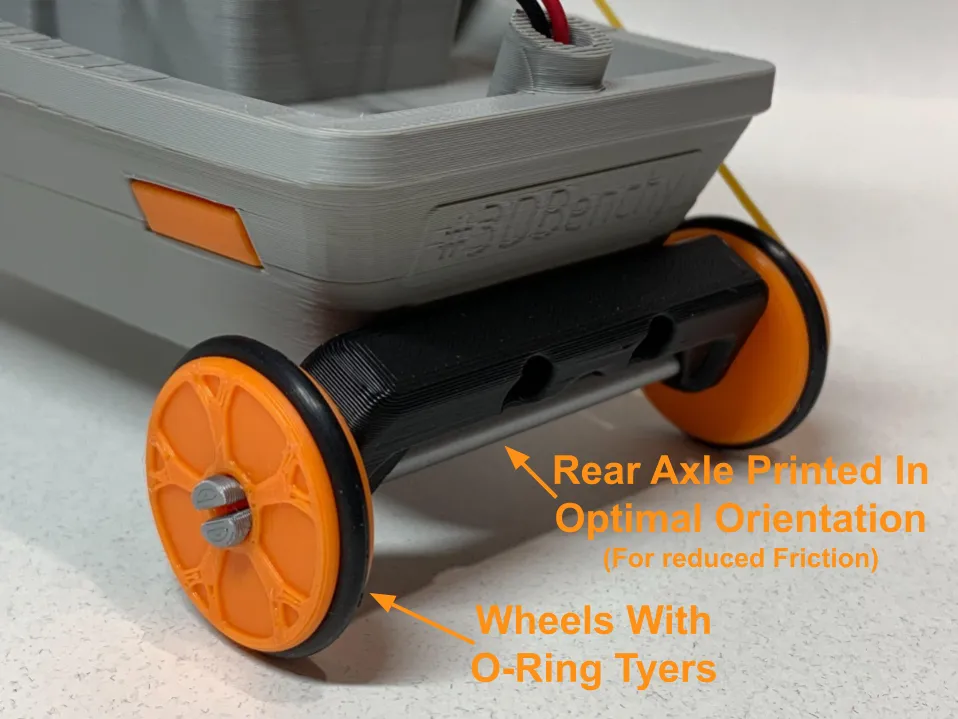

Wheel Axles - Printed in specific orientations for minimised friction and optimal efficiency of the 030 motor.

Internal Positioning Braces - Aligns the models top and bottom sections in the correct positions for the screws to be inserted.

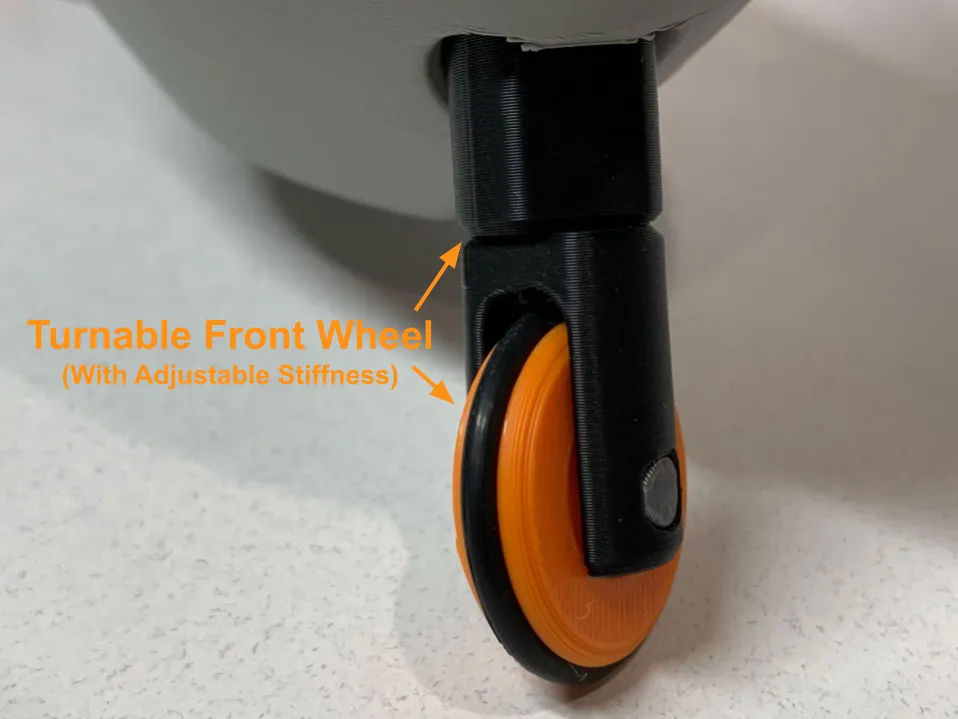

Front Wheel Forks - Holds the front wheel and axle allowing for it to turn left and right with one screw for swivel section enabling for desired stiffness on the swivel and a second for attachment to the body.

Non 3D Printed Parts (From The Maker's Beginner Kit - ZC002)

• 030 Micro DC Motor (Qty: 1)
• AAA Battery Terminal Kit (Qty: 1)
• Power Cable Kit with 2mm Spade Terminals (Qty: 1)
• BT3x8 SHCS Self Tapping Screw (Qty: 10)
• OD24x2.5mm 0 Ring (Qty: 3)
• 1.4x20mm Basic Rubber Band (Qty: 1)

• AAA Battries - Not Included (Qty: 4)



Assembly Video

https://drive.google.com/file/d/171vujul5Hhj12DlIGRmOIsBAPxhZ4jBN/view?usp=sharing

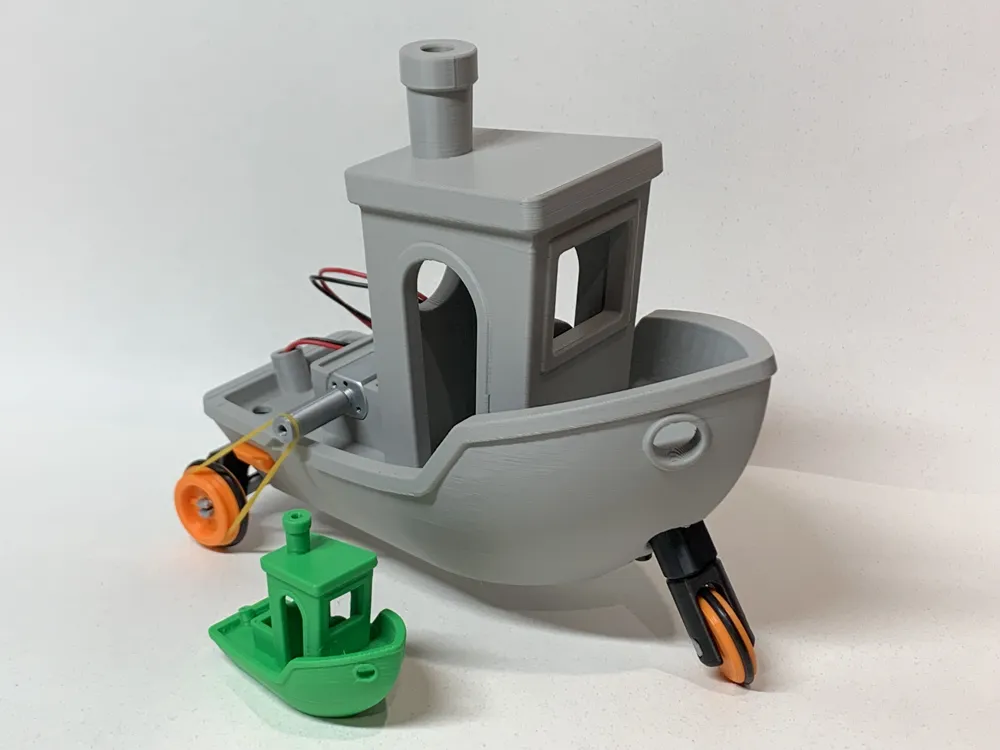

Model Inspiration

This model was inspired by the 3D Benchy By ‘Daniel Norée & Paulo Kiefe’. More info found at: https://www.3dbenchy.com/.

Update Details:

08/05/2025: Assembly Video Released
