Pedal Mounts for Moza Light Pedals

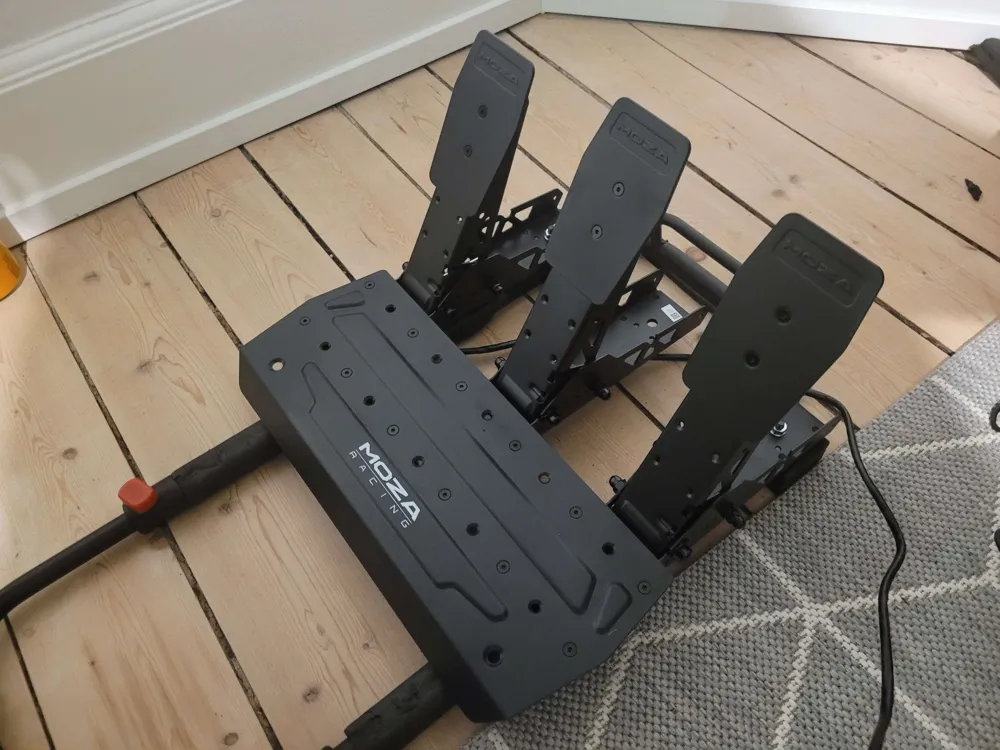

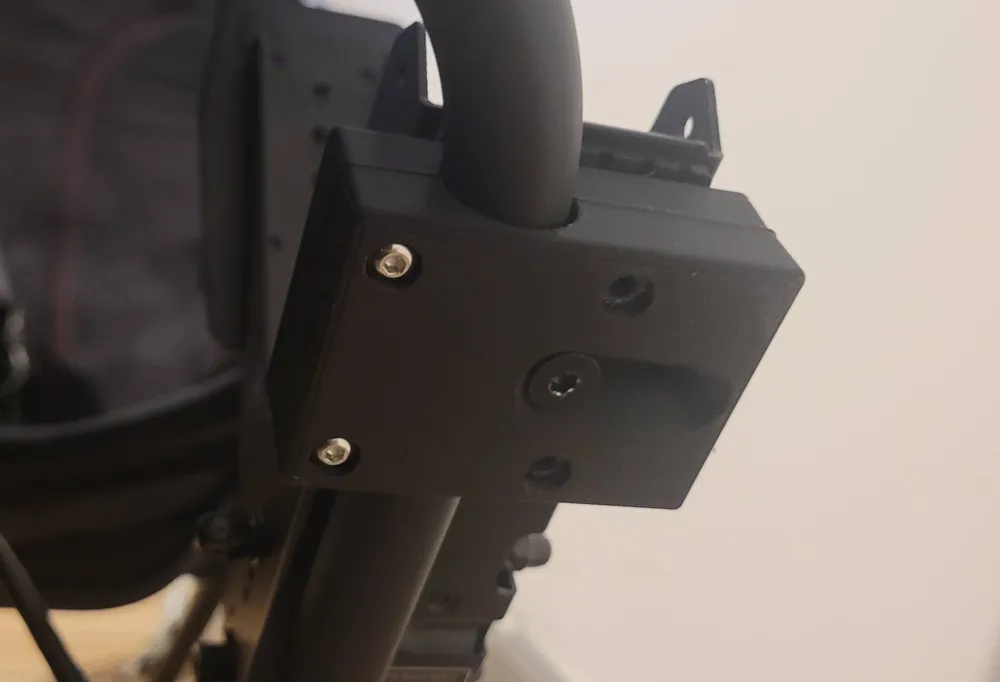

These mounts are specifically designed to install Moza Light Pedals onto the Playseat Challenge. They were originally created for the R3 bundle but also fit the R5 bundle, as both use the same pedal set. Compatibility with other pedal models has not been tested.

I printed my mounts using PLA, with 100% infill to ensure maximum strength and to confidently tighten the screws without any flex or failure. When tested at 40% infill, the parts failed under screw pressure. Infill densities between 40% and 100% have not been tested, so results may vary when using lower settings.

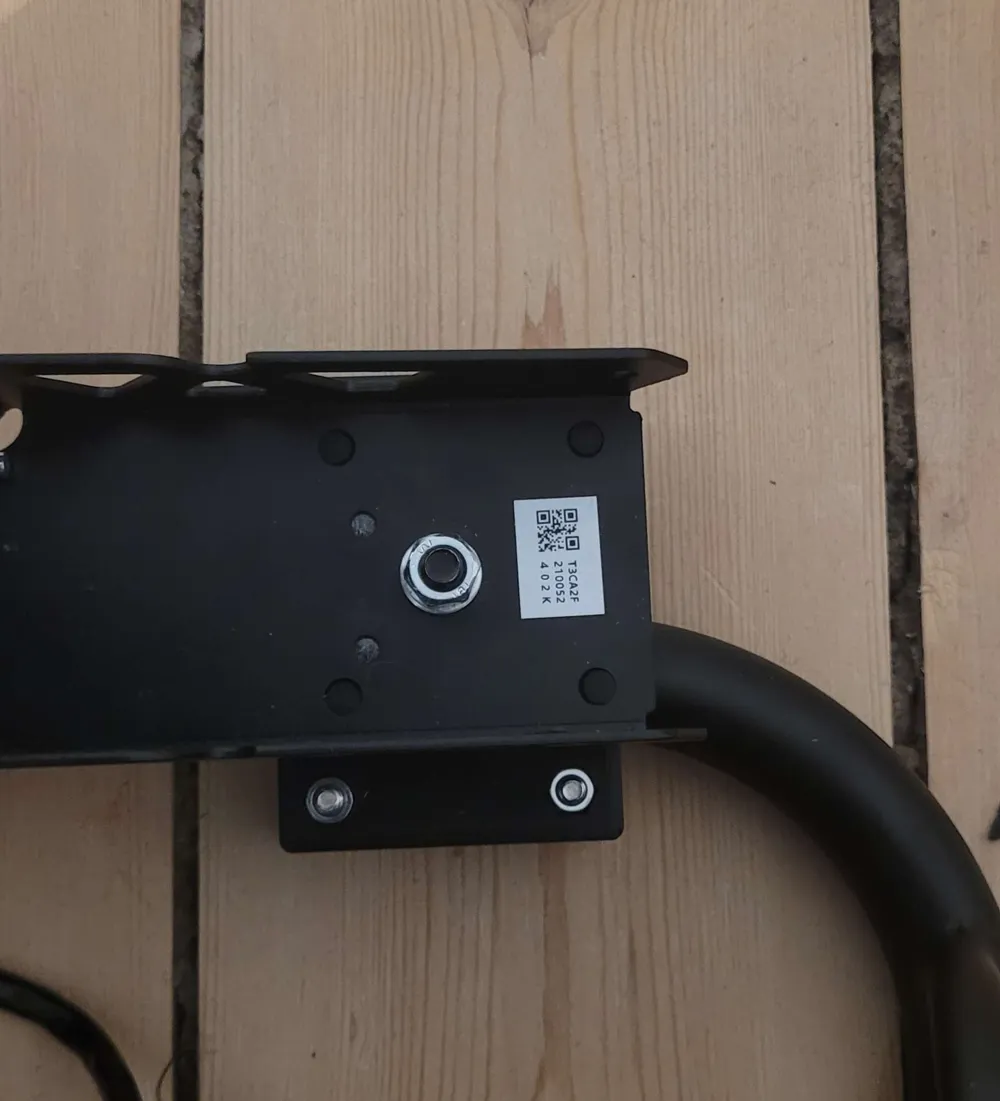

Hardware used:

• 4x M4x25 bolts with round heads (head diameter ø2,5)
• 4x M4 hex nuts
• 2x M6 bolts (included in the R3 bundle)
• 2x M6 hex nuts
• 2x M6 washers
