6" Lawn Mower Spinning Rim
Print Profile(1)
Description

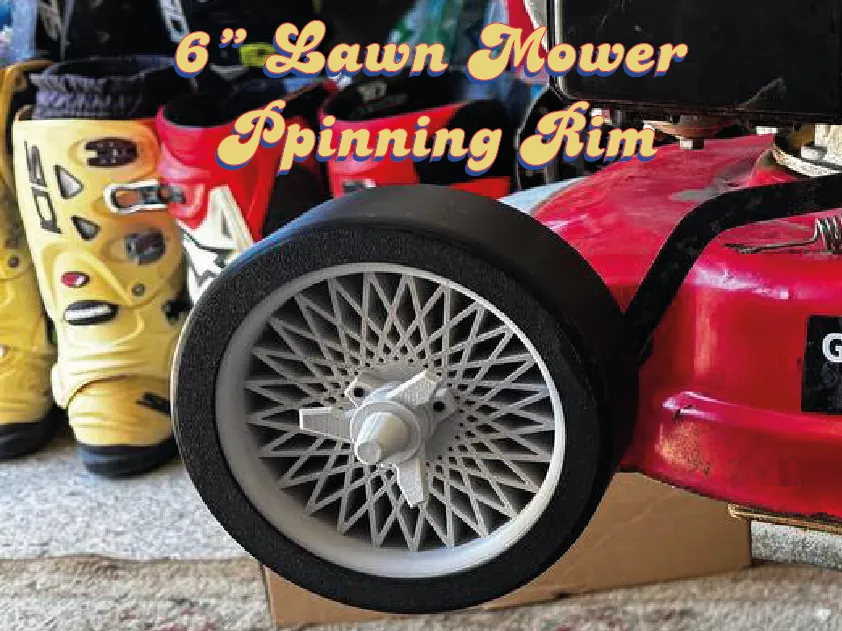

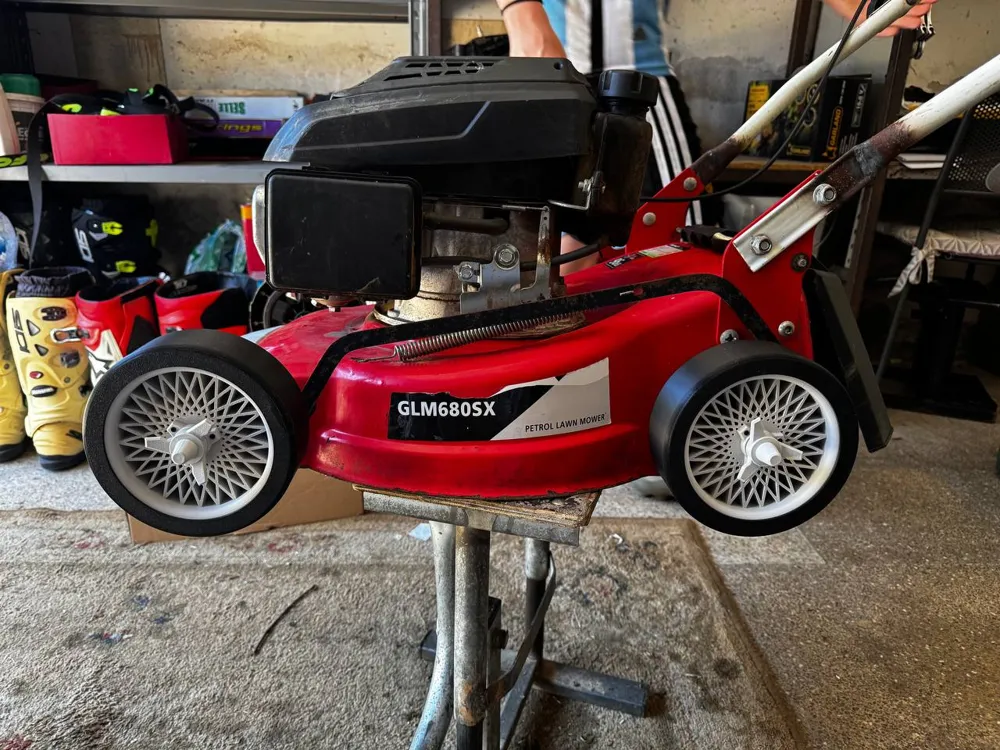

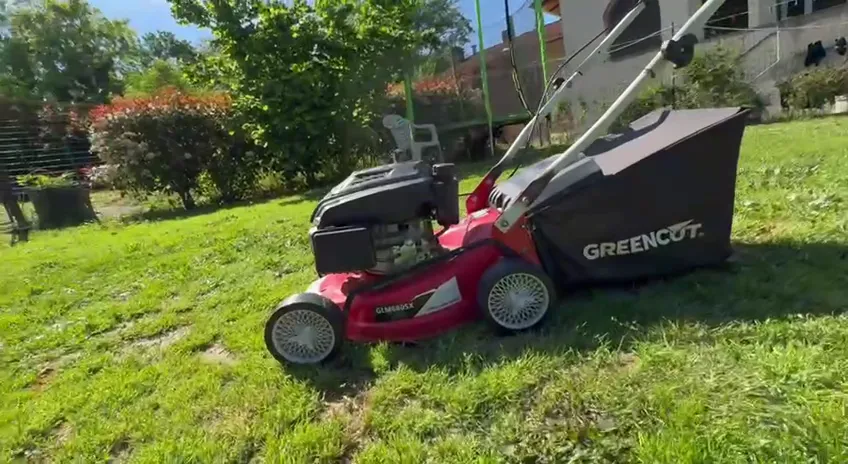

Low Rider Wheel for Lawnmower – Where Gardening Meets Style
Bring a touch of West Coast vibes to your lawn care setup with this 6-inch low rider-style wheel, designed for lawnmowers but with the look of a true custom showpiece. Inspired by the iconic cars from GTA and Snoop Dogg’s music videos, this project blends functionality with head-turning design.
Technical specs:
- Wheel/rim diameter: 6" (152.4 mm)
- Fits axle size: 13 mm
- Overall width: approx. 40 mm

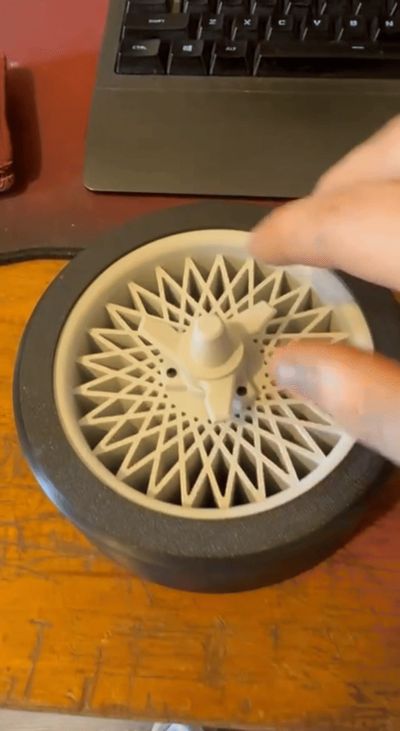

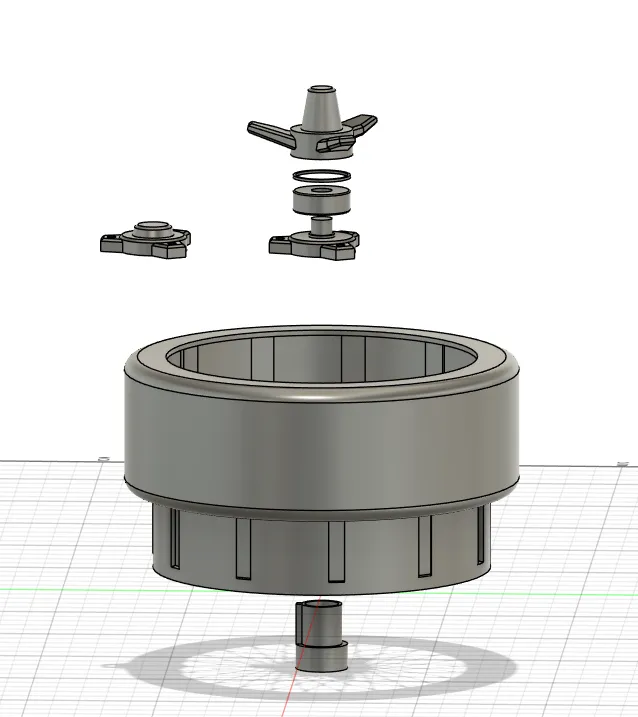

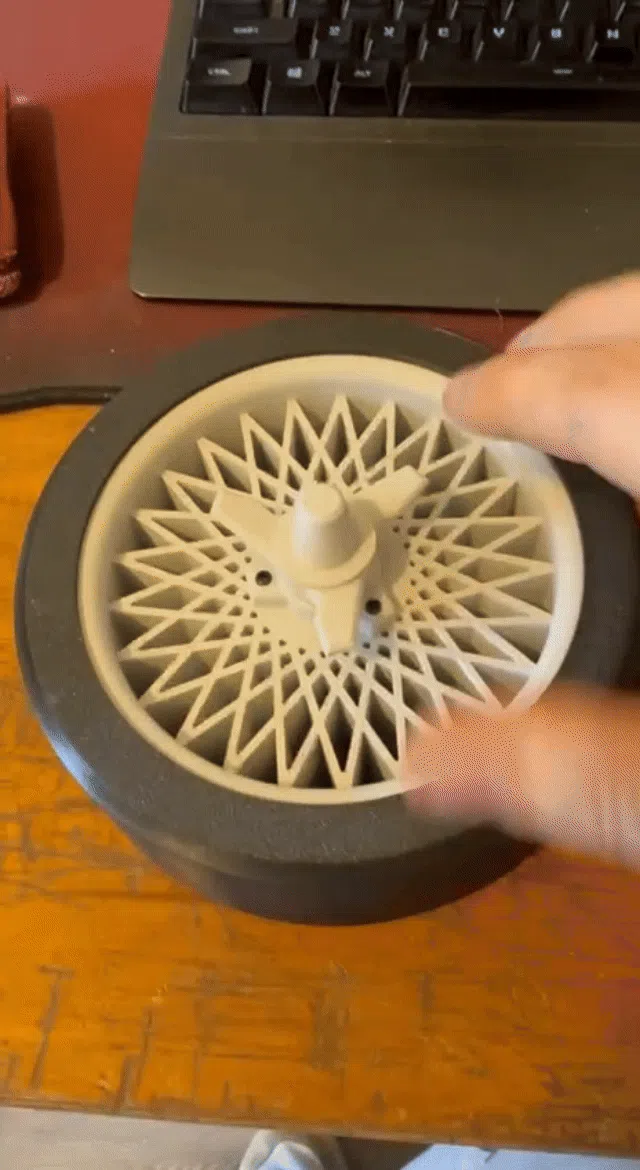

- Internal spinner element: a rotating piece inside the rim for that classic visual effect in motion
- Wheel-to-rim assembly: hot glue recommended
Recommended print materials:
- Minimum: PETG
- Best: ASA (for weather resistance and long-term outdoor durability)
Post-processing ASA is advised for extra UV and impact resistance.
Tech note:
Unfortunately, there are no off-the-shelf bearings available for 13 mm axles compatible with this design. The wheel is meant to rotate directly or using printed bushings.
Optional parts included:
Not a fan of the spinner? No problem – I’ve also included caps to cover the center hole for a clean, minimalist look.
Customization:

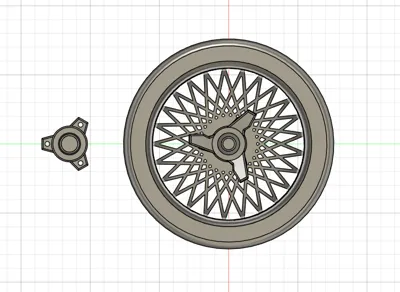

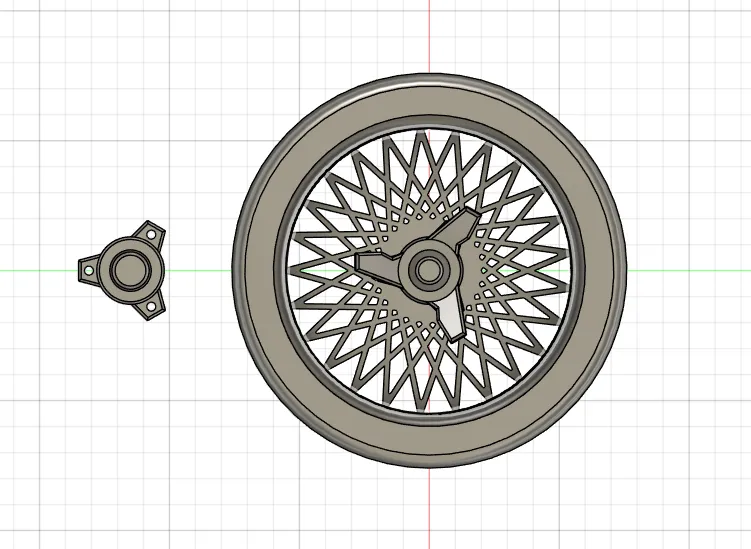

I’m including the .STEP file of the wheel so makers can tweak it as they wish:
✔️ Add treads for extra grip
✔️ Modify the pattern or thickness
✔️ Adapt it to your terrain or mower type
Personally, I’ve had great results with smooth wheels, but you do you!
