Modular electrical cable duct 11mm x 7mm
IP Report
Print Profile(1)
0.12mm layer, 3 walls, 15% infill
Designer
3.2 h
1 plate
Open in Bambu Studio
Boost
95
242
26
7
392
211
Released
Description
Content has been automatically translated.

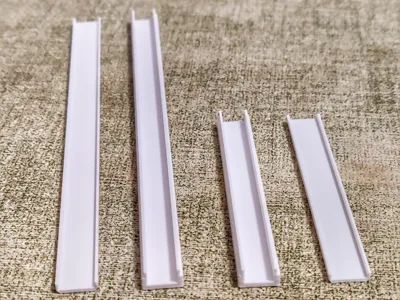

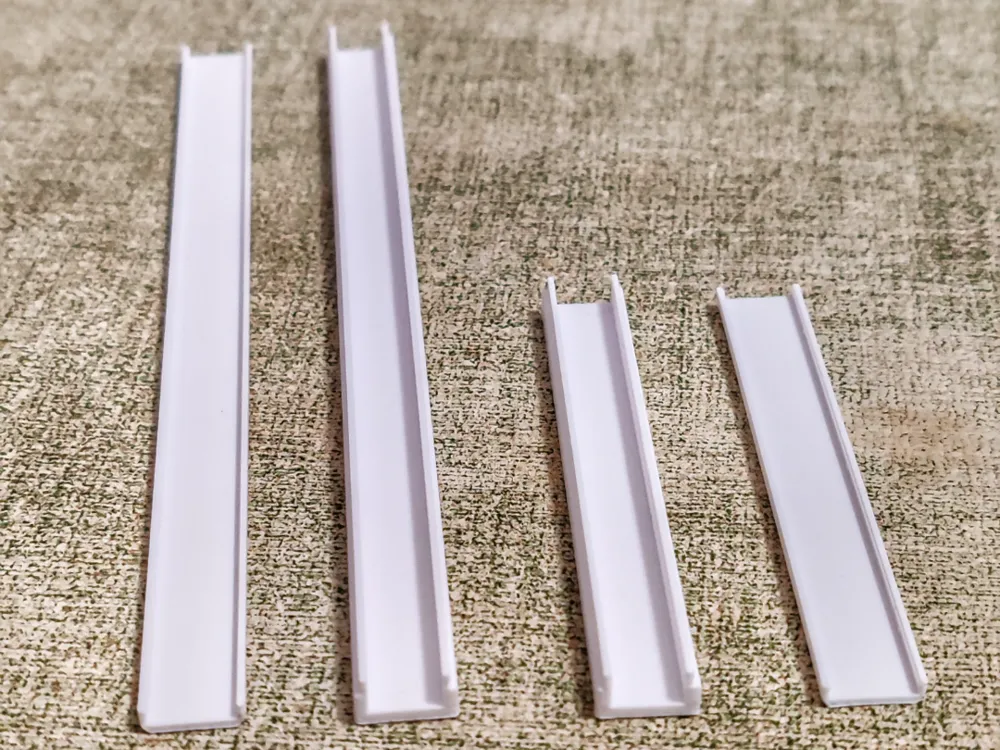

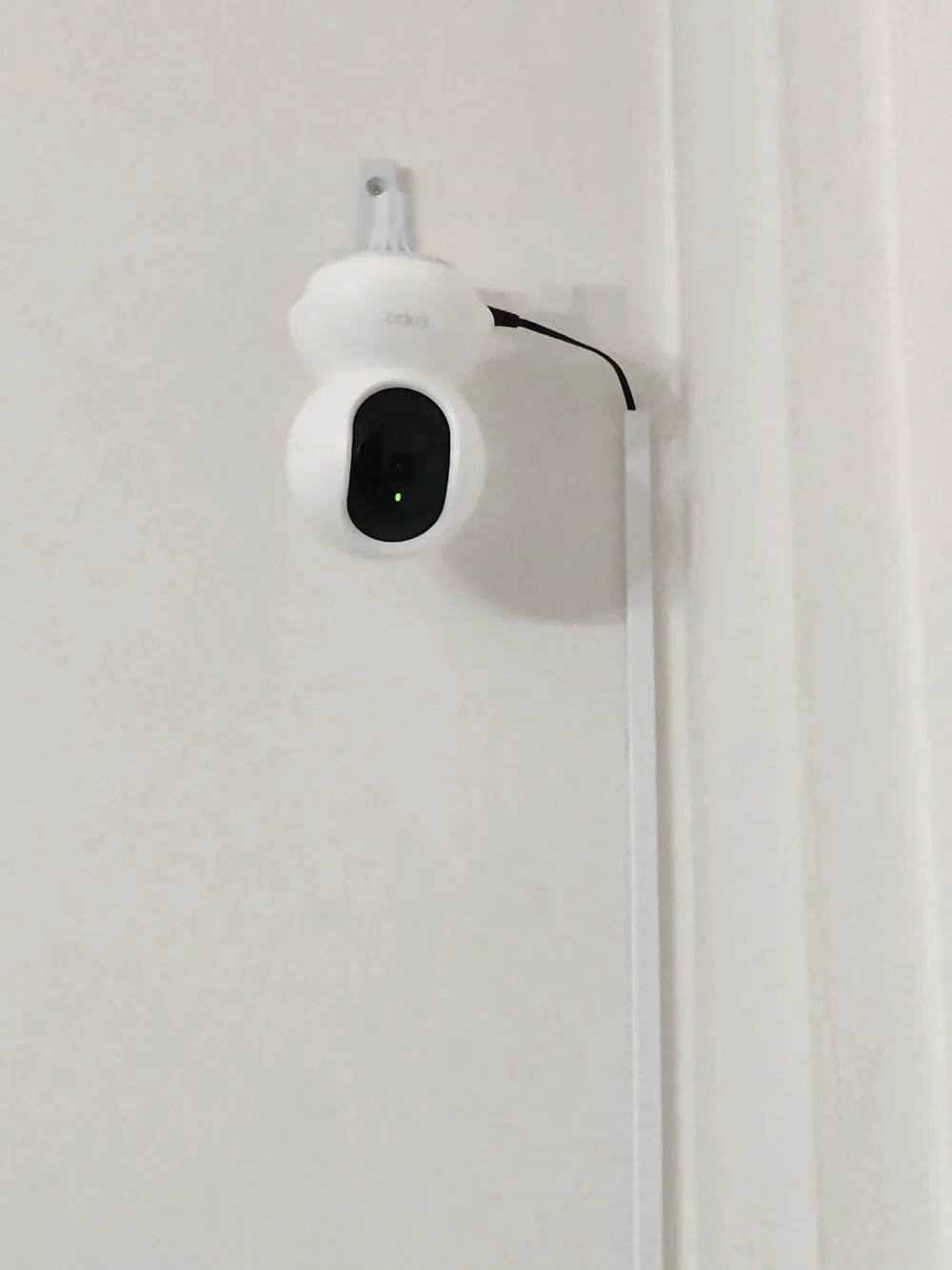

A small modular channel for concealing electrical cables.
The channels lack mounting holes and therefore must be affixed using double-sided adhesive.

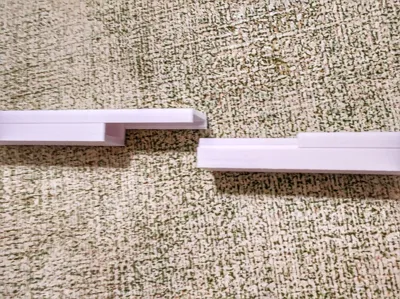

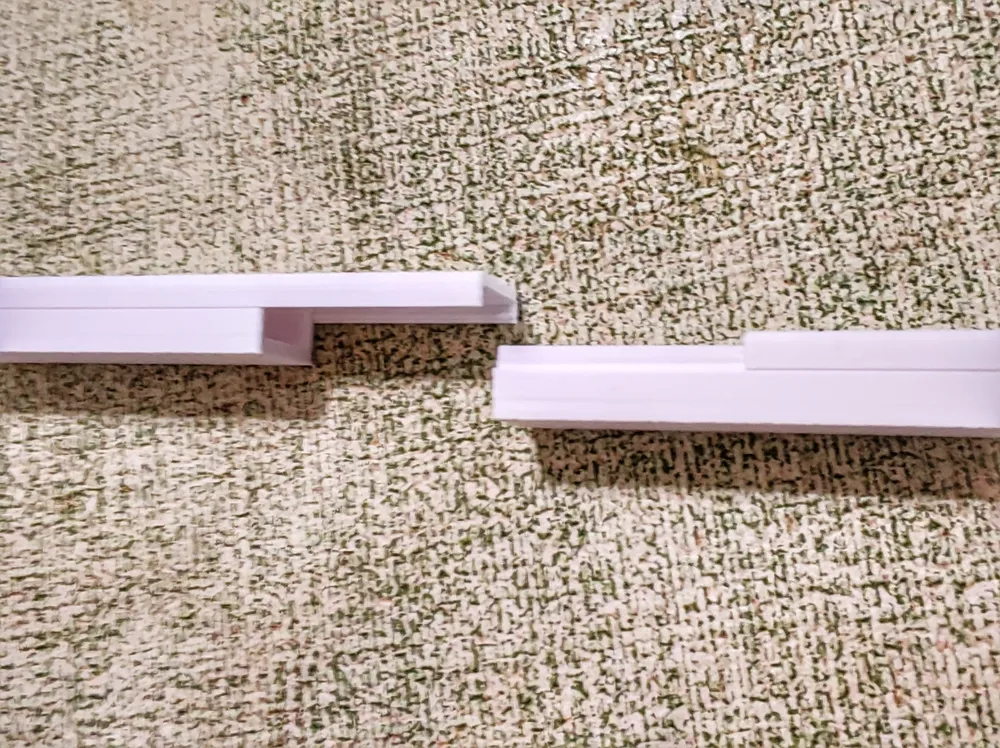

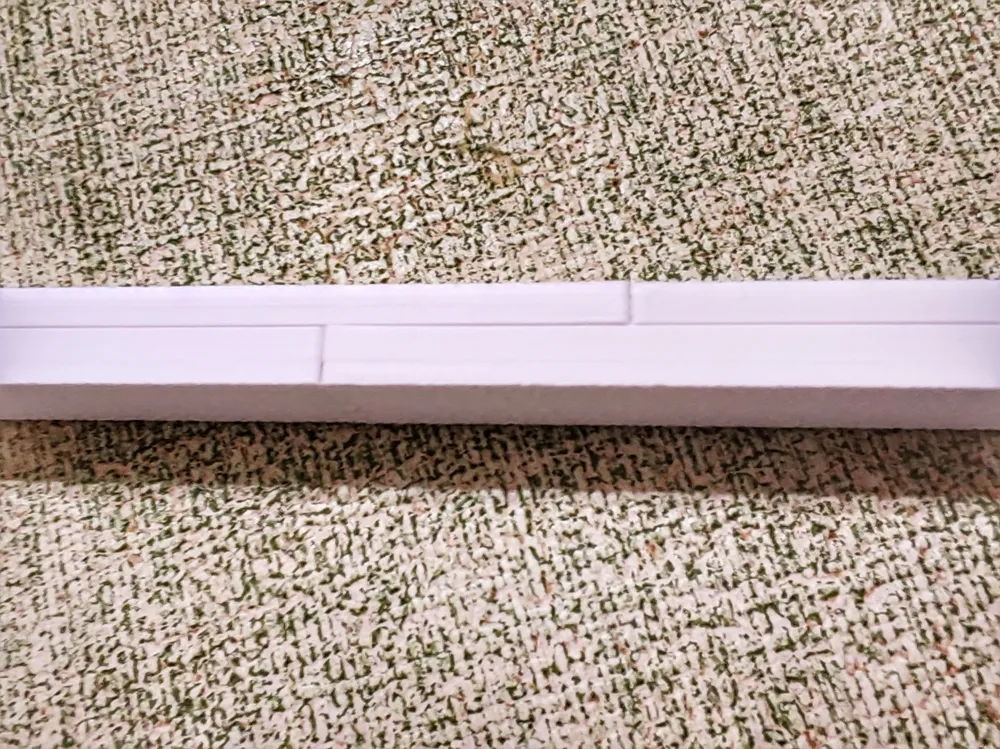

Interlocking design eliminates the need for adhesive along the entire length; a small amount applied centrally suffices.
However, the first and last channels require adhesive at their ends.

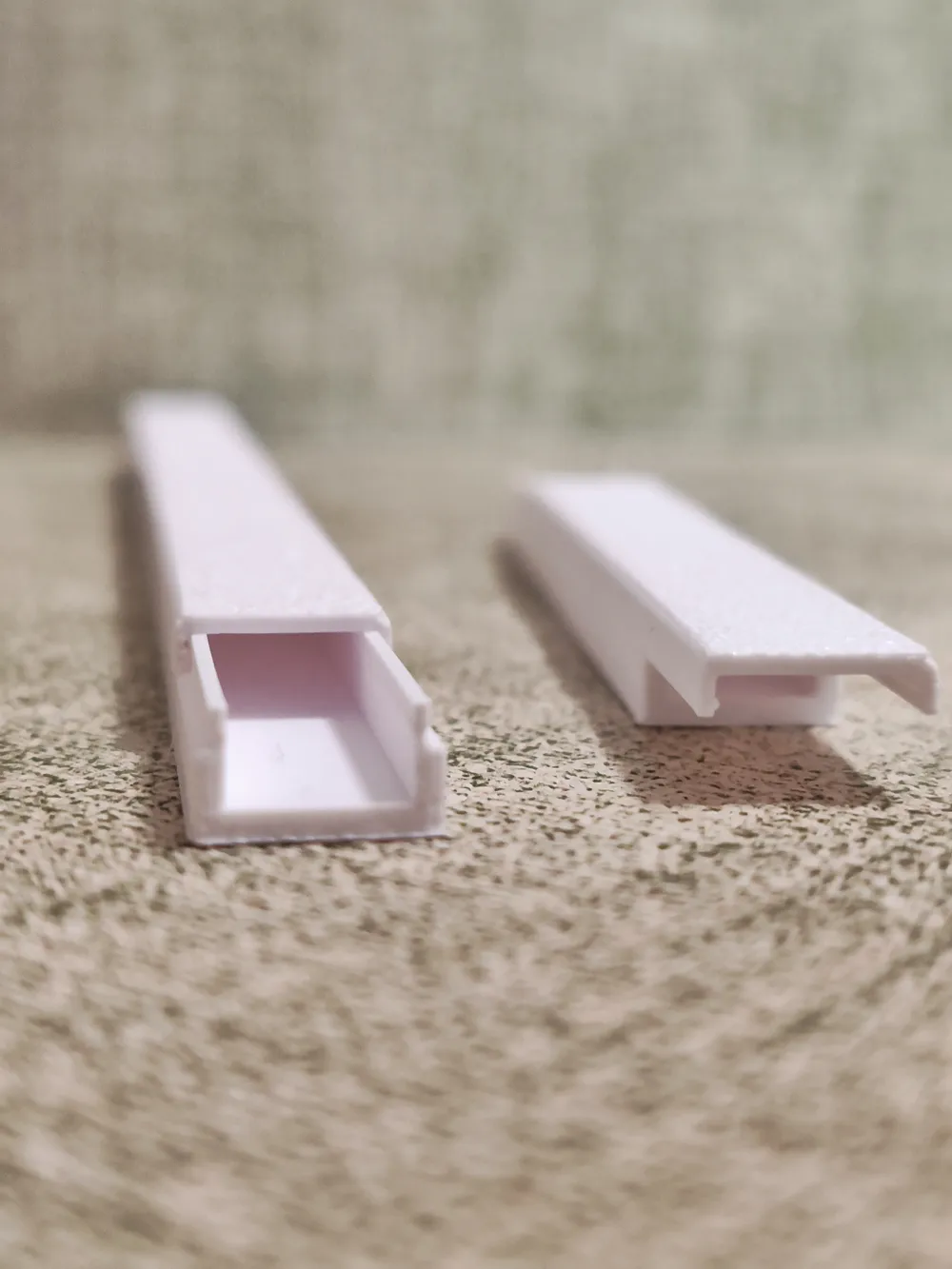

For optimal channel adhesion, a 20mm cover overhang is recommended.
Length: 160mm
External dimensions: 11mm x 7mm

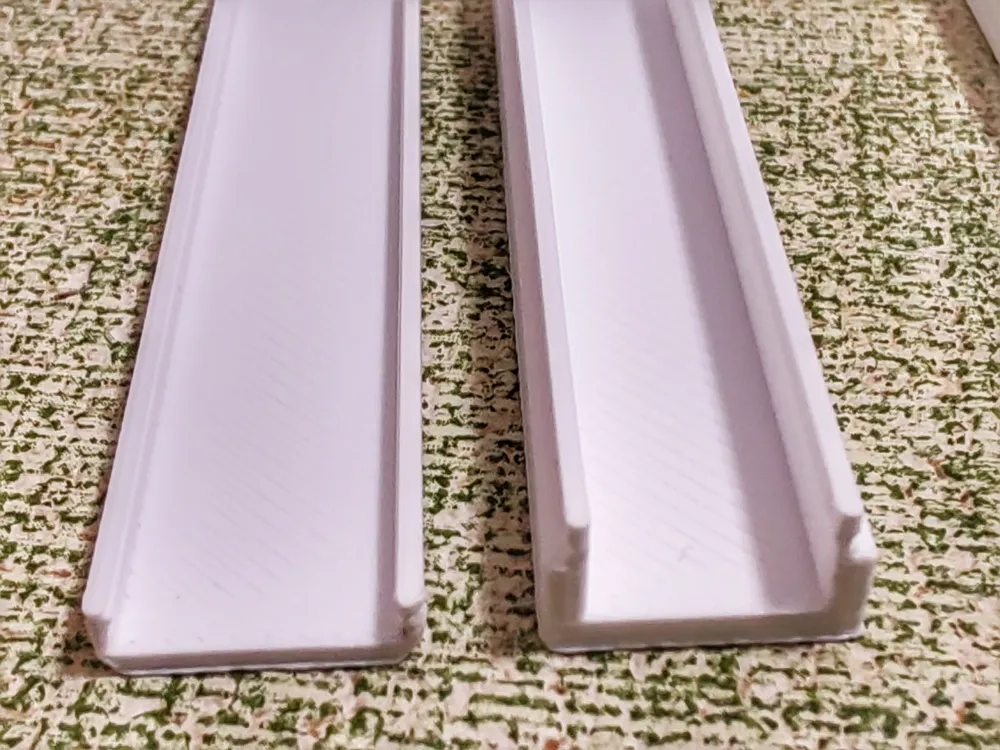

Internal dimensions: 8mm x 4.5mm
PETG printing is recommended.
