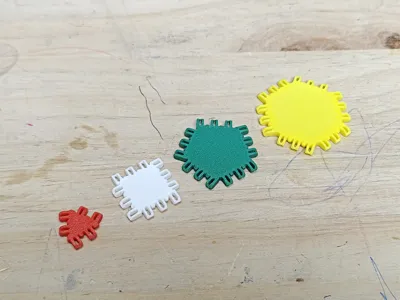

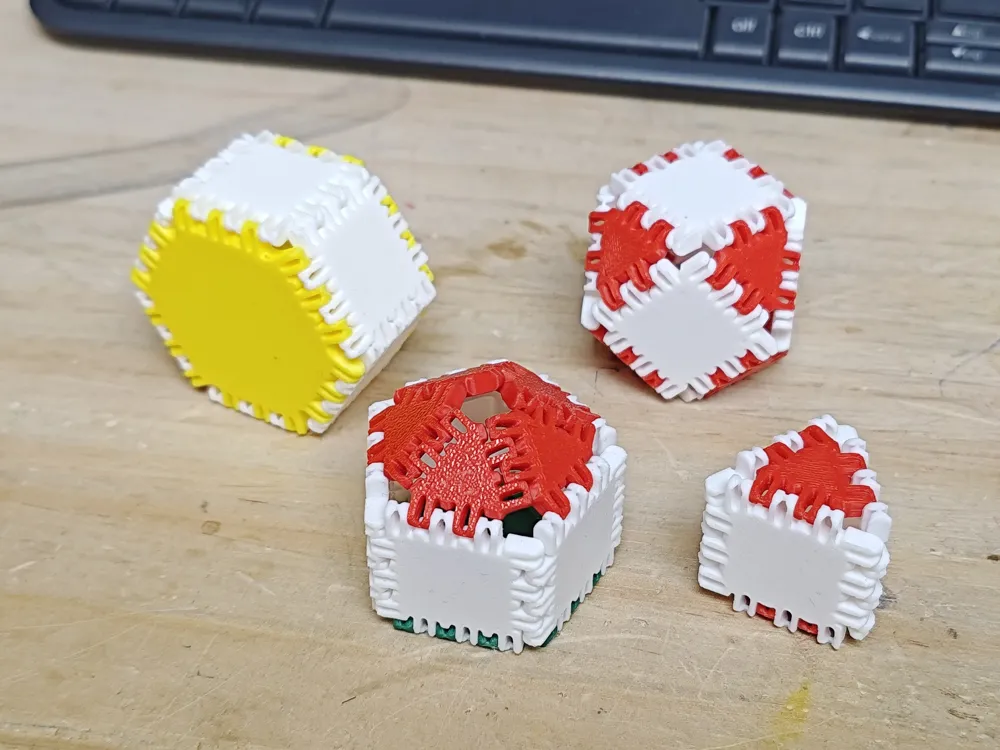

Mortise and tenon units designed for FDM printing, offering superior elasticity and controlled deformation for a tactile experience rivaling injection molding.

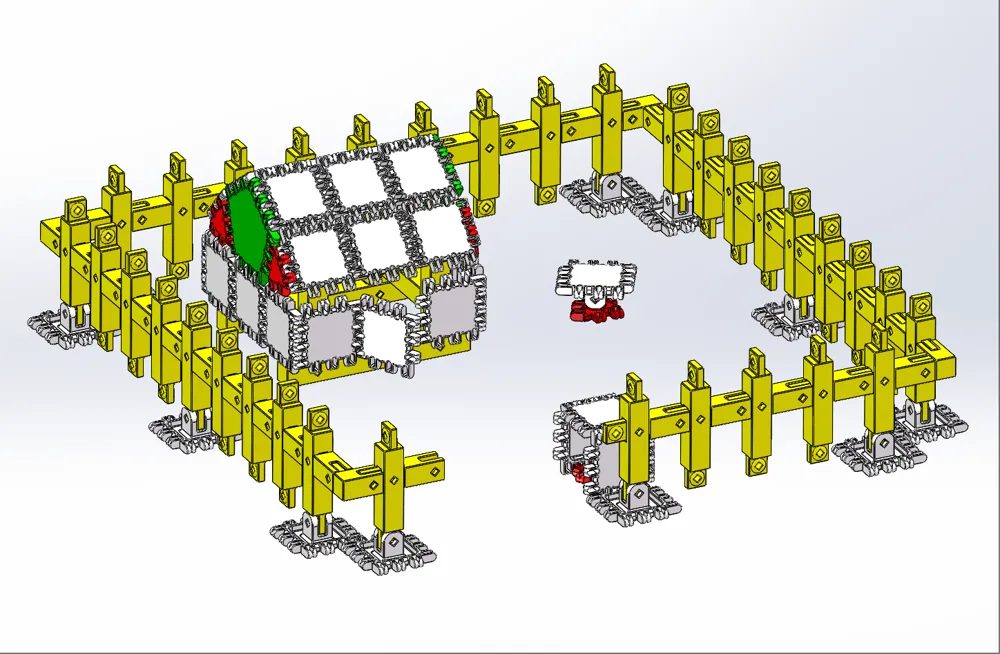

Expanding upon this principle, one-dimensional extension yields rods/lines, and two-dimensional extension results in plates/surfaces. Thus, a complete framework encompassing points, lines, and surfaces is established.

As the saying goes, one begets two, two begets three, and three begets all things. Unleash your creative potential!

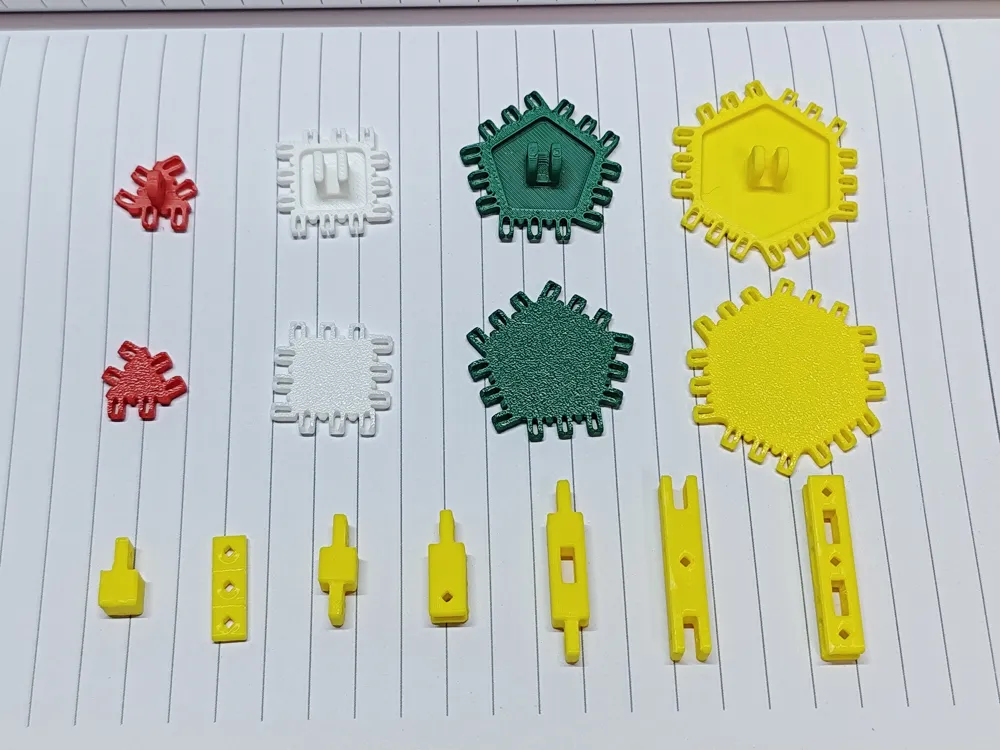

Plates require no supports; rods will have a single, easily removable support structure.

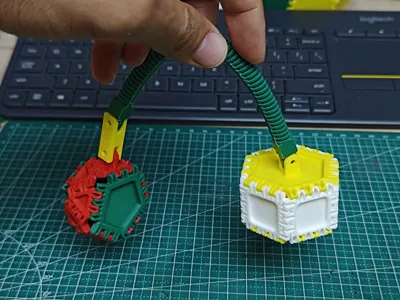

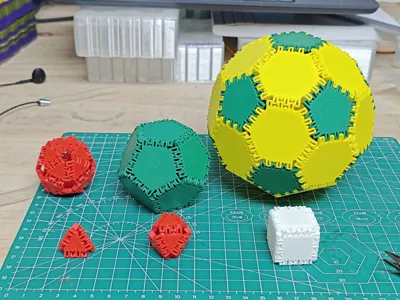

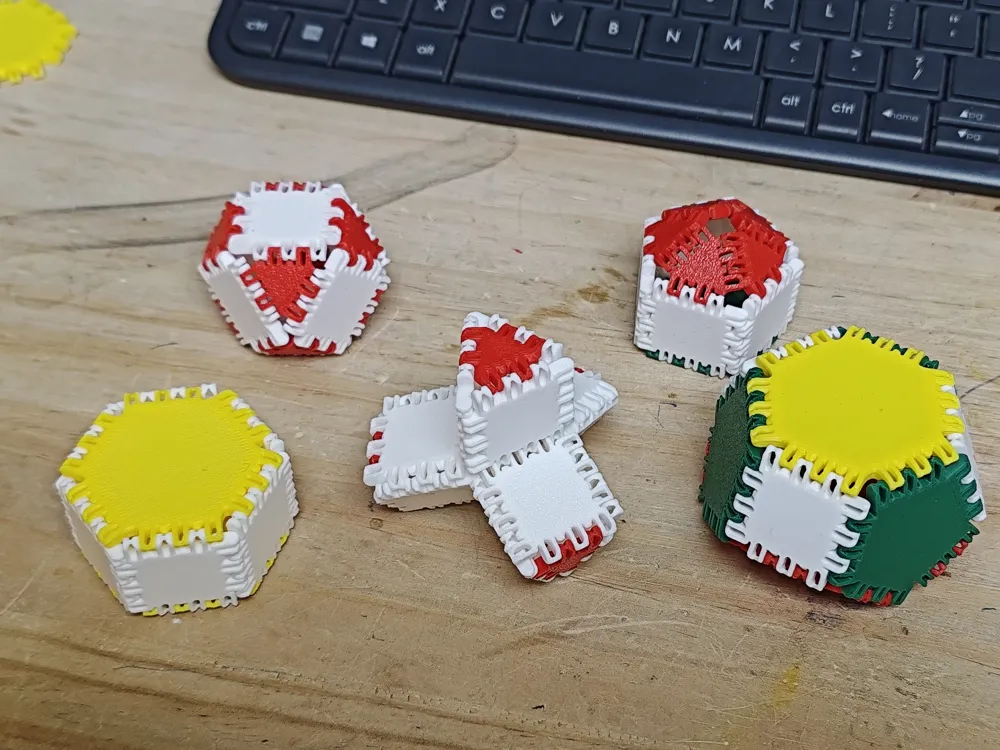

Playing with this toy set for a few days will foster a clear understanding of at least five regular polyhedra, and many derived semi-regular polyhedra can also be constructed.

Which regular polygons can tessellate a plane on their own?

Which regular polygons can tessellate a plane through combinations?

Which of these tessellations are suitable for curving operations?

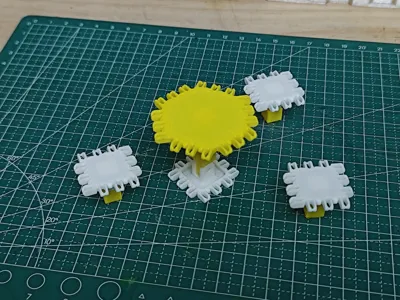

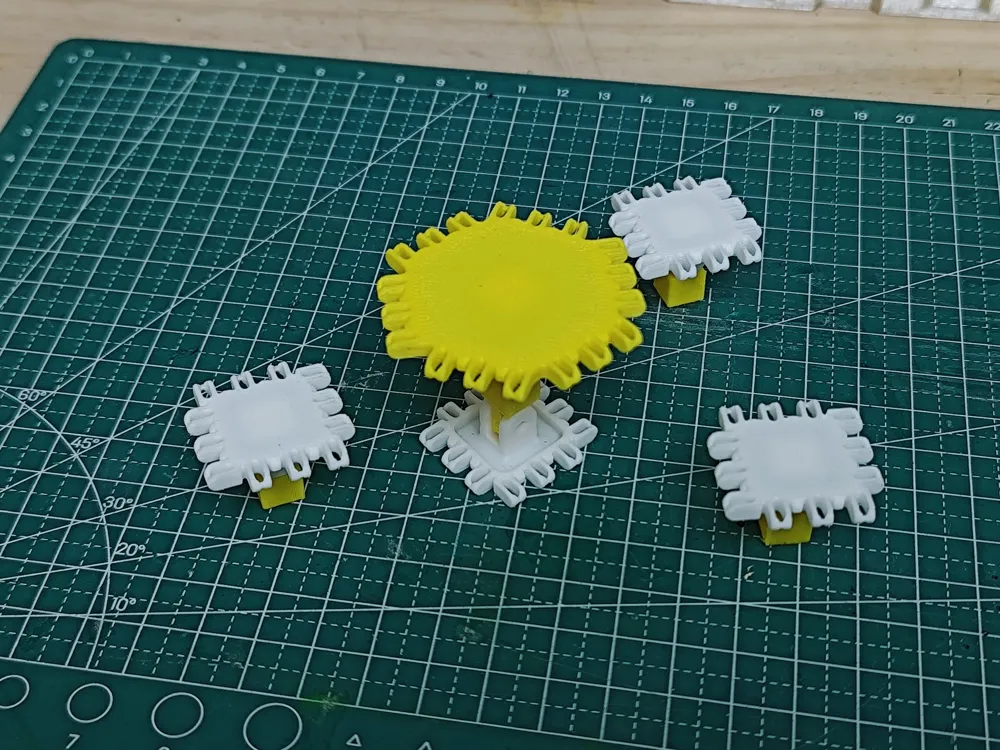

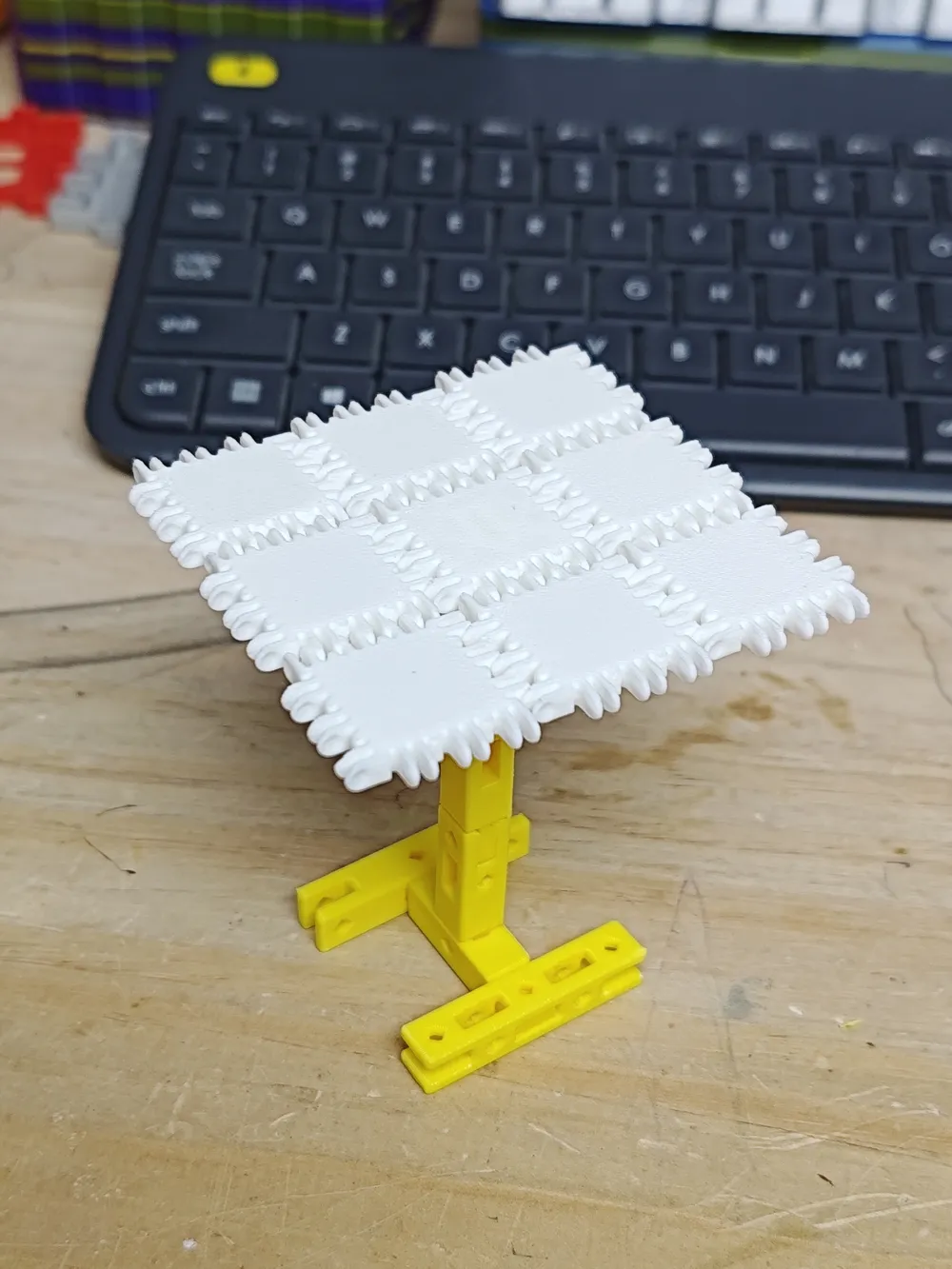

Through hands-on exploration, children can discover the answers to these questions by building. Completed creations can even serve as coasters for a few days.

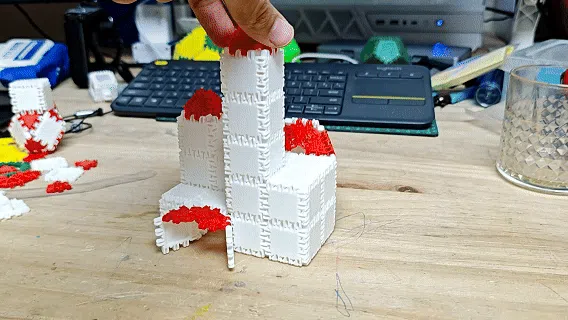

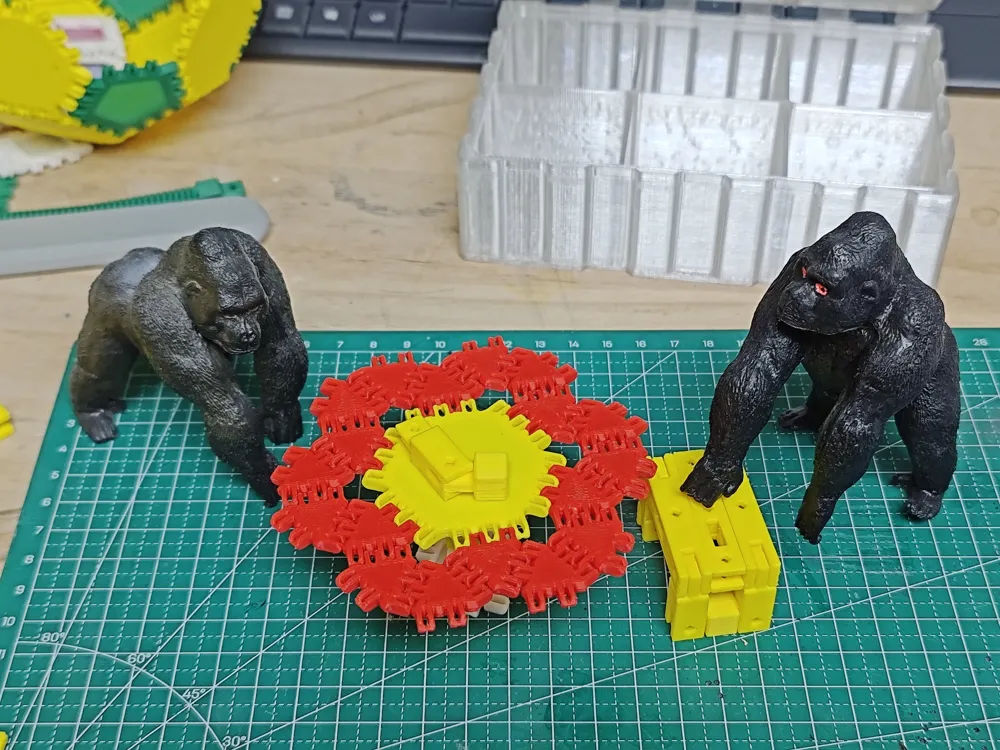

With further construction, astute children might observe the repetition of similar characteristics at different scales—congratulations on discovering fractals!

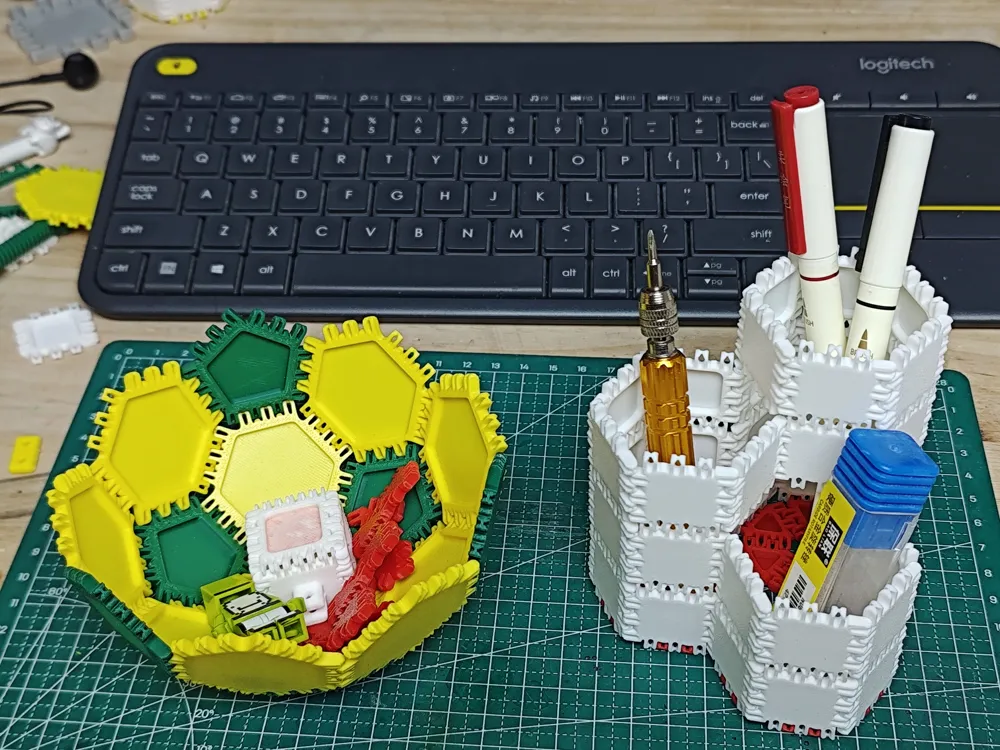

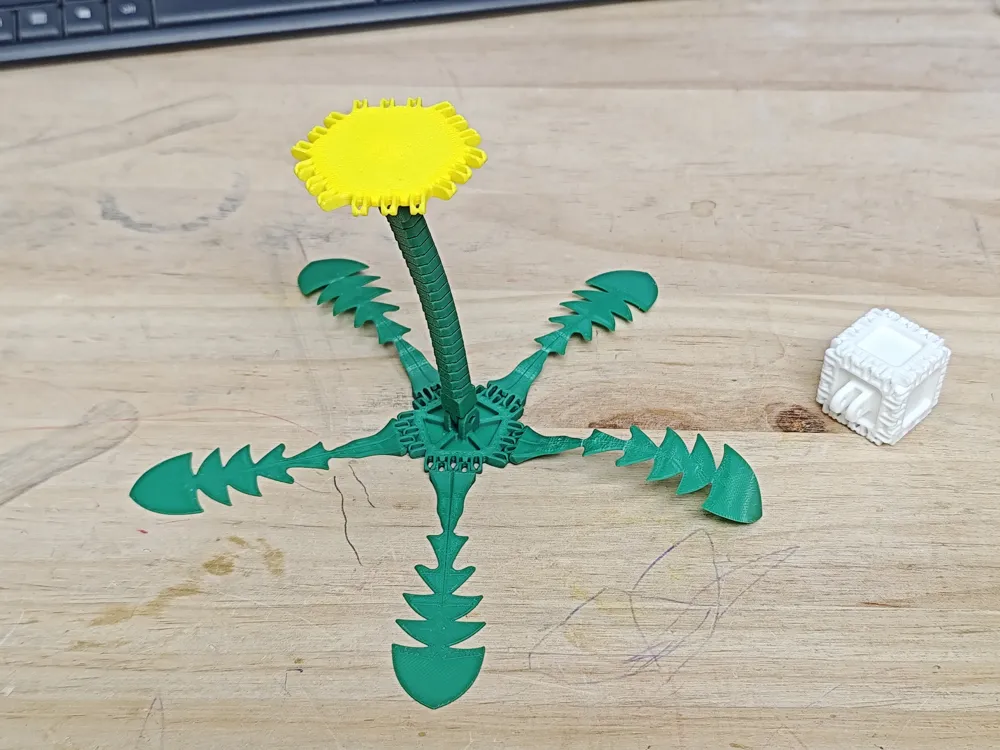

Because physical building blocks allow for more leeway than virtual ones, meaning greater error tolerance, larger-scale curved surfaces allow for boundless creativity. For artistic endeavors, consider constructing vases or armor—pieces with more fluid curvature.

Incorporating adhesives like glue and silicone opens up even more possibilities. The system's inherent scalability dictates its extensibility.



Recognizing that many children lack initial inspiration upon receiving the materials, we will be uploading a series of construction examples to ensure the building blocks remain an engaging and vibrant activity for your child!
