PV / Solar Cable Grommet Grounding 16mm²
IP Report
Print Profile(1)
0.28mm layer, 2 walls, 60% infill
Designer
2.7 h
1 plate
Open in Bambu Studio
Boost
38
130
1
2
83
18
Released
Bill of Materials
Bambu Filaments
Select all
Description
Content has been automatically translated.

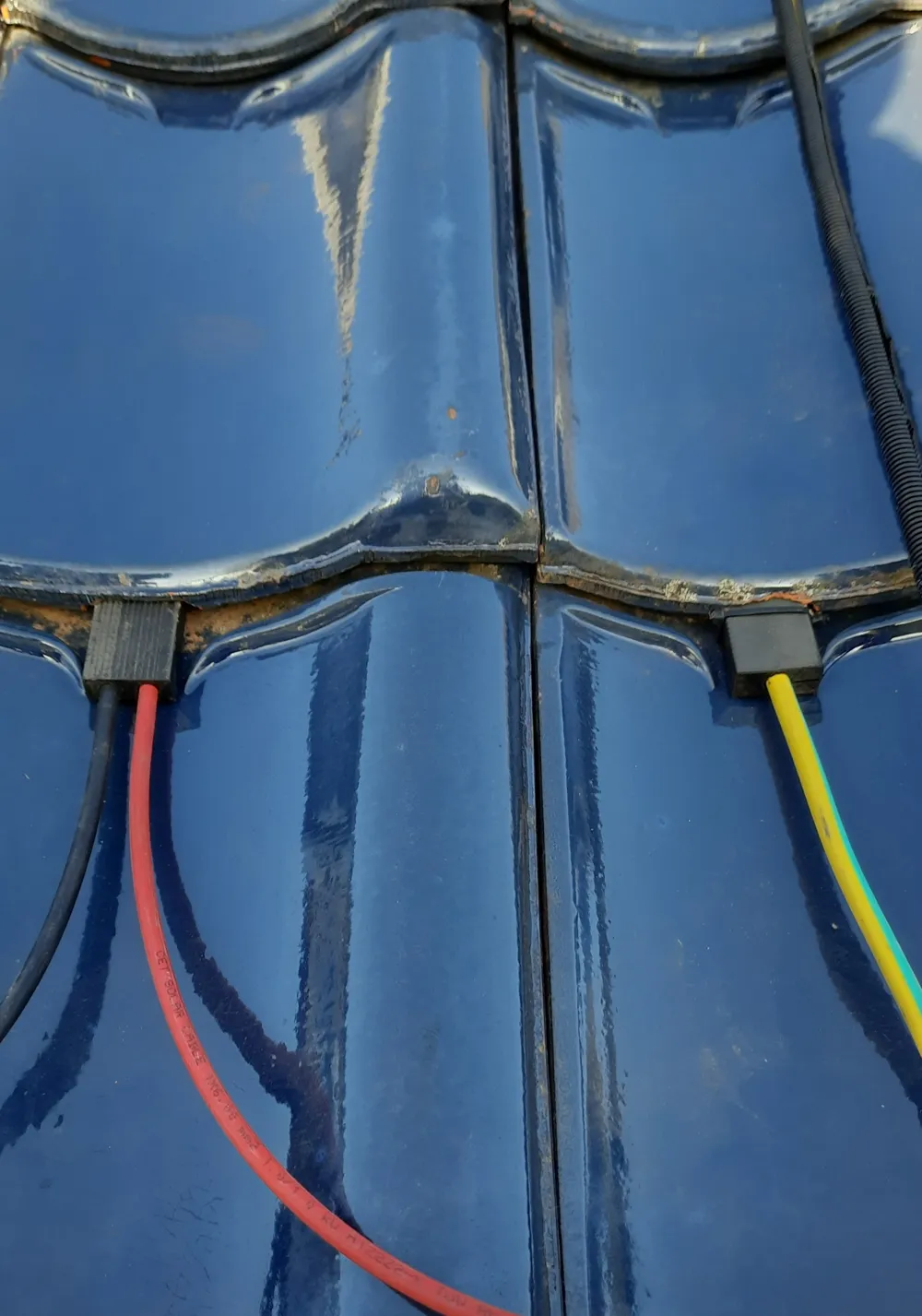

I designed this cable guide to optimally feed the grounding cable through the roof tile without frictional resistance.

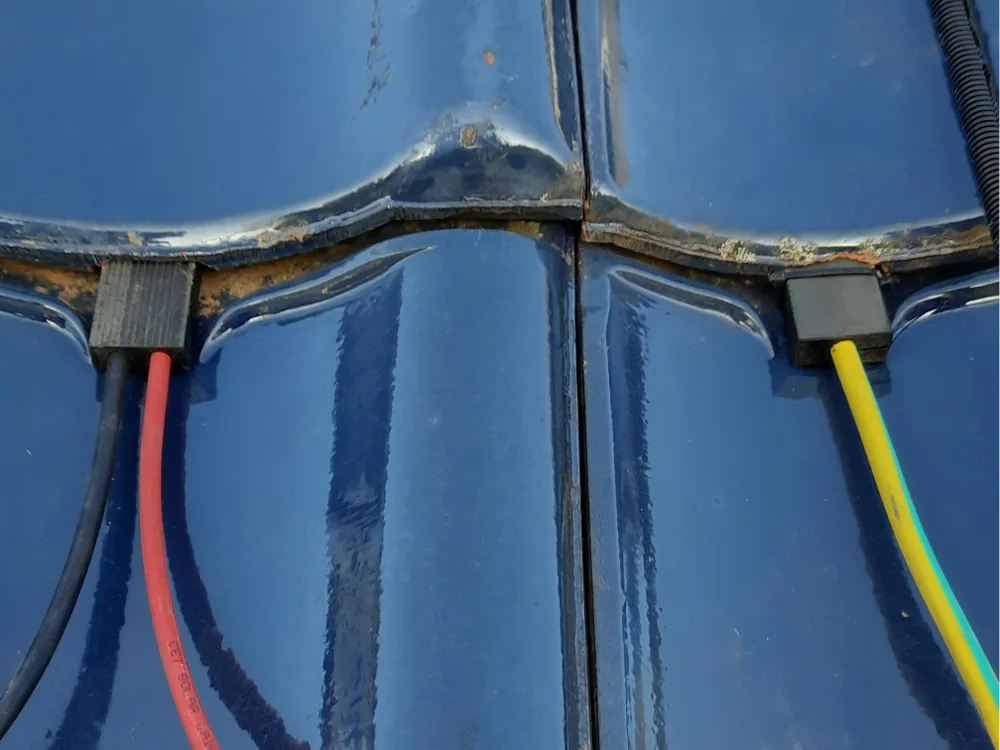

Depending on the roof tile, small cutouts must be made on the lower and upper roof tiles.

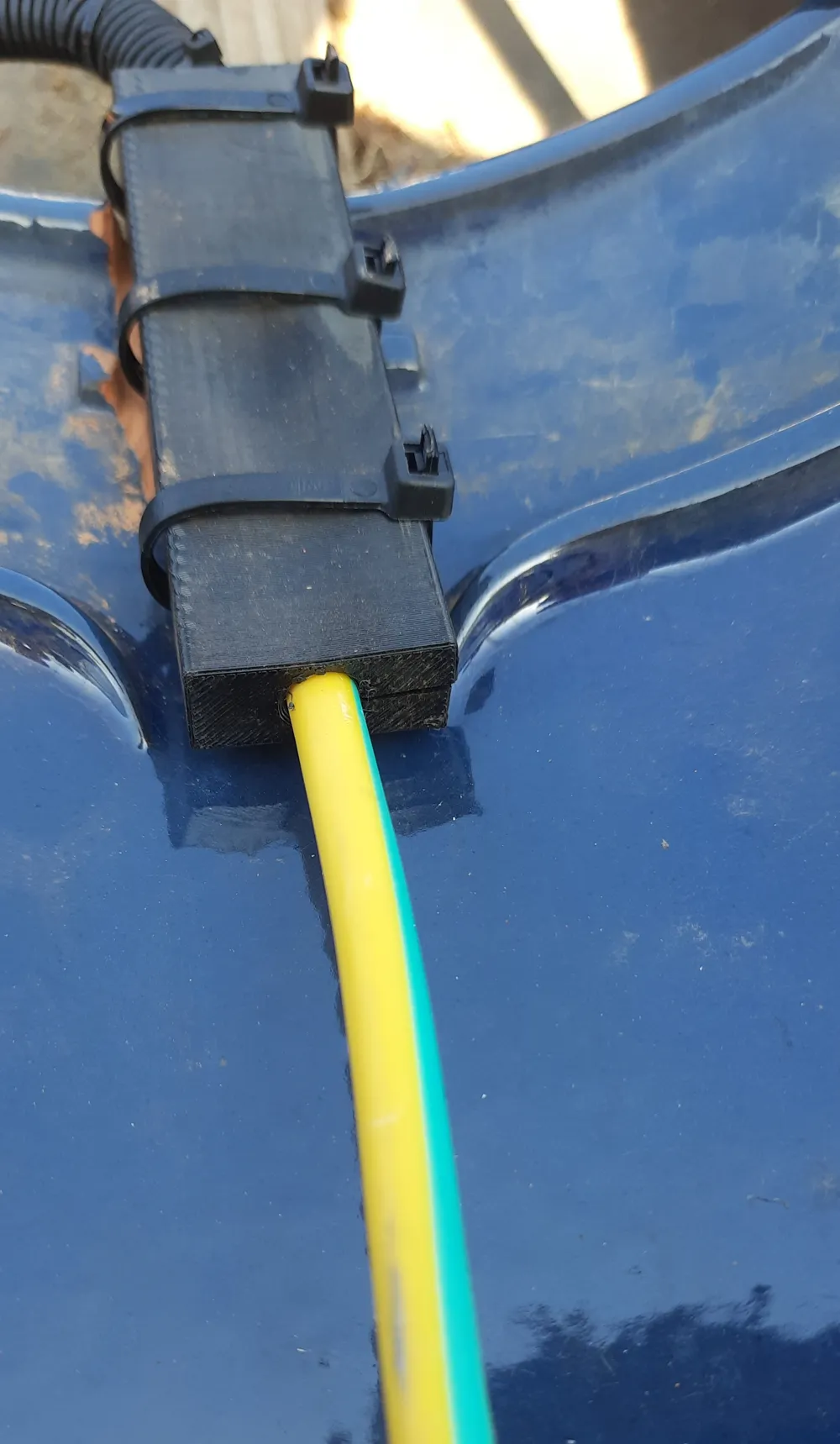

The grommet is suitable for 16 mm² and has an inside diameter of 8.2 mm.
Since the grounding cable was already laid, I decided to print it in TPU and cut it lengthwise to run the cable through.
Recommended material ASA (if not available: PETG).
