Thickness measurement with bore and rounding 1-10mm

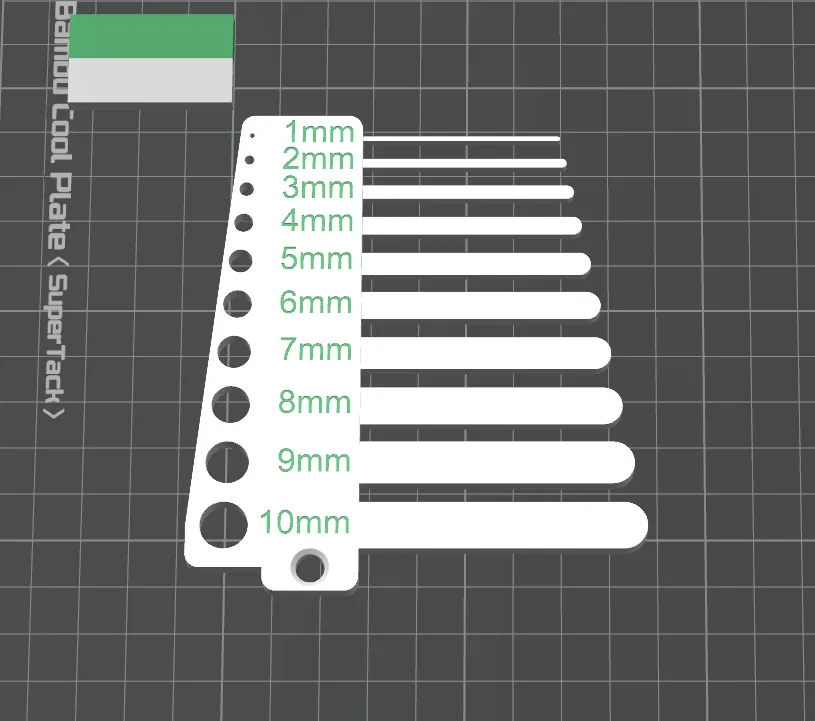

Multifunctional 3D-Printing Measurement Gauge – Hole and Thickness Gauge (1–10 mm)

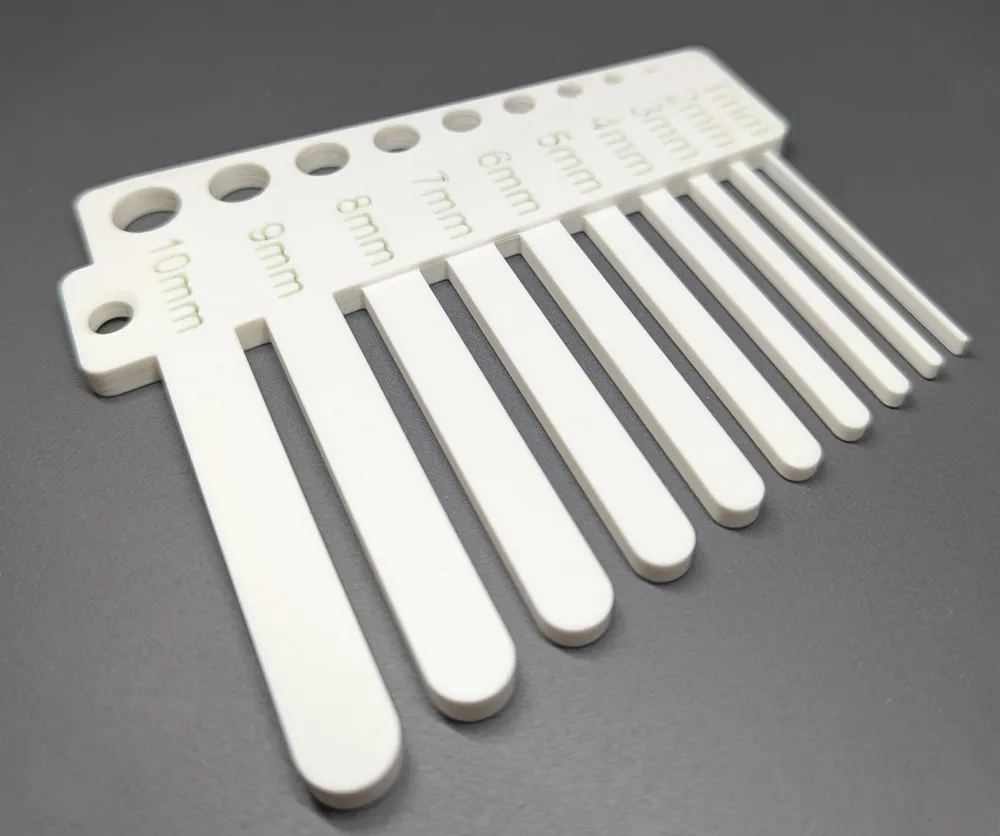

This compact and versatile measuring tool is a must-have for all makers, 3D printing enthusiasts, and model builders! This handy gauge combines two essential functions in a single tool: a thickness gauge with graduated strips from 1 mm to 10 mm and a hole size gauge with corresponding diameters.

Features:

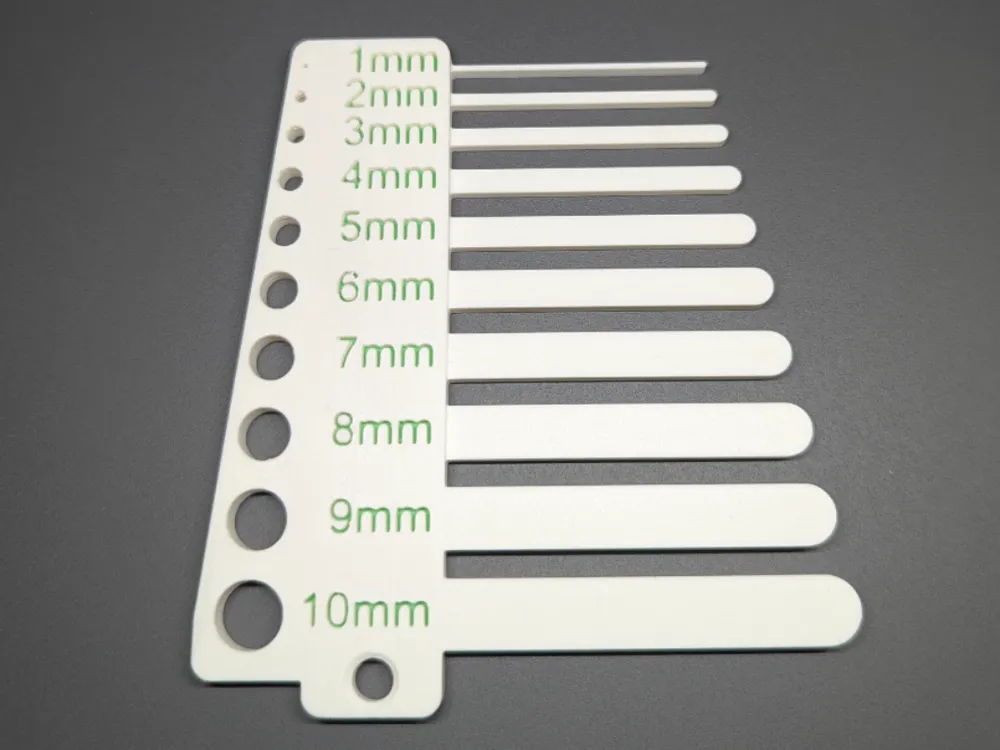

• Precise measurement indication from 1 mm to 10 mm (in 1-mm increments)
• Dual-sided application:
  • Right side: Measuring material thicknesses or gaps
  • Left side: Checking hole and diameter sizes (e.g., screws, dowels, bolts)
• Ideal for 3D printing: For calibrating, testing print accuracy, or quickly checking the dimensions of components
• Compact design: Easy to transport and store
• Hanging hole: For easy attachment to tool walls or key rings

Versatile applications – even digital:

Besides its use in the workshop or at the printer, this tool is ideally suited as a physical reference sample when designing 3D models in CAD or modeling programs. You can directly test and evaluate various wall thicknesses and hole diameters before digitally implementing or printing your model. An invaluable aid in finding the optimal balance between stability, material savings, and printability!

Applications:

• 3D printing & calibration
• Model making & prototyping
• Workshop & crafts
• Quality control and fit tests
• Design aid for CAD and 3D modeling

This tool helps you quickly and easily verify the dimensional accuracy of your prints – and supports you in making the right decisions during the digital model design process.

Note on surface finish and print settings:

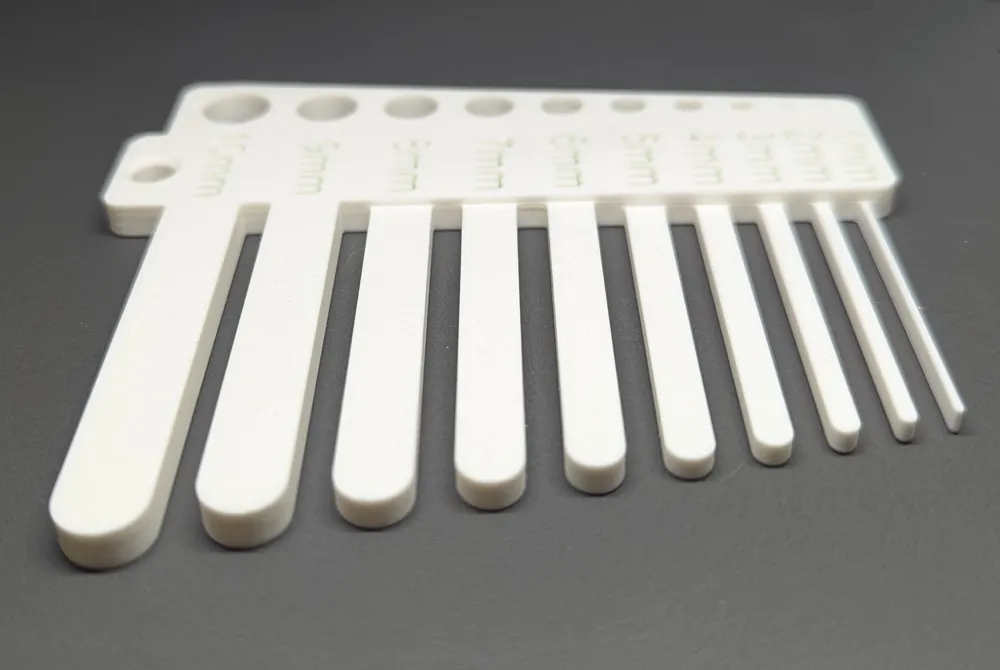

The ironed surface visible in the photos is optional and can be disabled if desired.

The percentage shown is merely my personal suggestion and serves as a starting point. You may need to perform your own calibrations to achieve the best results.
