Dremel 8260 Desk Saw (base compact version)

Will NOT FIT FOR THE BAMBU A1 MINI

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Dremel 8260 desk saw (i think it will not fit for smaller Dremel).

Features:

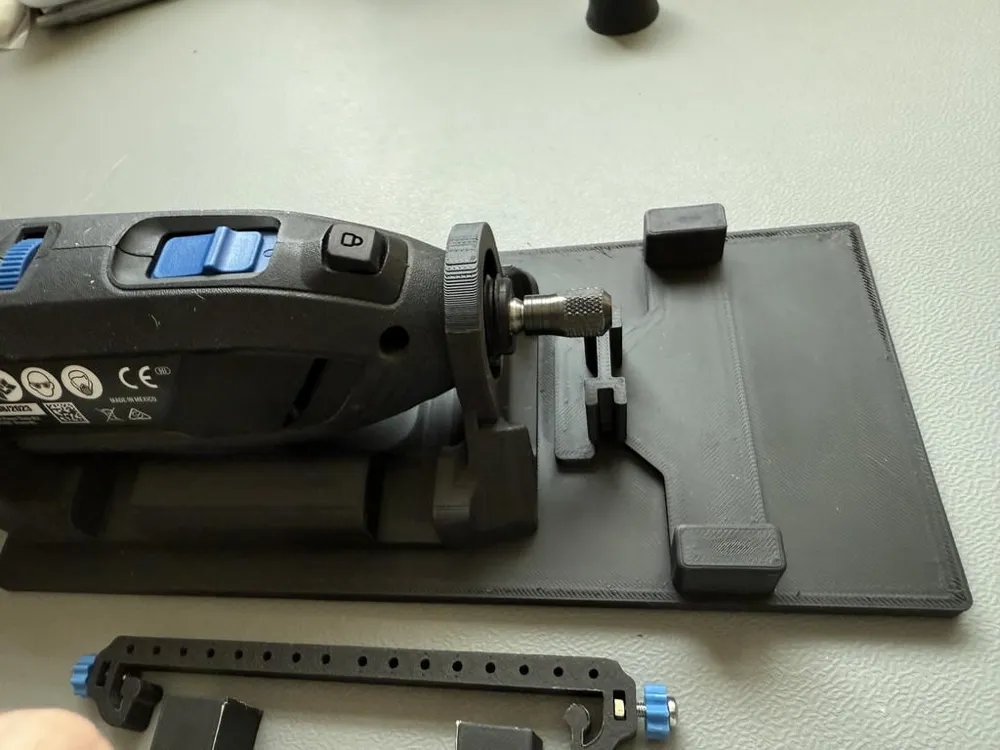

• Modified base plate to one pice with the saw desk for compact design / place on small desks (no need to screw it on wood plate)
• Remove the screw holes, because see next point
• Added some place for screw clamps on the base plate like Festool clamps (the flat ones).

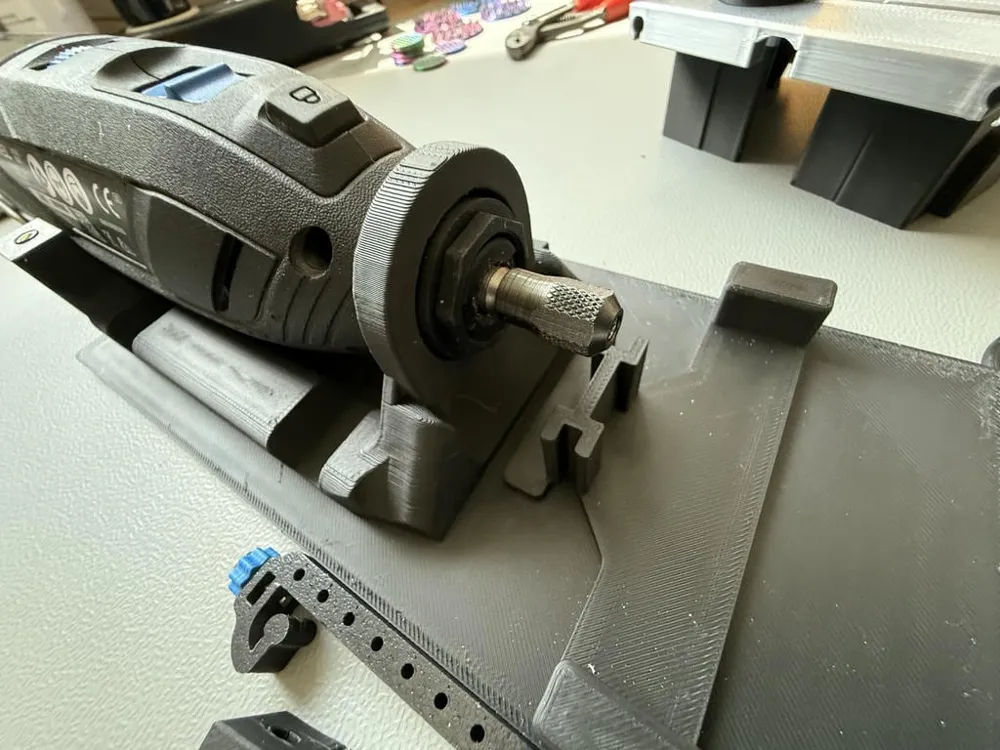

• Add a new nut with centering ring for more accurate fixing in the base plate hole for the Dremel

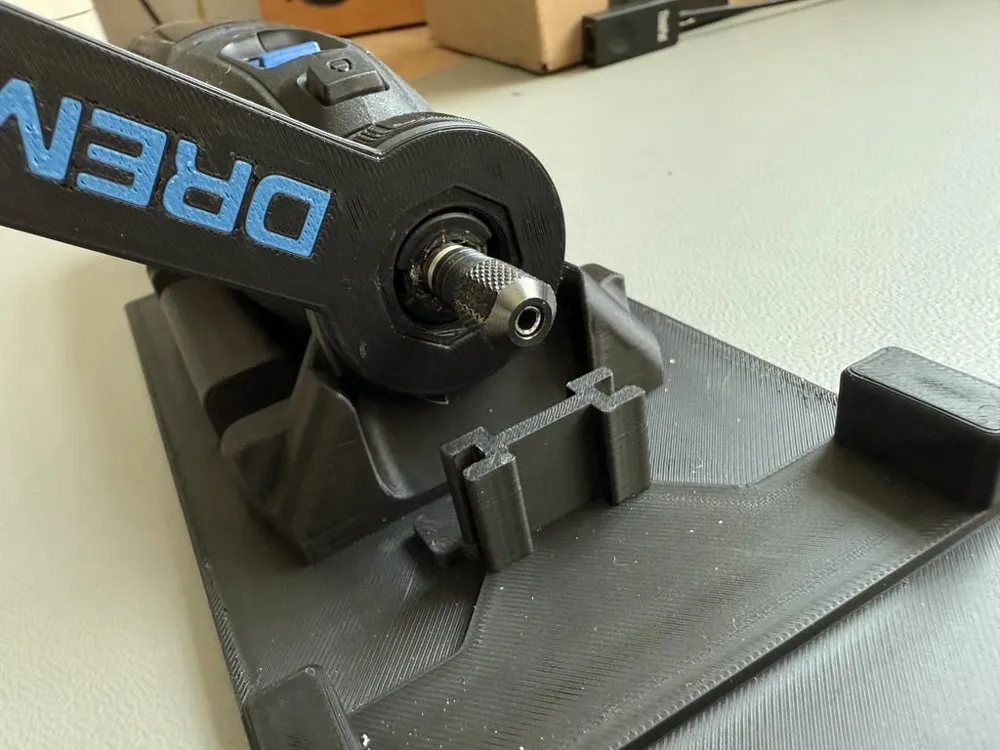

• Add a “Dremel” Jig tool for fasten and loosen the nut

Note:

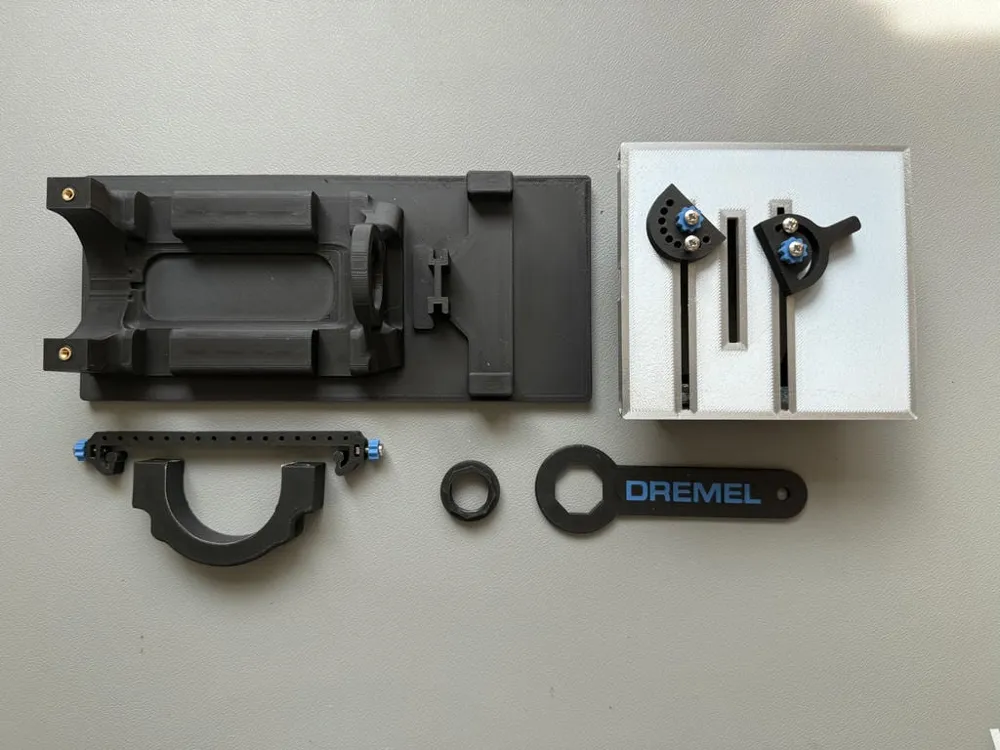

• You need all profiles for a complete desk saw ;-)
• For the guides, please add first a nut to the screws (tighten firmly) of the knobs

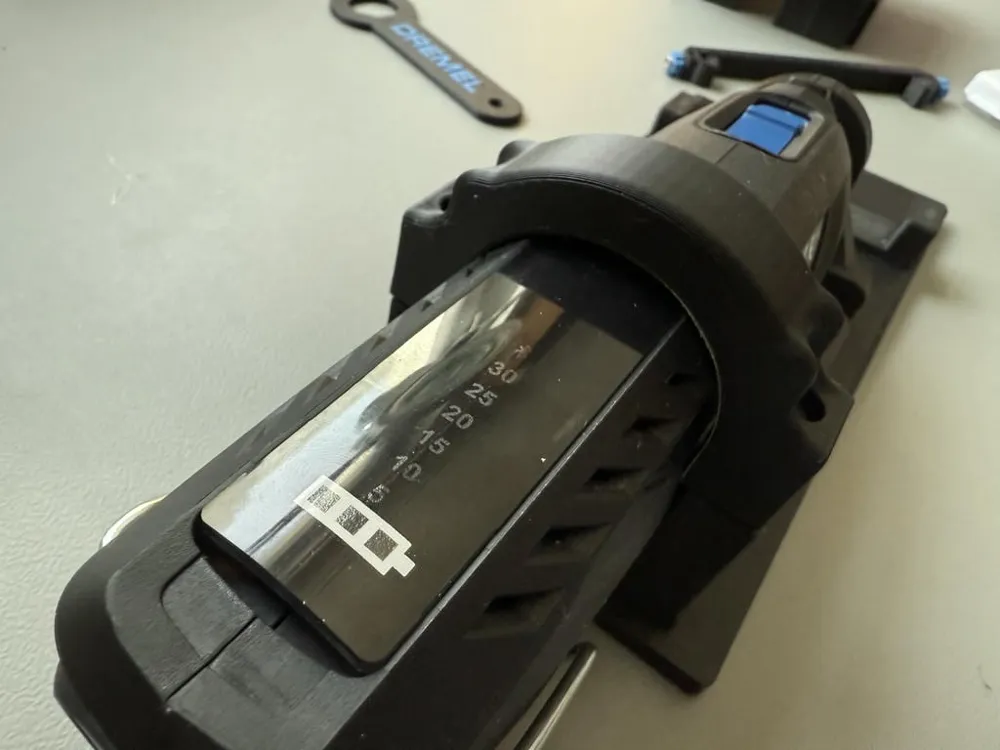

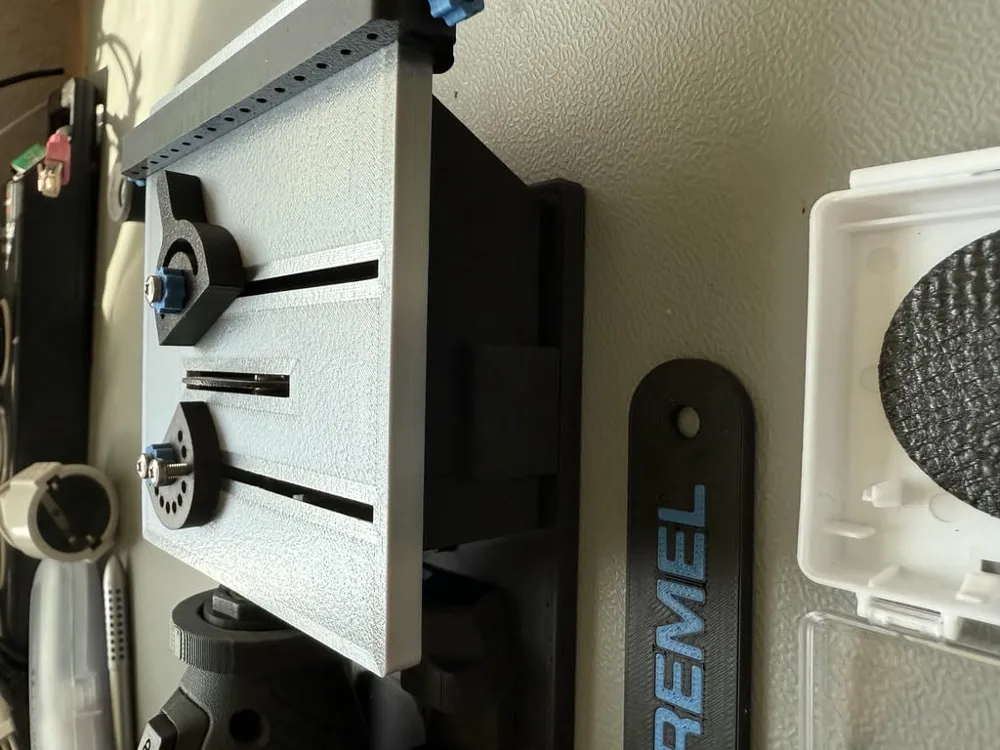

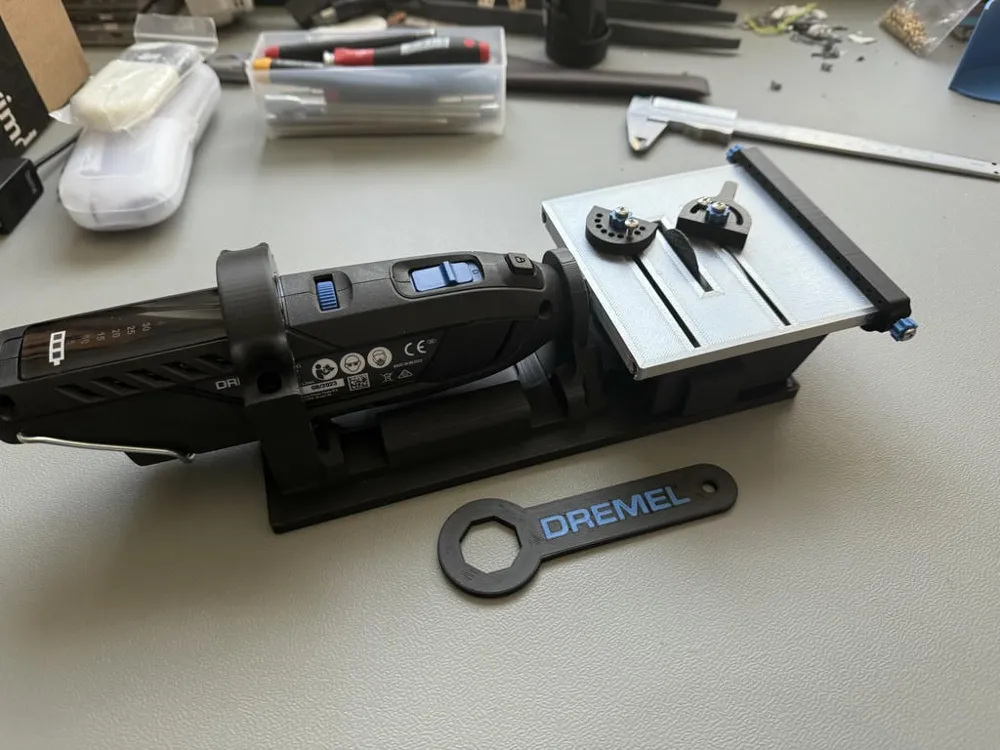

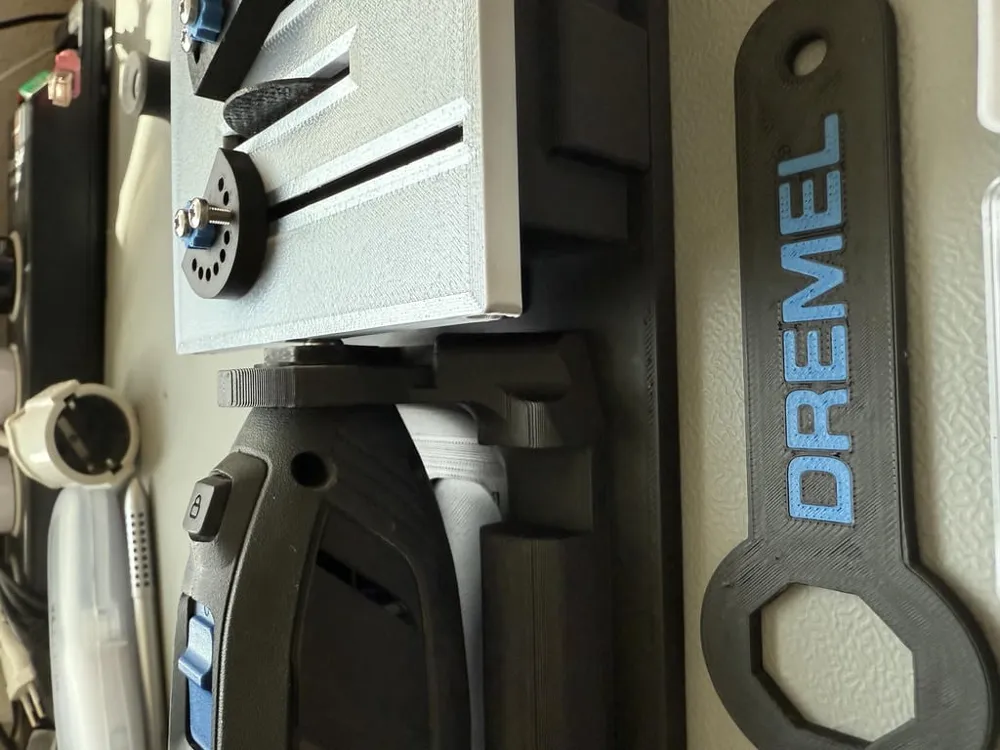

• The assembly should be self-explanatory, see also the picture gallery.
• I din't need the protection so i didn't print it, so no picture but i attached them for correctnis

Needed parts:

• 8 x M3 screws
• 6 x M3 nuts
• 1 x Round Threaded Brass Heat-Insert Nut (please see down)
• 1 x a piece of thin fabric tape to protect the Dremel at the “back position”
• 1 x Filamt Bambu PLA Silk+ Silver (please see down)
• 1 x Filamt Bambu PLA matte Charcoal (please see down)
• 1 x Filamt Bambu PLA matte Marina Blue  (please see down)

Originals:

• Dremel Holder: https://www.thingiverse.com/thing:6226189

• Desk saw: https://www.thingiverse.com/thing:670704/files
