Runout En-Coder-Cube
Print Profile(1)
Description

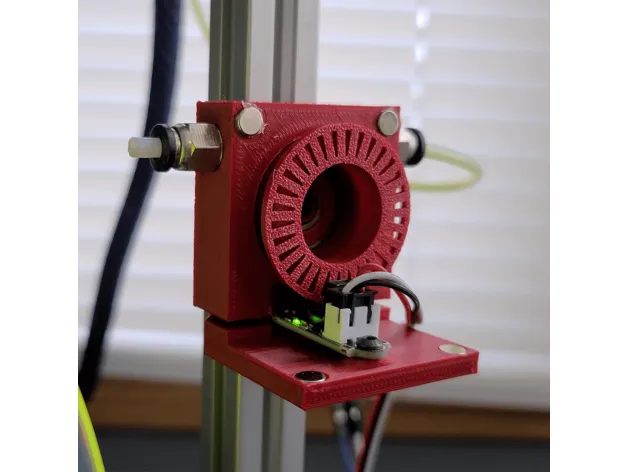

This is an open source Filament Runout Encoder which detects filament jams in addition to filament runout. You only need a few parts for this project most of which can be found in your shop already.
You can watch the video on how to assemble it here: https://youtu.be/v2mQ4X1J3cs
Bill of Materials
1 - 608 Skateboard Bearing
2 - M3 8MM Screws
1 - M3 6mm Screw
2 - M10 Press Fit Fittings
1 - Small Rubber Band
1 - Optical Filament Sensor
8 - 6mm x 3mm Magnets
