Mova / Dreame Robot Vacuum Dust Bin V2
Print Profile(4)
Description
***Edit 12/18/2025: I have now added a print profile with a TPU Seal and a plate that will fit it. These can be used with whatever box you choose, threaded inserts or no threaded inserts.
***Edit: V2 is now out to improve the fit and fix alignment issues with the outlet. The “lid” is the same, but the Box and the Plate will have to be reprinted.
***Second edit: I have added a print profile that has holes that are sized to directly screw in M3 screws. The second plate in that profile is a test fit piece. Just because the screws thread in well for my printer and my filament doesn't mean it will work for you, so please try the test piece first.
We recently got a Mova P10 pro and we really love it. But there is a problem; it uses wasteful dust bags instead of just having a canister that can be emptied directly into the trash. We have two dogs and two cats, so its particularly a big problem for us.

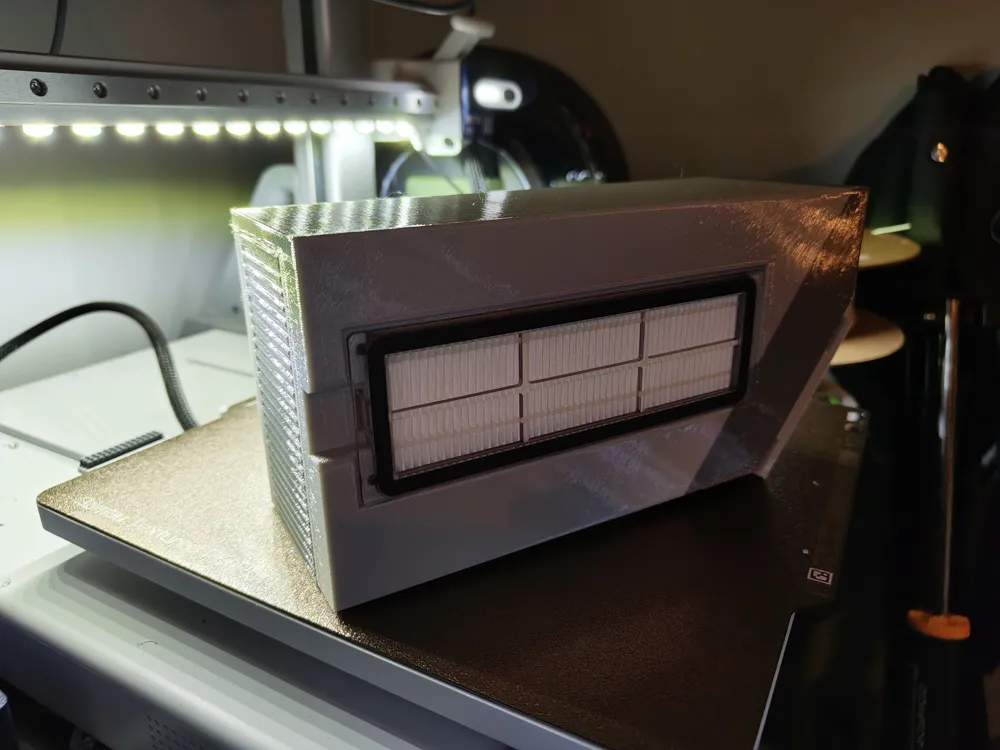

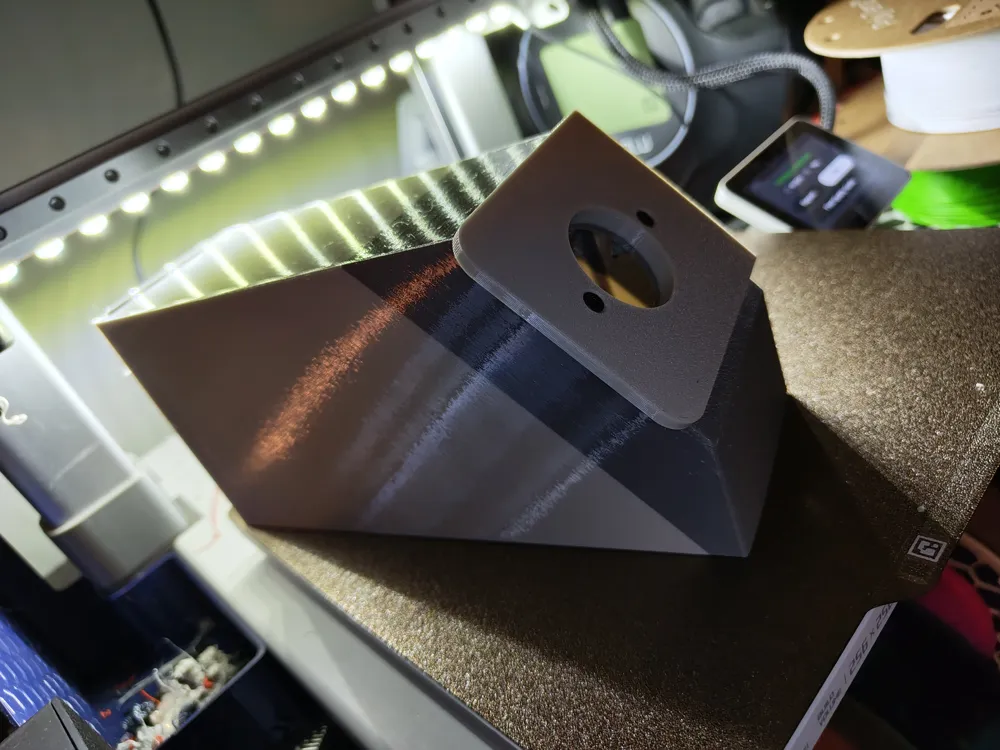

So, based on some other designs I found for similar vacuums I designed a dust bin that would replace the dust bags. As far as I can tell it may be compatible with the below models:
Mova: P10 Pro Ultra / P10 Ultra / S20 Ultra
Dreame: X50 Ultra/ X40 Ultra / X30 Ultra / L40 Ultra / L10s Pro Ultra / L10s Ultra Gen2

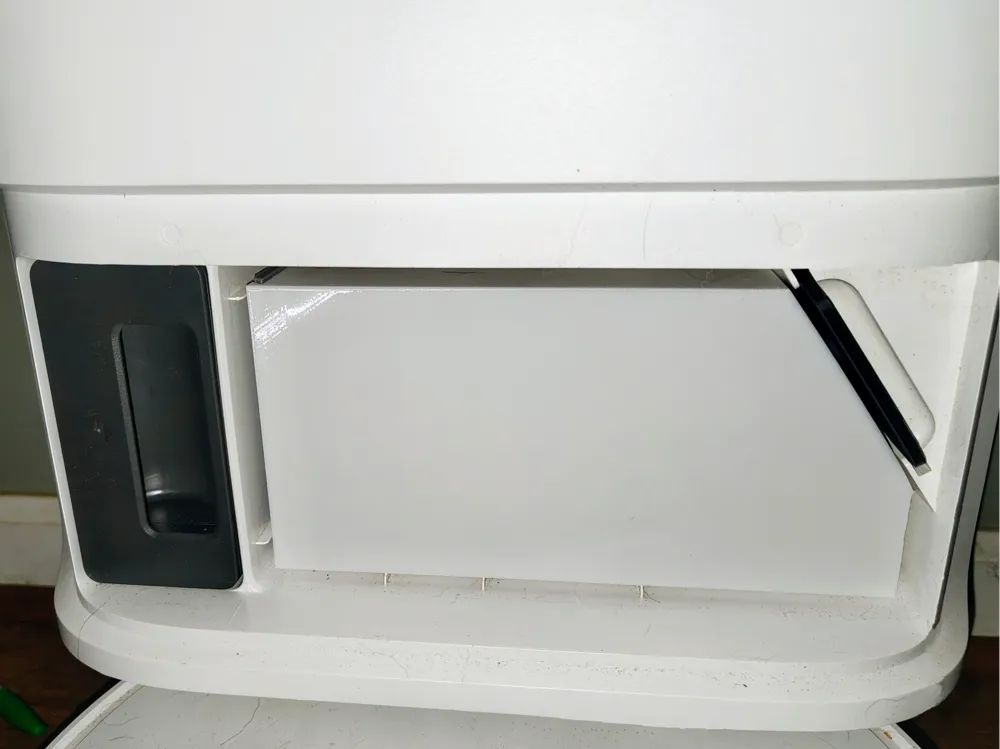

edit: Removed P50 Pro Ultra from the compatibility list as it has a different shaped cavity. Please be sure to check the pictures to ensure you have a similar shape for your bag opening.
What is needed for assembly:
1 Filter compatible with L10s Ultra (example: https://www.amazon.com/dp/B0D8JB3WLK )
2x M3 x 16 Screws
2x M3 Heat Inserts (for the original version)
Note: As with all my models I have included STEP files and Solidworks Files for ease of remix. Please use the “Download STL/CAD Files” option to access these.
