Harvest Helper / Fruit Picker

Fruit Harvester for Trees and Bushes – with Two Adapters

This versatile harvester is a practical tool for harvesting fruit directly from the tree or bush. It is ideally suited for picking various fruits such as apples, pears, plums, or even berries – especially where one cannot easily reach by hand.

The set includes two adapters:

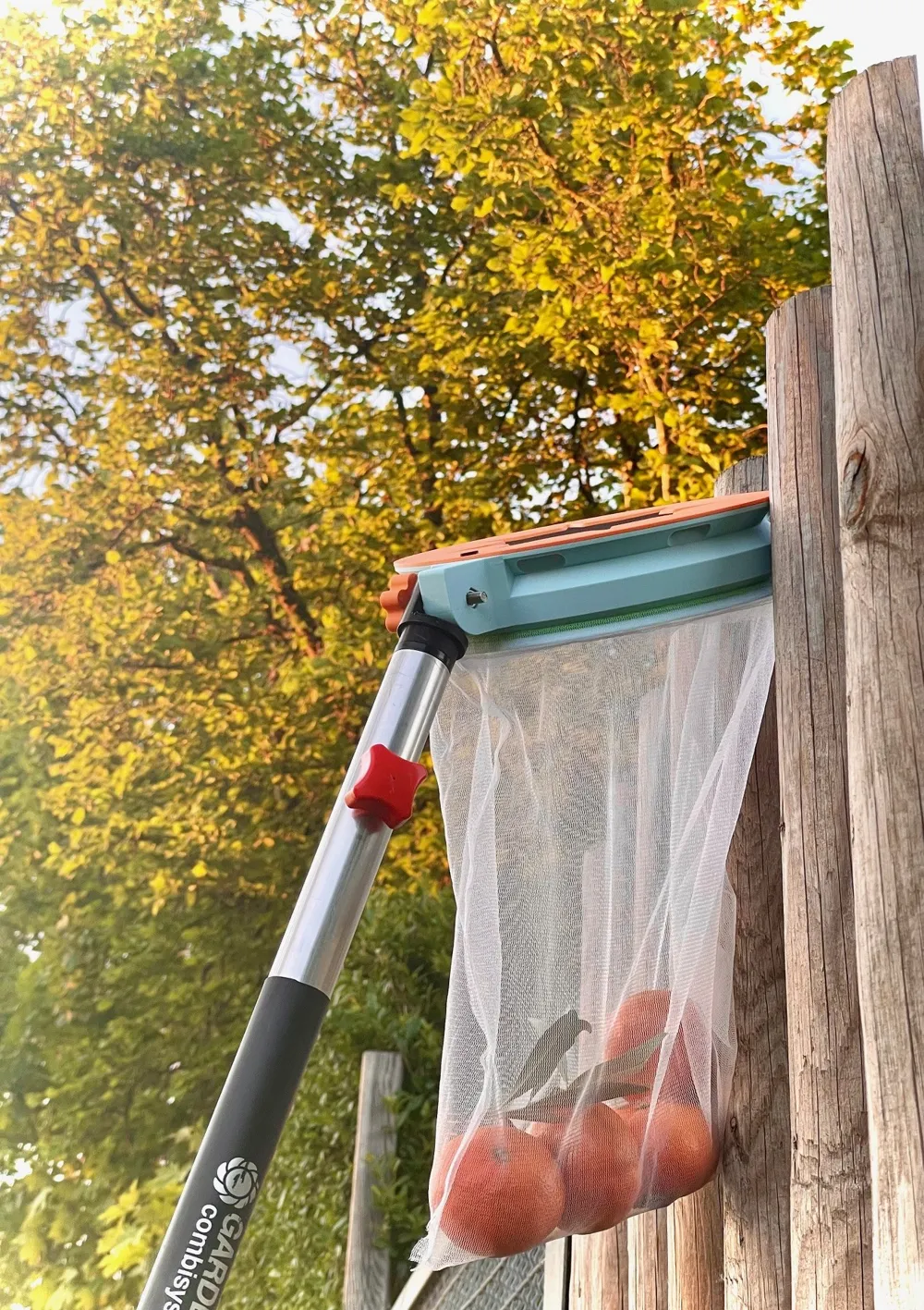

• Gardena Combisystem-compatible connection – suitable for common telescopic poles from the Gardena system

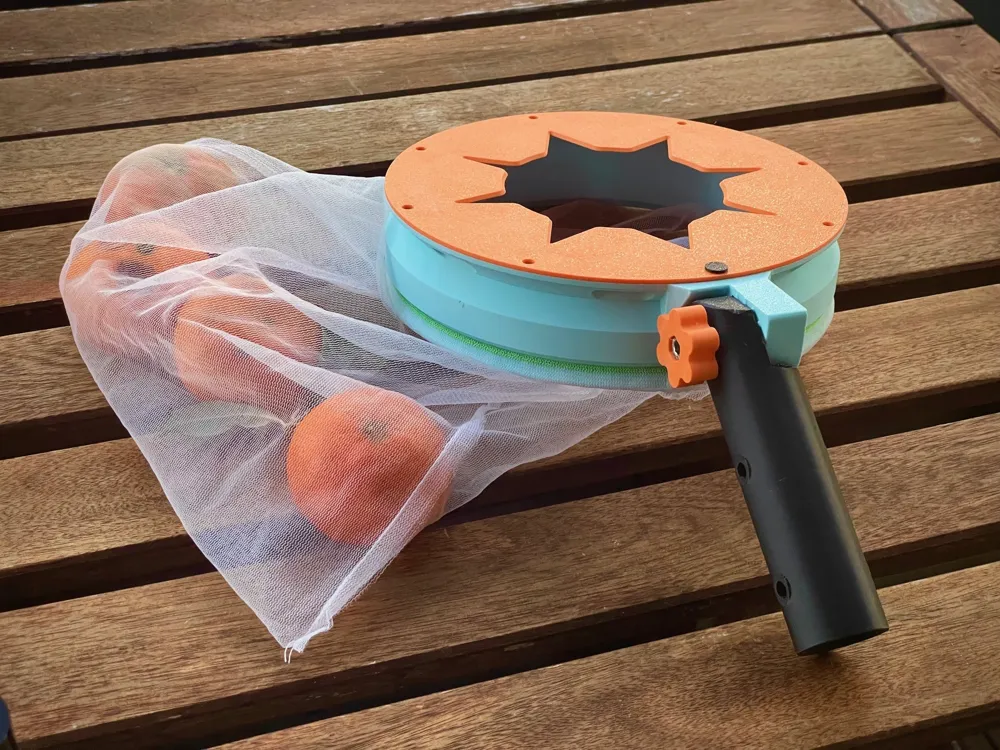

• 22 mm round rod adapter – ideal for commercially available wooden handles (e.g., broom handles). Also practical for use as a hand grip, e.g., with bush fruits

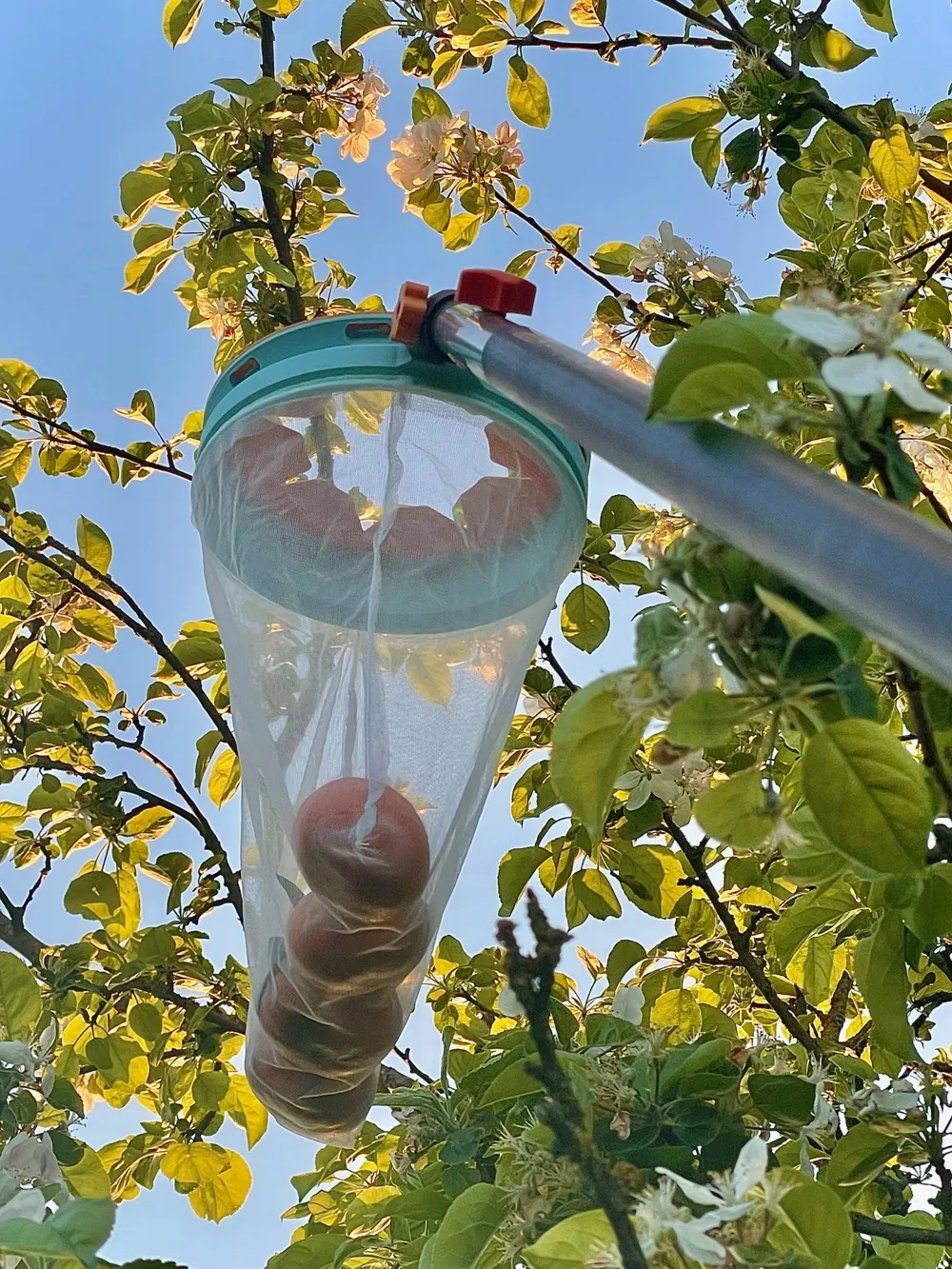

The fruit is gently grasped with the basket and harvested by pulling, without damaging it. This makes the tool suitable for both private gardens and smaller agricultural uses.

The disc is multifunctional and can be used for various fruits. Small cutouts are better suited for small fruits (e.g., cherries, currants), larger ones for larger fruits (e.g., apples, pears). The disc is released via the clip and can then be rotated.

Recommended material:

• Material: PETG, ASA or ABS (for higher weather resistance)

Assembly:

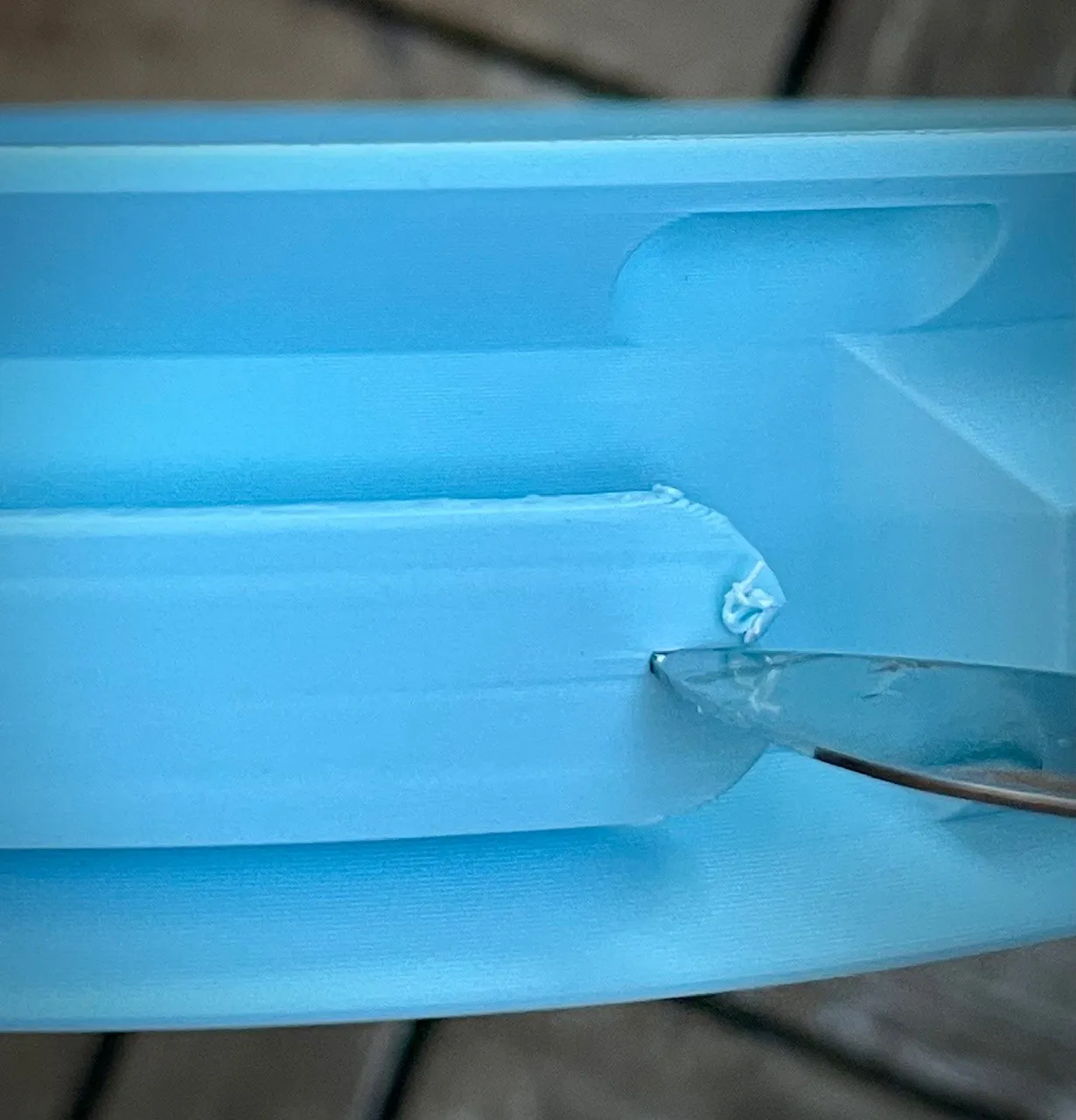

• Remove supports, including those in the two slots; a knife is best for this.

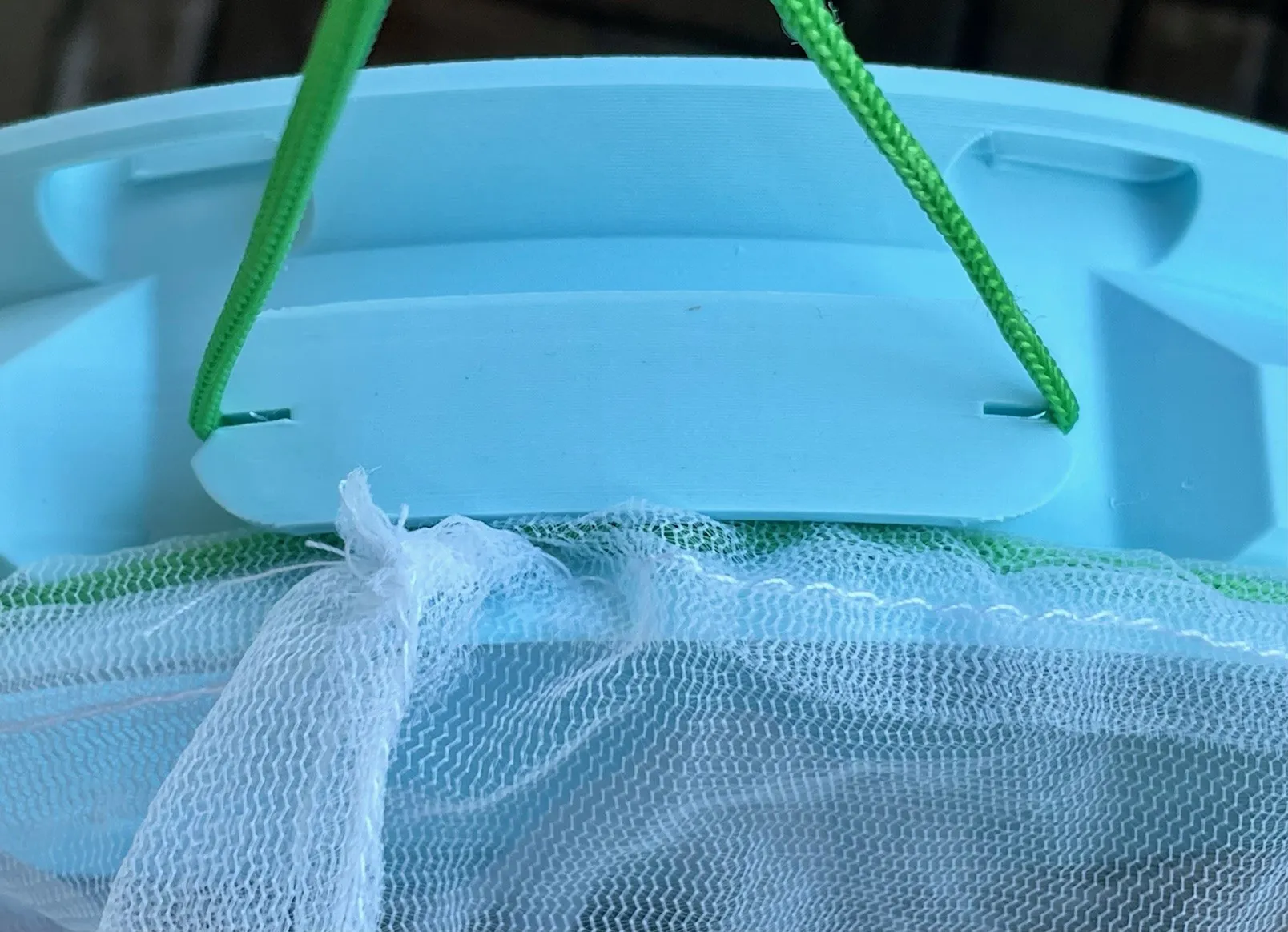

• Insert a commercially available fruit net (e.g., Rewe / Edeka / …)

• Mount the appropriate adapter with an M5 screw and nut (Gardena or 22 mm device holder)
• Insert the disc and rotate to the stop
• Insert the clip to lock the rotation
• Attach and secure the Gardena pole or 22 mm pole
• Ready for harvest :)

Note: The round rod adapter can be additionally secured with two screws. Simply mark and drill holes, then secure with screws.
