Ender 5 Max Bed Support Arm
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 10% infill
Designer
53 min
1 plate
Open in Bambu Studio
Boost
28
40
24
4
180
39
Released
Description
Designed to help support the bed edges as the OEM machine has zero and with the separate mounting of the bed to the frame the expansion with temperature goes un checked
the Before/After Photo shows the change after installing only 1, will update with all 4 on the bed and post new bed meshes as it progresses

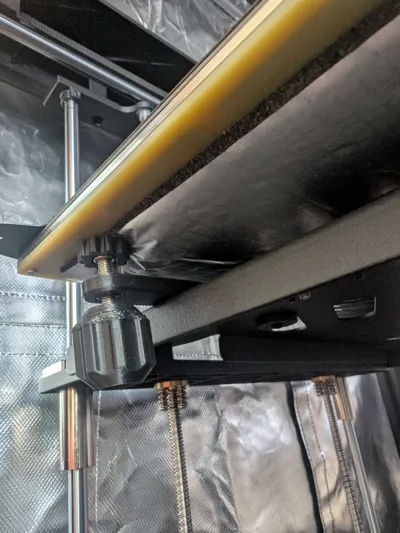

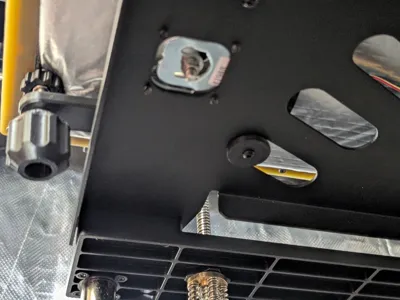

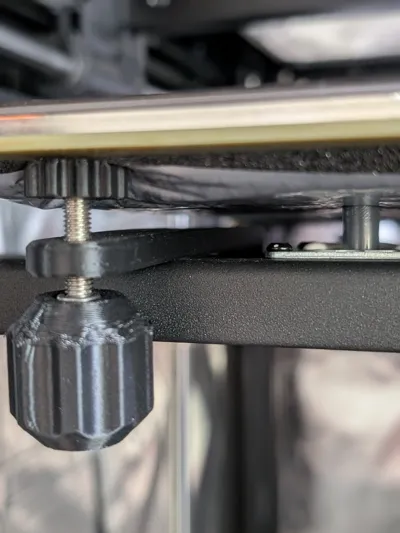

these are designed to use the bed frames holes and attach in a way that you can use a M6x30mm or 36mm Bolt with nuts to lift the corners up and give a better bed mesh
PETG or ABS is recommended to help prevent warping at high temps
4-5 walls (Voron quality)
20% infill gyroid or similar
5 top/bottom layers
