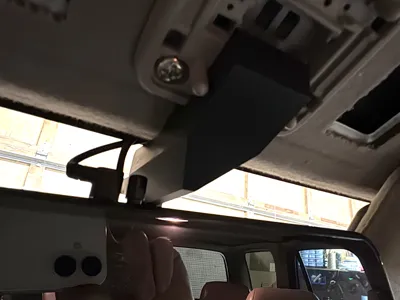

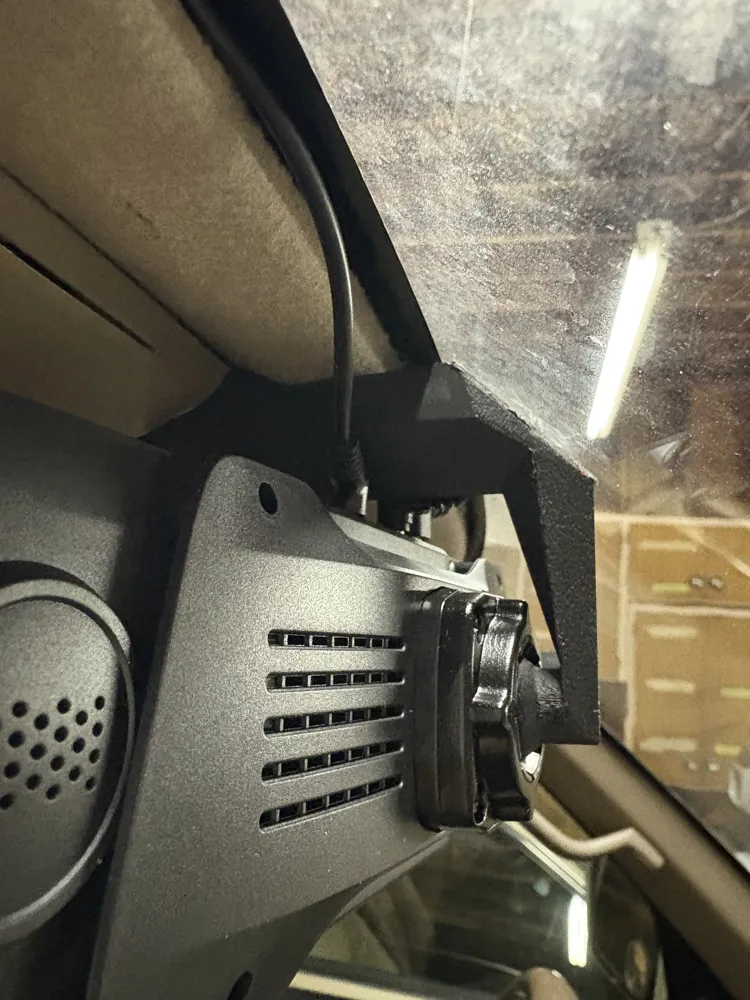

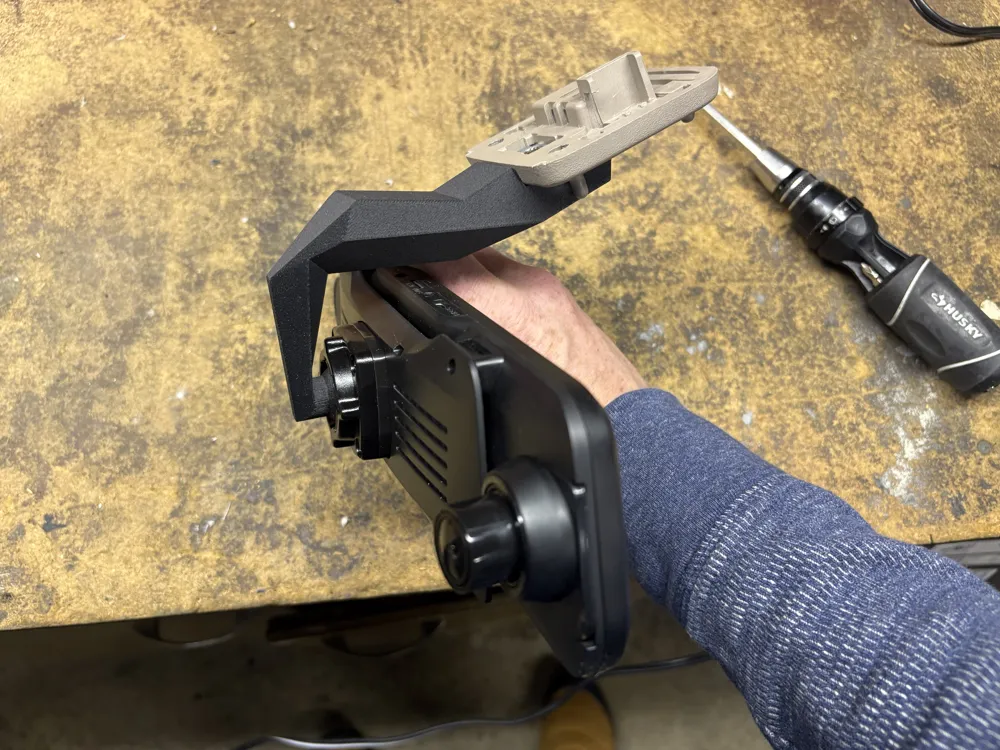

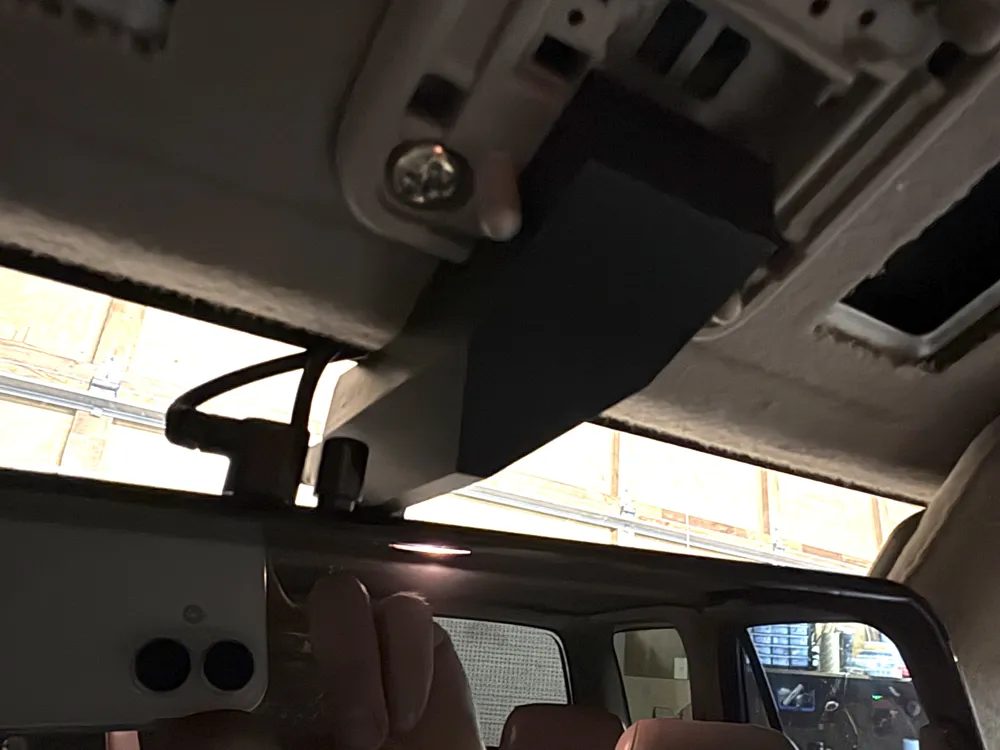

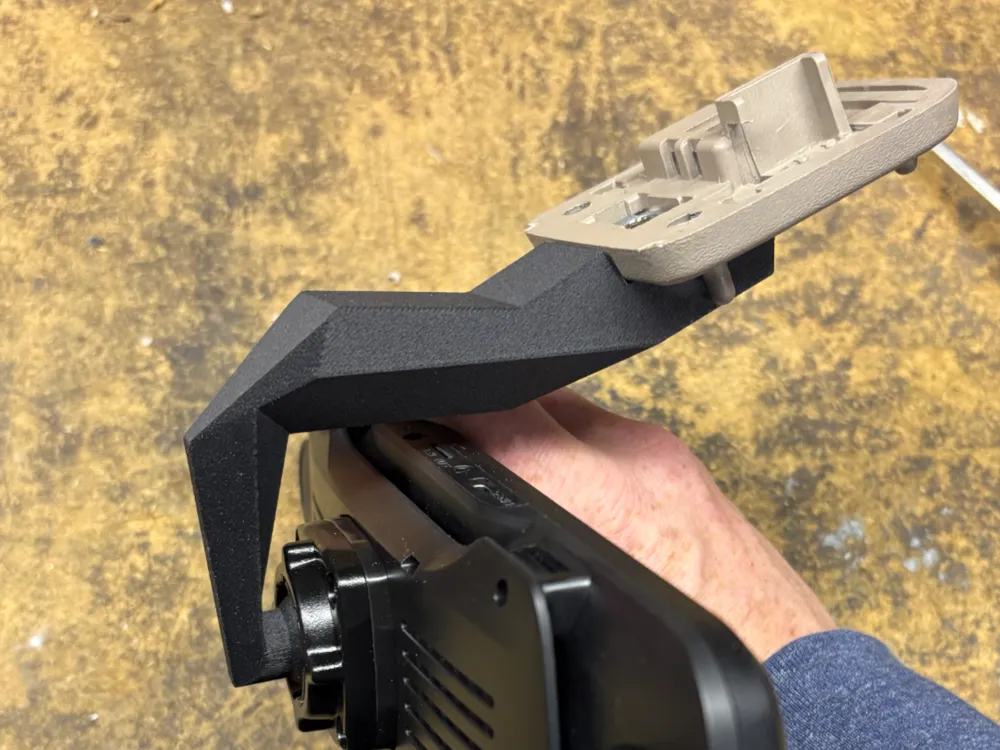

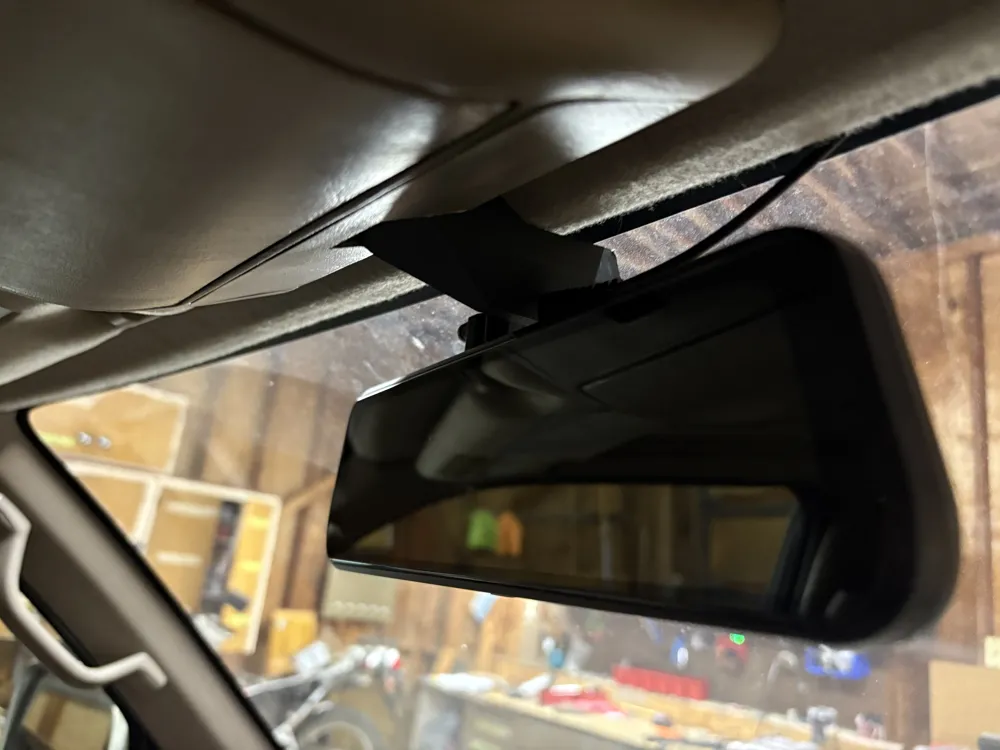

This is a custom mirror mounting arm, compatible with 3rd gen 4runners and 1st gen Tacomas. This arm allows a 10" wide mirror to be installed without impeding the function of the sun visors.  The arm attaches to the OEM mounting point and the ball-joint is sized to be compatible with the backplate on Wolfbox's bracket (Amazon.com: WOLFBOX OEM Bracket for G930 Mirror Dash Cam : Electronics). You will need the ball-socket and backplate from the linked bracket (or a similar model) in order to connect your mirror to the mounting arm.

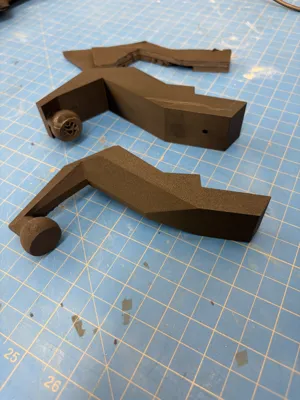

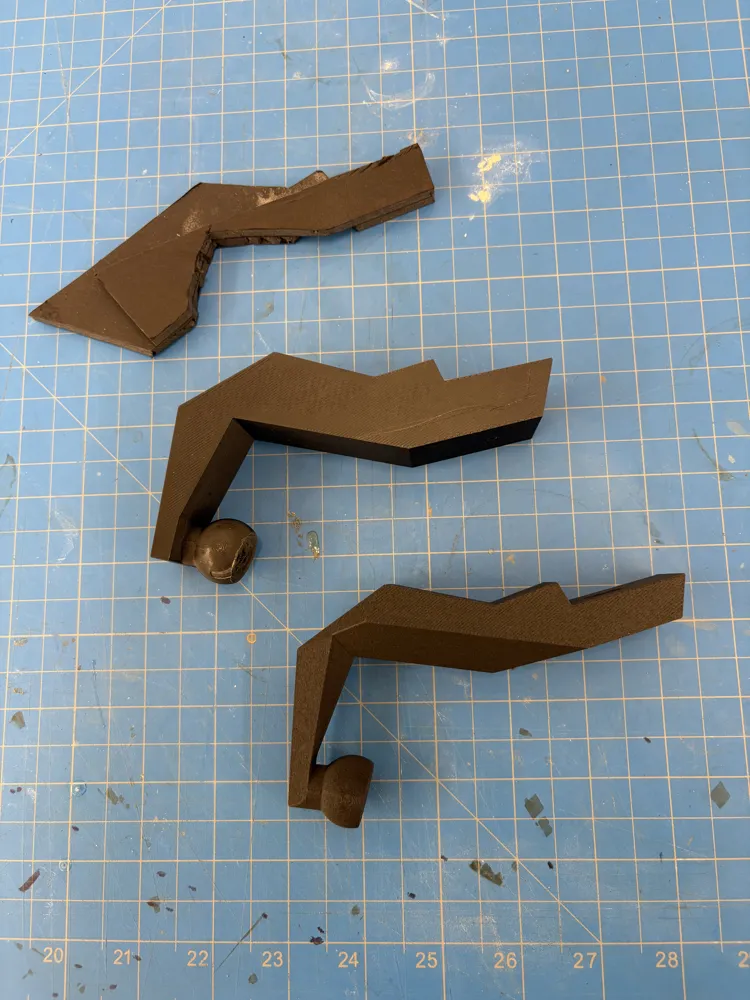

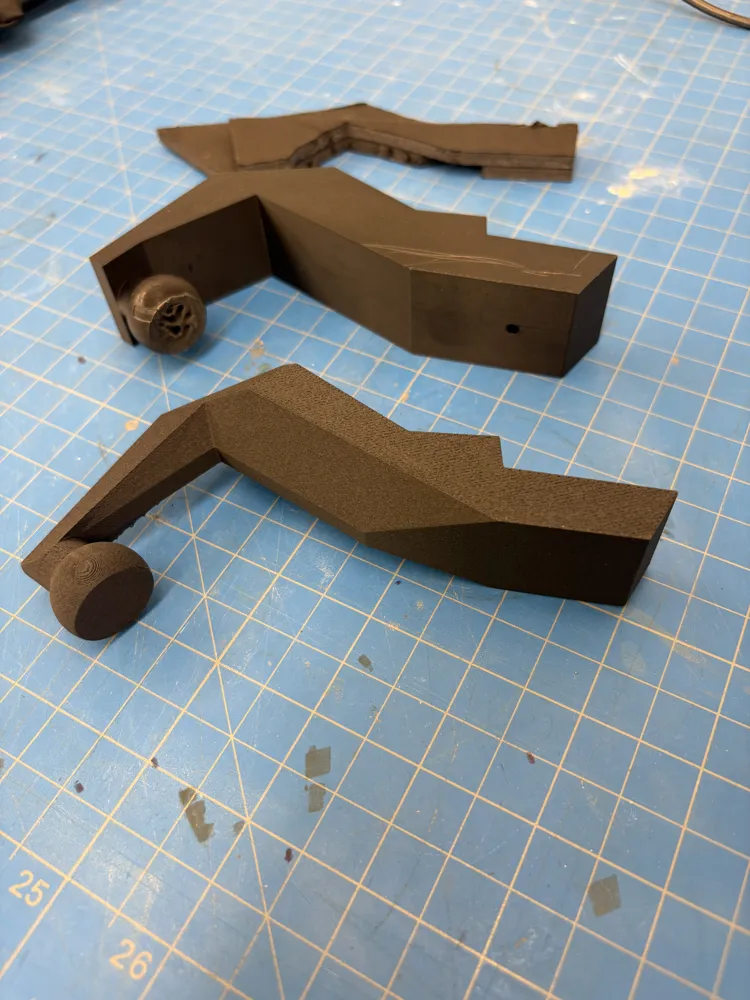

For added stability or if your OEM mount is excessively worn, you can use adhesive tape to stick the Arm to the windshield. I've tested both PETG-HF and ASA-CF prints of this model. The PETG performed well, but I preferred the extra rigidity of the ASA-CF.
