Description

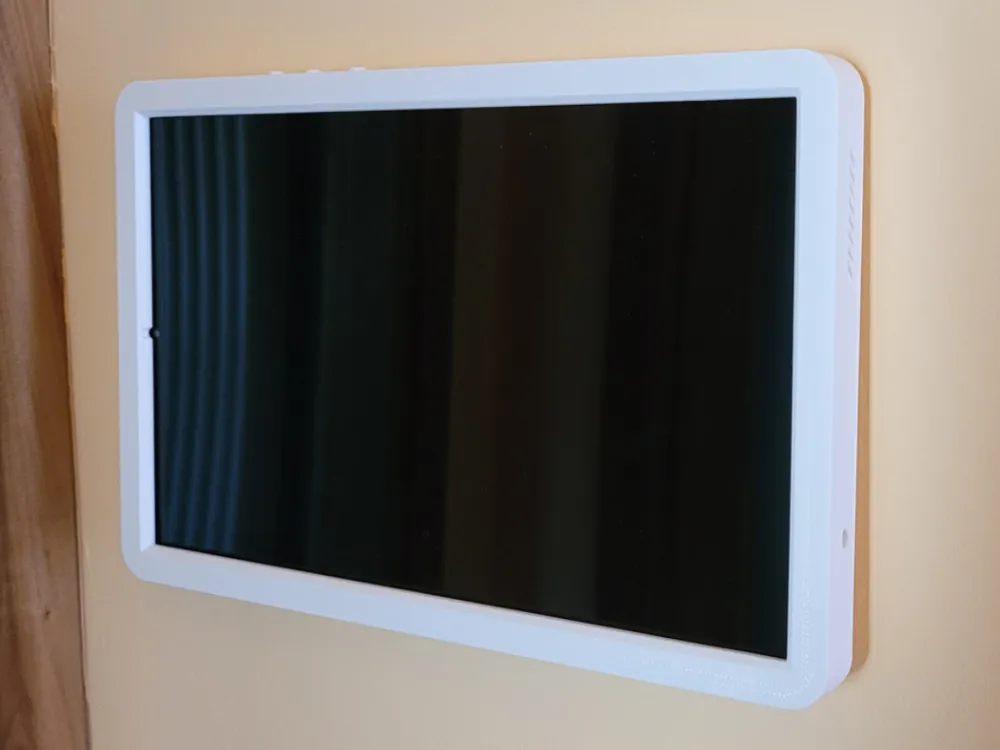

Wall mount for Lenovo Tab M9
2 piece design

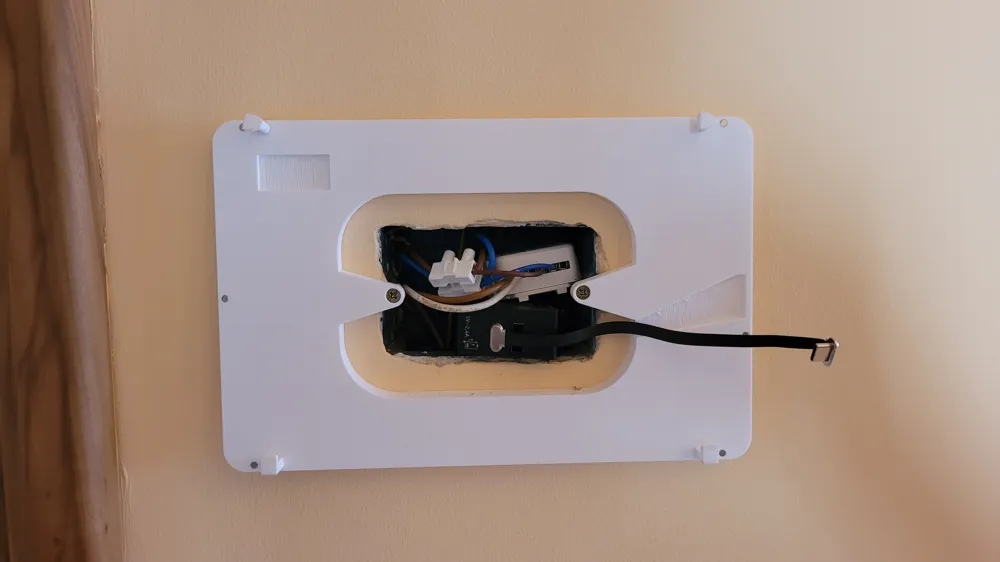

Base has mounting screws for standard 503 electric box
Front panel is held in place by 6 3*1mm magnets
There is a recessed space to route a flat usb cable to power the tablet with a wall usb charger
Tablet is held in place by 4 hooks
IMPORTANT
You need:
- 4 headless 3*10mm screws to screw the hooks to the base
- A usb flat cable to power the tablet
