Grohe faucet handle extender
Print Profile(1)
Bill of Materials
Description

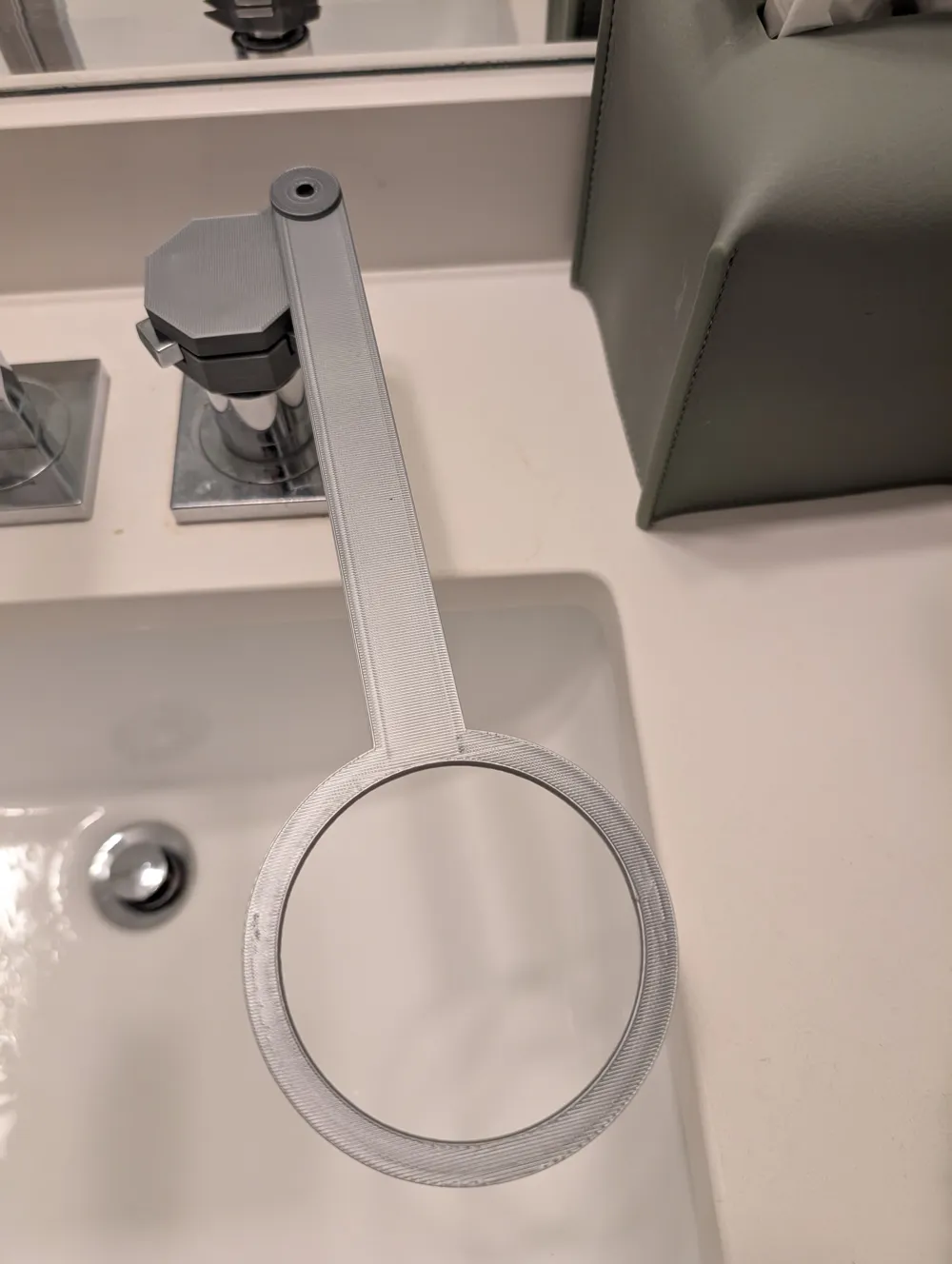

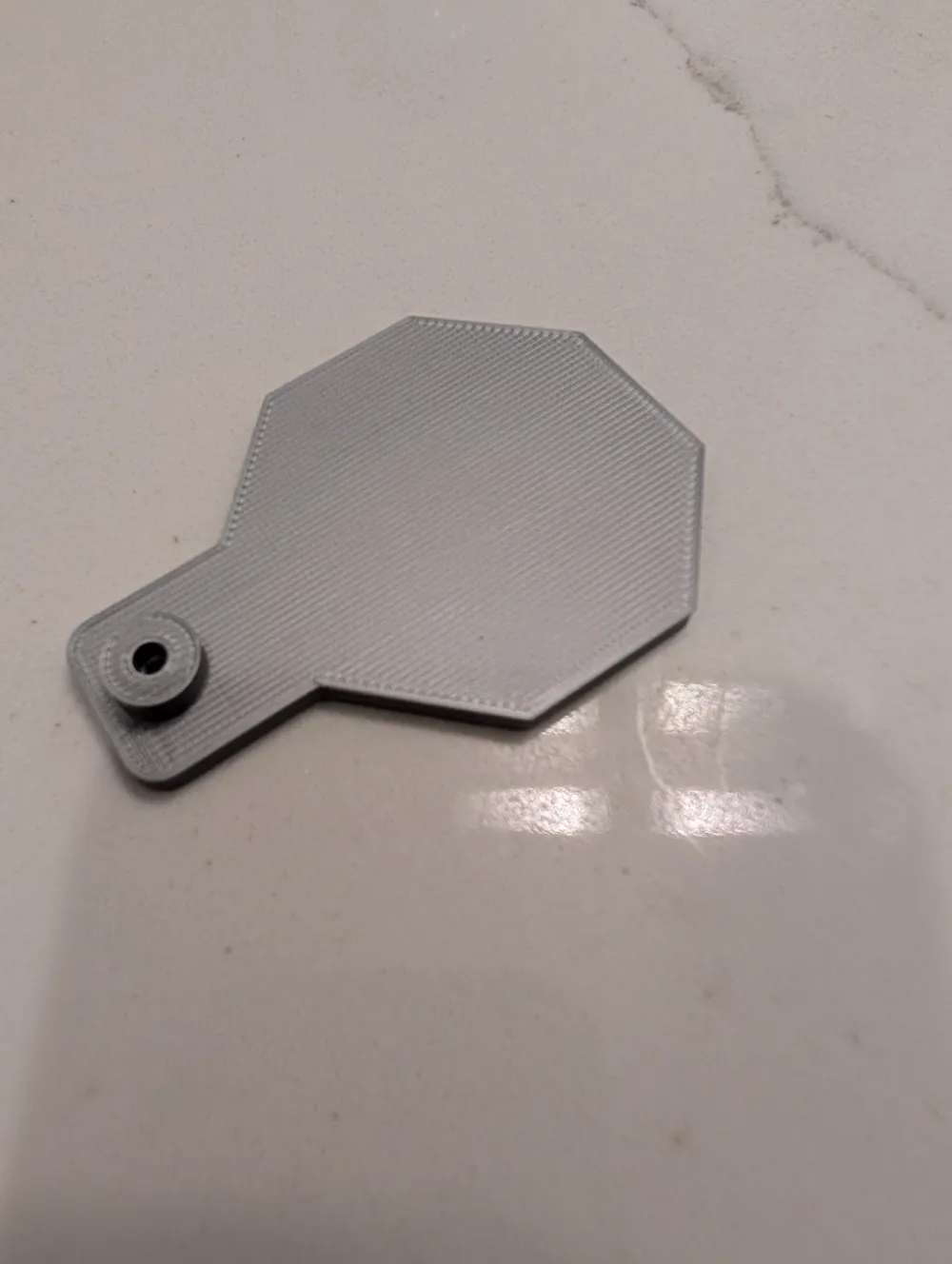

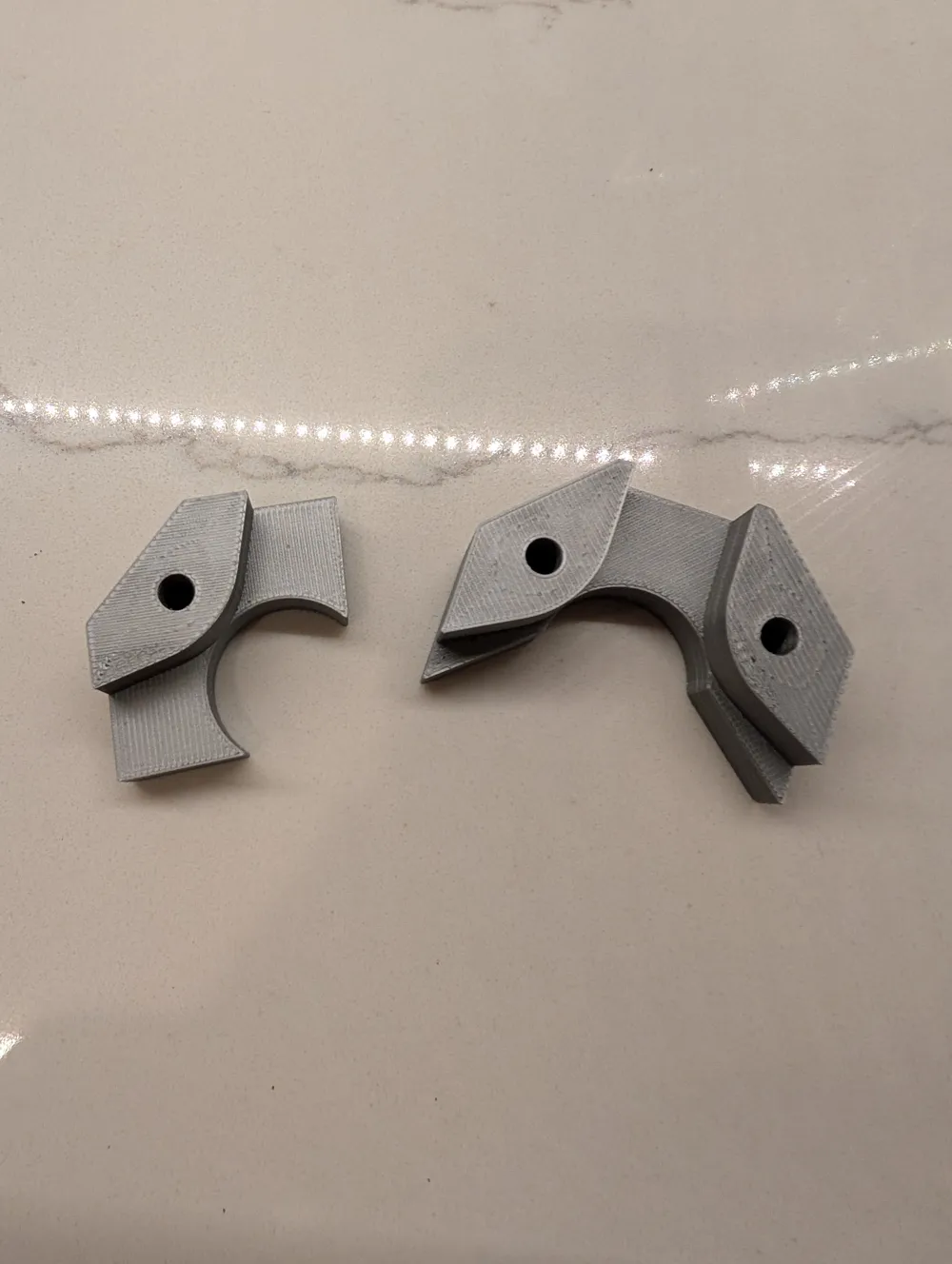

Designed this faucet handle extender so my toddler can turn the water on and off himself. It is compatible with the Grohe Allure model, which has a 3 arm design on each handle. The base has 3 parts, two of which go on the bottom of the handle and one on the top. There is then an arm that attaches to a pole on top, with a top plate to hold it secure.
Extra parts you will need:
- M4 nuts (3)
- M4 screws, 16 mm (3)
- M3 nuts (1)
- M3 screws, 10 mm (1)
Pause the print around layer 20 (0.20 mm layer height) to insert the M4 nuts, and around 30 to insert the M3 nut.
Standard print settings work fine with the exception of the arm; I'd recommend 5 walls and 50% infill for strength.
Happy to adjust the arm length or design if helpful
