Shoe Rack (Modular)

Modular shelving system for shoes and other occasions. (Very robust)

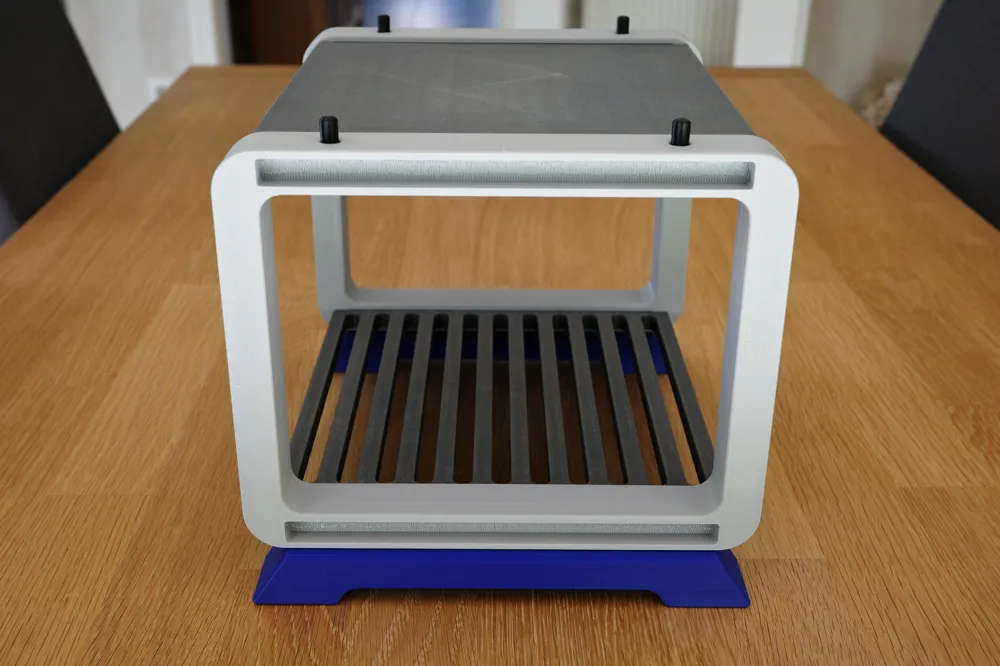

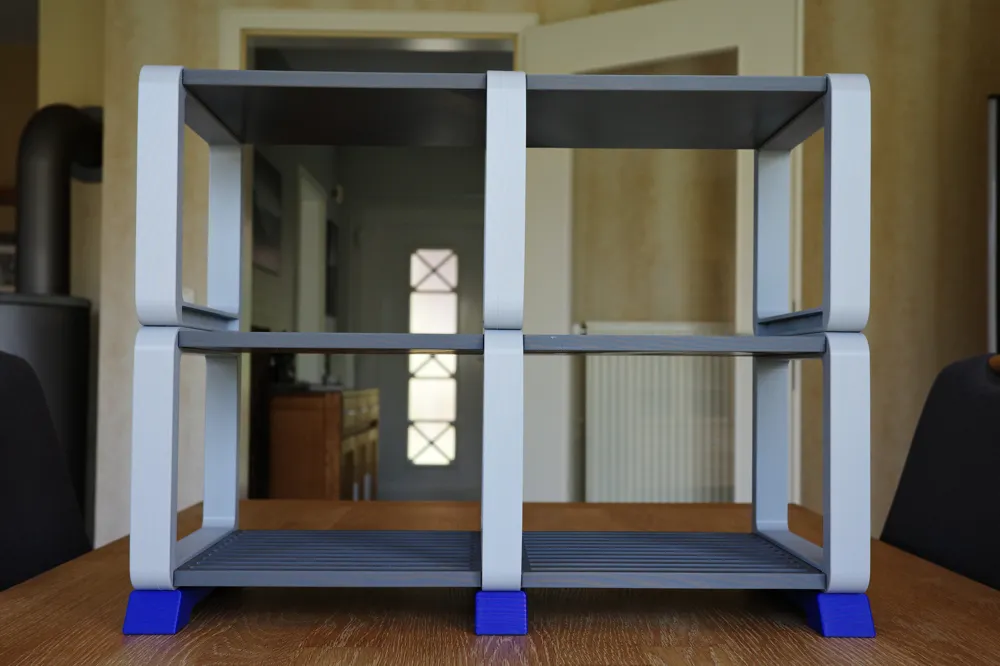

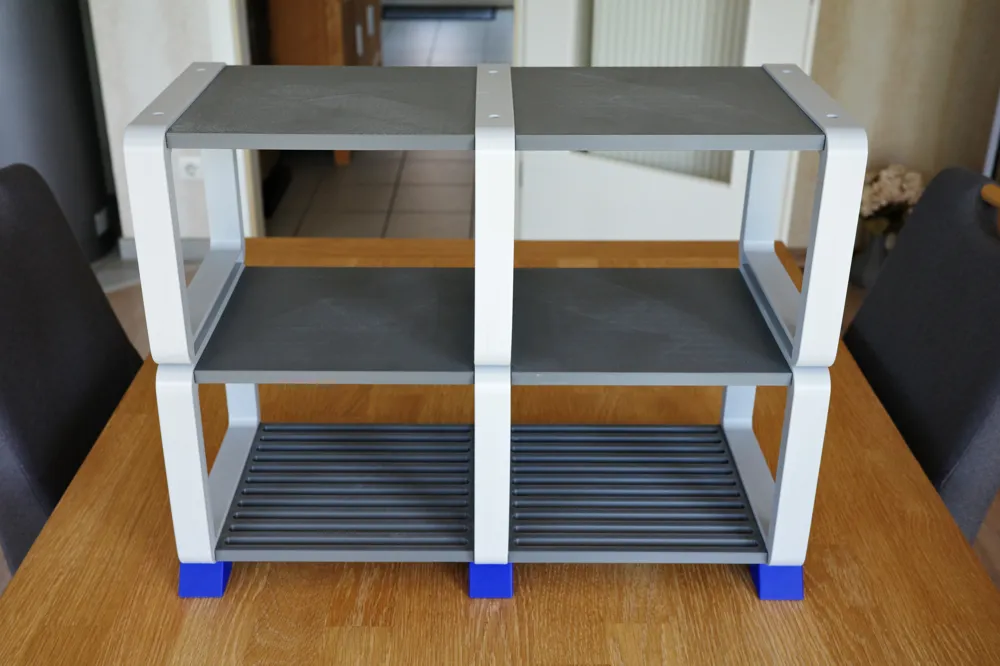

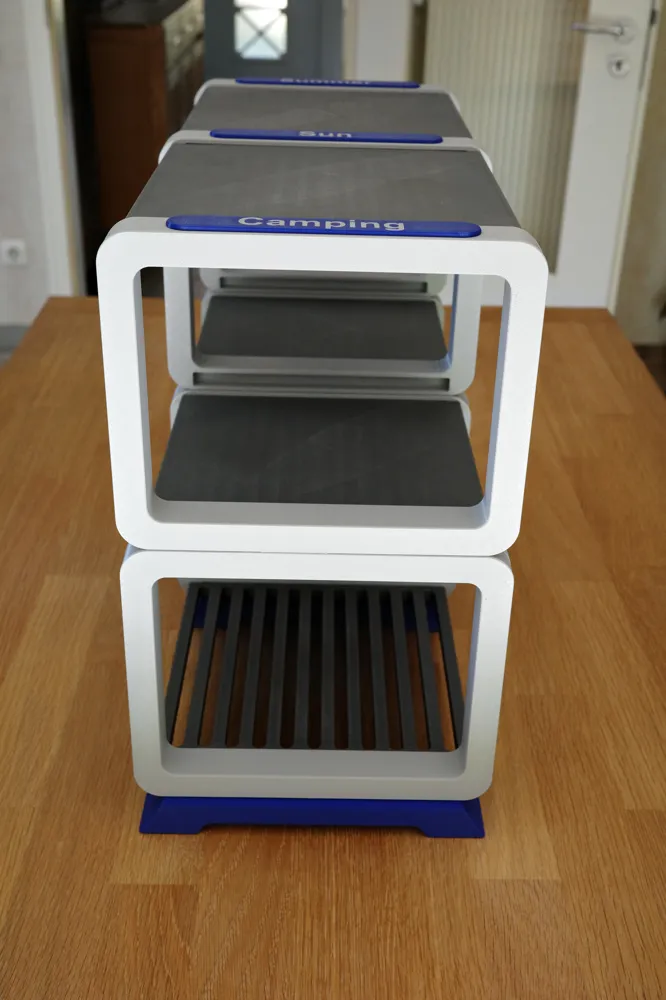

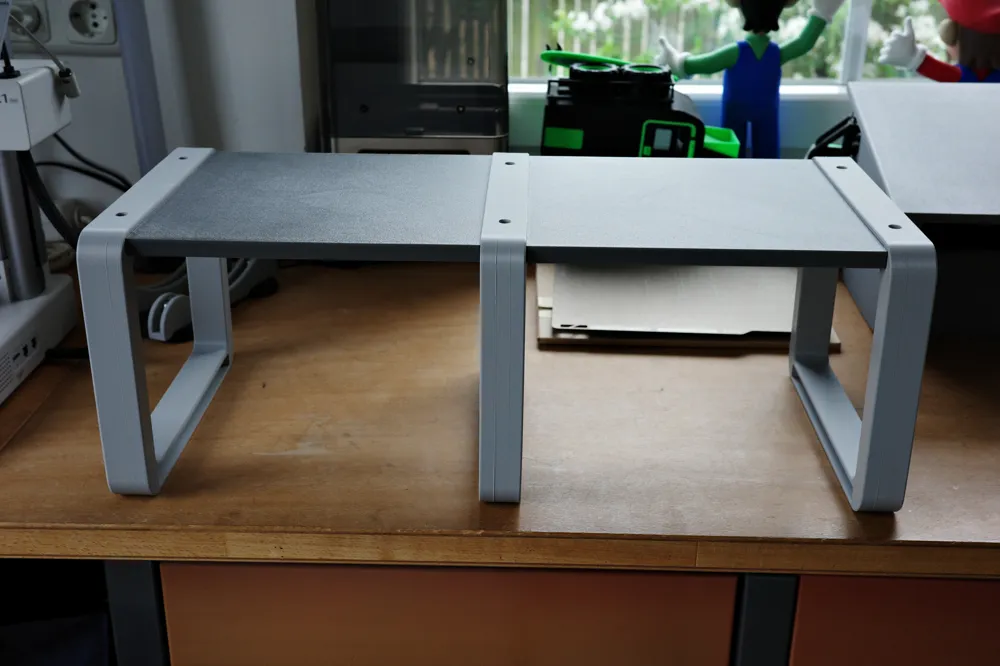

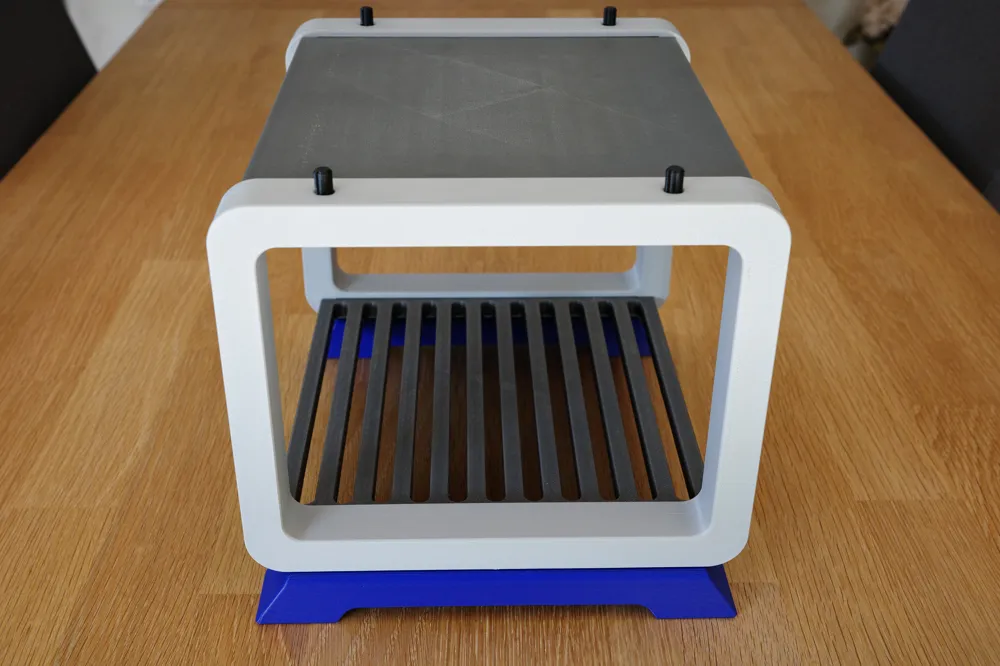

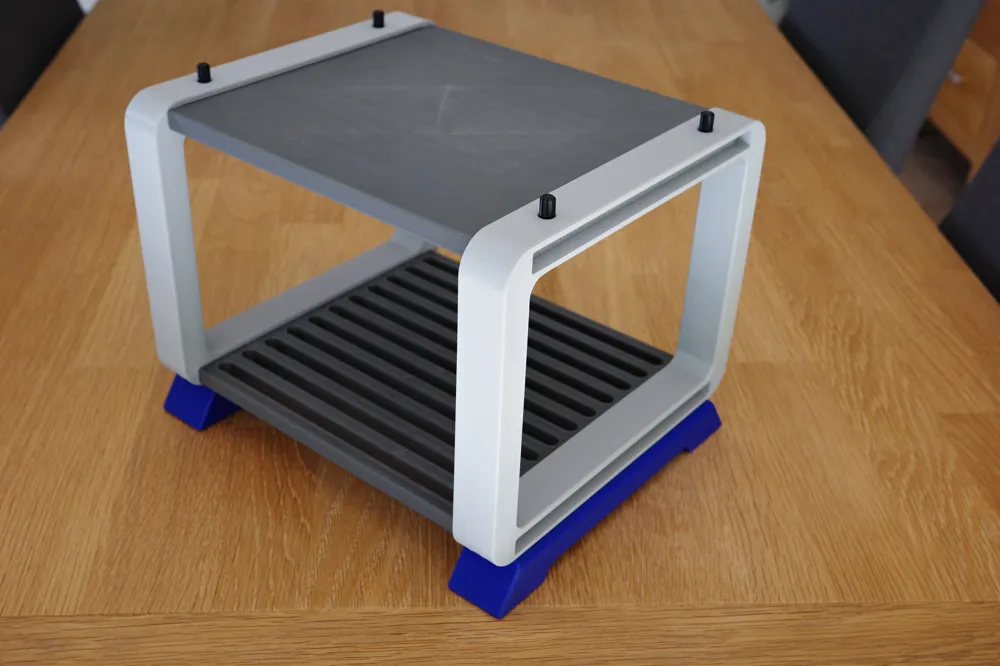

This shelf can be expanded from a minimum of two shelves to endlessly, although the overall height naturally limits stability. With several modules stacked, you eventually have to fix the shelf to a wall, otherwise, it becomes top-heavy. Side-by-side, however, there are virtually no limits. For the outer sides, two side parts are needed; if multiple modules are placed side-by-side, a middle part / connecting part is required. The middle part has grooves on both sides and can thus be extended. Middle part and feet require supports.

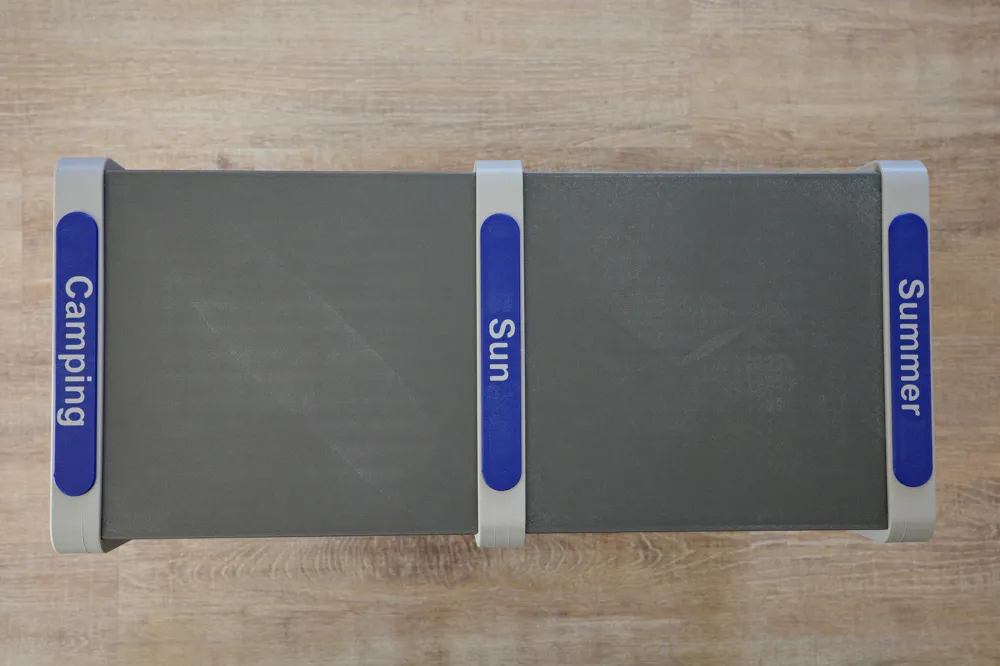

All parts are tightly fitted; I glued the individual parts with superglue. I did not glue the top covers, so they can be exchanged with a different text.

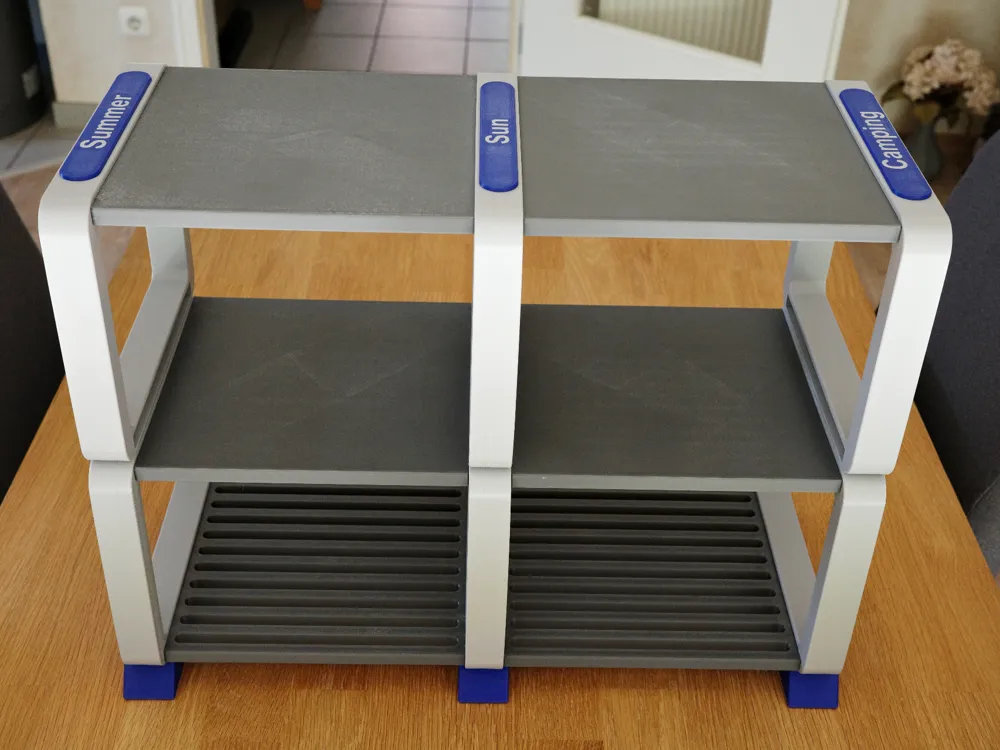

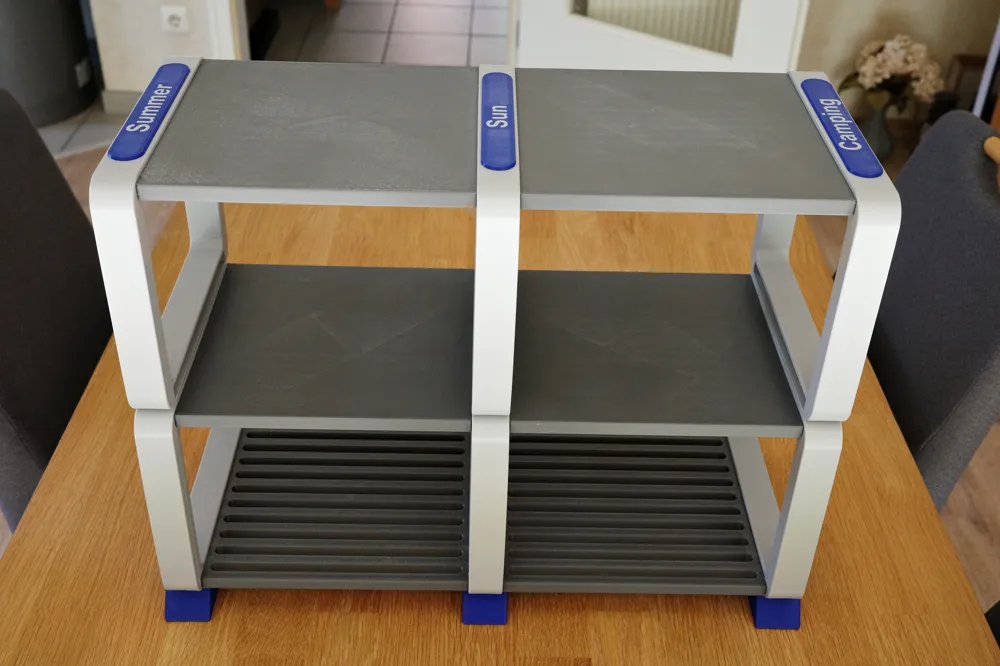

I designed the version in the picture as a shoe rack for 6 pairs of shoes, which is used for camping. Of course, the shelf can also be used for all other things in life.

The dimensions of this version

Depth 250mm, Width 560mm, Height 430mm, Weight approx 3.5 kg

Everything was printed from PETG-HF

Nozzle 0.6 mm

Layer height 0.24mm

Wall lines 4

Infill 15%

Bill of materials for this version:

4 x Side part

2 x Middle part

3 x Feet

3 x Cover with variable lettering

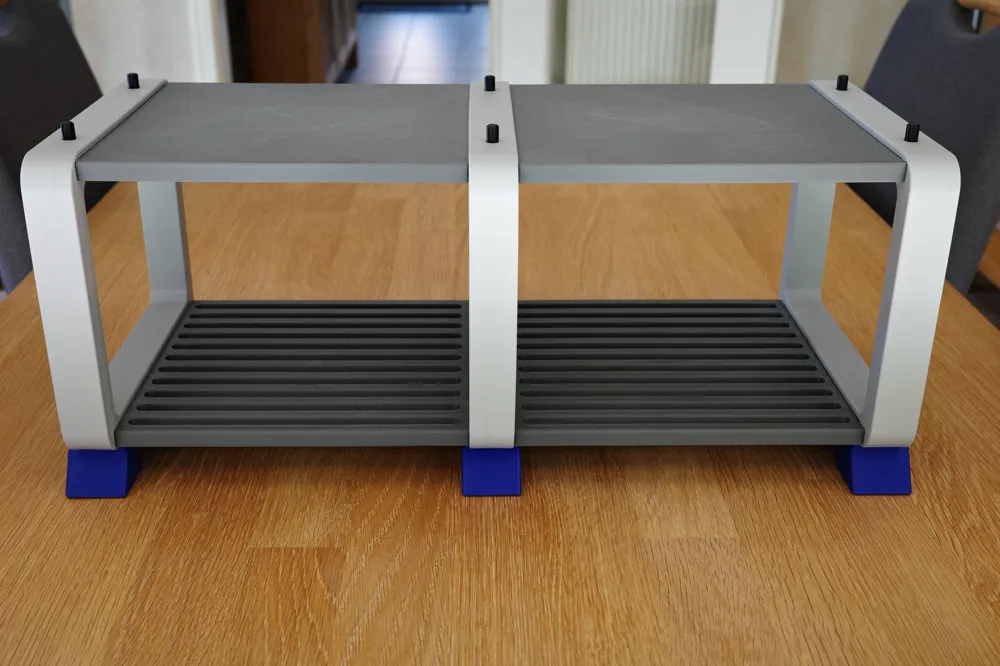

6 x Dowels

2 x Open shelf (for dirty and wet shoes)

4 x Closed shelf

1 x Bottle of superglue

************************************************************************************

Optimization on 2025-11-09 for printing on a P1S

Nozzle 0.6 mm

Layer height 0.24mm

Wall lines 3

Infill 15%

Shelves rotated 90° on the print bed, therefore no more error message in the slicer.

The shelves are now outside the restricted area in the front left corner of the plate.

*************************************************************************************

I hope you like the shelf, if so, feel free to leave a like.

Have fun printing and crafting.

Best regards Thomas
