G Hook Webbing Buckles

Happy 3D Printing!

I downloaded and printed several G-hooks but couldn’t find one that met my needs — one wasn't strong enough, and another didn’t retain the webbing securely.

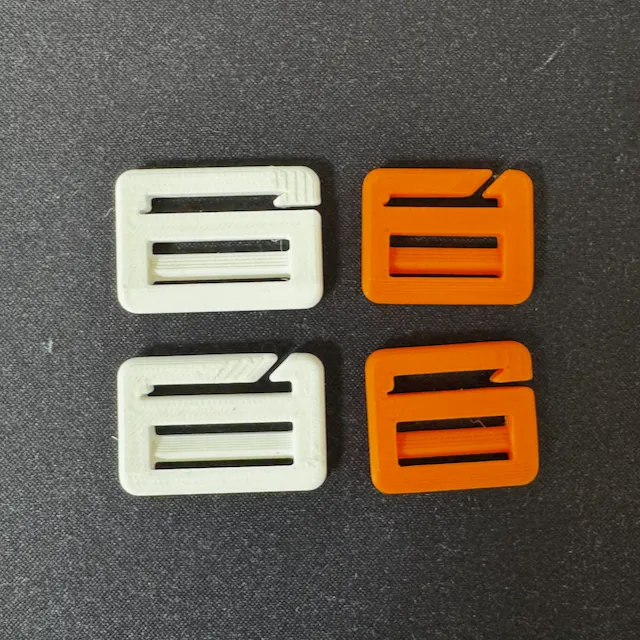

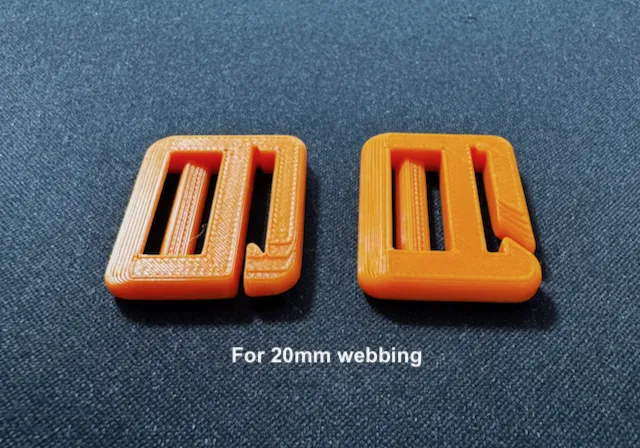

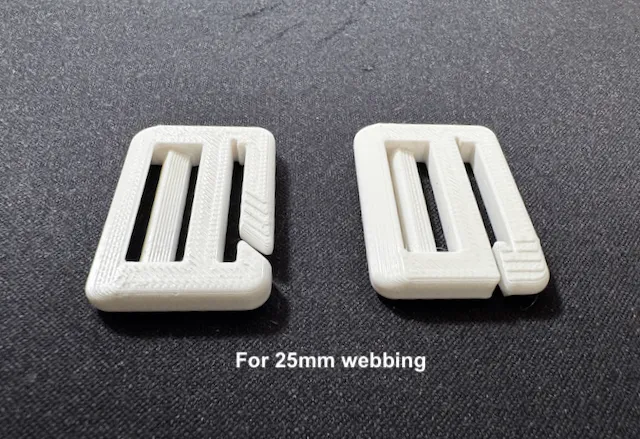

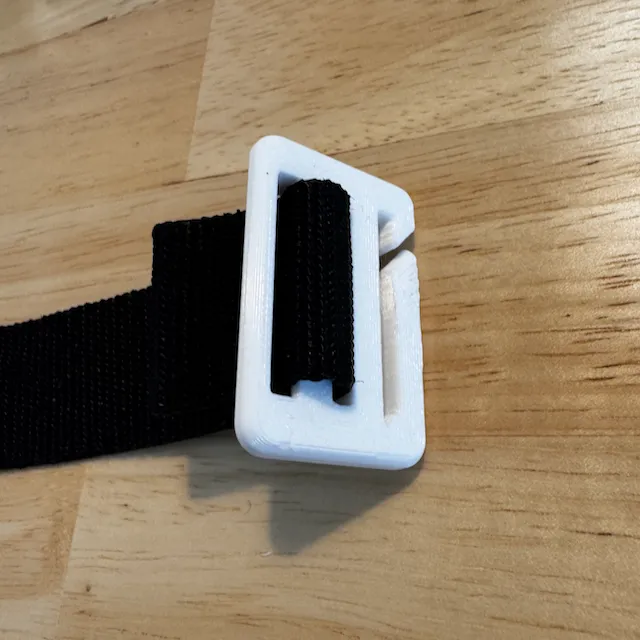

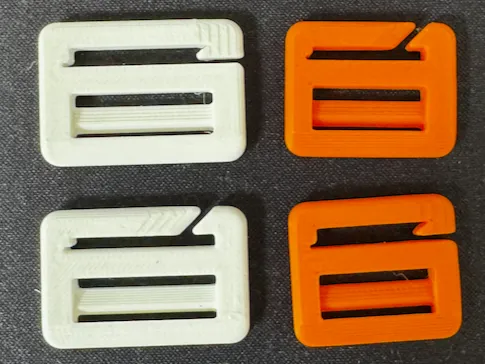

So I created four designs in two categories: a basic G-hook and a reinforced type, each available for 20mm and 25mm webbing widths. These provide sufficient strength for practical and general use, and they also retain the webbing securely in place. The reinforced type provides better strength, while the G-hook type slides in and out more easily.

I could print these successfully with both PLA and PETG. I recommend PETG (or even ABS) because it increases strength. I used 7 wall loops and concentric pattern. Using support is not strictly required but recommended.

You can download the FreeCAD file from GitHub if you need it.
