Protoboard 5x7 (cm) stackable mount
Print Profile(1)
Description

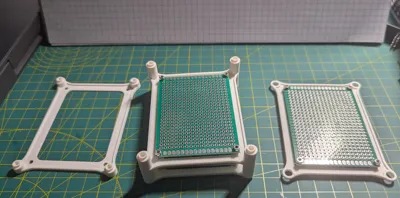

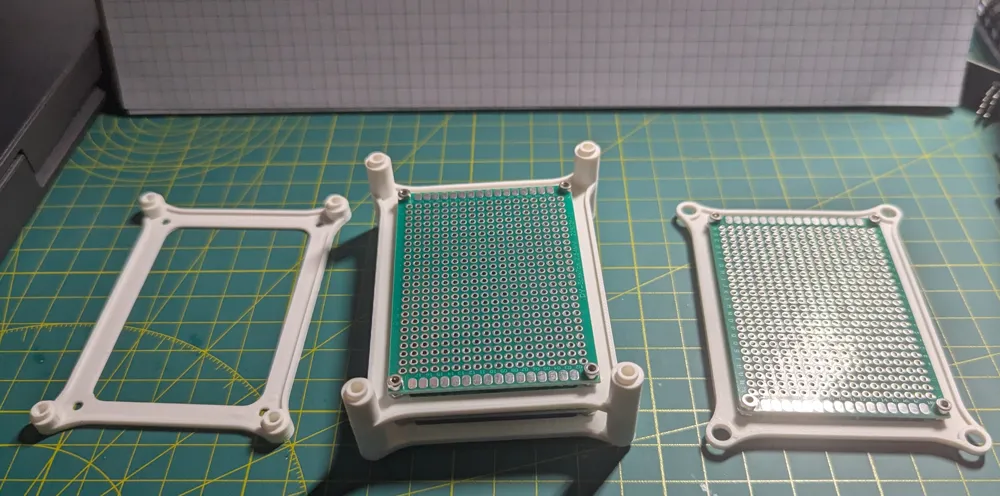

This model allows you to stack 5cm x 7cm protoboards, M2 screws and nuts are required to mount the protoboard

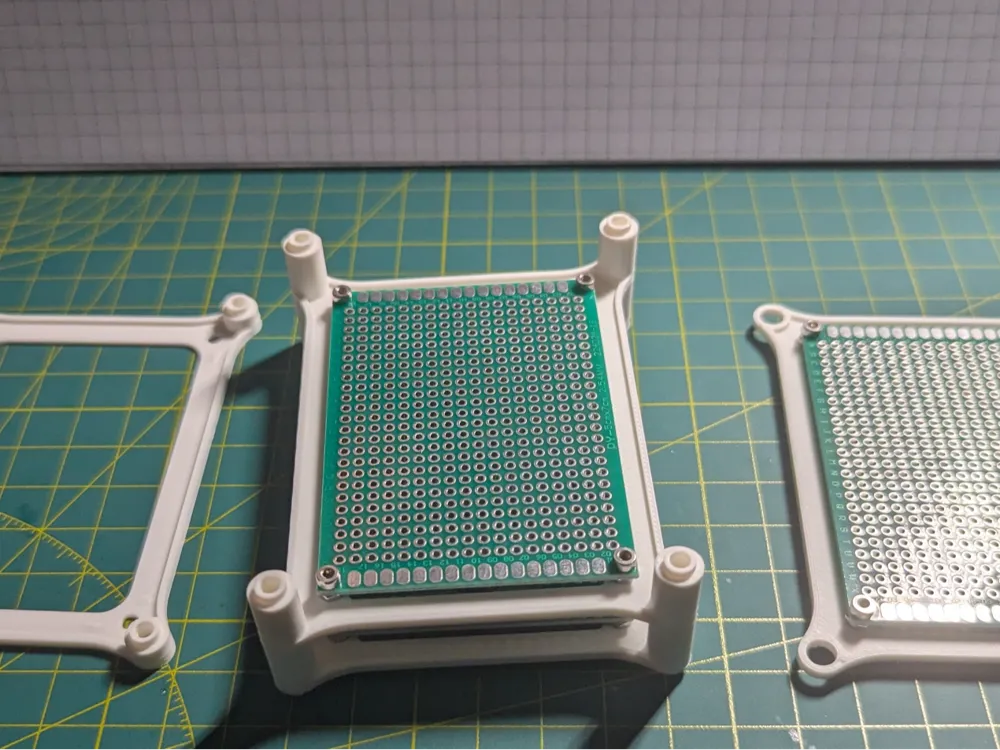

It is a push fit system, with a hollow space between the pillar so that a M3 screw can be used to secure the stack.

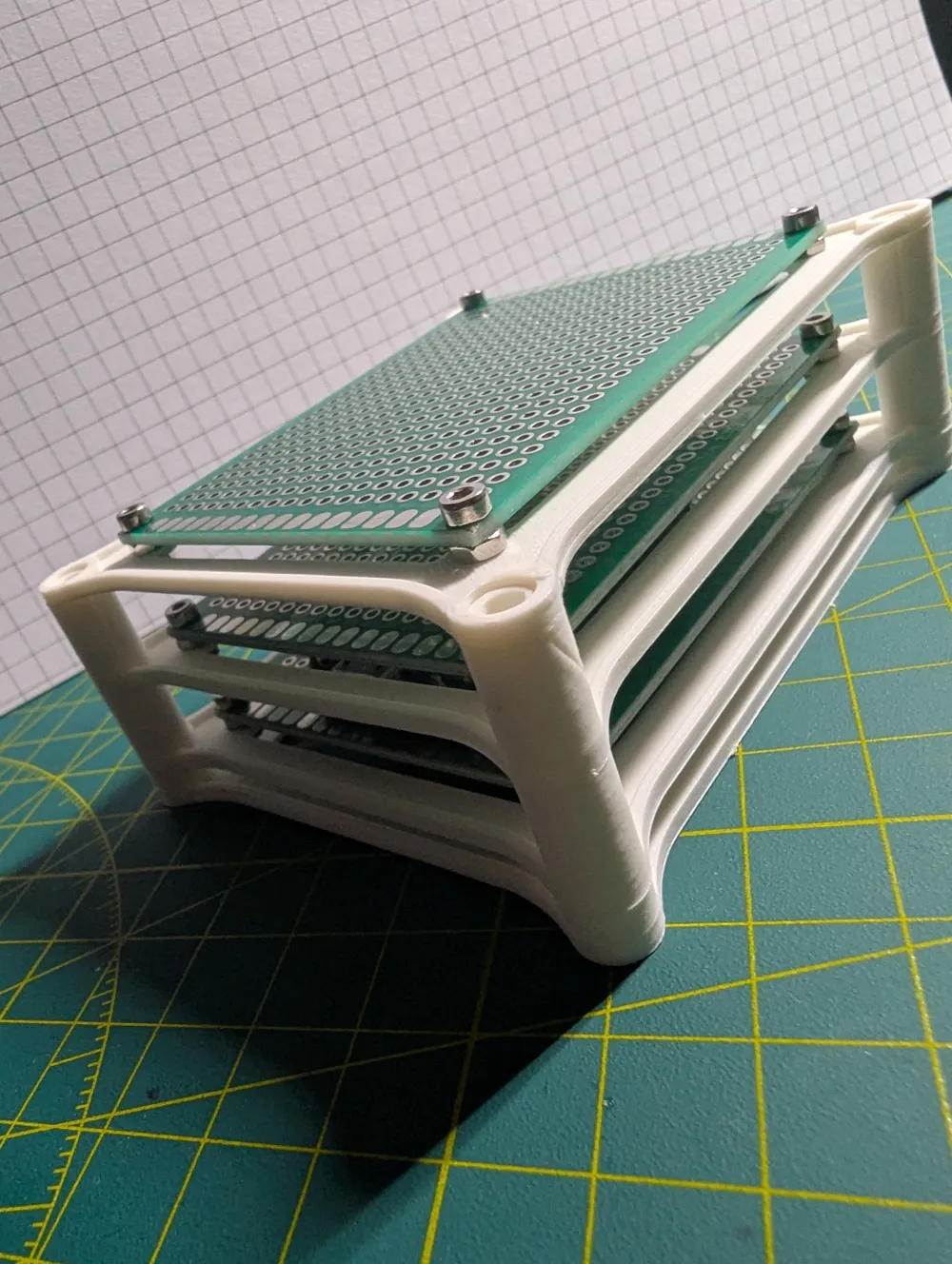

When stacked the distance between the protoboards is 11mm, this is the height of my female and male header's combined hight

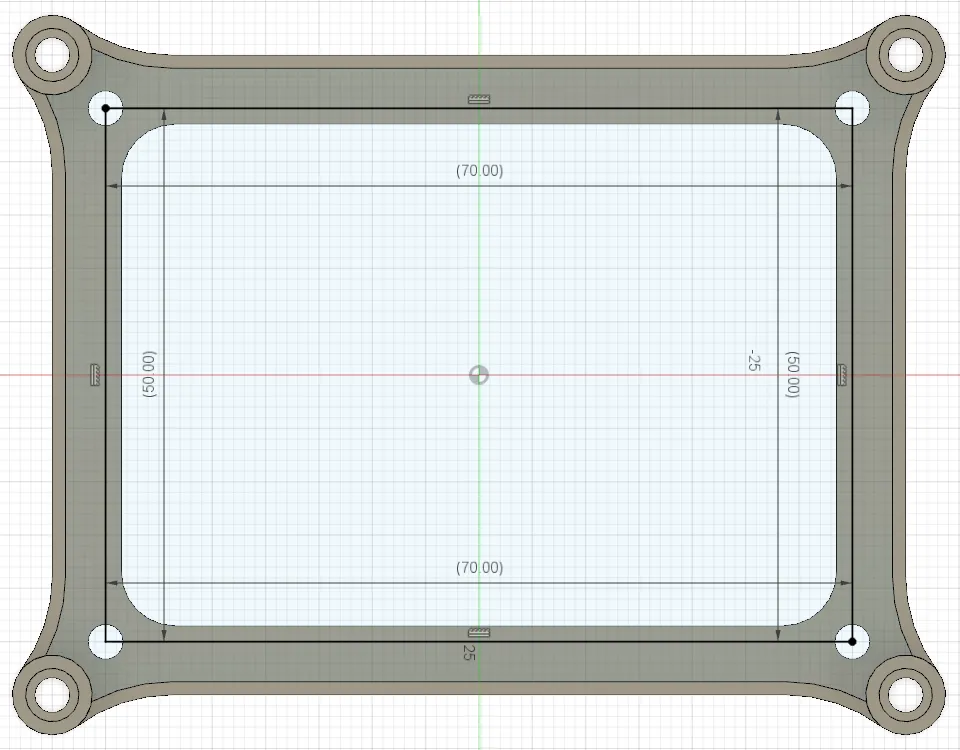

The M3 mounting holes have a distance of 50mm x 70mm.
Boost Me (for free)
If you like the model and find it useful, feel free to give me a boost!
This model is part of a collection of stackable mounts.
See here: https://makerworld.com/en/collections/6179802-stackable-mounts
