Description

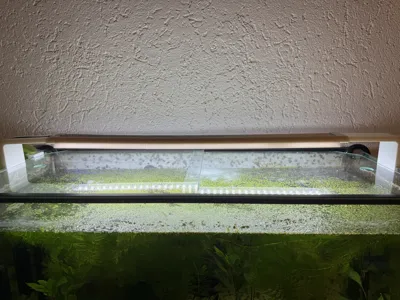

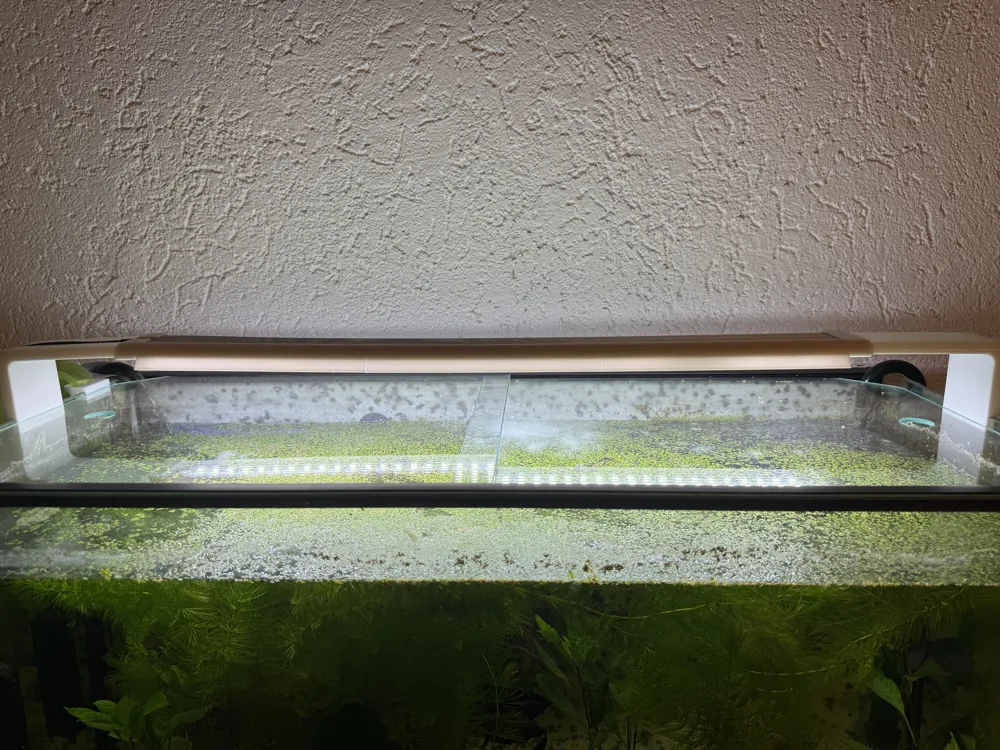

This small yet useful lip for the Chihiros A-601 prevents glare when lying on a sofa or bed for instance
- on my Chihiros A601 the measurement between the end caps is 588mm therefore I have now divided the elements into twice 200mm and once 188mm, since I only have this lamp I can only determine this measurement
Please measure your lamp and scale the whole thing as needed on the Z axis
!!! Note that only the Z axis is scaled !!!

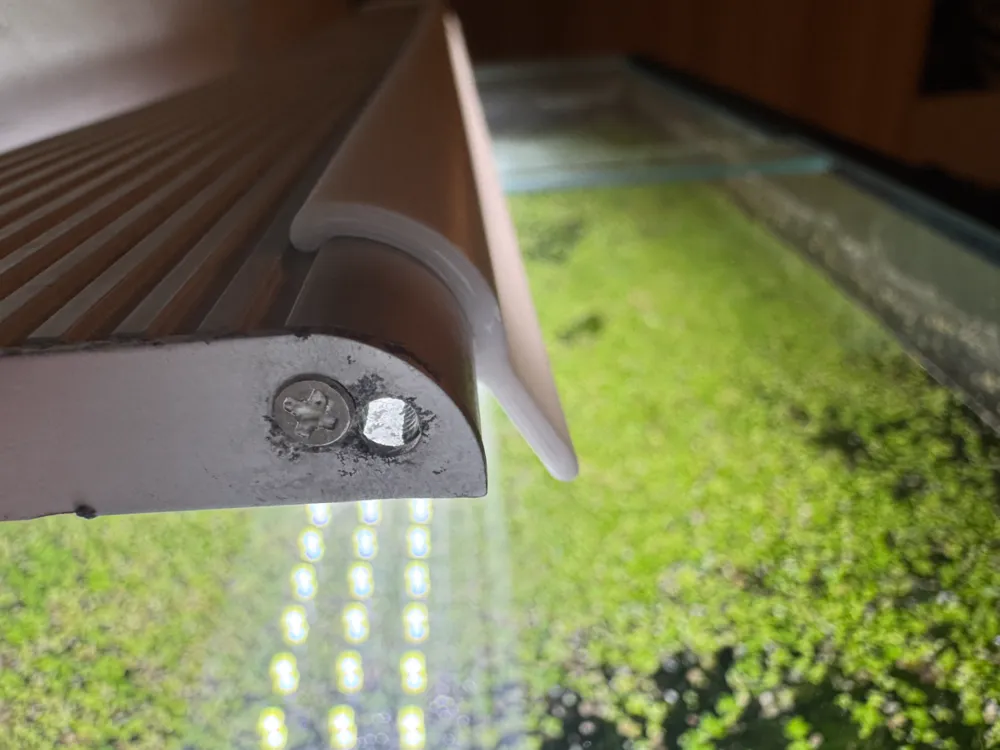

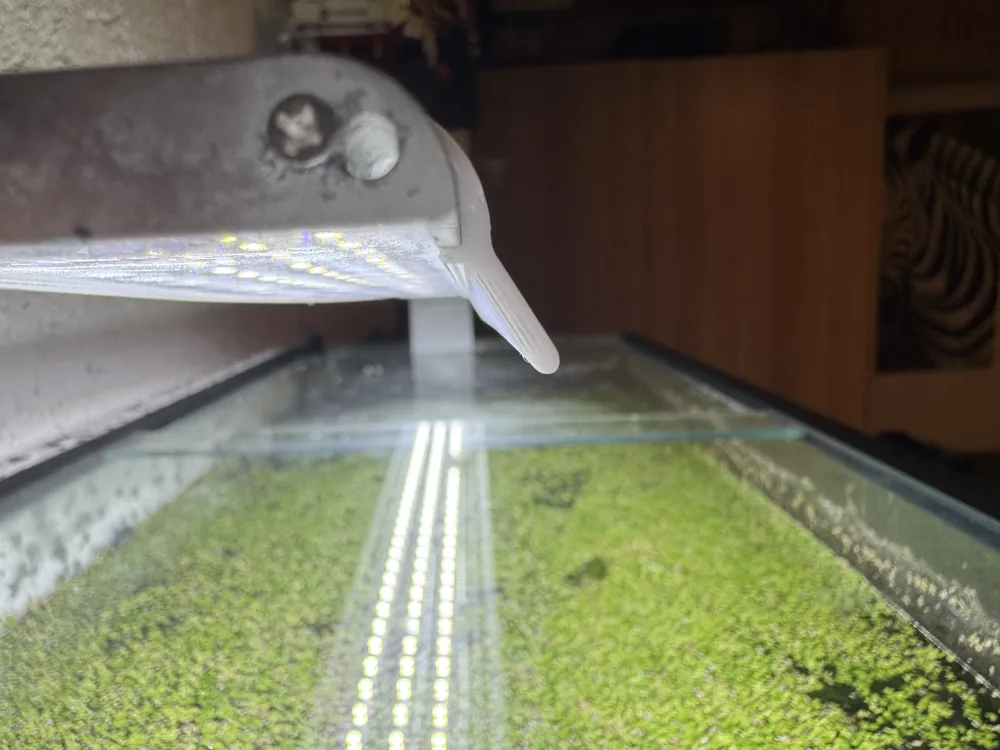

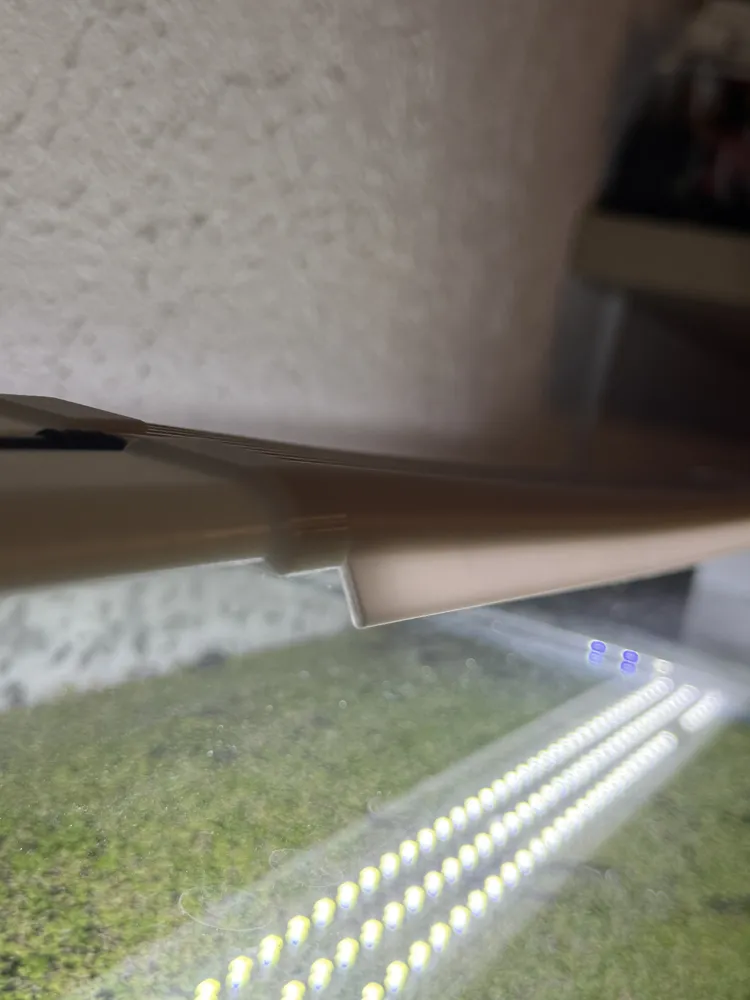

The glare shield is simply placed at the bottom of the lamp and then slid over the curve, where the shield then simply snaps into place To remove, push the upper lip forward/upwards
I have initially printed the whole thing from PLA, PETG would probably be more sensible, but shrinkage would have to be considered!
→ If the aquarium does not have a cover I would prefer PETG
