Functional Starfield Dataslate (7" ESP32 Touch!)
Print Profile(1)
Description

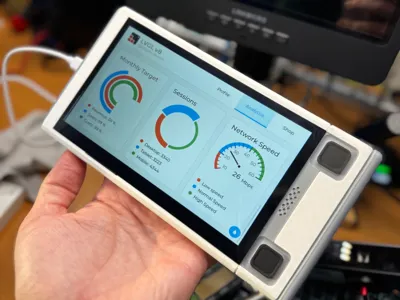

This is a functional Starfield like dataslate. I designed it from scratch, optimised for a simple assembly and print speed.
The screen is an Elecrow 7" Advance display: https://www.elecrow.com/crowpanel-advance-7-0-hmi-esp32-ai-display-800x480-artificial-intelligent-ips-touch-screen-support-meshtastic-and-arduino-lvgl-micropython.html?idd=5
Please see the listing above for specs.

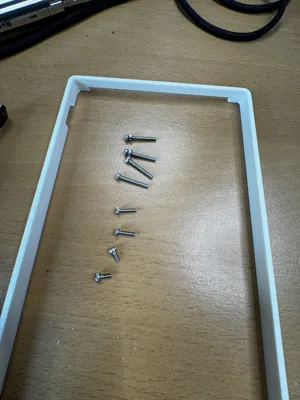

You will need some screws for assembly:
- 2x M2*16mm (back screws, USB-C side)
- 2x M2*14mm (back screws, grip side; I only had 16mm and added a nut to shorten)
- 2x M2*8mm (right hand side grip)
- 2x M2*4mm (left hand side)
- glue to glue in the decals/button-placeholder

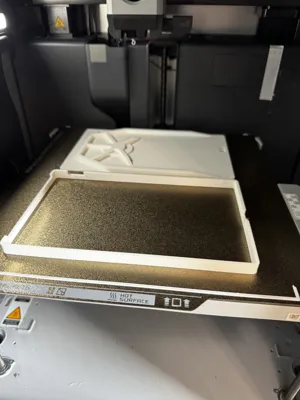

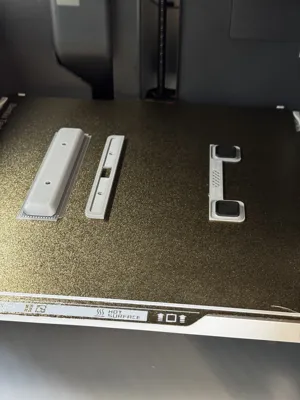

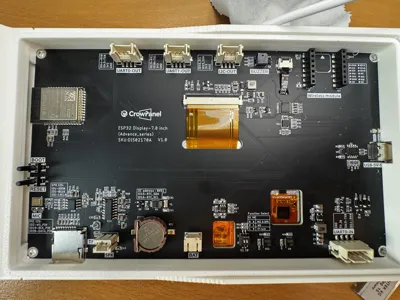

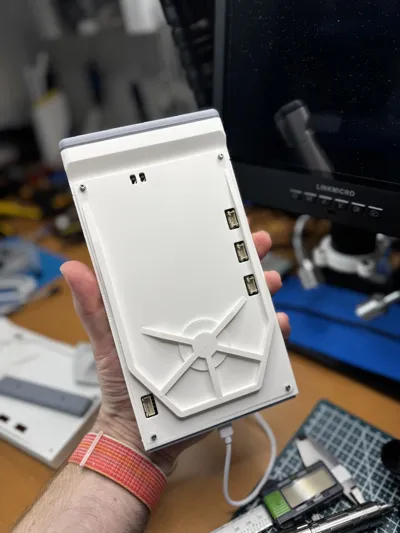

You will have access to the micro sd port, the USB-C port and the UART / I2C ports on the back. There is room for a battery between the back cover and the PCB.
