2HE 10 inch rack mount Mini-ITX + ATX PSU
Print Profile(3)
Description

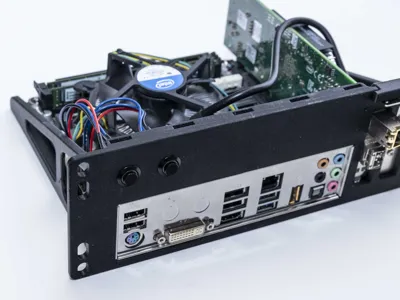

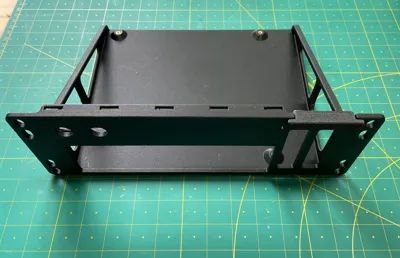

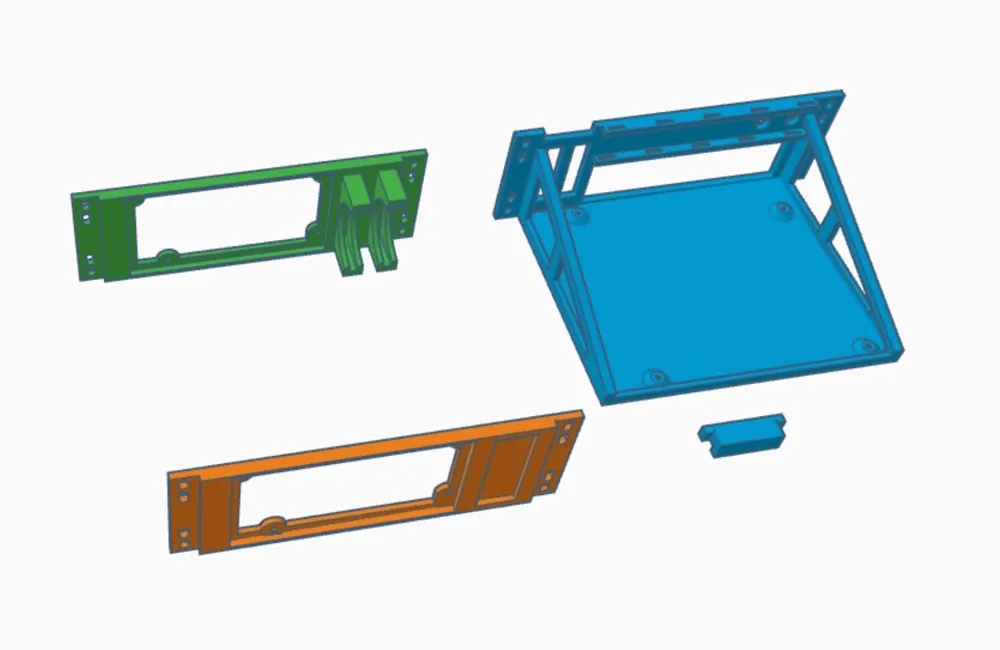

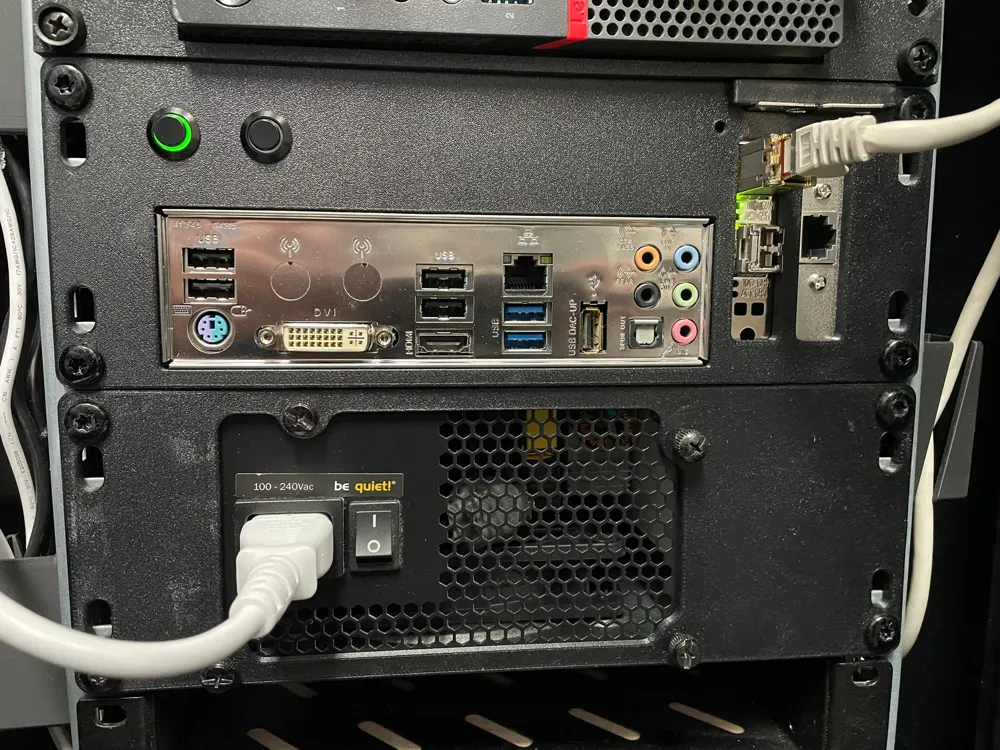

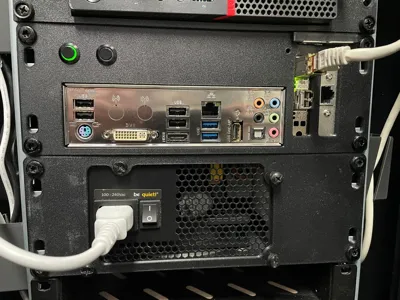

I designed the following 10 inch rack mount enclosure for an old Mini-ITX mainboard that I didn't want to throw away.
3U version ==> https://makerworld.com/de/models/1523227-3u-10-zoll-rackmount-mini-itx-dual-gpu

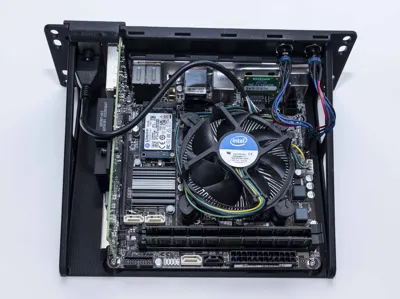

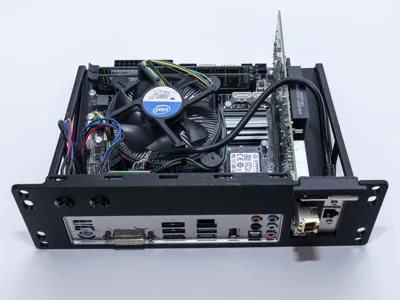

In my case I used a Gigabyte B85N, but you can use any normal Mini ITX mainboard.
new 2U with Flex ATX PSU Version ==> https://makerworld.com/de/models/1716698-2u-10-inch-rackmount-mini-itx-flex-atx-enclosure

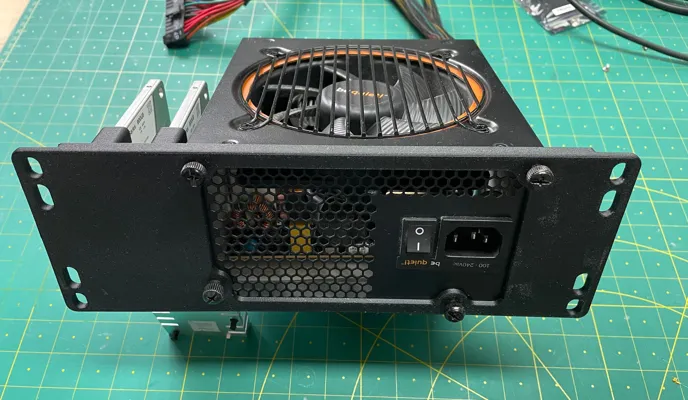

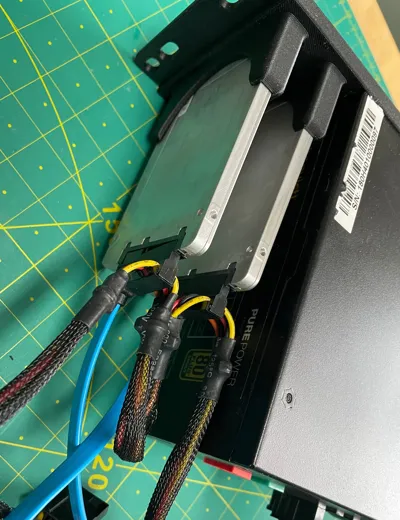

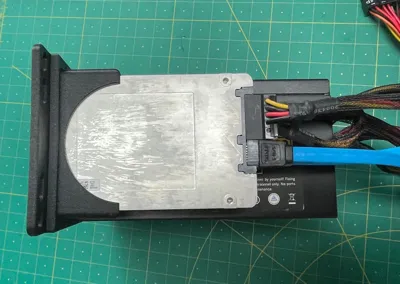

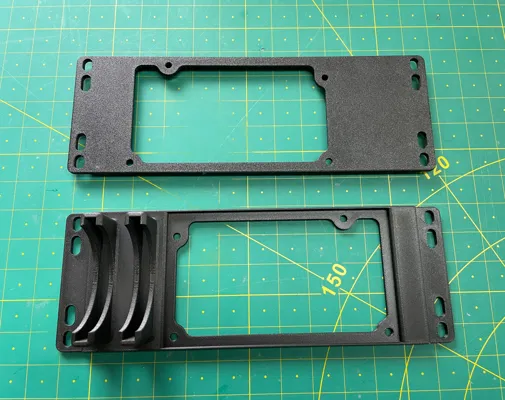

I also designed a 10 inch rack mount enclosure for the ATX power supply, which can also accommodate two 2.5" SSDs.
Of course it could also be used with a Mini-ITX PSU with 200W e.g. ==> https://geizhals.at/inter-tech-mini-itx-psu-200w-88882190-a2364184.html
Flex ATX Panel ==> https://makerworld.com/de/models/1716336-1u-10-inch-flex-atx-panel
Here you can find a 10 inch bay for 3.5" hard drives ==> https://makerworld.com/de/models/1388411-10-inch-rackmount-hard-disk-enclosure

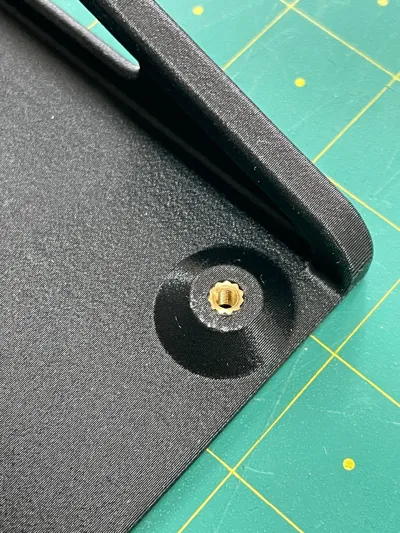

For mounting the mainboard, 4 threaded inserts M3 x 5.7 mm are required
Slot Lock = to lock the PCIe Cards

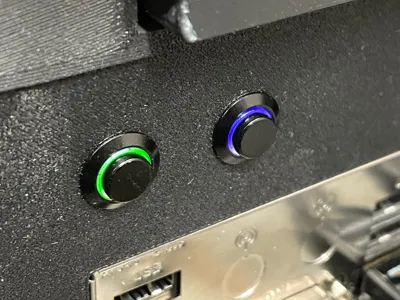

I used these for the power and reset buttons. ==> https://www.amazon.de/dp/B0DBKCGZVB
However, any standard 12mm panel buttons can be used.
25.05.2025: Added version for 16mm panel buttons
14.10.2025: Added version with only one 12mm panel buttons to support Minisforum BD790i X3D
