Strong Shelf Brackets with 45° Corner Bracket.

DIY your own shelves with these shelf brackets, including a unique 45° corner shelf bracket.

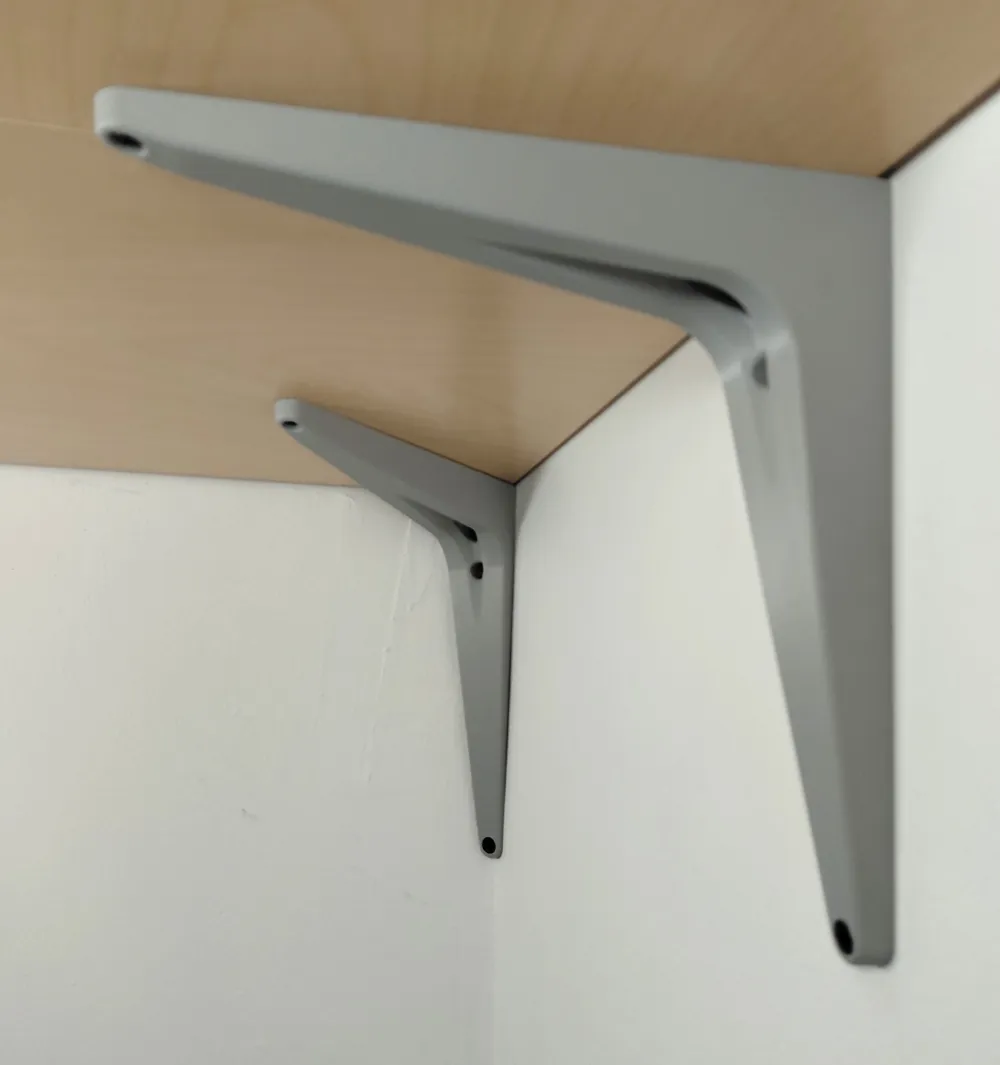

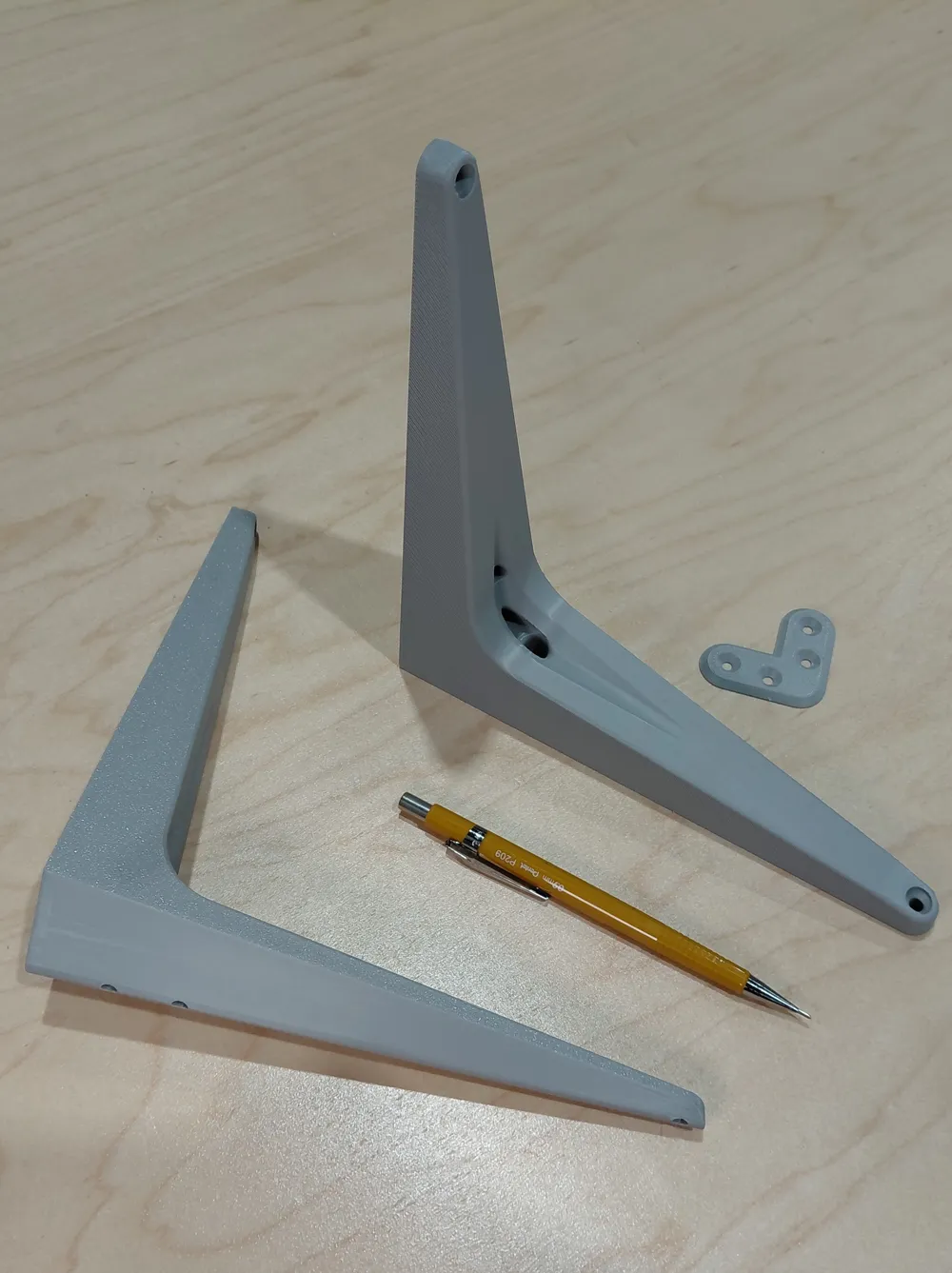

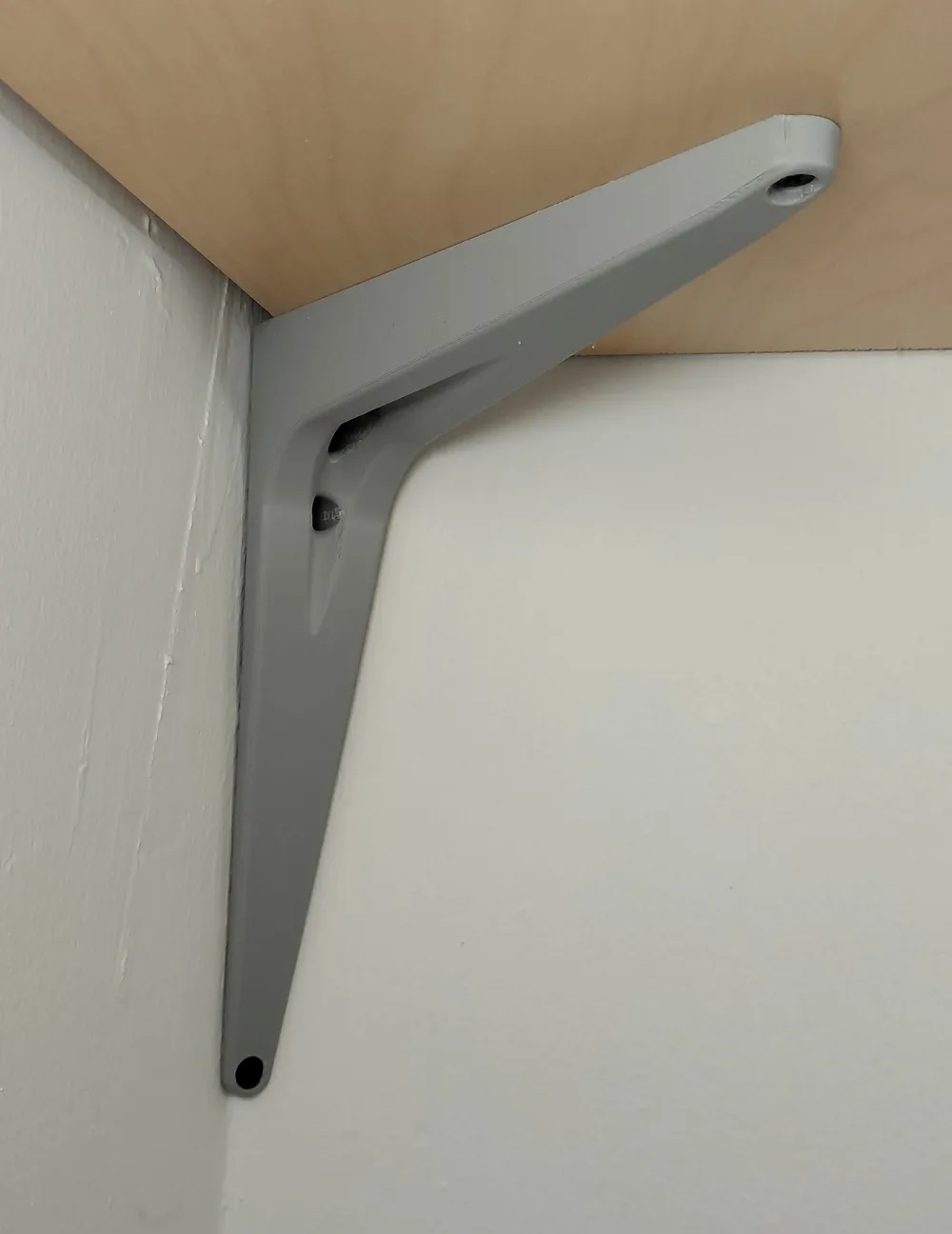

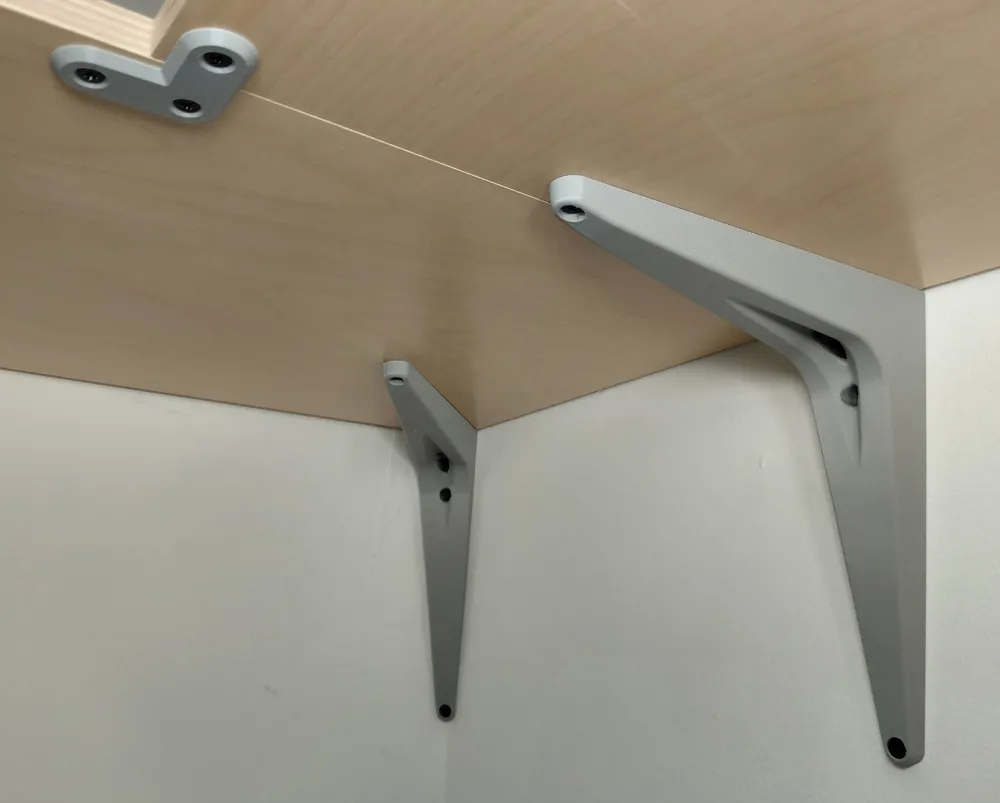

These shelf brackets are specifically designed for strength and a clean aesthetic. These brackets mount onto any wall with a 45° option that mounts directly into corners at an angle, to create a clean shelf bracket while maximizing support.

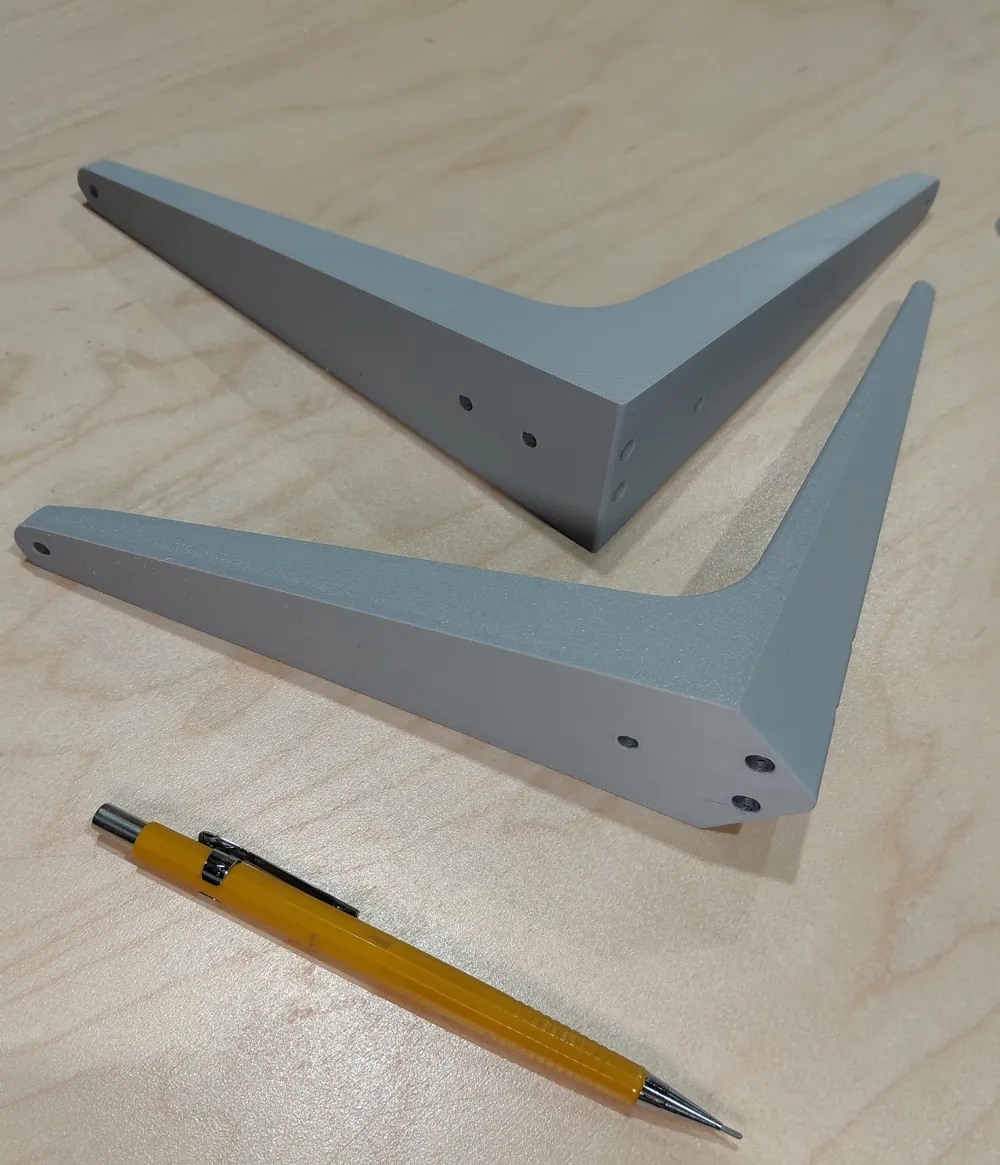

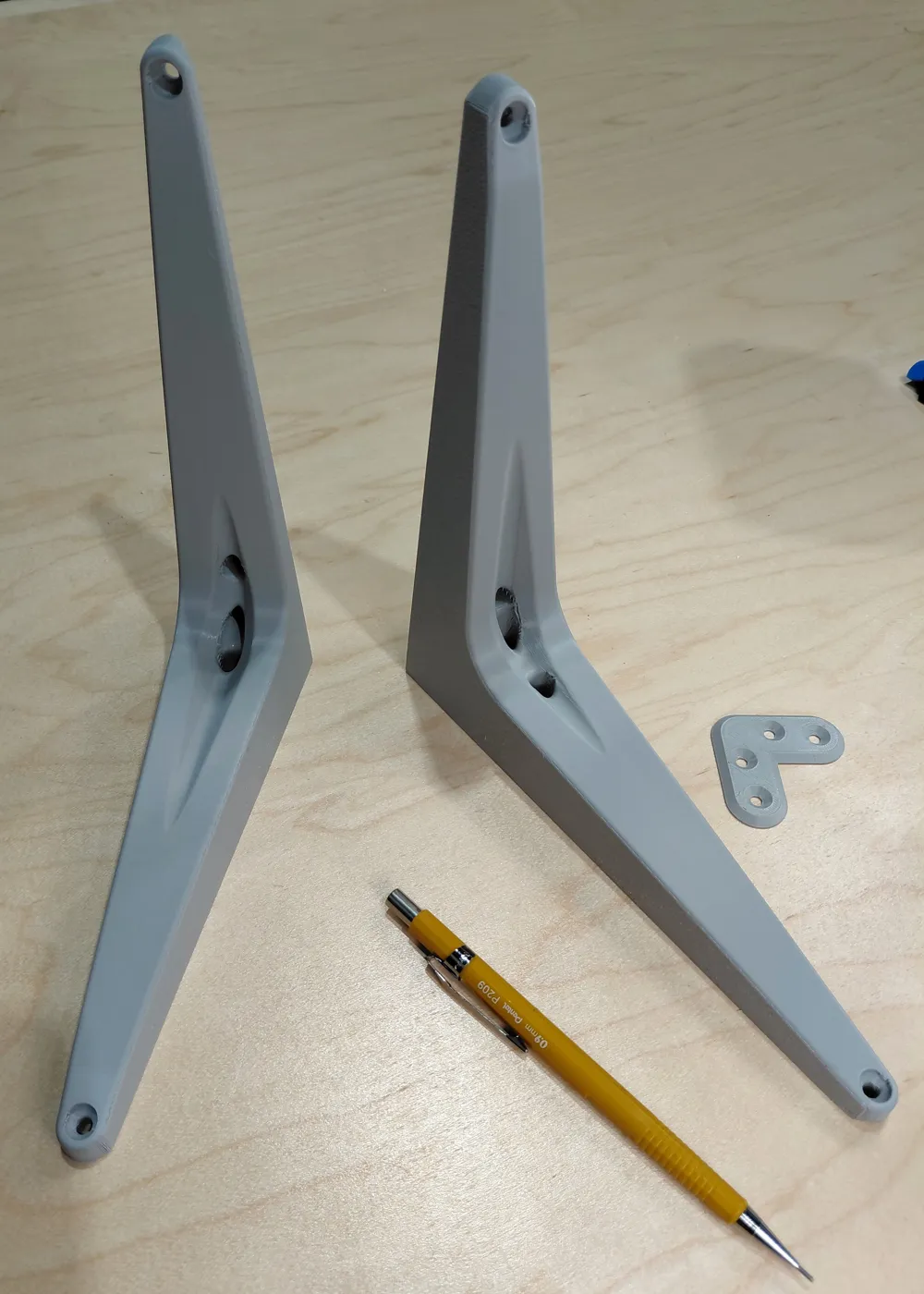

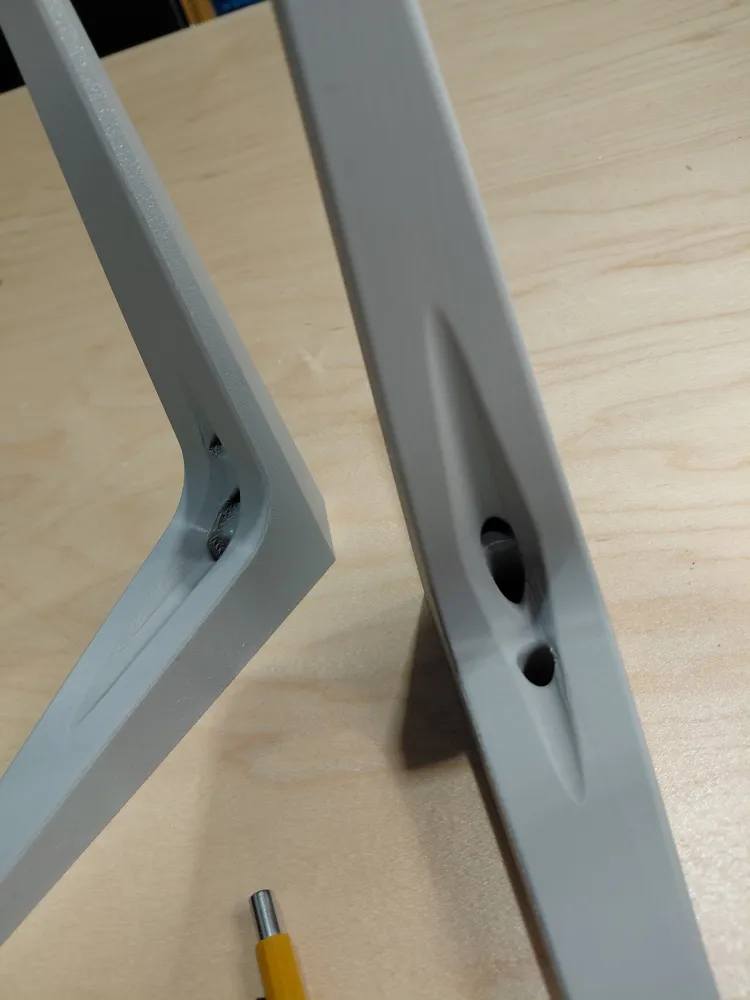

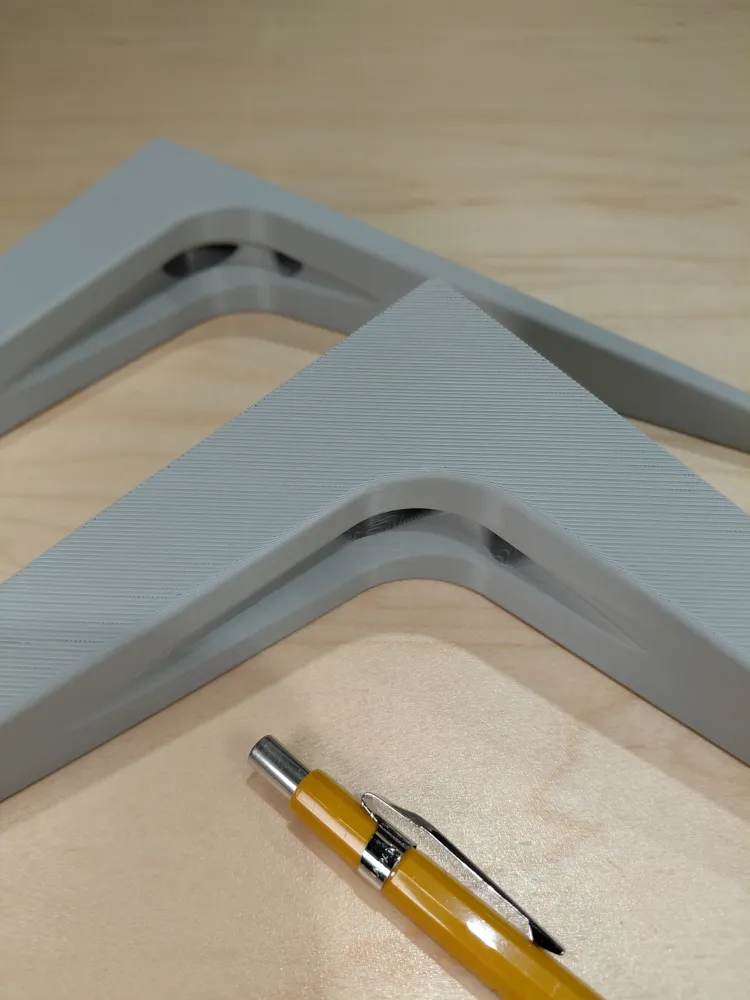

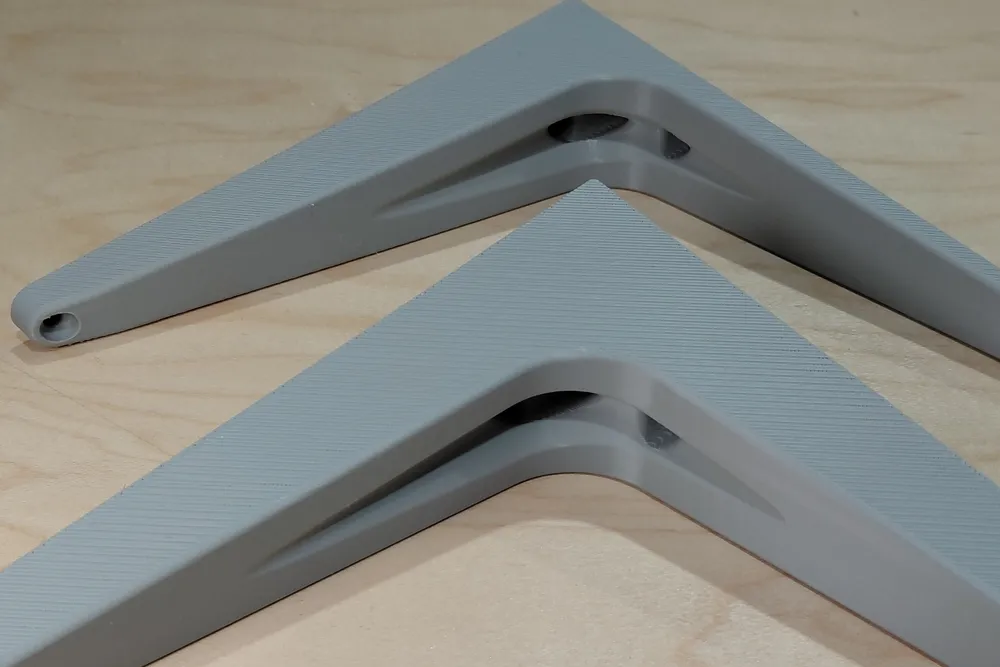

Each bracket features an internal reinforcement structure within the shape. (Note: holes face upward toward the shelf for optimal load distribution against the wall.)

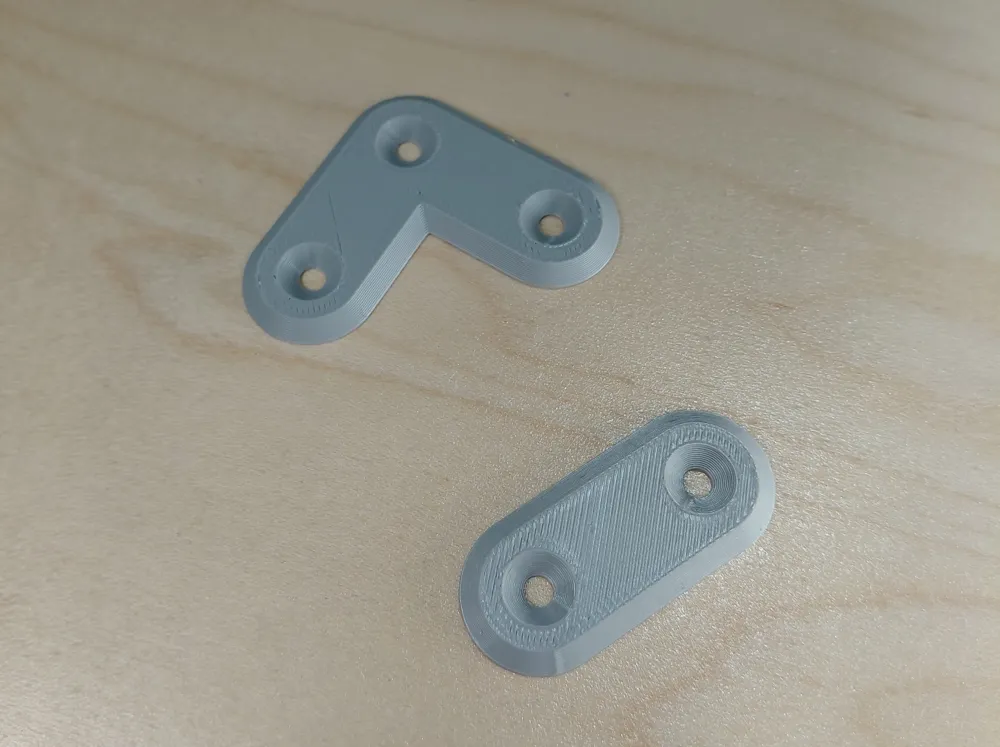

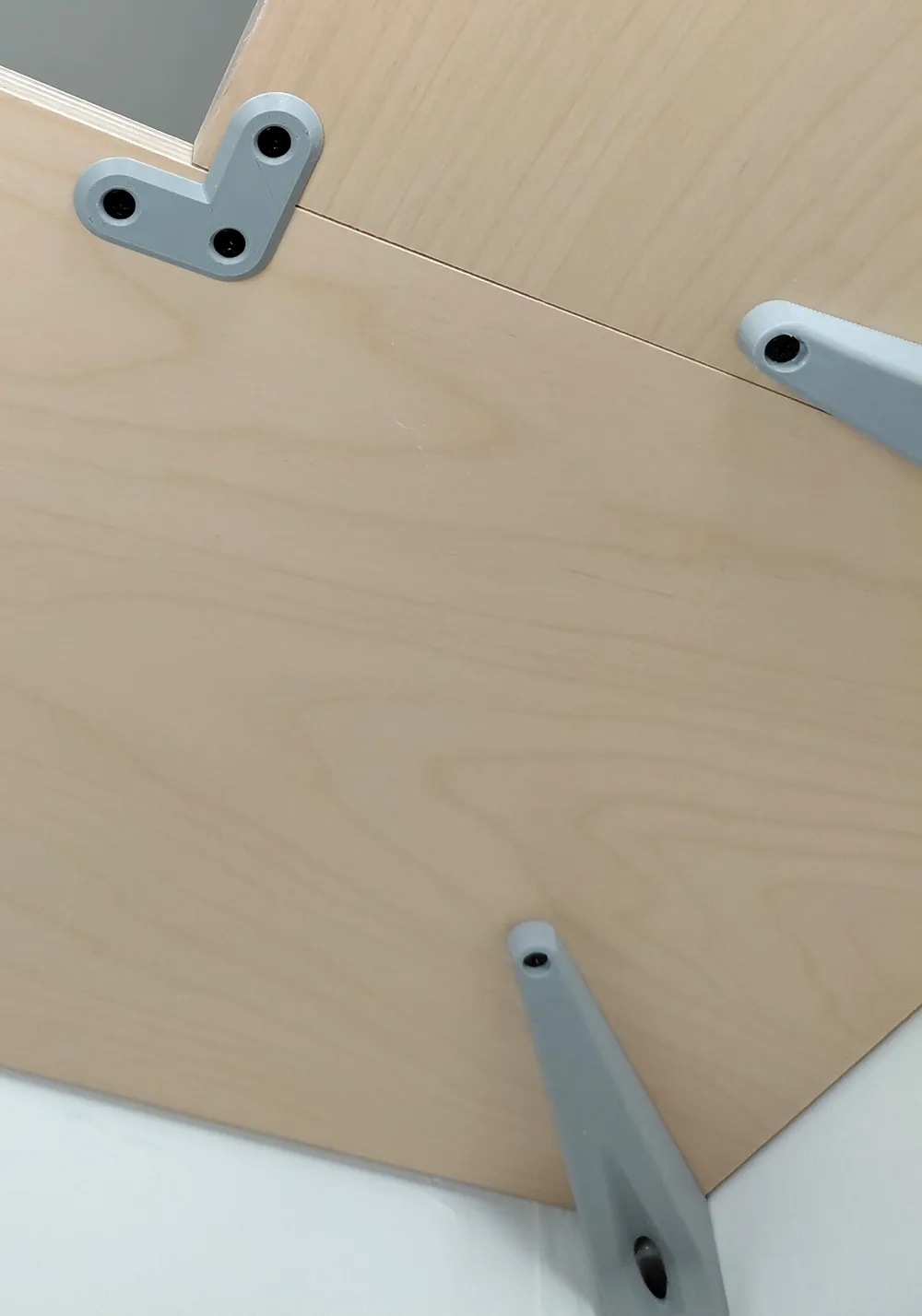

Included on the print plate is a flat bracket to level any misaligned shelves.

Installation Notes:
For a secure installation, I used:

• 3 x #6 – 1-3/4" drywall screws (into drywall and studs)
• 2 x #6 – 3/4" flat head Phillips screws (into the 1/2" plywood shelf)
• 3 x #6 – 1/2" flat head Phillips screws for the alignment bracket (into the 1/2" plywood shelf)

Perfect when you have a 3D printer and don't want to go to the store, you can 3D print brackets that combine strength, style, and easy print for your shelving project.
