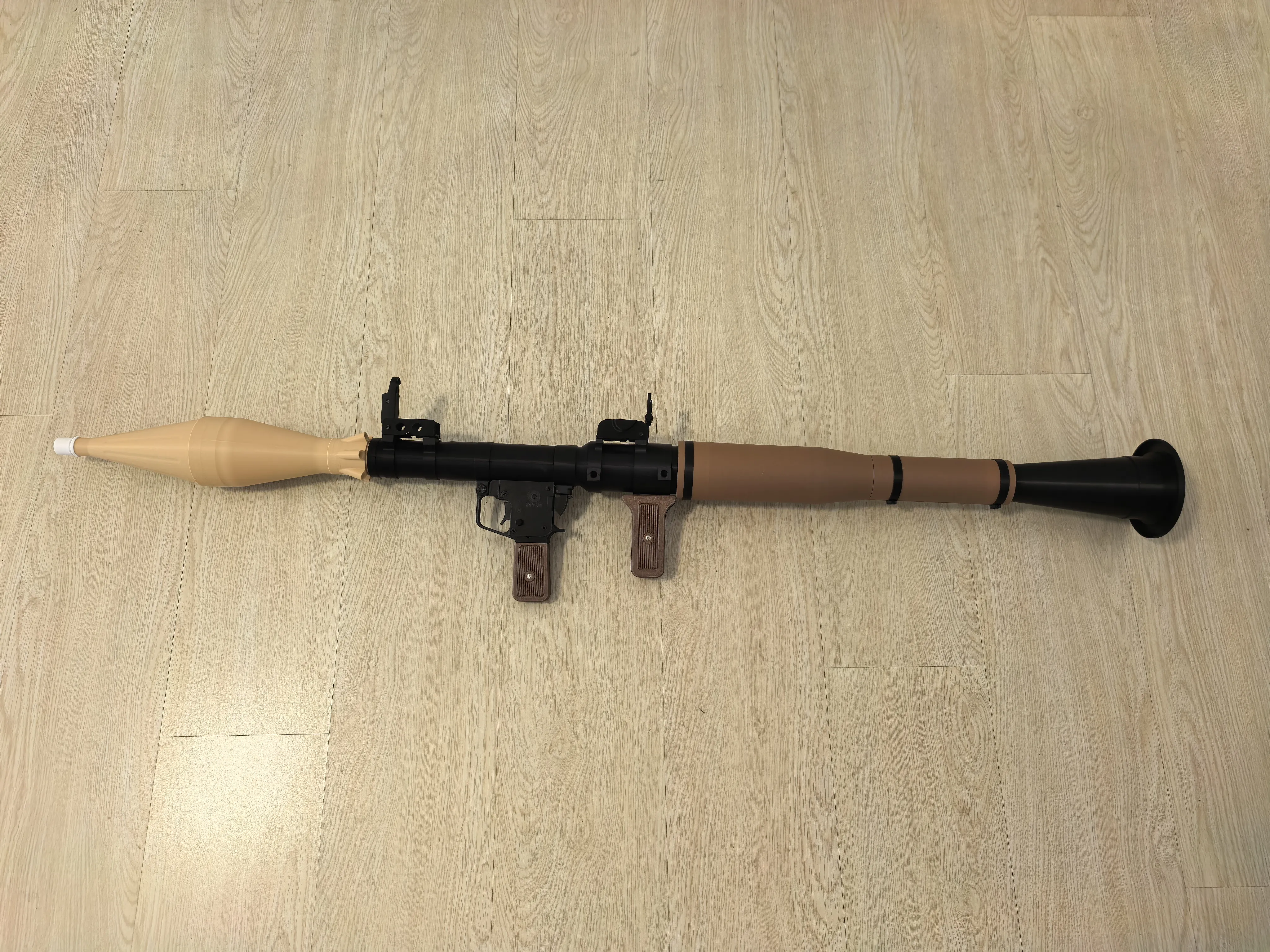

This highly detailed 1:1 scale RPG-7 replica model combines authentic aesthetics with innovative assembly engineering. Designed for enthusiasts and collectors, this display piece offers both an immersive building experience and a striking conversation starter for your collection.
Boost Me (for free)
This model took months to perfect with 4 redesigns. If you enjoy building it, please support my work! Every boost helps create more cool models.
Key Features:
🔩 Modular Threaded Assembly
Features precision-engineered screw threading connections that allow full disassembly/reassembly. Most components can be repeatedly detached and reconnected without damage - perfect for compact storage or dynamic display arrangements.
🖇️ Simplified Construction
Requires minimal adhesive (only a slide fit need glue)
Primary components are secured via threaded fasteners and removable dowel pins.
Required Hardware:
⚙️ Fastener Kit (Not Included)
• 4x M3×5×4.5 heat-set insert nuts (recommend installation with soldering iron)

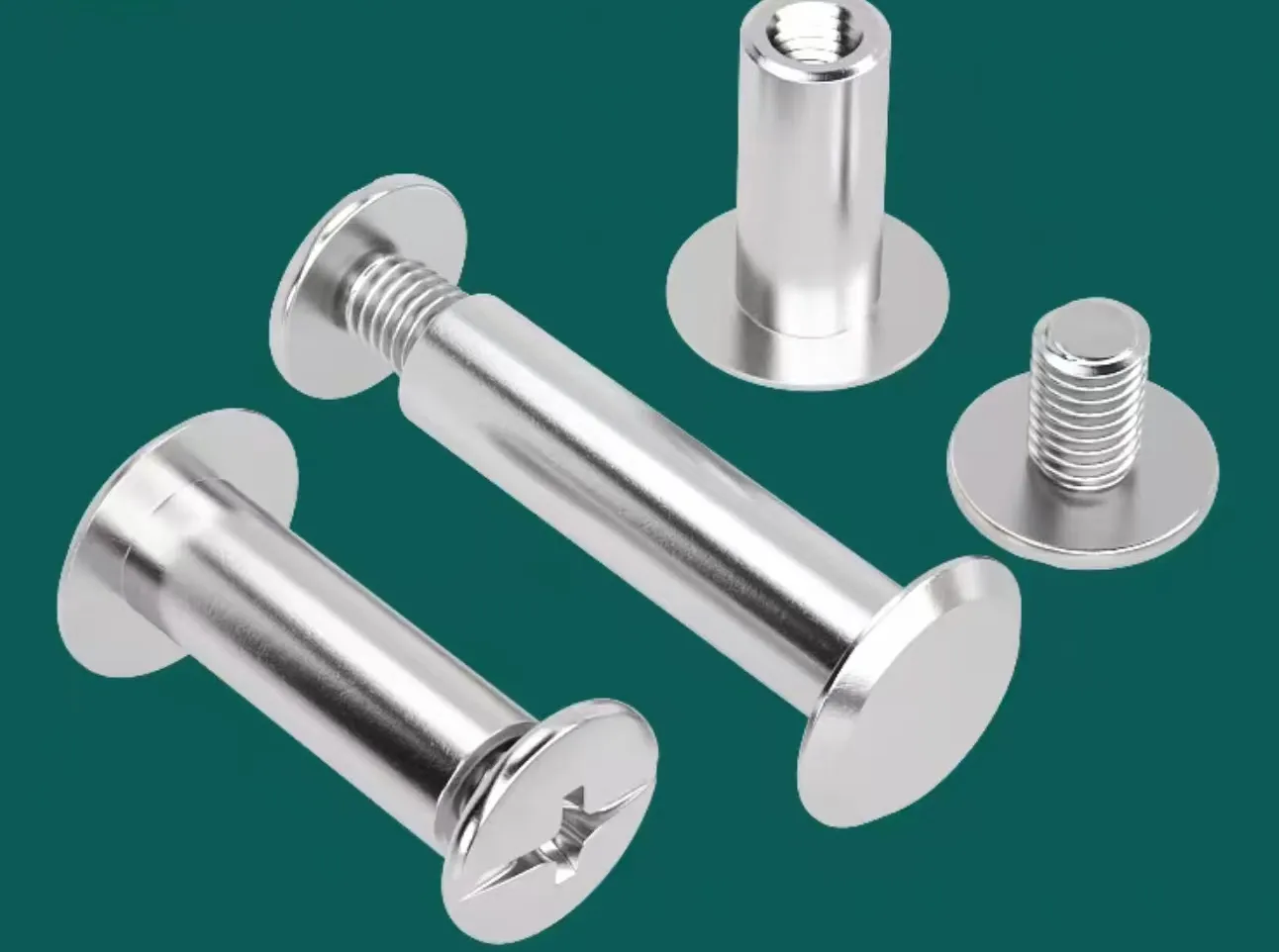

• 2x M3.5×18 Binding Barrels and Screws
（If you have difficulty finding such screws locally, I also uploaded another version of grid panels with M4*16 socket head screws）
• 4x M3×6 flat-head machine screws
• 3x M2×14 screws and nuts
Optional:
2x M4*16 socket head screws and nuts
Printing Recommendations:
Optimized Profile
• Primary material: PETG (default structural material)
• Interface strategy: H2D printer profile with PLA support interface for superior underside surface quality
• Layer Height: 0.16-0.2mm for threaded components
Assembly instructions：
on the way….(pretty similar to the real one , you may figure it out by yourself ,haha )
Important Notes:
⚠️ Non-Functional Display Piece
This model contains NO functional parts, or launch mechanisms. Purely for decorative/educational purposes.
By downloading, you agree:
- Strictly for personal/non-commercial use, do not listing on Xianyu, eBay, Etsy, or other platforms.
- Commercial resale or redistribution PROHIBITED without explicit authorization

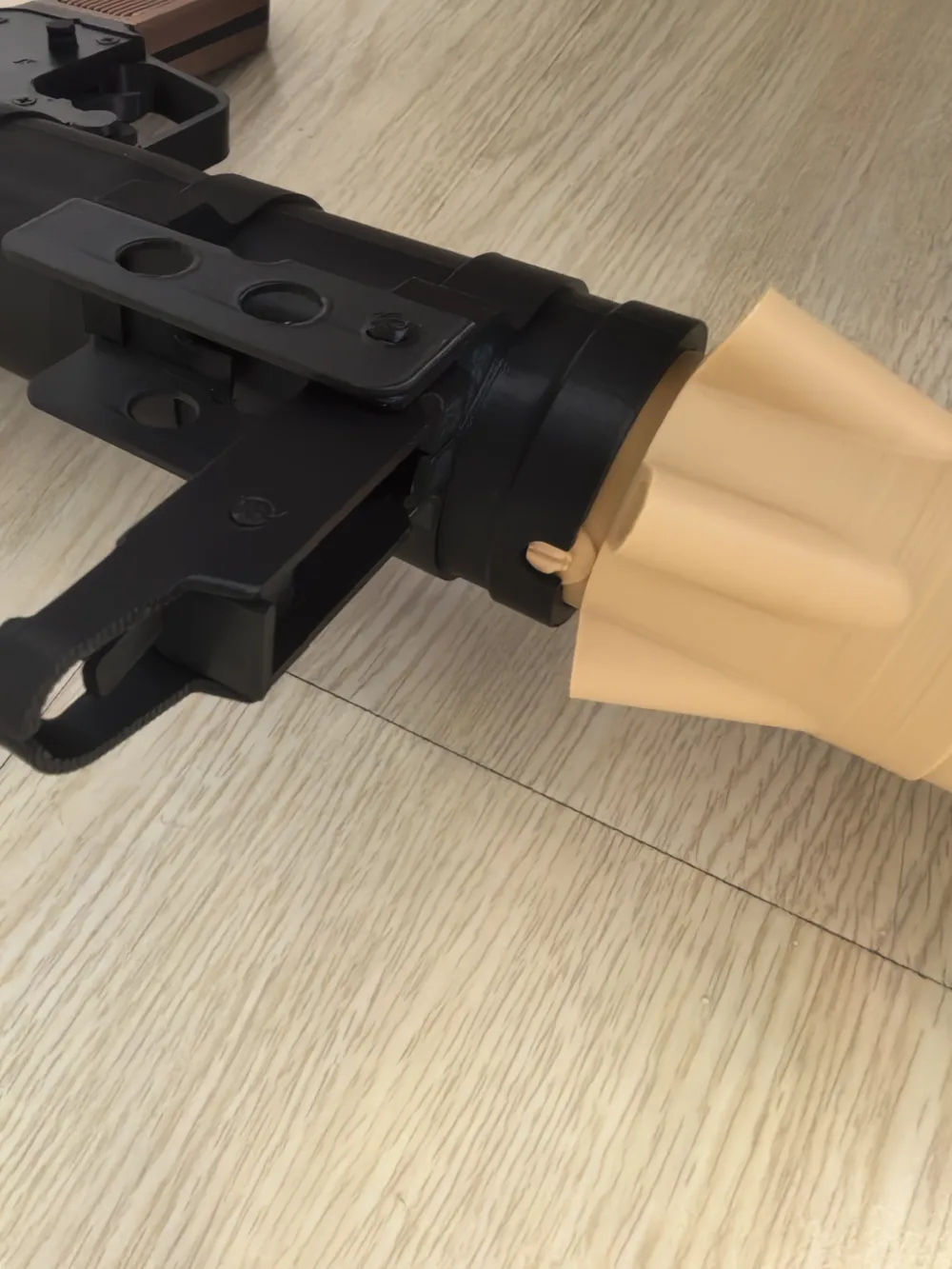

The RPG-7 launch tube features standardized 40mm inner diameter, precision-matched to my separate Warhead Model：
RPG-7 1:1 Scale PG-7VM Anti-tank Rocket by IronDukeMakerWorld: Download Free 3D Models
RPG-7 1:1 Scale PG-VL Anti-tank Rocket by IronDukeMakerWorld: Download Free 3D Models
RPG-7 1:1 Scale OG-7V Fragmentation Grenade by IronDukeMakerWorld: Download Free 3D Models
RPG-7 1:1 Scale TBG-7V Thermobaric Warhead by IronDukeMakerWorld: Download Free 3D Models
