Microphone Shock Mount Stand (Boya BY-PM700)

A Small TPU part is optional

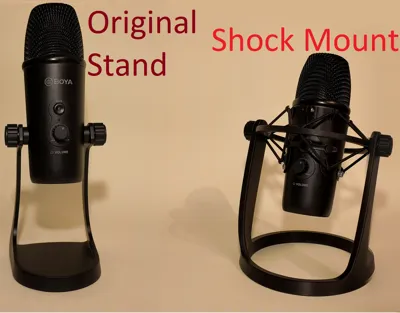

This is a shock mount stand for the Boya BY-PM700 (or similar large condenser microphones) with integrated shock mount functionality. Compared to the original metal stand, this model is lighter and offers improved desk vibration isolation through elastic suspension. Since the Boya PM700 has no built-in hooks for mounting on elastic cords, an adapter model is included. This adapter is specifically designed for this microphone and may not fit others. If your microphone has built-in mounting hooks, you can use the stand without the adapter.

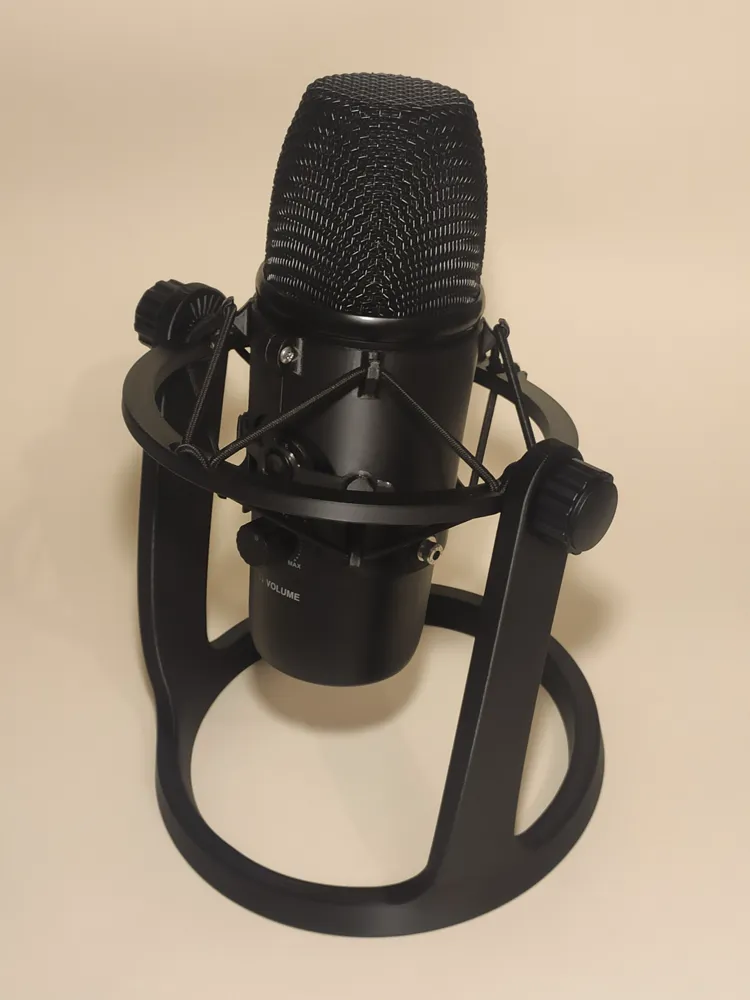

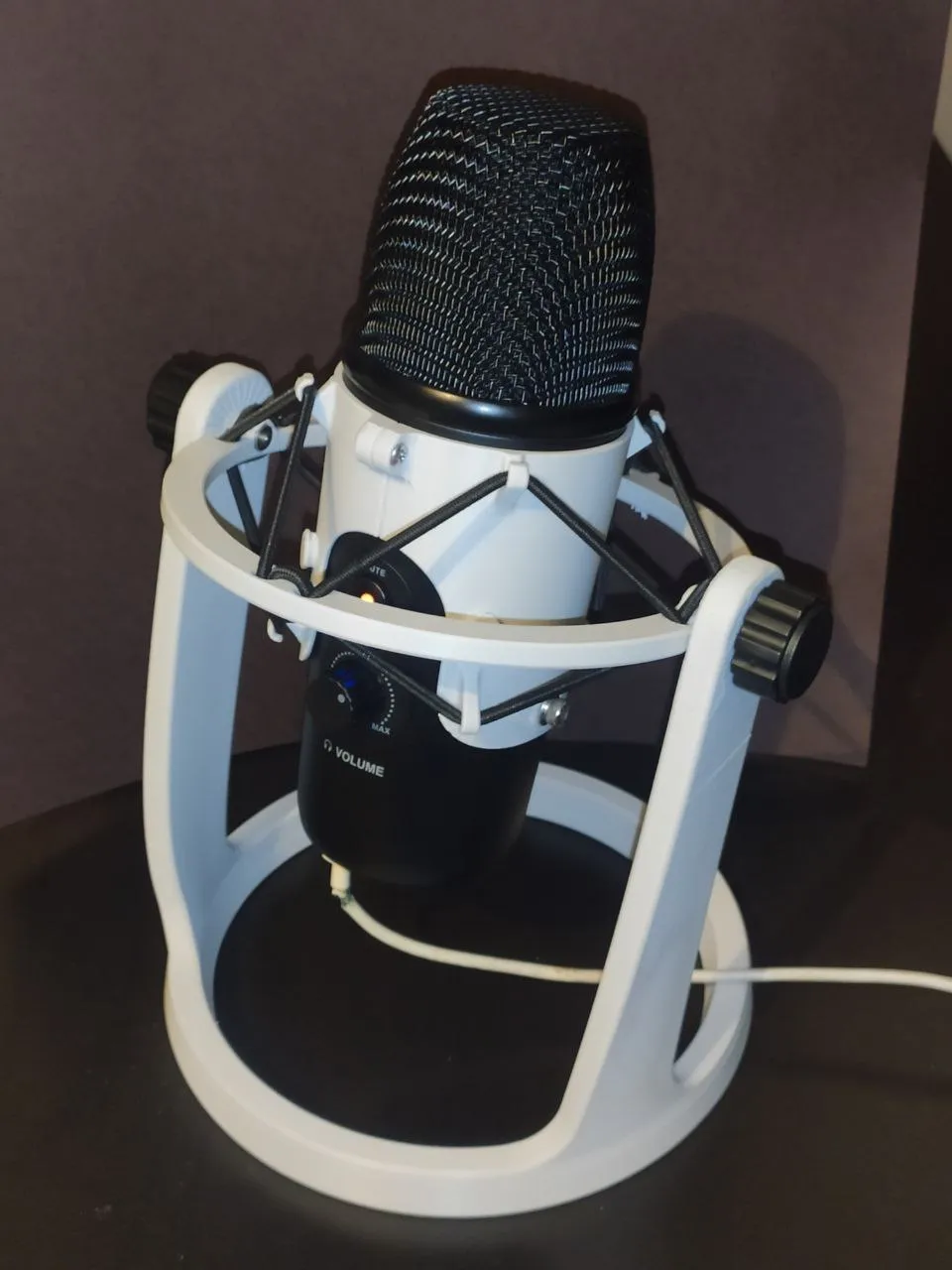

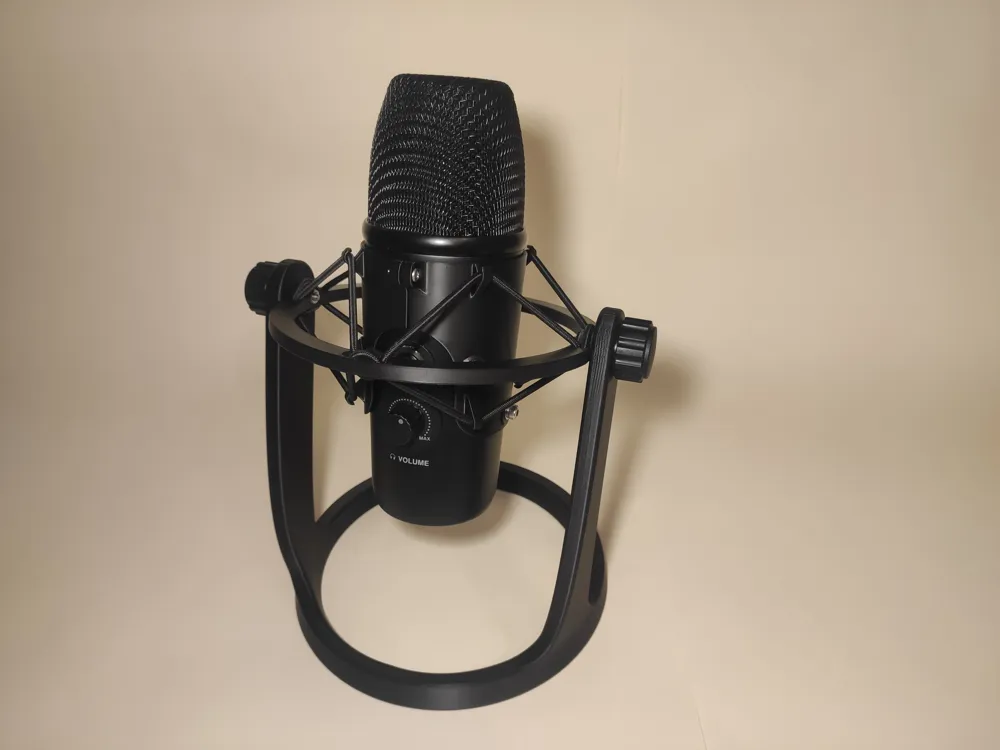

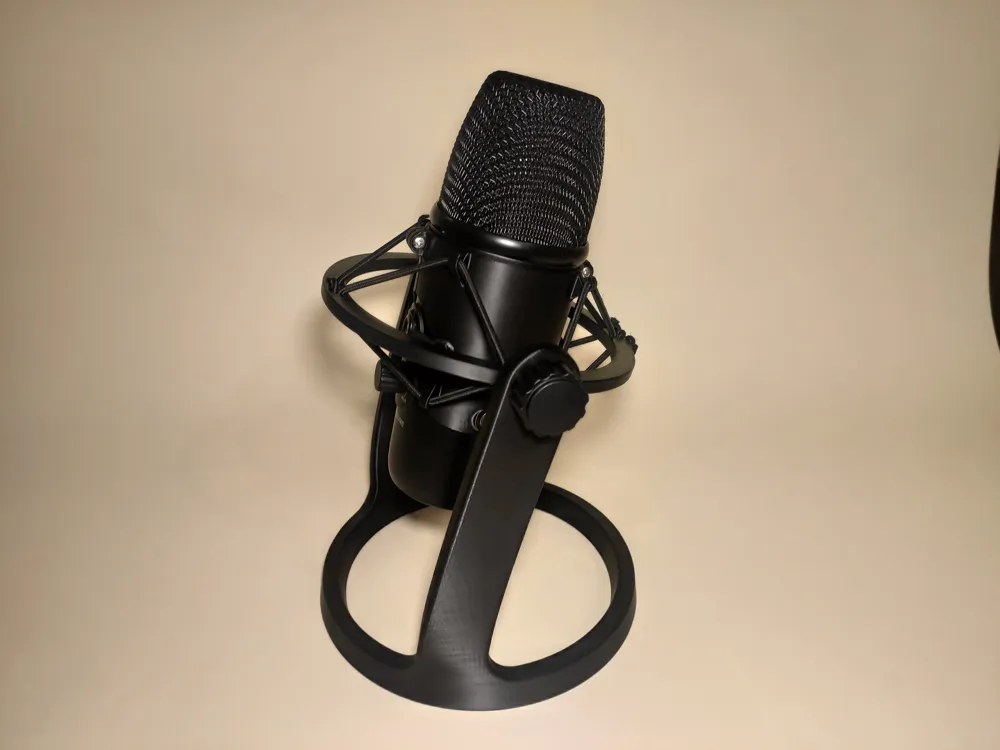

The microphone is held by a central ring mounted inside the base. The ring is fixed in place using the original side screws. Interlocking notches on the ring and the base provide secure positioning at predefined angles, preventing any unwanted movement. An optional TPU part is included to eliminate rattling of the mute button.

 Key Features:

• Lightweight alternative to the stock metal stand
• Shock mount adapter for Boya BY-PM700 (don't print if not needed)
• Central ring with angle-locking notches for stable tilt adjustment
• An optional TPU part to prevent the mute button from rattling
• Full access to volume knob, mute button, and ports

🛠️ Required Hardware:

• 2 × M3 nuts
• 2 × M4 nuts
• 2 × M3 × 10 mm screws
• 2 × M4 × 12 mm screws
• ~1 m of 2.5–3 mm elastic cord (round), for shock mount suspension
• Optional: 2 × M4 × 20 mm screws (if you don't have the original screws from the Boya PM700 stand)
