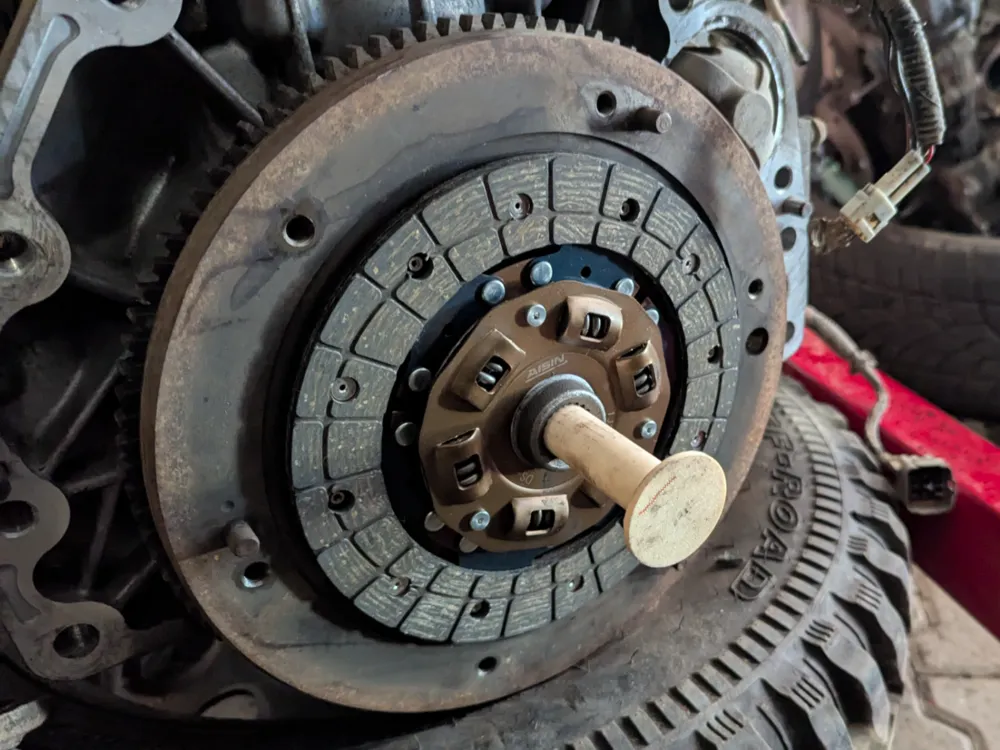

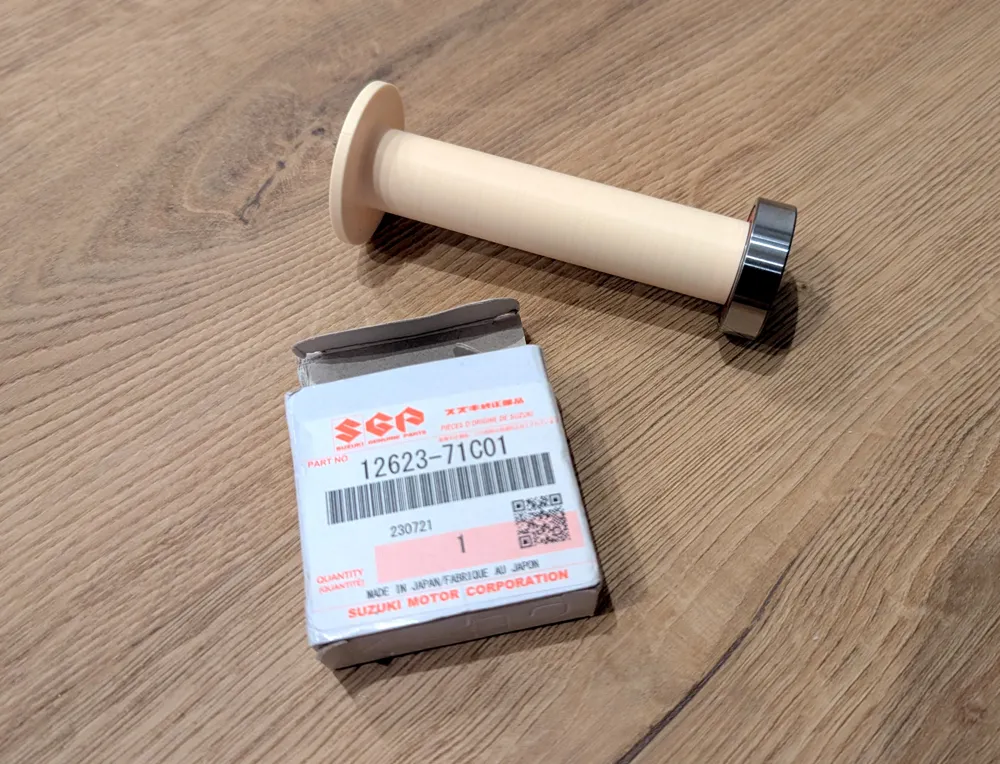

This is Jimny/Liana clutch alignment tool. You can confirm before printing by checking if your pilot bearing is 15mm internal diameter. My M16A pilot bearing part number is on the picture.

m13a

m16a

m18a
