nerf self-locking split print no-support bearing tube H huang qu Q

Andorra wins the resurrection match!

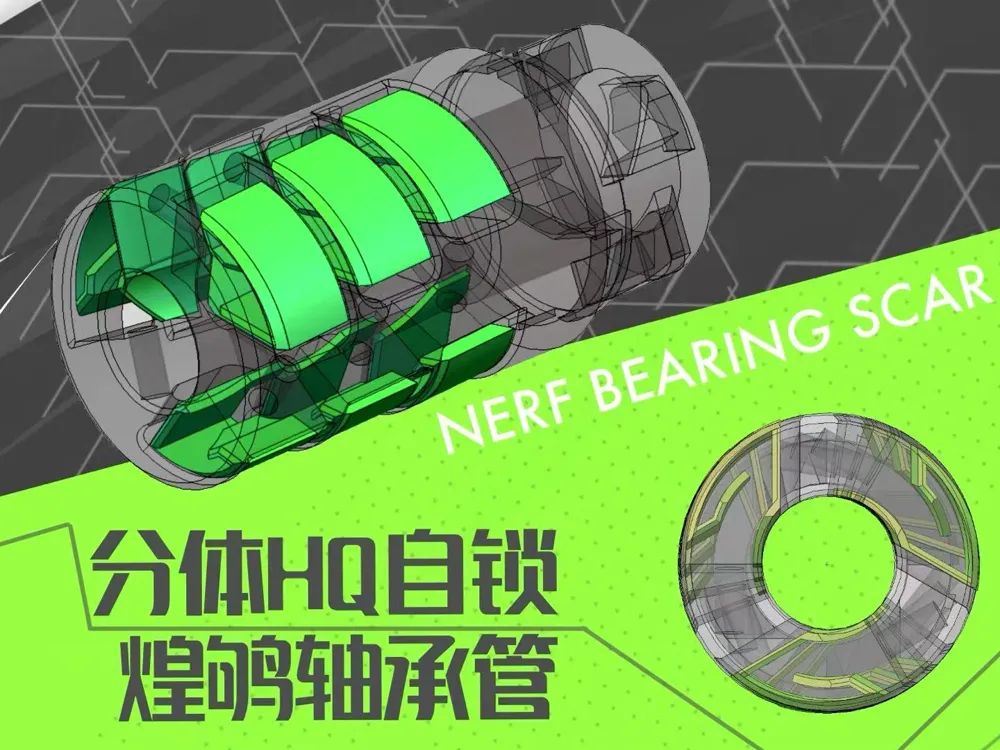

HQ bearings, but with a split self-locking design

-Implemented a split self-locking structure
(The self-locking structure references models from community members lockfan and mr.liu


Unable to locate the original source, please point out any omissions)

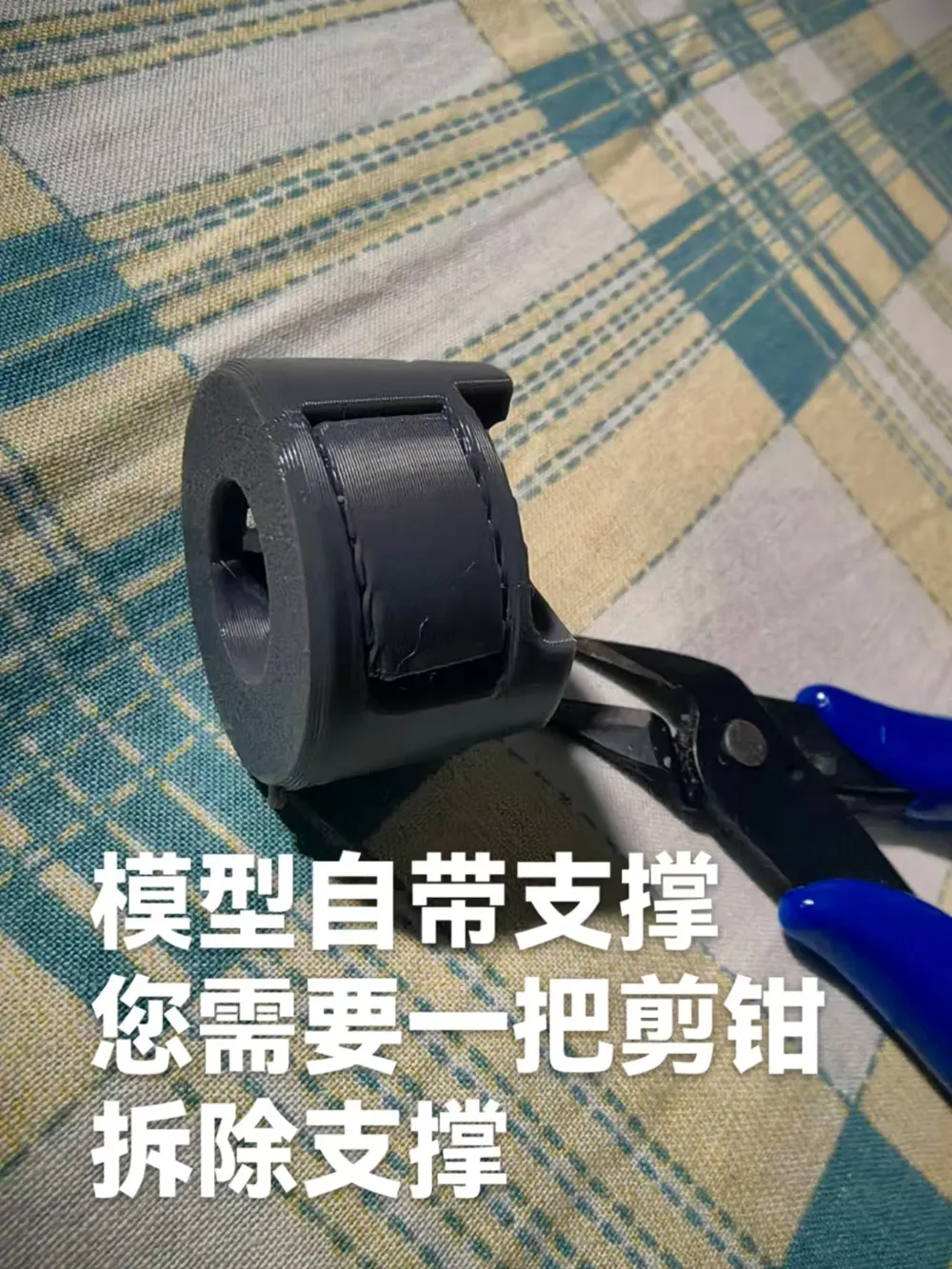

-Added built-in supports,
~You will need wire cutters to remove the supports

(No need to add supports in slicing software)

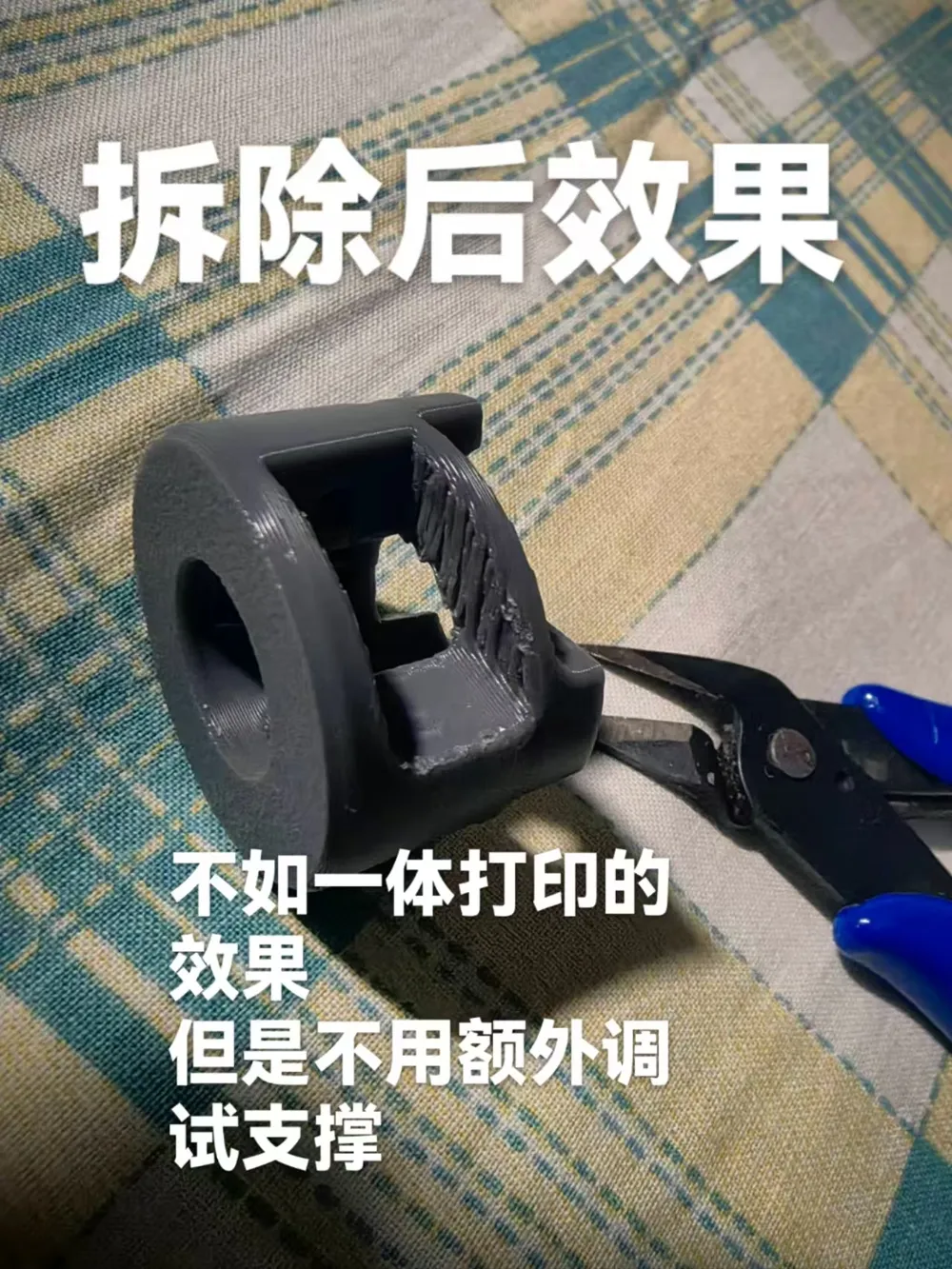

(The support surface effect is inferior to tilting)
(However, the harder-to-remove version will have a slightly better support surface)

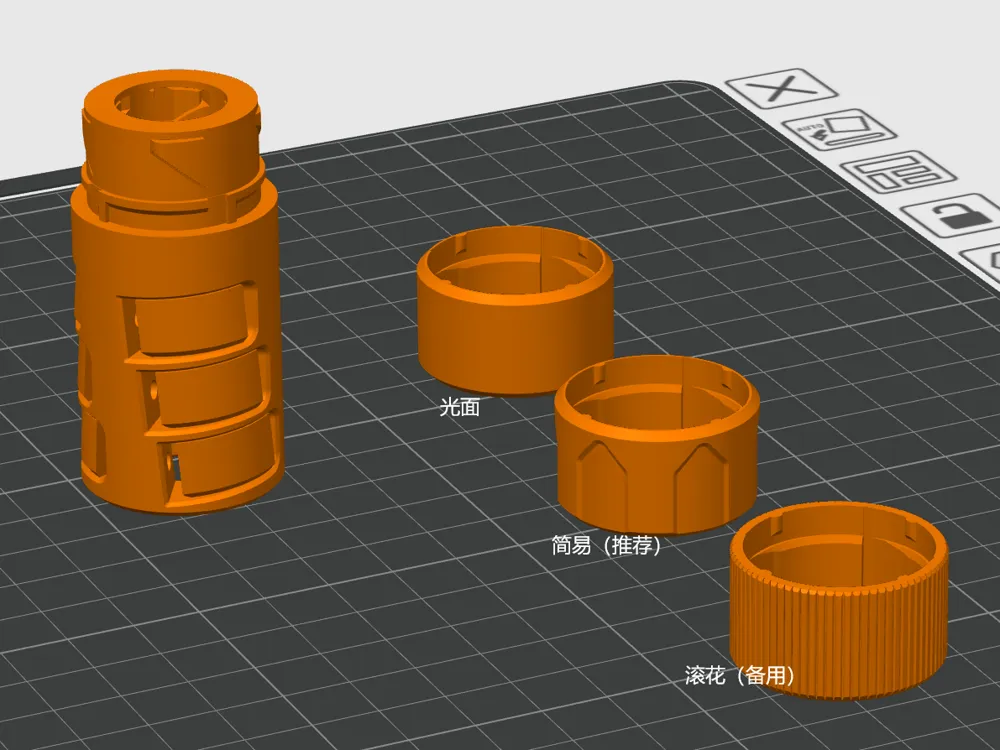

-Created three versions of the base cover
(Simply choose according to your preference)

Small tip: If the self-locking structure feels stiff, apply a small amount of lubricant

First time making this?
Please refer to the following:

One-piece version description:
HQ bearing digitization, approximately 60% fidelity

~Due to the unique nature of the data, commercial use is strictly prohibited. If you require commercial use or derivative works, please include my MakerWorld link, thank you!!

Hardware:
Screws: M3*10 hex socket screws * 9 pieces

Washers: M3 (center hole diameter)*5 (washer outer diameter)*0.3 (thickness) * 9 pieces

Please purchase washers strictly according to the specified dimensions, otherwise the bearing operation may be impeded.

Bearings: MF83ZZ bearings * 9 pieces

Bearing notes: The flange edge of MF83ZZ bearings from different vendors may vary slightly in dimensions. Please purchase MF83ZZ bearings with a flange edge outer diameter of 8.9-9.0mm.
