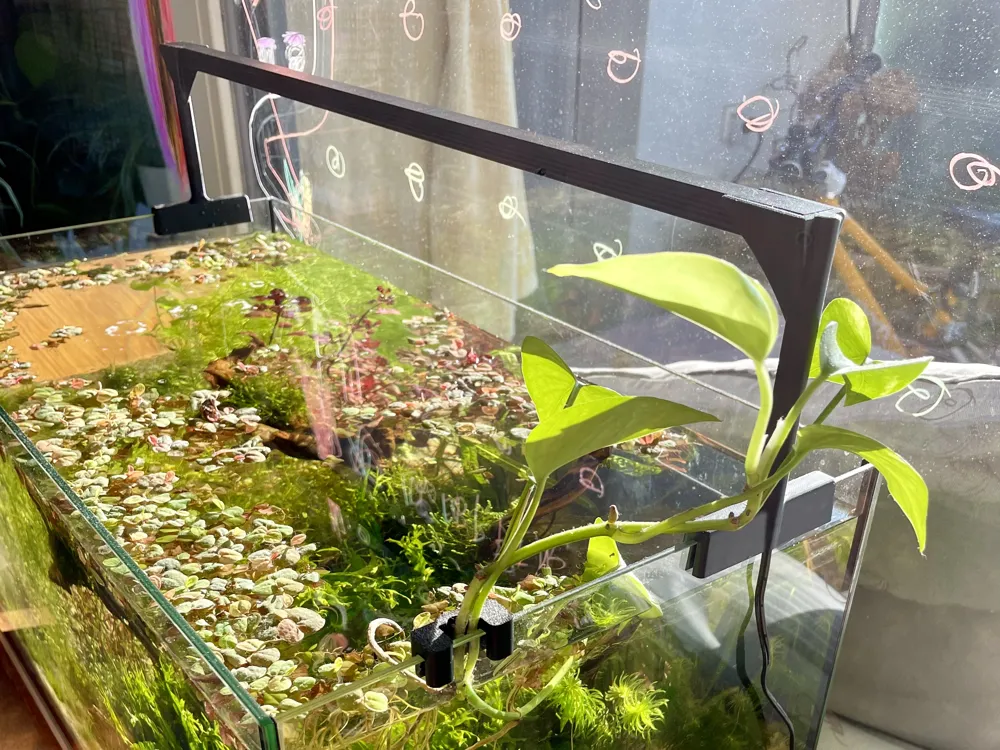

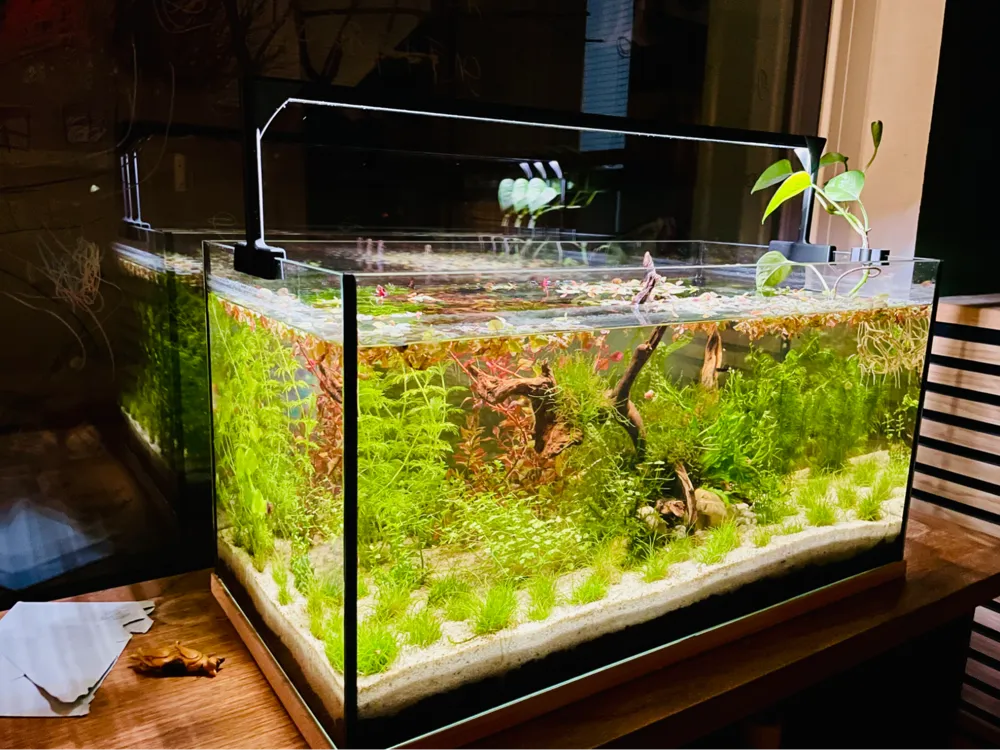

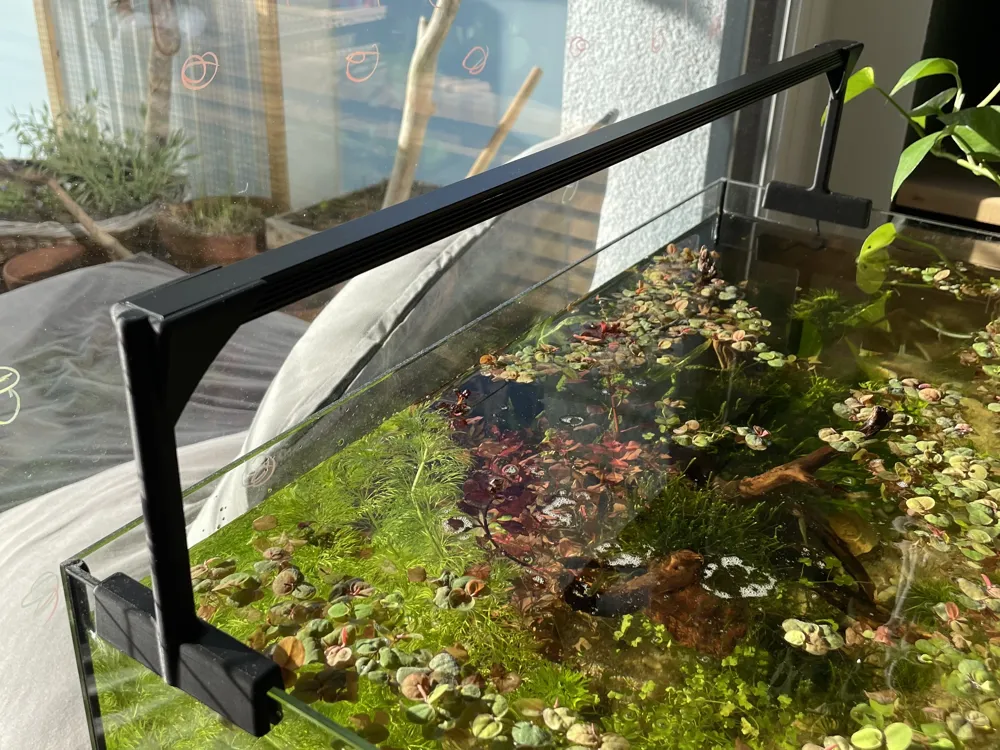

# 💡 Elegant Adjustable LED Aquarium Light – 3D Printed Mount + Aluminum Profile
Light up your aquarium in style!
This DIY-friendly LED light combines sleek 3D-printed mounts with a standard aluminum extrusion and your choice of LED strip. The result? A fully customizable and clean-looking light solution for nearly any aquarium – with hidden cabling and adjustable positioning for optimal plant growth.
Fully printable on A1 Mini!!!
Compatible with Bambu White CCT Tunable COB LED Strip Light (probably some soldering is needed for hidden cables.)
https://eu.store.bambulab.com/products/white-cct-tunable-cob-led-strip-light?id=41632090259592
Important Printing Info for bed-slinging printers:
On A1 and A1 Mini please don´t change the profile. Only one should be printed per plate.
Boost Me (for free)
I would appreciate the support! More filament for prototypes! :D
---
## 🧰 What You'll Need (Not Included)
- 1x Aluminum extrusion(length depends on tank size), a picture exact profil-sizes is in the gallery
https://www.amazon.de/dp/B0754H4VG1?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1
- 1x Any cold white LED strip (5-24V, self-adhesive, IP65/67 recommended) or the Bambu White CCT Tunable COB LED Strip Light
https://eu.store.bambulab.com/products/white-cct-tunable-cob-led-strip-light?id=41632090259592
- 1x suitable power supply
- 2x 3D-printed mounts (PLA or PETG recommended)
---
## ⚙️ Mount Features
- Designed for **4 mm glass thickness**
- **Integrated cable channel** hides the wire – it only becomes visible underneath the tank, creating a very **clean and elegant look**
- **Adjustable light position**: Slide the aluminum profile **from back to front** to control plant lighting and optimize growth
- Mounts simply clip onto the tank edge – no drilling required
-Choose who many lightstrips you want. One in the front and one in the back?
- Need a different glass thickness (e.g., 6 mm)?
**Leave a comment – I’ll happily provide alternate versions!**
---
## 🛠️ Assembly Instructions
1. Stick the LED strip onto the aluminum profile
2. Solder or connect the power wires
3. Insert or clip the profile into the mounts
4. Attach the mounts to the aquarium glass – done!
---
## 🐠 Perfect For:
- Nano to medium-sized aquariums
- Freshwater/Saltwater tanks or aquascapes
- Flexible length and adjustable lighting angle
---
