Print Profile(2)
0.2mm layer, 2 walls, 15% infill - P1S
Designer
16.6 h
5 plates
130% for pipe diameter 80 and cable tie
43.5 h
5 plates
Open in Bambu Studio
Boost
632
1379
42
29
529
177
Released
Description
Hello there!

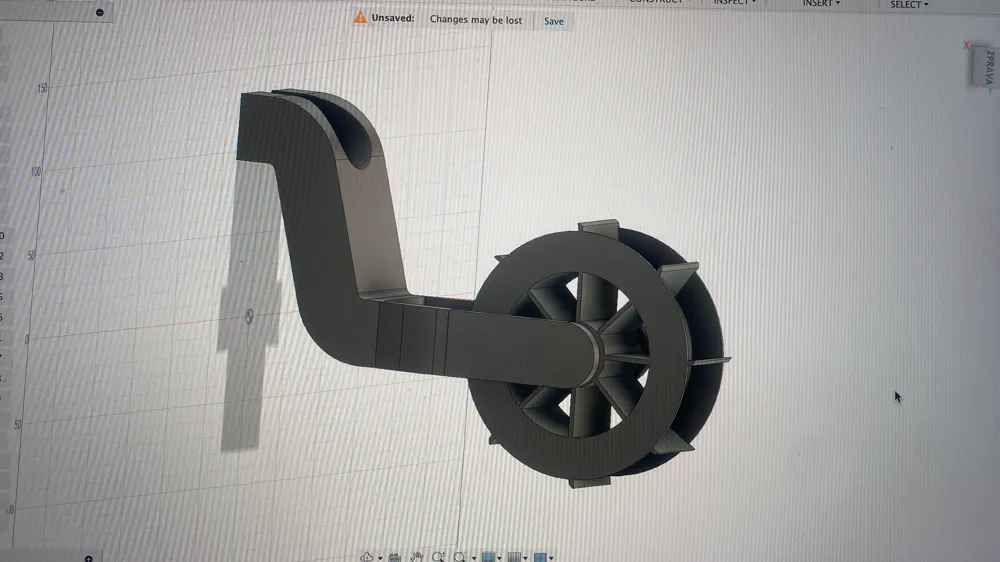

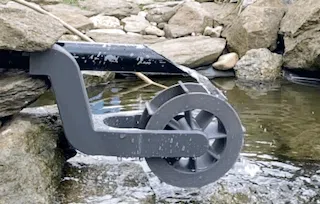

I made a water wheel for my parents' pond.
It's really easy to assemble and all the parts are printable.
- Take the "body" and glue "arm1" and "arm2" to it.
- Prepare "wheel1" or "wheel2" (the choice is yours), insert "rod1" into the wheel, drop glue into the hexagon hole of "rod2" and insert it into the wheel to "rod1".
- Finally, just insert the complete wheel between "arm1" and "arm2" and you're done!
The body is prepared for a 40mm tube.
I recommend PETG material.

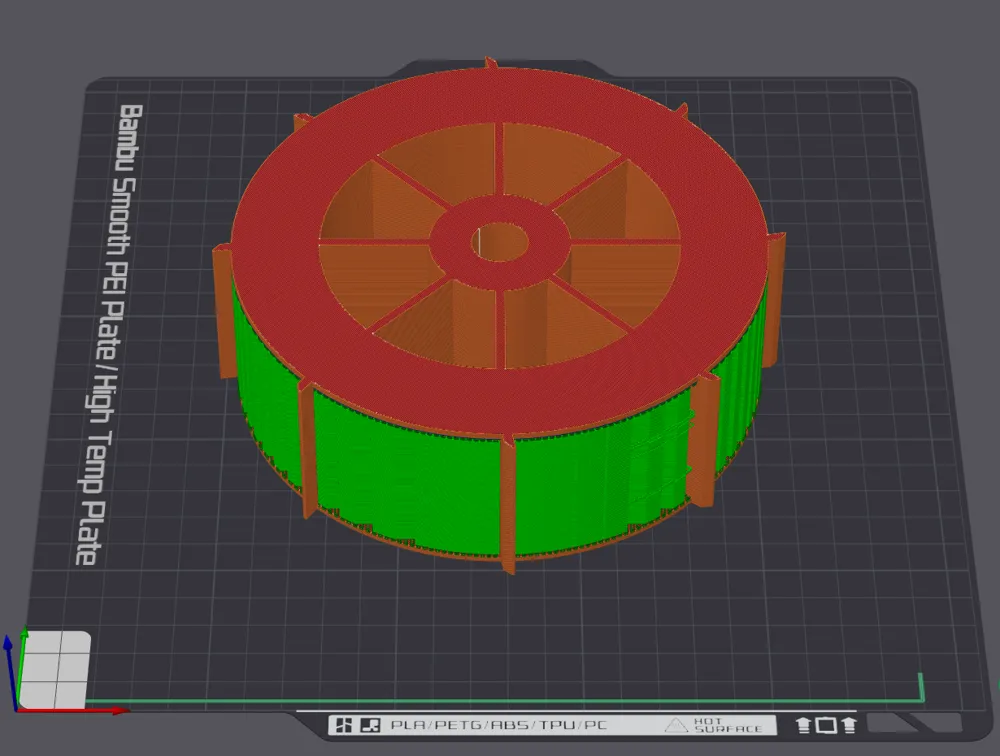

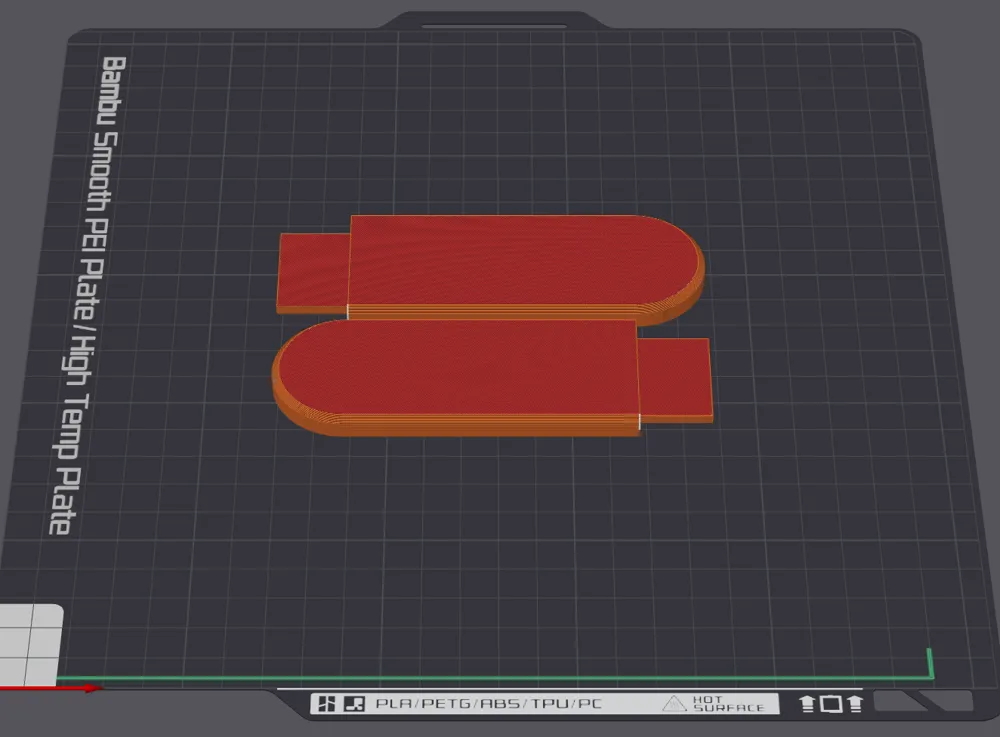

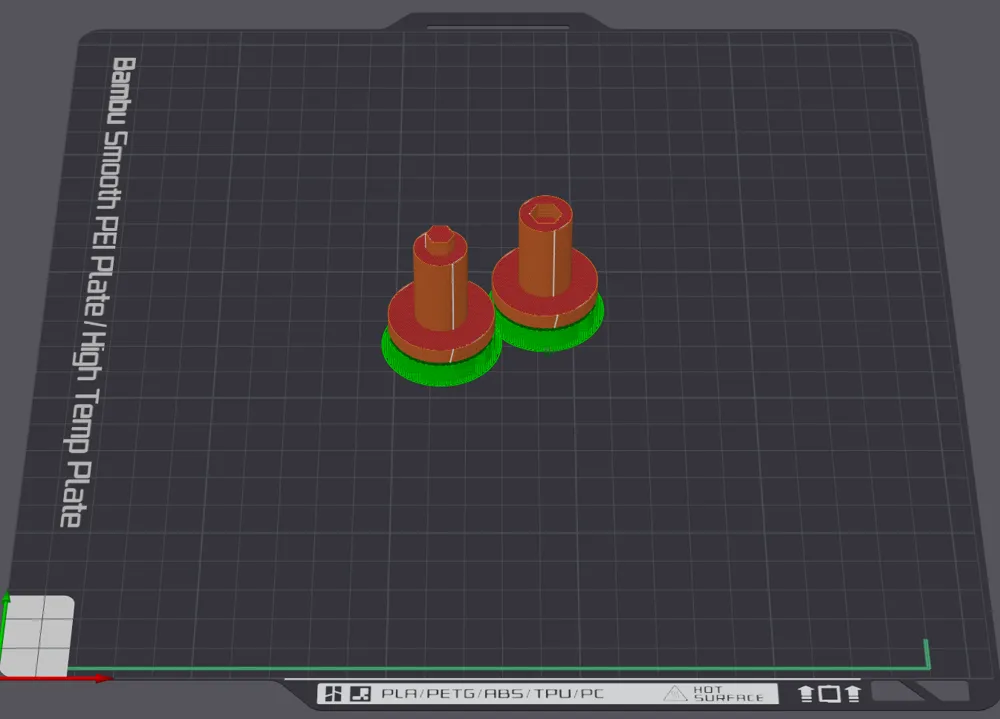

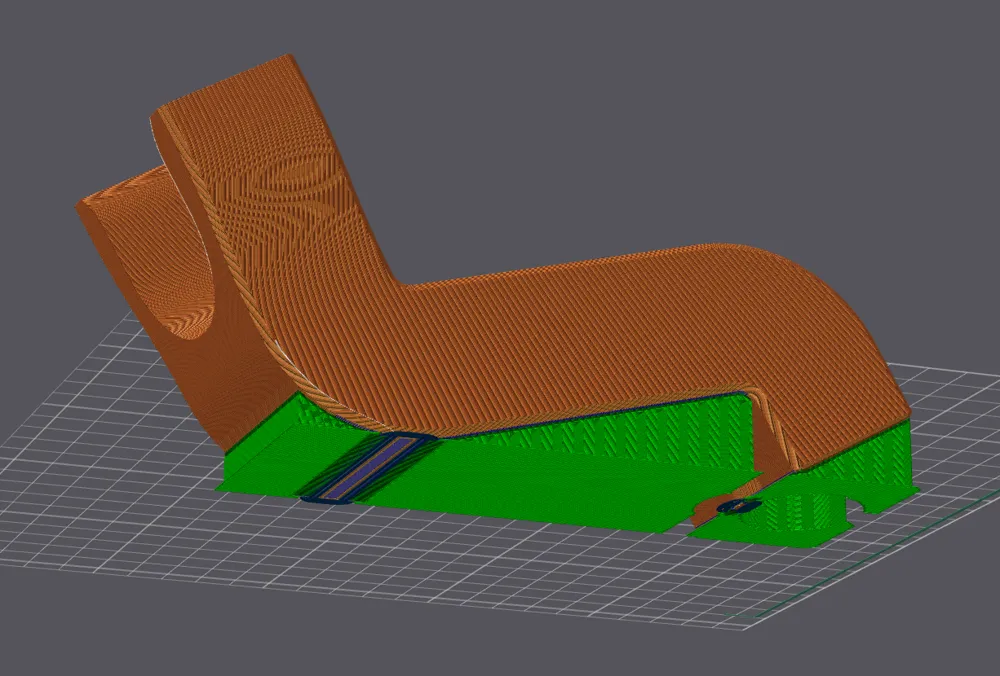

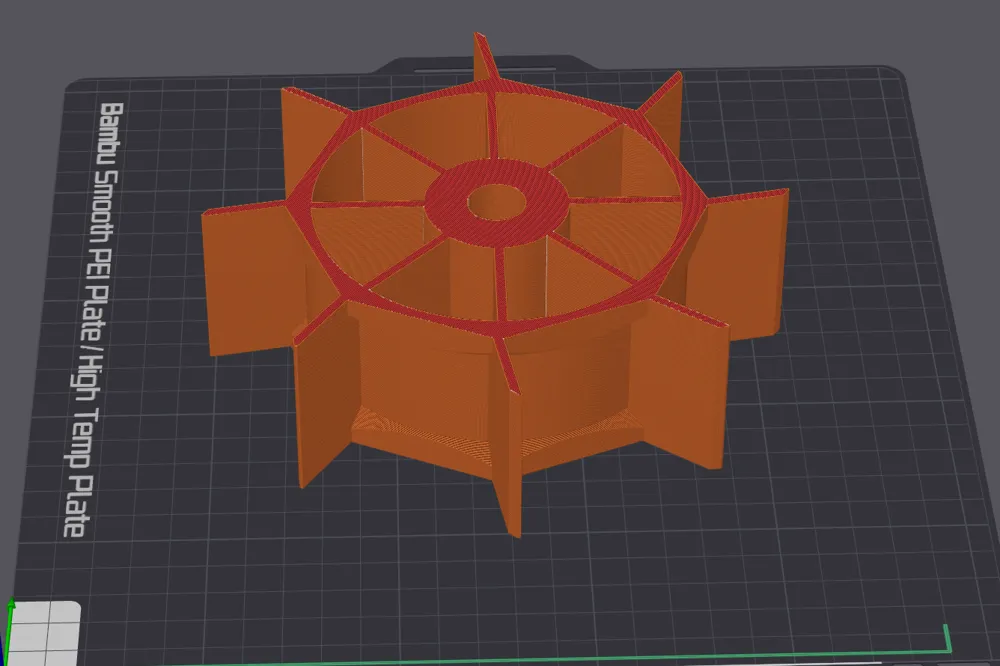

You can see how to print individual parts in the photos!
Thank you for any support!
Boost Me (for free)
Here's the BOOST button, press it if you like my model. 😇
