Description

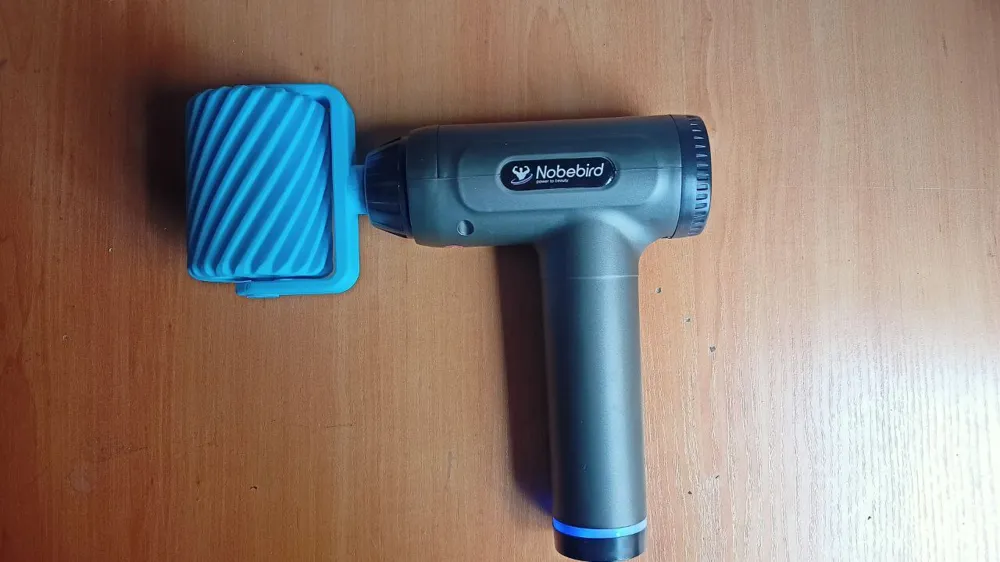

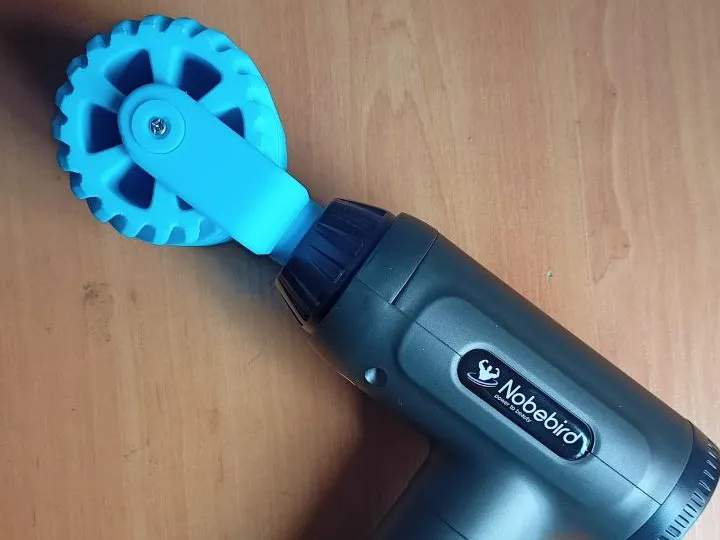

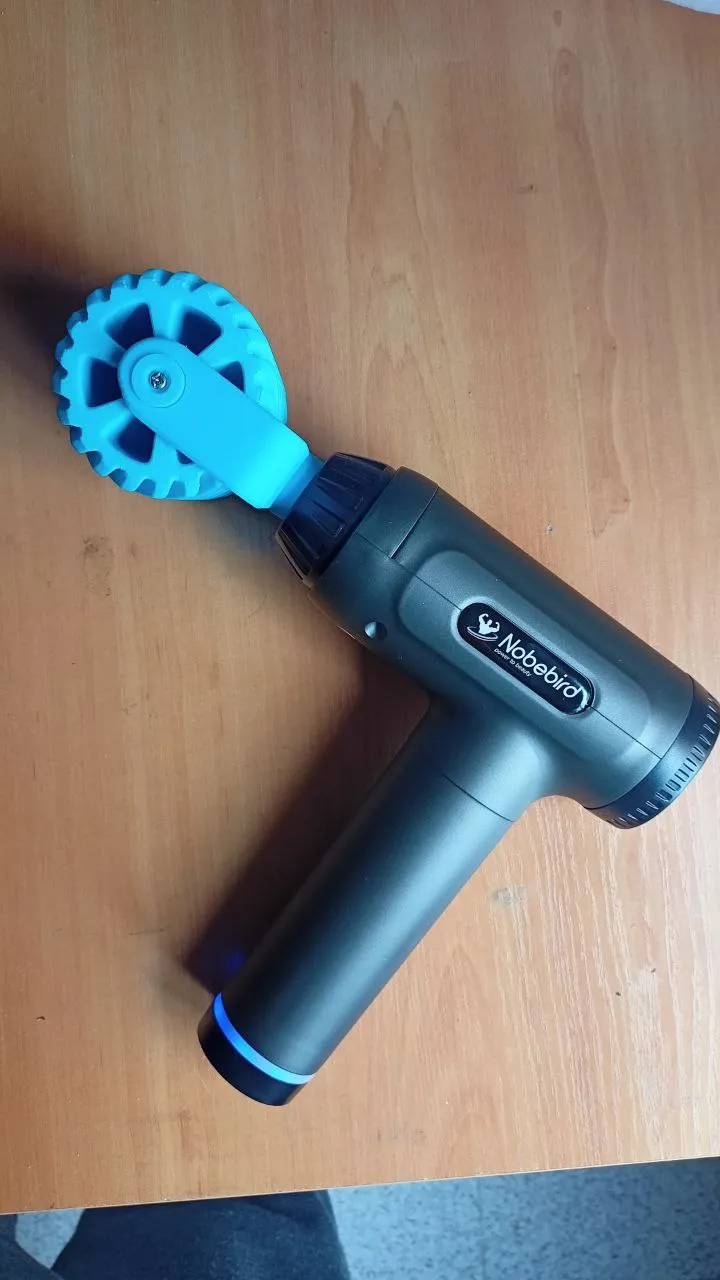

Universal adapter for massage gun attachments. An original cylindrical design for adults and children; its shape and large skin contact area minimize impact on the elderly or infirm.
IMPORTANT It is recommended to use two M3 screws, maximum 30mm long, in the fasteners.
Printing in PETG is recommended, but the first prototype was printed in PLA and has lasted over a year without issue.
Boost Me (for free)
If you enjoyed the design and wish to support me, please share, follow, and consider giving me a boost.
Assembly

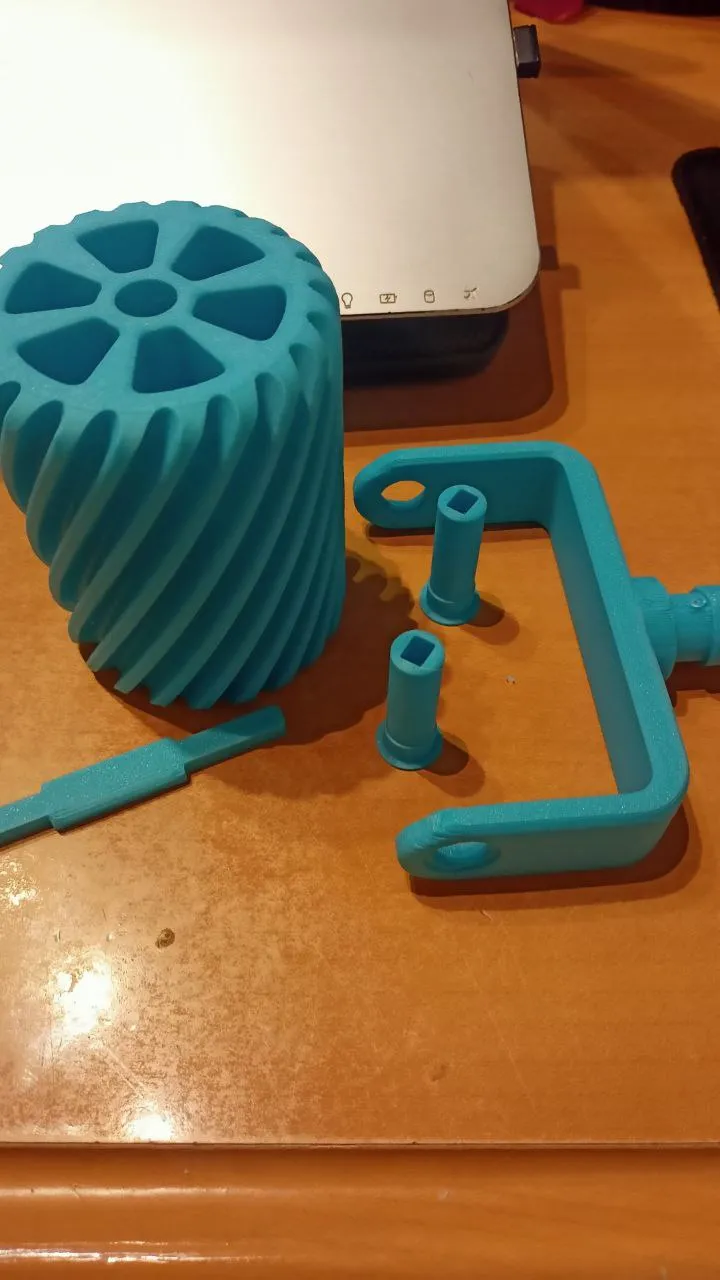

1. Assembly is intuitive, so let's begin. First, clean and remove any supports from the arm that holds the roller. Also, ensure that the roller-holding assemblies slide easily into the arm.

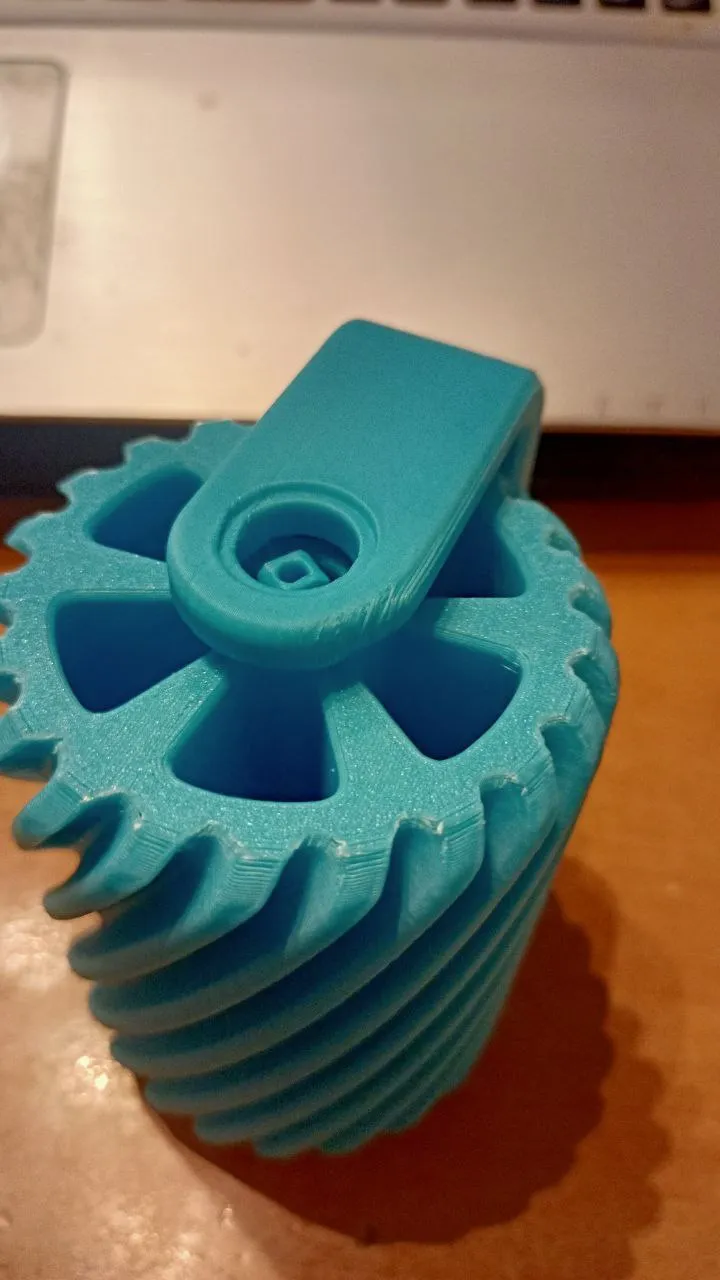

2. Place the cylinder in the middle of the arm, then insert a fastener into one end. It should go all the way in (until it butts against the arm and the wheel).

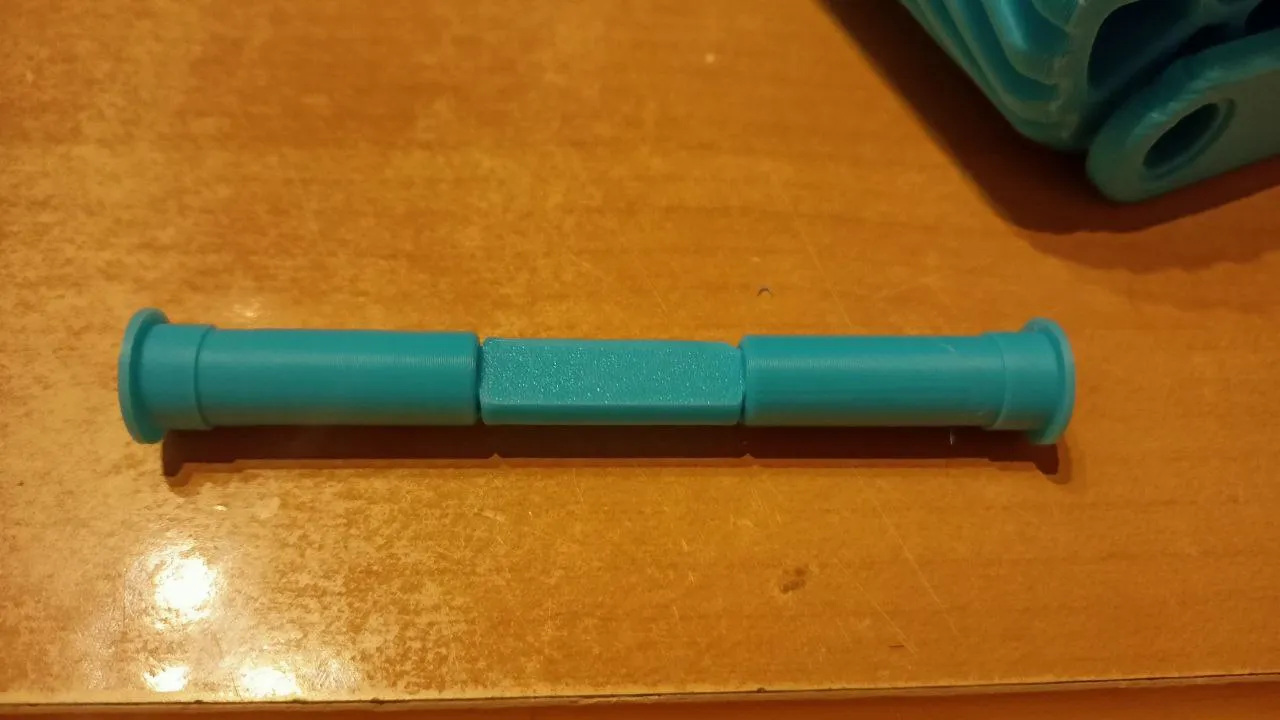

3. Insert the fastener into the other end, guiding it through the square hole of the fastener.

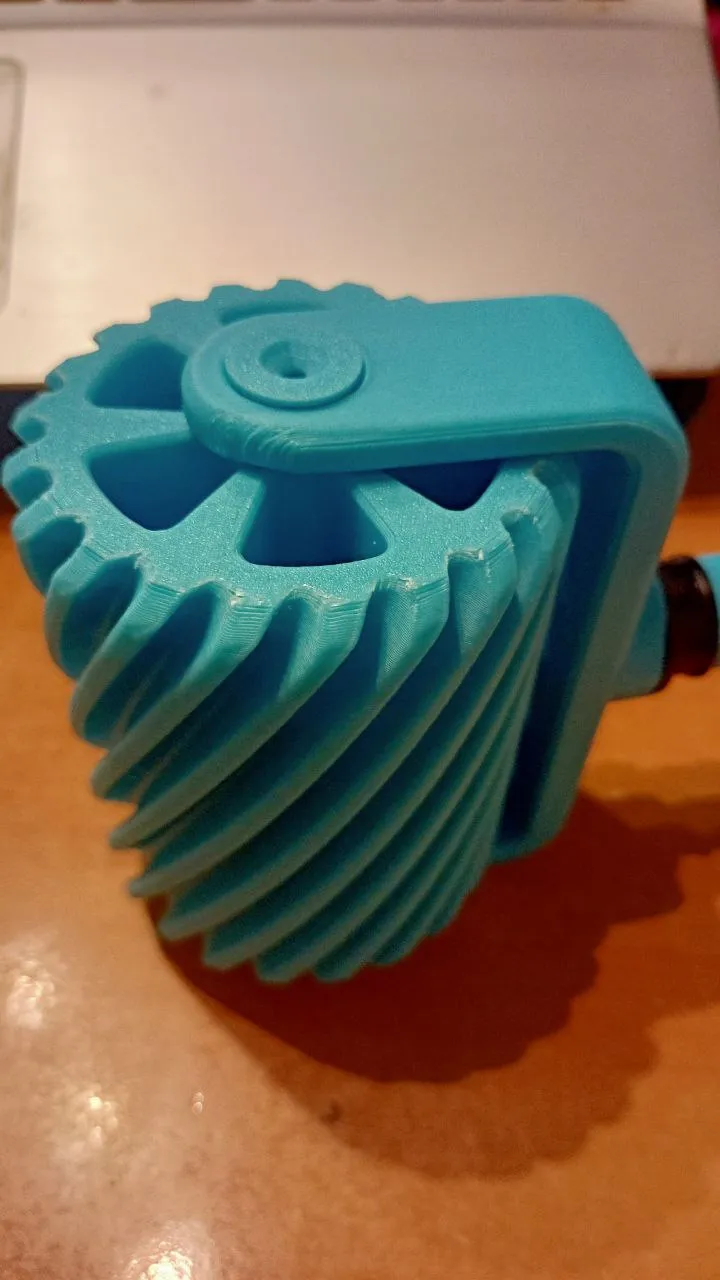

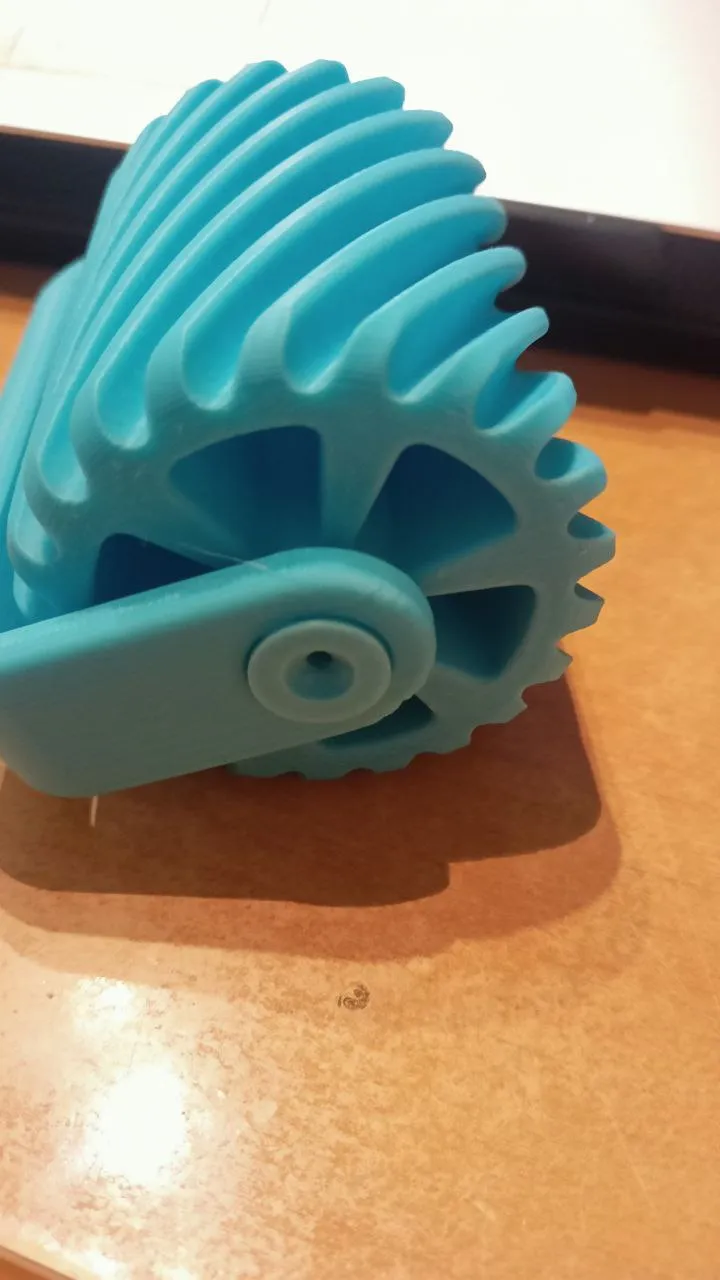

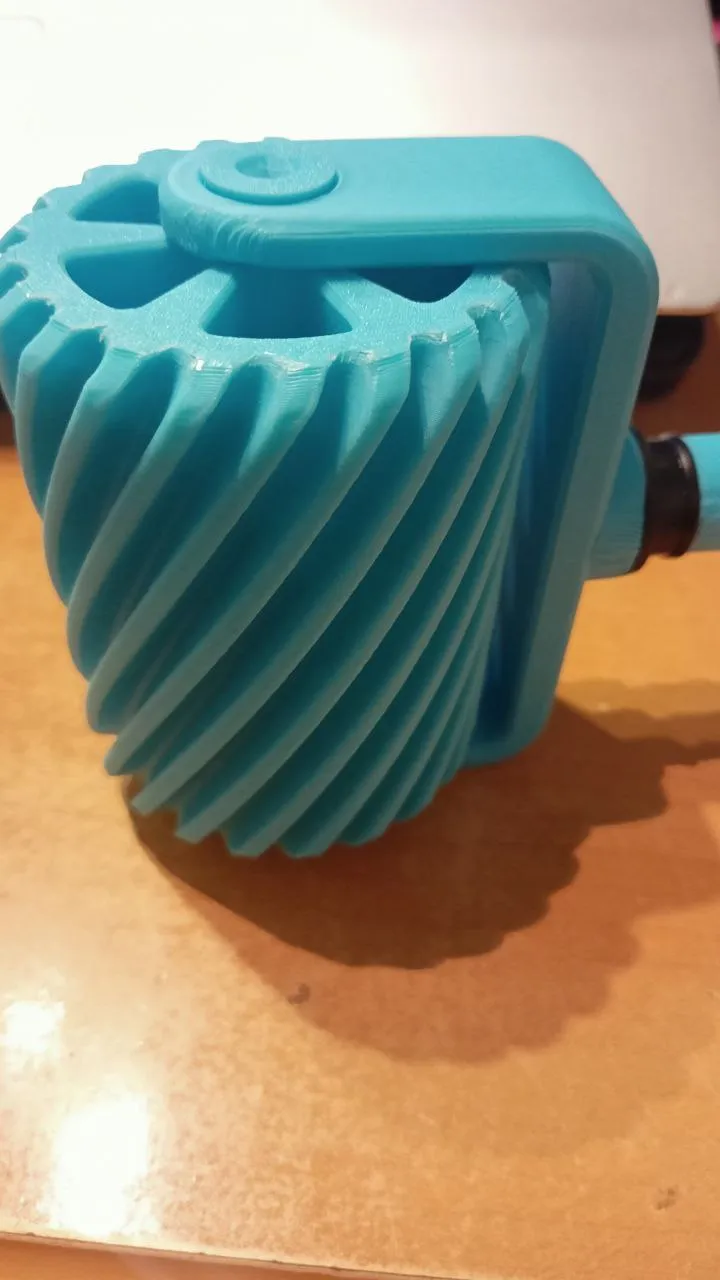

4. Insert the other fastener; similarly, it should butt against the plastic of the arm.

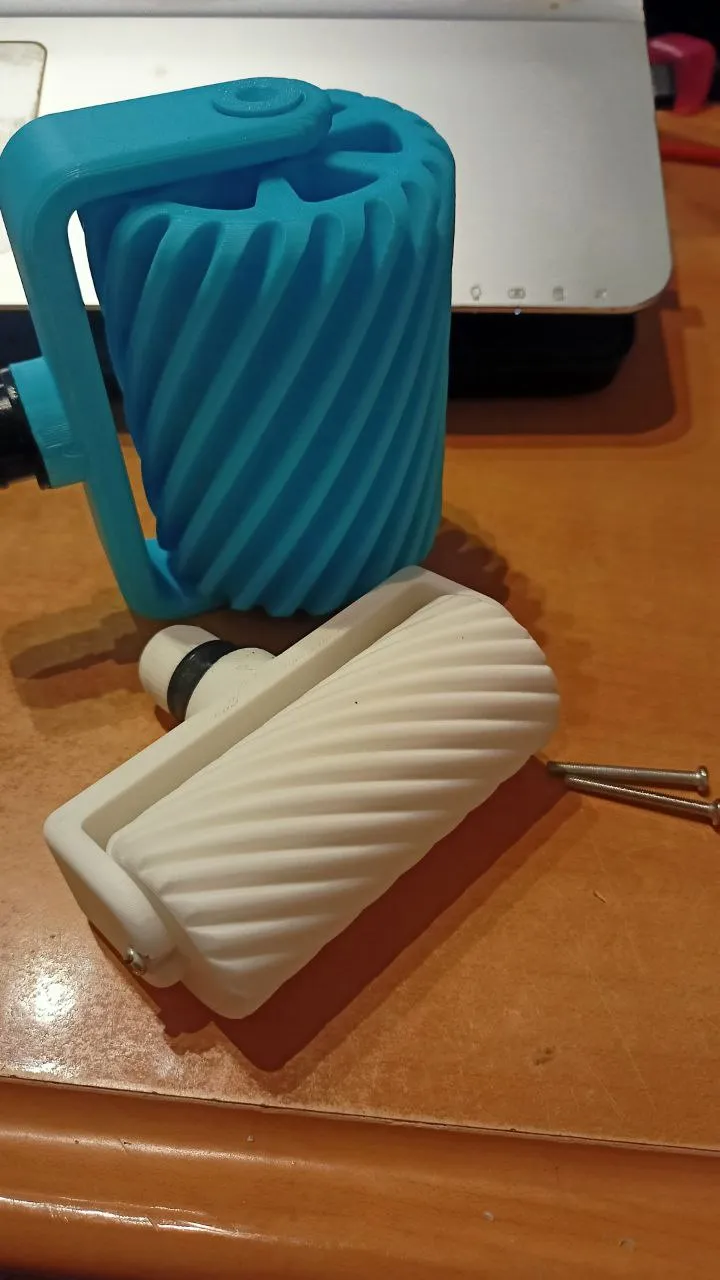

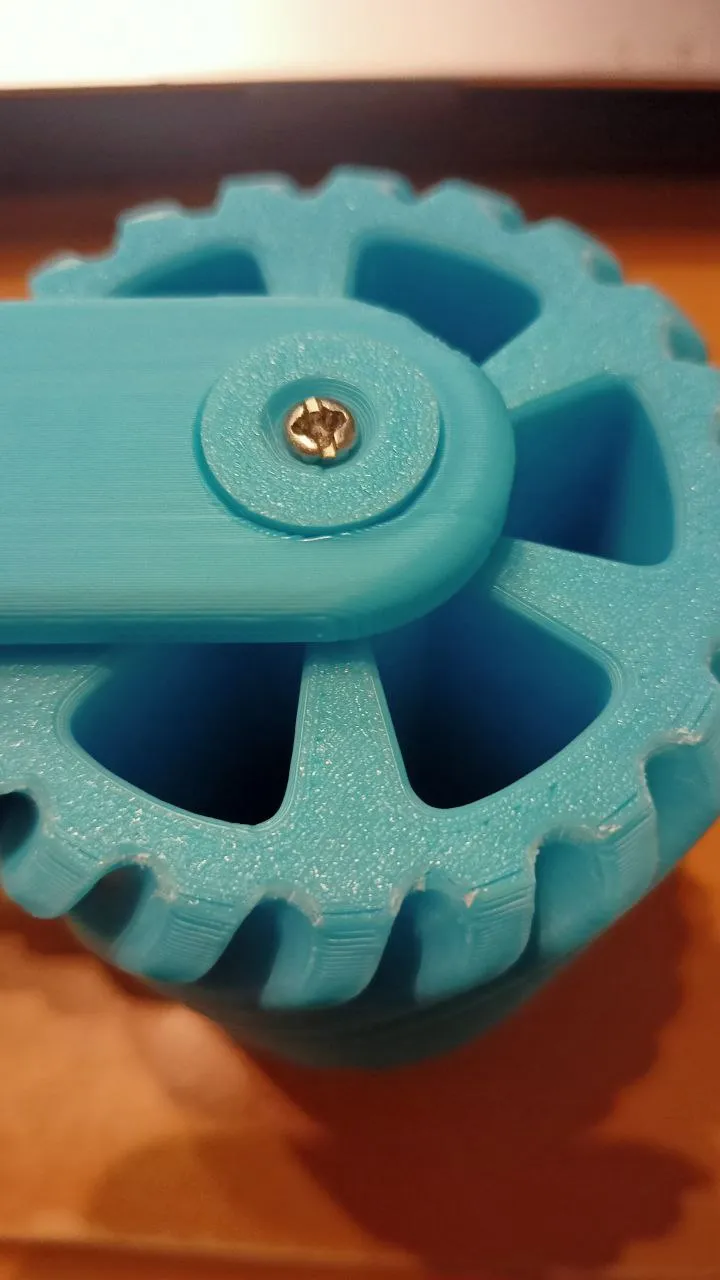

5. RECOMMENDED: Insert two M3 screws into the fastener holes; this will increase strength and prevent the plastic from breaking under excessive force.

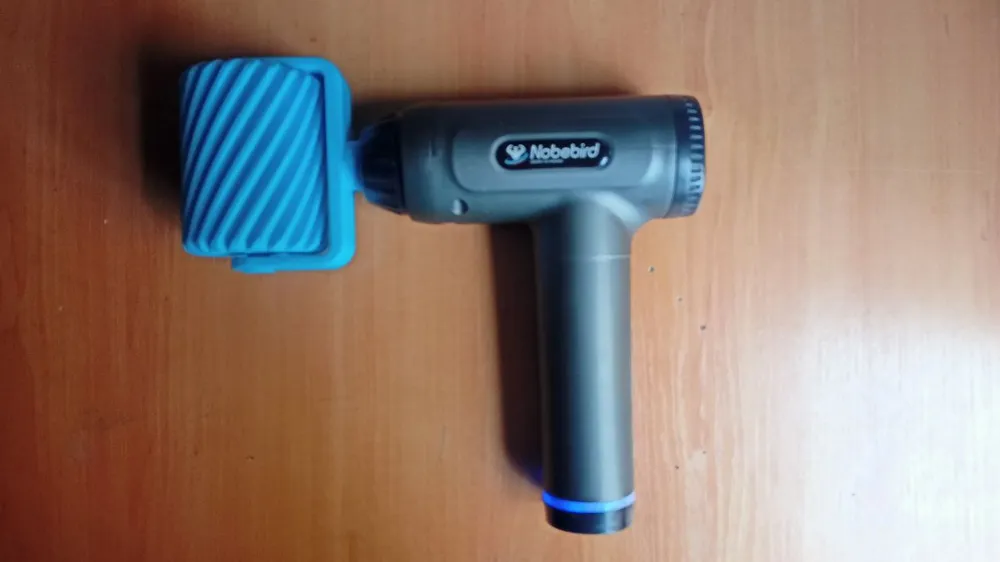

6. Finally, attach the rubber sleeve typically included as a spare with your massage gun.
