Fixture Table TIG Torch Holder

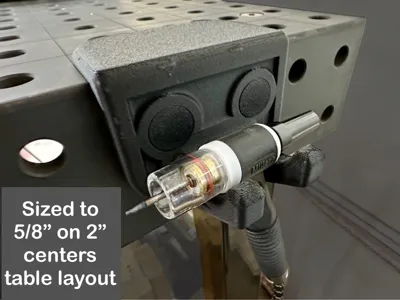

This is a holder for a 17 series TIG torch that should attach to most fixture tables that use a 5/8" hole on 2" centers arrangement. It was designed to fit Primeweld's 2'x3' fixture table, and it should also easily fit Langmuir System's 2'x3' fixture table, but really any table with 5/8" on 2" centers or probably 16mm on 2" centers as well.

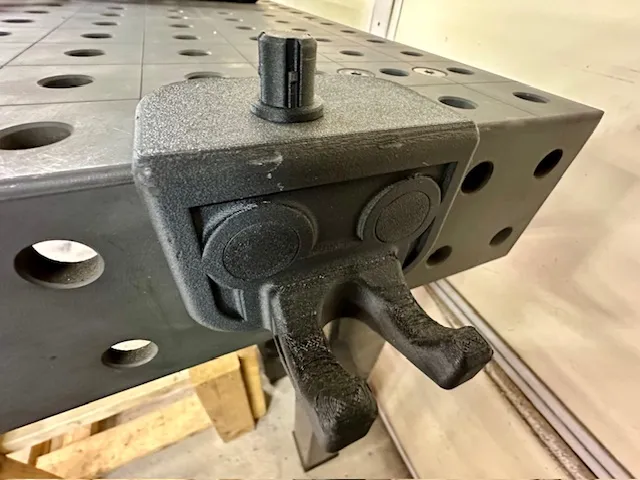

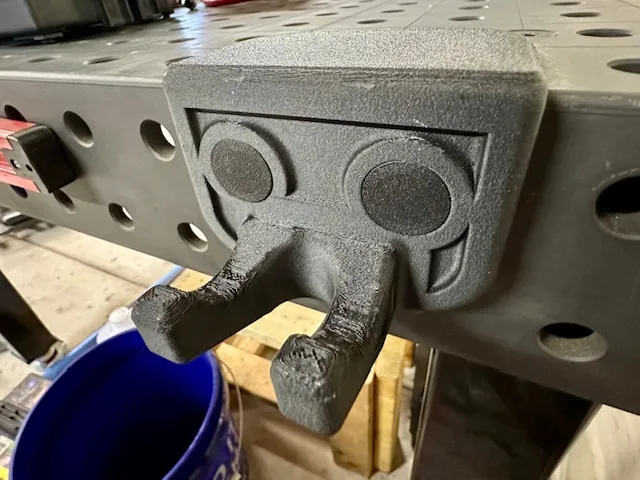

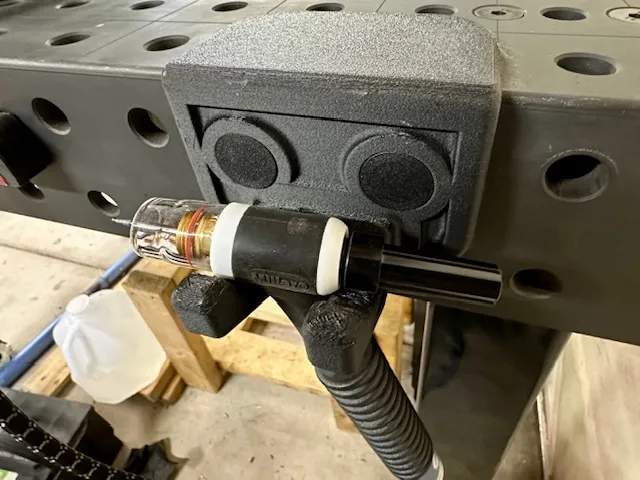

When you look at the model, you will see that the top of the holder has a pair of 5/8" pins to register in the table holes, and the printed pins (two needed) will snap into the table's side face locking the holder in place. It is a VERY tight fit. Print it out of something strong that will hold up to a tap or two from the rubber mallet to install. Print it out of something that will hold up to the heat of a hot TIG torch. I used Bambu's ASA-CF and I couldn't be happier. I've dropped my torch in the holder after welding thick aluminum, and seen zero signs of melting.

If you can't download the 3MF file, I suggest 6 walls, 25% gyroid infill, and organic supports. You will notice in the pictures that the torch holder actually prints upside down. In this manner it really only requires supports for the end of the torch cradle.

Any Questions, please ask. Any tweaks needed for your application, let me know and I will try to accommodate.

If you feel that my work has helped you and you would like to help me back, please feel free to “Buy Me a Coffee”: https://ko-fi.com/crazycaseyscustoms , or it is also highly helpful if you would like to subscribe to my YouTube channel linked in my profile.


Happy Printing!
