Elegant Watering Can
Print Profile(3)
Description

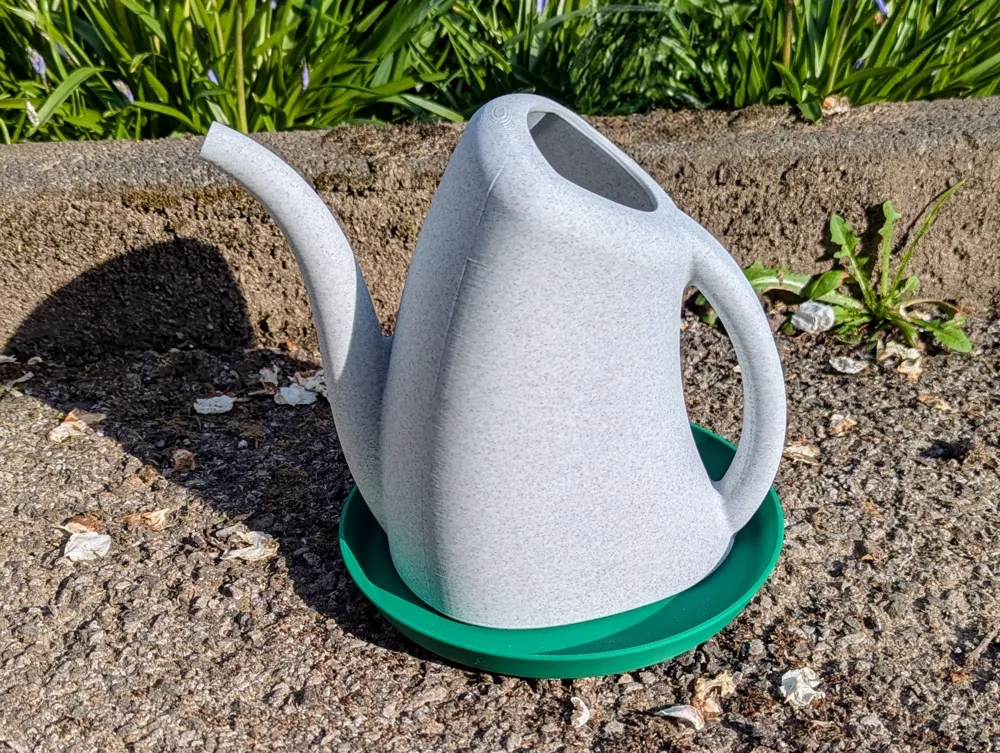

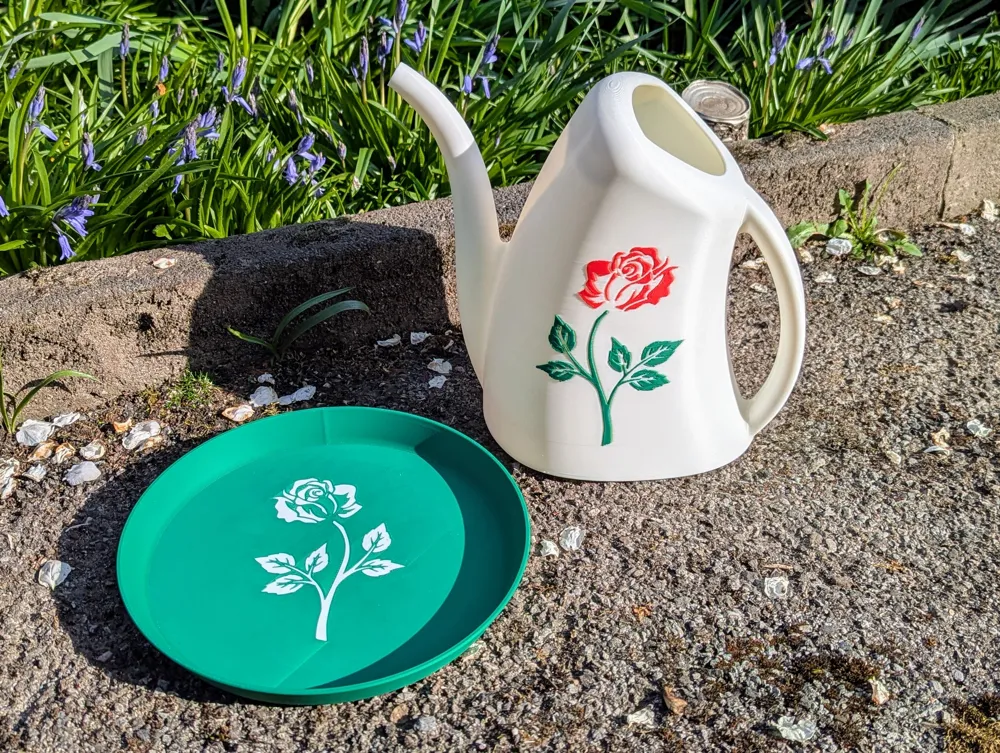

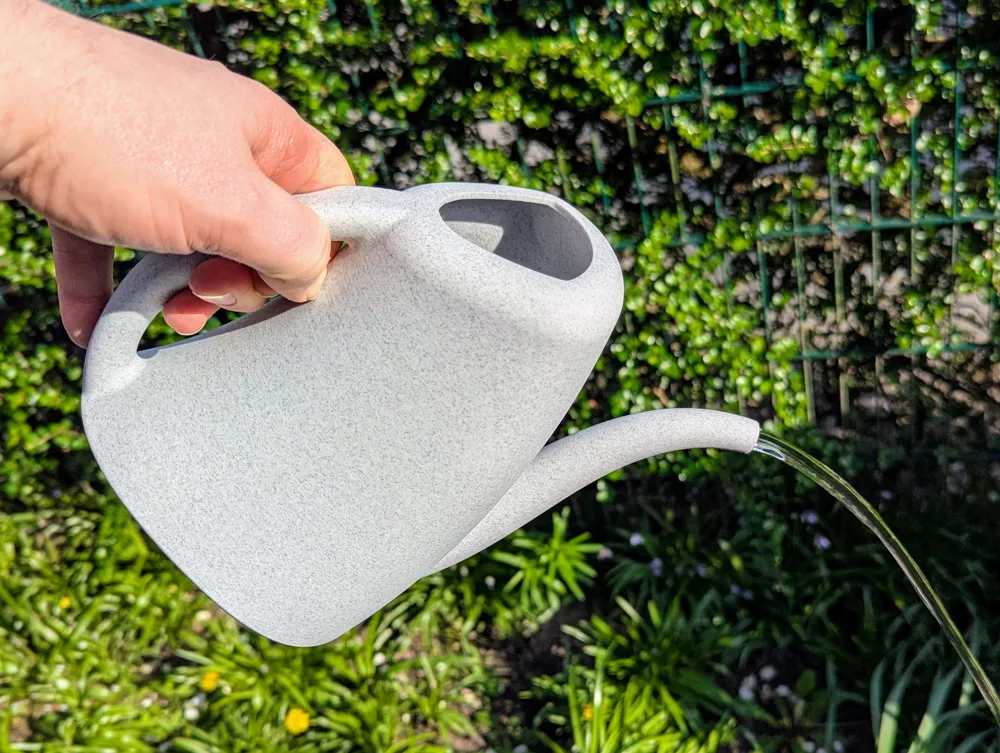

Water your flowers in style with this Elegant Watering Can.
It comes in three different versions:

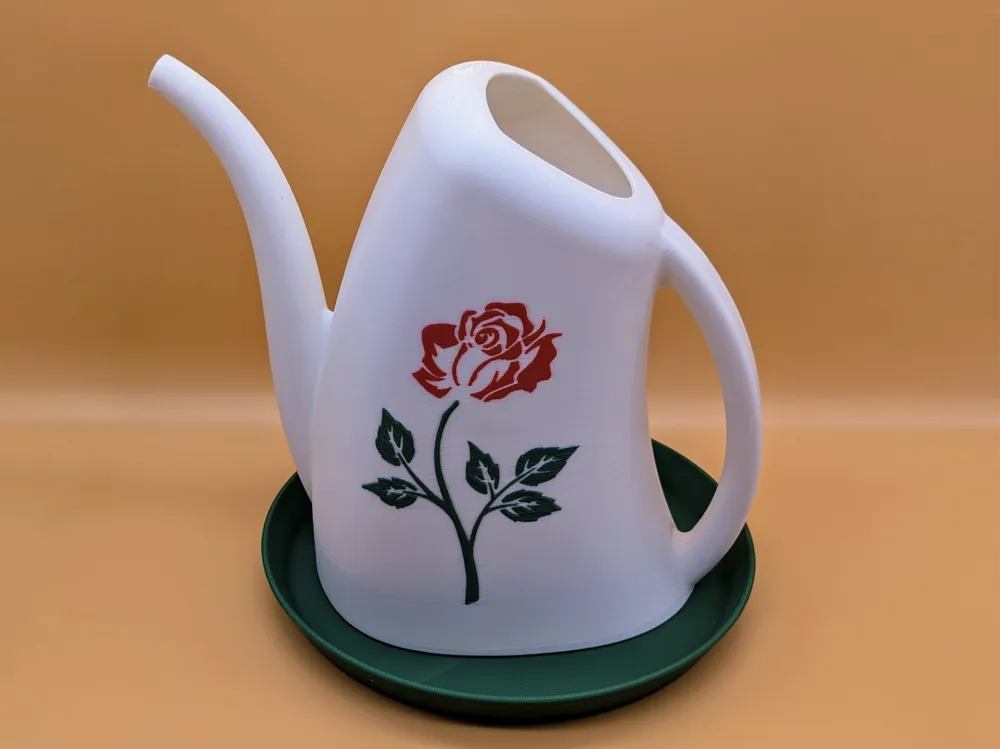

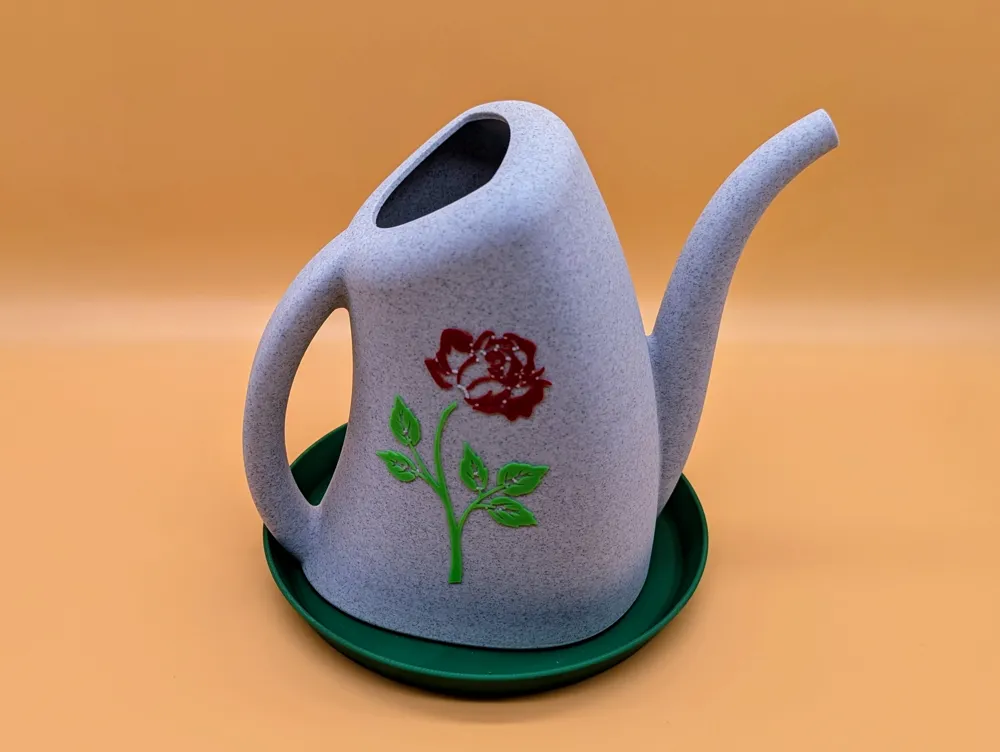

| Large watering can with decor | Volume is 3.3 ltr Decor is print-in-place (AMS necessary) H2D recommended 0.6mm nozzle recommended Print time is 9.3 hrs on H2D (can only) Print time is 24 hrs on P1 / X1 / A1 520 gr filament on H2D 760 gr filament on P1 / X1 / A1 |

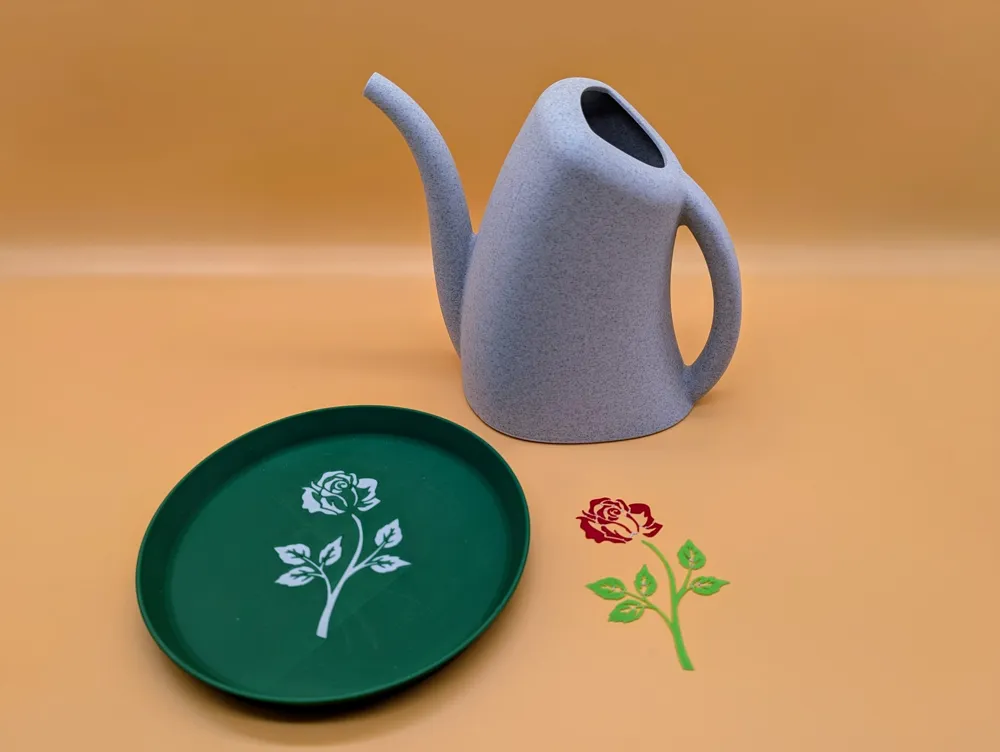

| Large watering can | Volume is 3.3 ltr Decor is optional and must be printed separately Printable on all large printers (A1 / P1 / X1) 0.6mm nozzle recommended Print time is 8.3 hrs (can only) 490 gr filament (without decor) |

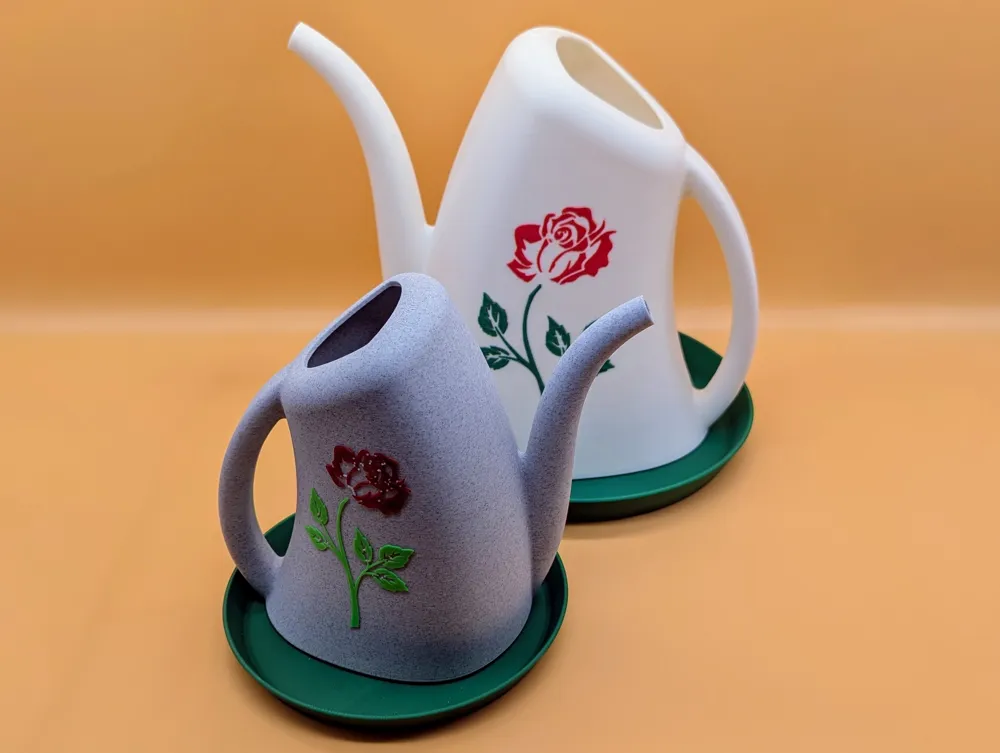

| Small watering can | Volume is 1.1 ltr Decor is optional and must be printed separately Printable on all Bambu Lab printers 0.4mm nozzle recommended Print time is 5 hrs (can only) 240 gr filament (without decor) |
Print preparation:
Make sure that your print bed is clean and grease-free and use a quality brand, dry filament. I recommend you install a 0.6mm nozzle on a H2D / A1 / P1 / X1 to speed-up the printing process. Of course, if you want you can still use a 0.4mm nozzle.
Print settings:
With a 0.6mm nozzle use the 0.3mm standard settings for everything. Set your slicer to 4 walls, 5 tops and 4 bottoms. 10% gyroid infill should be enough. Support is not necessary.
I added three print profiles to cover most possible printing scenarios. Take a look at them for more details.
Leakage:
3D prints do not need to be leakproof. I designed this watering can as leakproof as possible, but depending on your filament, the settings and pure luck the can might still leak a little bit. There are three ways to deal with leaking prints.
- Ignore it
It is a watering can, so a little drip here and there does not do any harm. Print the optional drip tray to be save.
- Coat the inside
Use a spray can with simple clear coat and generously spray the inside of the watering can. This will close all pores.
Alternatively you can use Epoxy and brush the inside.
- Use heat
Fill the watering can to the max and wait a few minutes. Now small leakages are visible. Empty the water and apply heat for a very (!) short time to the position where the leakage was. Apply some mild pressure with you finger to close the pore. Don't burn yourself!
Boost Me (for free)
Like it? Boost it!
If you want to support me you can leave a tip at ko-fi.com/blecheimer.
This work by blecheimer is licensed under CC-BY-NC-ND 4.0. The shown model is fanart and must not be used commercially.
The flower motif is licensed under Public Domain and can be found on https://freesvg.org.
Copying these models to other 3D printing websites is not allowed without my permission.
