Bathtub Shower Corner Shelf (Modular)
IP Report

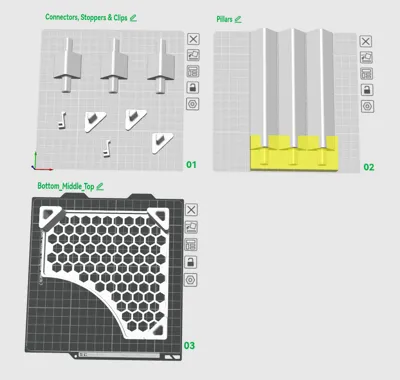

Print Profile(5)
Original (150x150mm): 0.2mm layer, 3 walls, 15% infill
Designer
6.1 h
3 plates
Rectangular 150x150 or 200x150: 0.2mm, 2 walls, 15% infill
Designer
5.8 h
2 plates
Large (240x240mm) 0.2mm layer, 3 walls, 15% infill
3.3 h
1 plate
TPU cap/feet
28 min
1 plate
Click to see more
Open in Bambu Studio
Boost
1287
4085
227
94
1.8 k
1.3 k
Released
Description
Bathtub Corner Shelf (Modular)

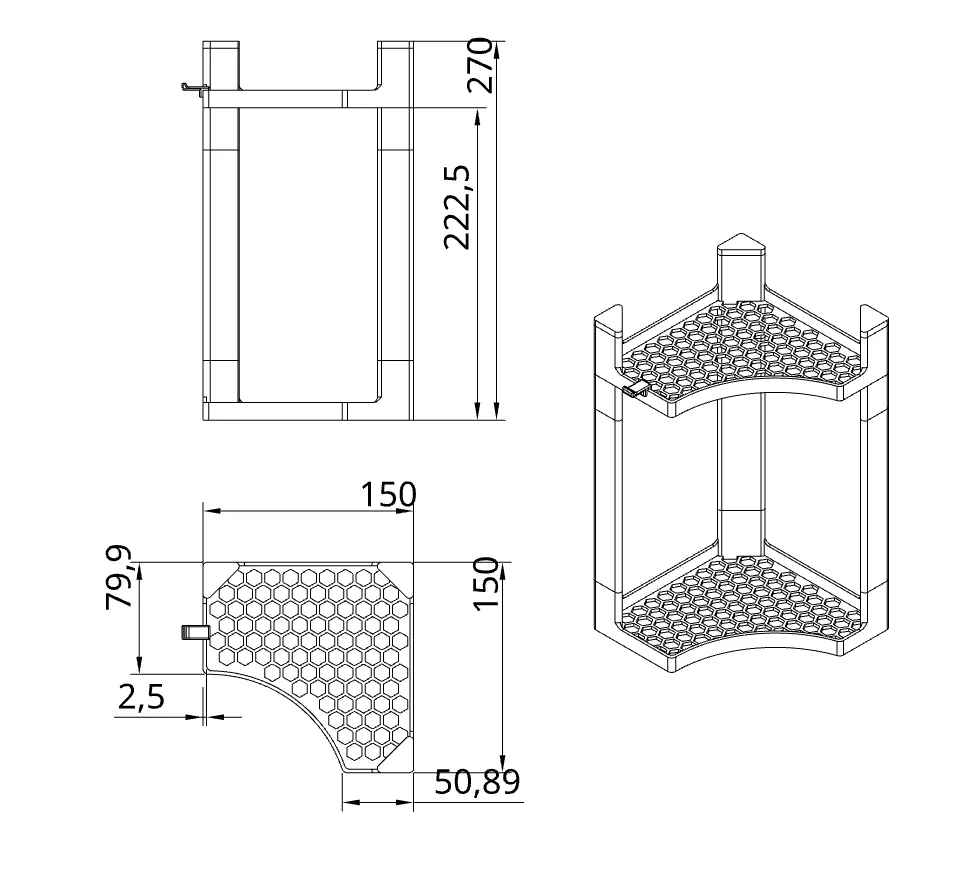

Somehow, all the commercial shelfs didn't want to stick to our tiles, so I designed a modular standing corner shelf. The size is 150x150mm and 222mm in height to fit most (european) body wash tubes.
Modularity

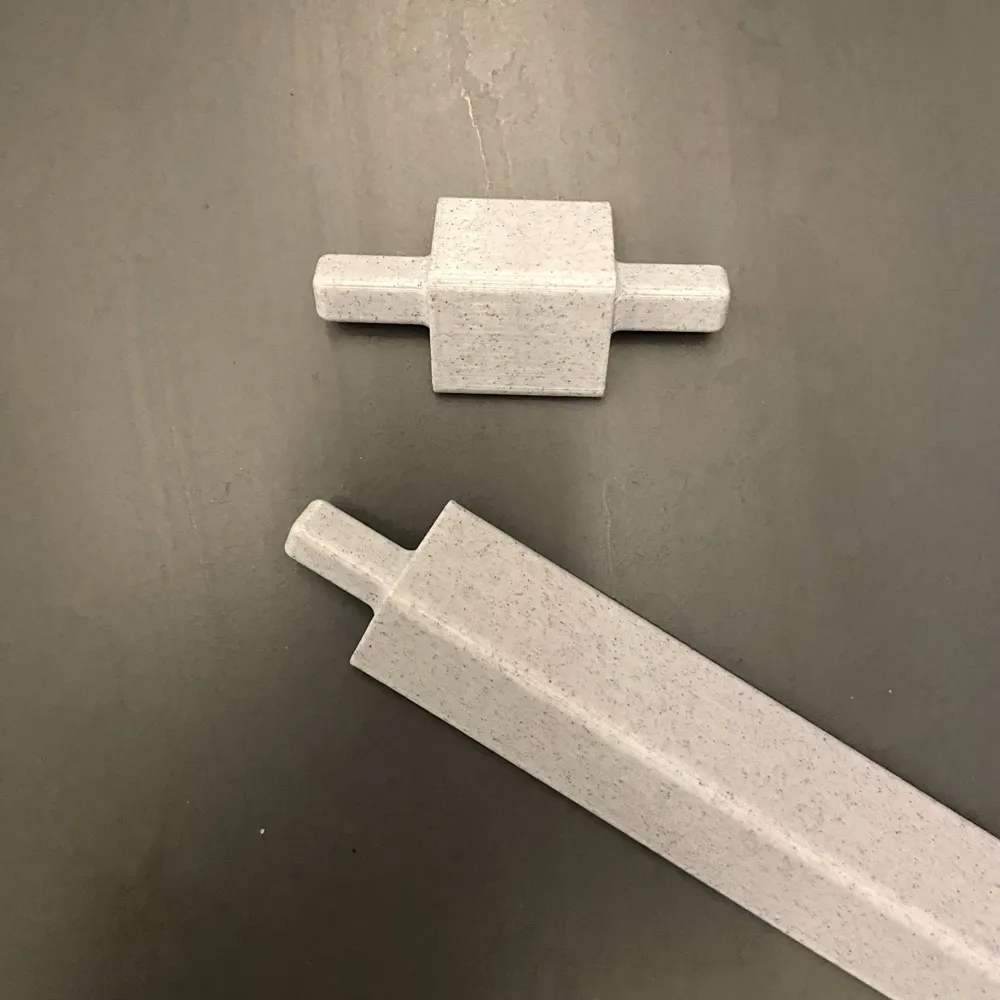

Since the model is too big for the A1 Mini, I split it into several modular parts that can easily be plugged together.
The top part has connection wholes from both sides, allowing to create additional levels by printing more pillars & top planes.
Printed with PLA.
Support me <3
Boost Me (for free)
Make my A1 Mini happy :)
License
This user content is licensed under a
Creative Commons Attribution-Noncommercial-Share Alike
