Asian Floor Lamp

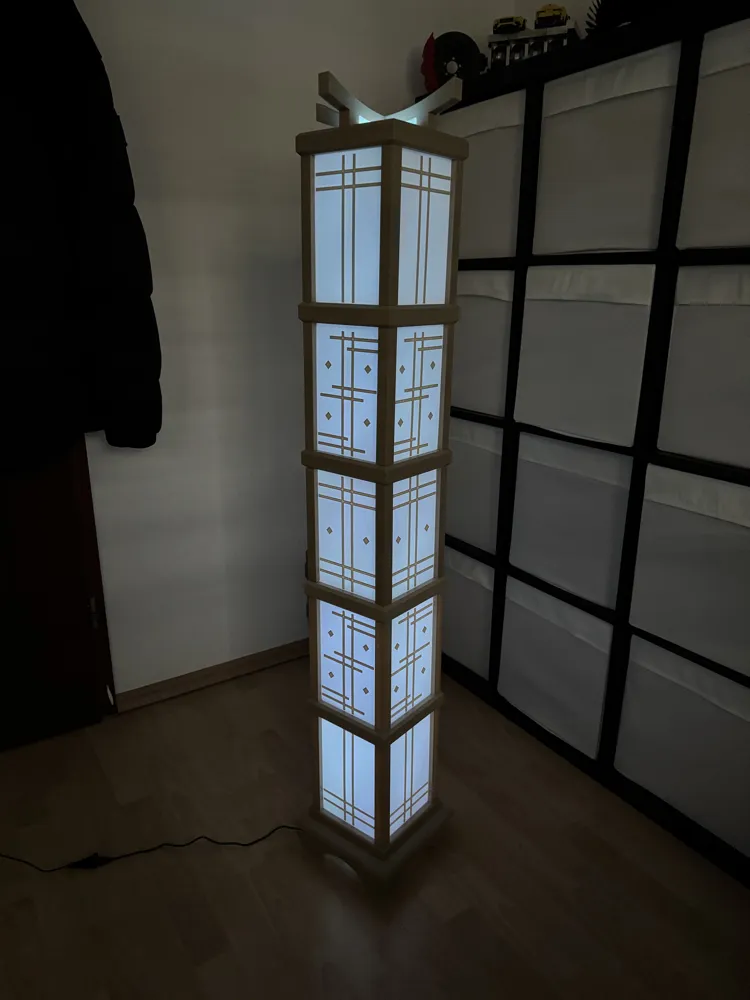

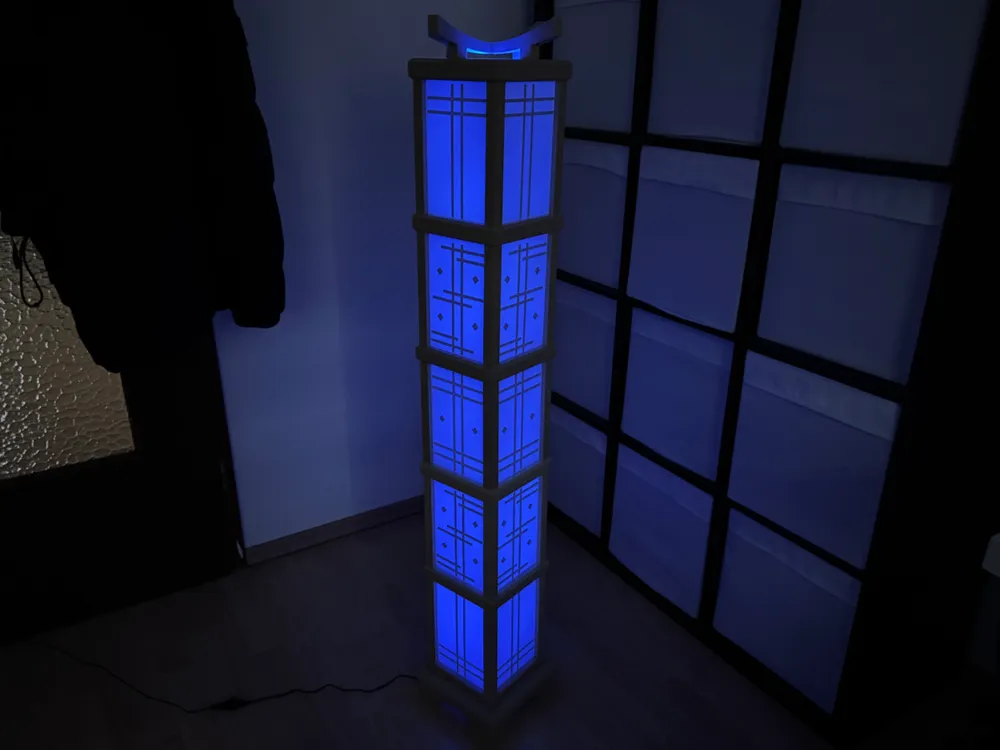

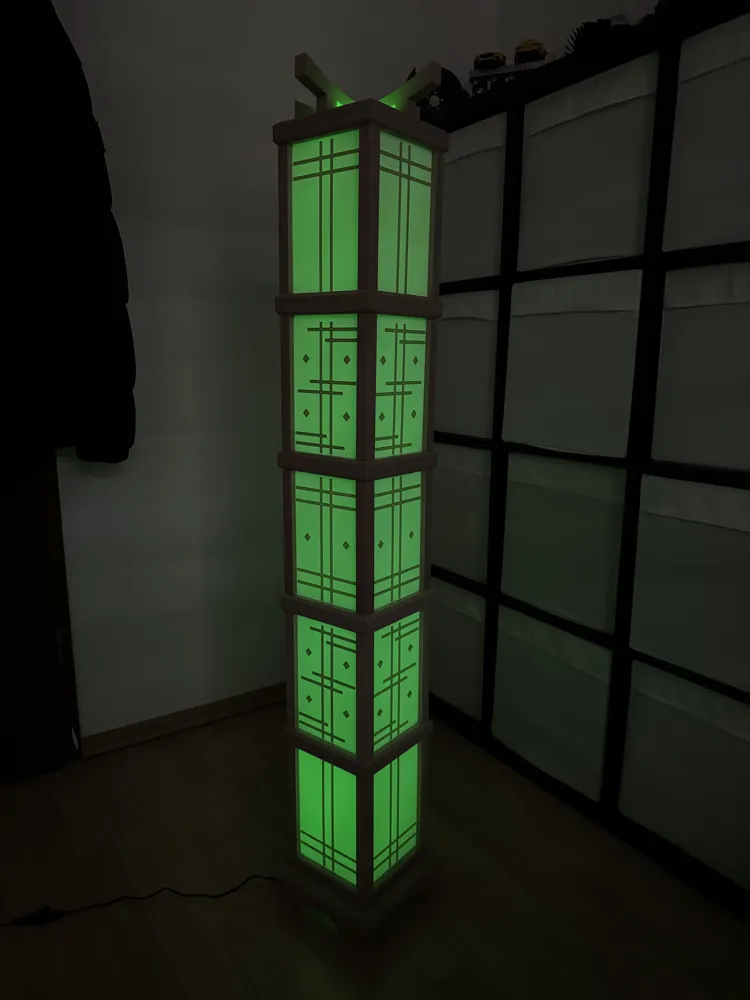

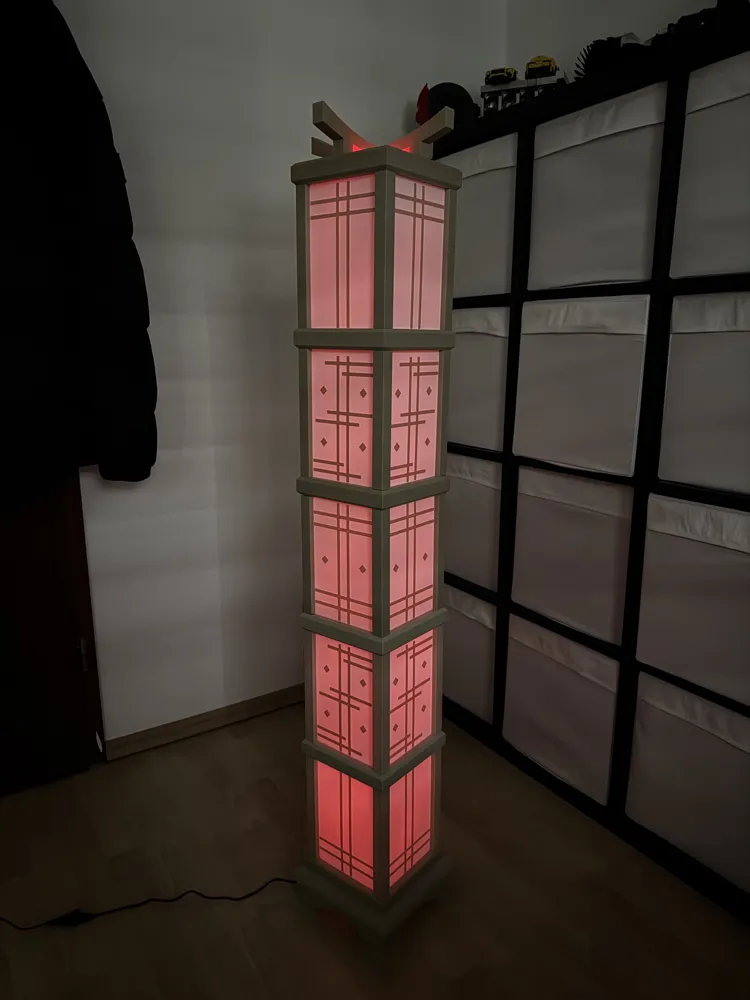

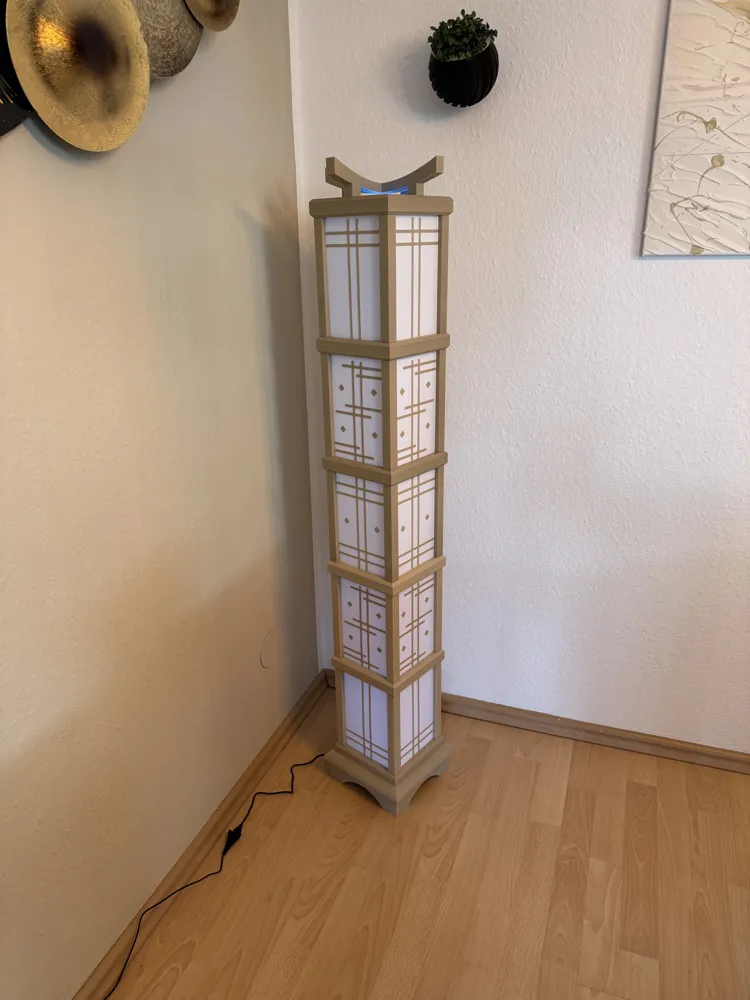

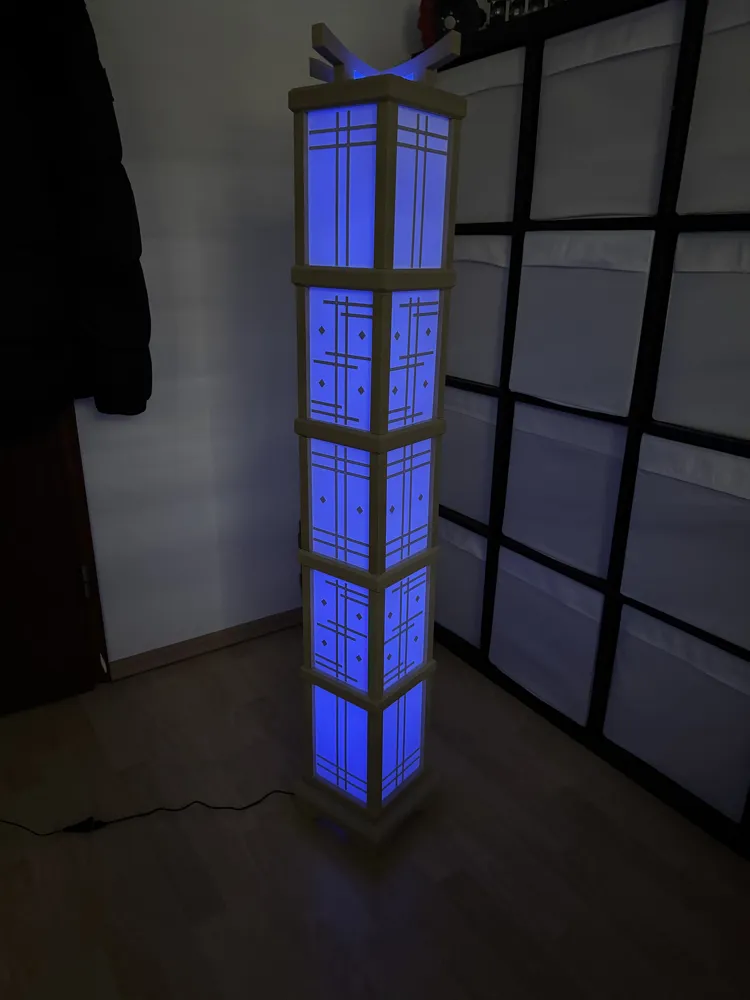

Asian Floor Lamp – Modular, Stylish, and Fully 3D-Printed

Bring Far Eastern flair to your home with this elegantly designed, fully 3D-printed Asian-style floor lamp. The lamp consists exclusively of PLA-printed parts and can be assembled completely without glue or screws—all components fit precisely together. The assembly is simple, stable, and fully modular.

Highlights:

• 100% 3D-printable (PLA recommended)
• Completely connectable – no gluing or screwing necessary
• Minimalist, Asian-inspired design
• LED-Ready: Space for a 10m LED strip inside
• Multi-story structure with varying window designs

Required Components:

• All 3D-printed components (included in the project)
• 1x LED strip (optimal: 10 meters long)
• Optional: Glue for the LED tube for better stability

Assembly Instructions (Summary):

1. Base: Insert four corner poles with long tenons into the base component.
2. First Floor: Insert windows, attach intermediate piece.
3. Further Floors: Repeat the process up to the 5th floor (including windows & intermediate pieces).

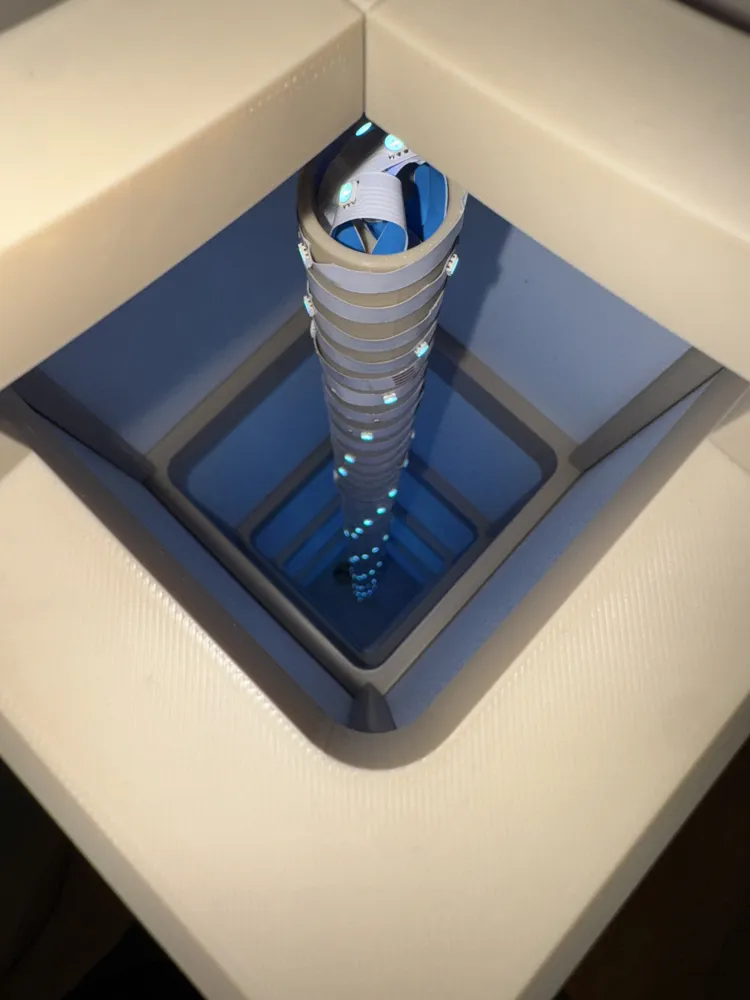

4. LED Tube: Insert 5 long + 1 short tube parts into each other (glue if necessary). Wrap the LED strip spirally from bottom to top.
5. Insertion: Insert the finished LED tube into the central opening of the base plate. Cable outlet is available.

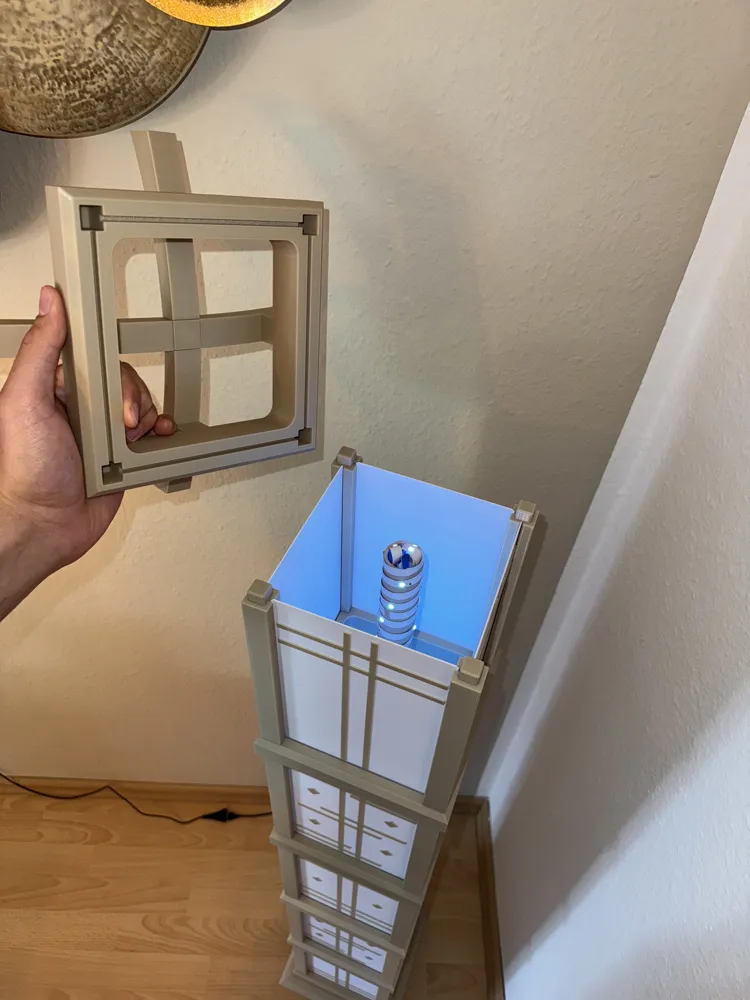

6. Roof: Attach the roof connecting piece, insert the 4 arch components into the small connecting piece and place it on the roof.
