PEBA Size 5 airless basketball

[Please print with a 0.6 mm nozzle and 0.18 mm layer height.]

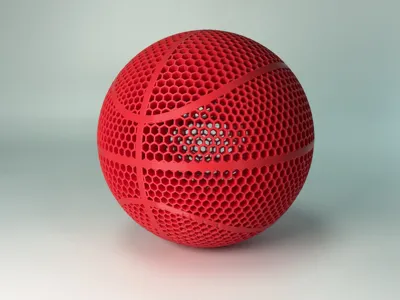

This is a single-layer, airless Size 5 basketball printed with PEBA 90A filament. It has a diameter of 220 mm, a wall thickness of 11 mm, and weighs approximately 565 g.

Recommended Parameters:

Nozzle Temperature: 220-250°C

Print Speed:

90A/85A: Maximum volumetric speed 7.2 mm³/s

Build Plate Temperature: 40-60°C

Retraction: 0.4-2 mm

PEBA is a high-performance flexible filament that requires more precise printing conditions compared to rigid filaments like PLA or PETG.

Use a Brand-New Hotend:

Avoid using a hotend previously used for fiber-reinforced filaments to prevent contamination or clogging.

Clean Extruder and Feed Gears:

Ensure the extruder is free of debris and feed gears are unworn to prevent filament slipping or inconsistent extrusion.

Minimize Feeding Resistance:

Use a low friction spool holder with bearings to ensure smooth filament feeding.

A drying box with a bearing-supported spool holder is recommended. Alternatively, install a low-resistance spool holder with bearings.（A1 https://makerworld.com/zh/models/995840-a1-low-friction-spool-holder#profileId-972133 【For A1 printers, remove the PTFE tube to further reduce resistance.】

P1/X1 https://makerworld.com/zh/models/1015773-p1-x1-spool-holder-with-bearings-p1-x1di-zu-li-lia#profileId-995985 ，H2D https://makerworld.com/zh/models/1260686-h2d-spool-holder-with-bearings-h2ddi-zu-li-liao-pa#profileId-1285105 ）

Filament Drying:

PEBA is factory-dried and sealed; it typically does not require drying if used within 3 days of opening.

If severe stringing occurs, re-dry the filament at 80°C for 8 hours or 65°C for 18 hours.

Stringing Management:

Drying PEBA before printing reduces but does not eliminate stringing, especially in models with hollow structures or frequent retractions.

Use a heat gun (~200°C) to remove stringing from finished prints, but exercise caution to avoid damaging the model.

【请使用0.6mm的喷头，0.18mm的层高打印】

这是一个使用PEBA 90A耗材打印的单层5号无气篮球，直径220mm，厚11mm，重约565g。

建议参数：

打印温度：220-250℃

打印速度：90A85A      最大体积速度 7.2mm³/s

底板温度：40-60℃

回抽：    0.4-2mm

PEBA属于高性能柔性耗材，相比于打印常见的刚性耗材（PLA PETG），需要更高精度的打印条件。

1，强烈推荐使用全新的热端。请勿使用曾打印过纤维增强耗材的热端打印PEBA。

2，确保挤出机无异物，进料齿轮无磨损。（否则可能会出现耗材打滑，无法被连续均匀挤出）

3，打印柔性耗材需要低阻力流畅的进料，进料阻力过大会造成挤出不足。推荐使用带轴承的料盘干燥箱。

或者安装带轴承的低阻力料盘支架。（A1 https://makerworld.com/zh/models/995840-a1-low-friction-spool-holder#profileId-972133 「强烈建议A1移除铁氟龙管，进一步降低进料阻力」，P1/X1 https://makerworld.com/zh/models/1015773-p1-x1-spool-holder-with-bearings-p1-x1di-zu-li-lia#profileId-995985 ，H2D https://makerworld.com/zh/models/1260686-h2d-spool-holder-with-bearings-h2ddi-zu-li-liao-pa#profileId-1285105 ）

4，耗材在出厂时会经过烘干和密封，正常情况下耗材开封3天内不需要额外烘干。如果发现模型拉丝严重，可以重新烘干耗材。推荐烘干温度：80℃，8h。或65℃，18h。

5，关于拉丝：打印前将PEBA耗材烘干只能减少打印件上的拉丝，而不能完全避免，尤其是镂空结构等跳跃较多的模型。可以使用热风枪（约200℃）去除已经打印好的模型上的拉丝（请小心操作，避免损坏模型）。
