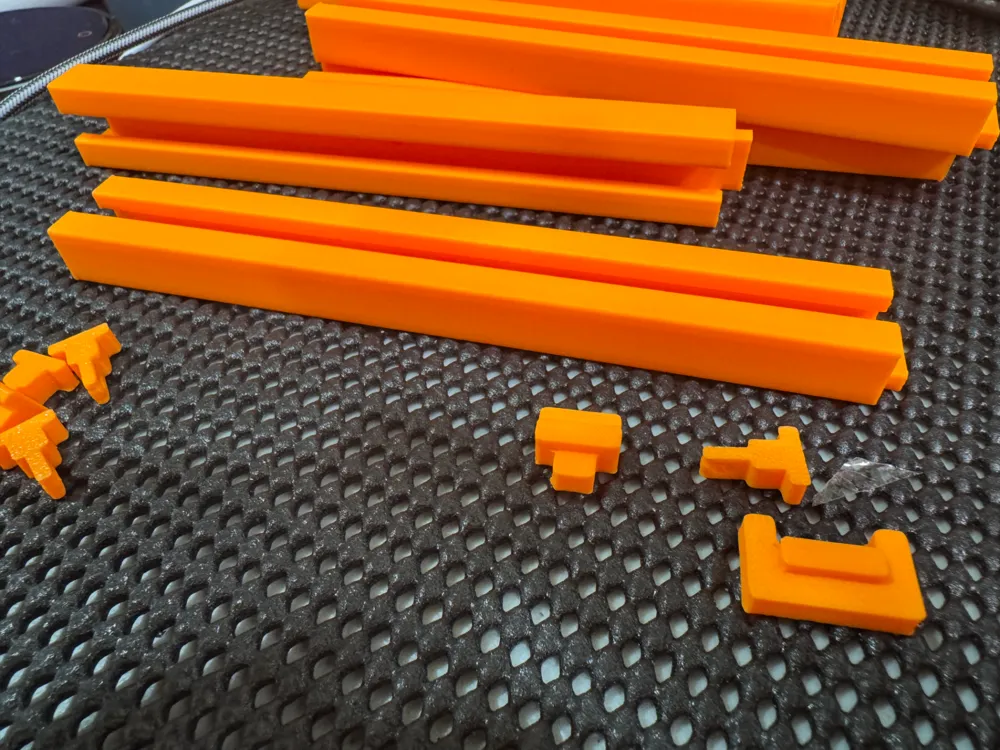

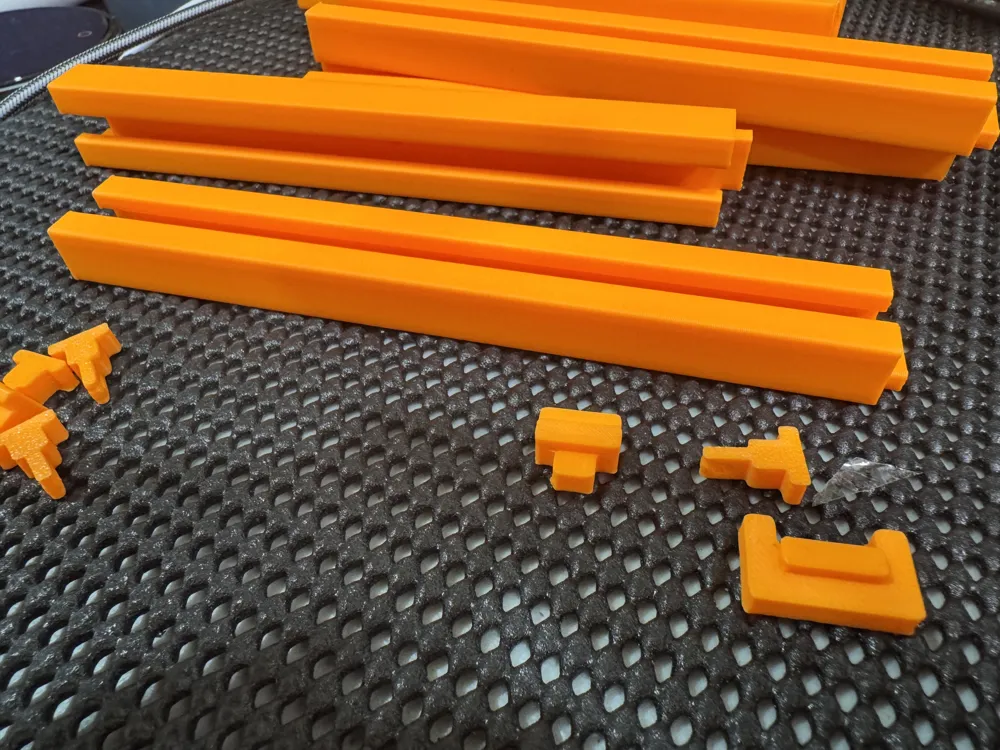

Curtain, Drape, and Display Sliding Rail System (15cm Version)

Chinese Text:

This modular rail system is designed for lightweight sliding applications such as curtains, drapes, and fabric displays. The current 15cm version features a center screw hole for secure mounting and easy connection. Ideal for short-distance DIY projects and light-duty applications.

⚠️ Avoid hanging heavy items to prevent imbalance or damage. PLA is suitable for general use; for heat resistance and high strength, PETG or ABS is recommended.

📦 25cm version coming soon: Will feature screw holes at both ends for enhanced rigidity, along with front/back "bottle-cap style" end modules for improved structural integrity.

Chinese Print Setting Description:

• Key Points:
  • Print the rail vertically, with the groove facing down, and enable supports to ensure print quality.
  • Recommended screw nut diameter: ≤4mm, counterbore depth: 1.5mm. Use Bambu Lab's default AI print settings.
• Other:
  • Use a 0.28mm layer height to increase print speed.
  • Material: PLA; PETG or ABS can be used for increased toughness and heat resistance.
  • Color and reinforcement settings (wall count/infill density) are customizable.

English Title:

Modular Sliding Rail (15cm Version)｜For Curtains, Drapes, Displays｜25cm Version Coming Soon

English Text:

This modular rail system is designed for lightweight sliding use, such as curtains, door drapes, and fabric displays. The current 15cm version includes a center screw hole for stable mounting and easy assembly.

📦 25cm version coming soon: Features screw holes on both ends to improve rigidity, plus “bottle-cap style” start/end modules for cleaner structure and finishing.

⚠️ Avoid hanging heavy objects to prevent imbalance or damage. PLA is suitable for most cases; use PETG or ABS for heat or strength-critical needs.

English Print Setting Description：

• Primary
  • Print the rail vertically, with the groove side facing downward, and enable supports to ensure print quality
  • Use screws with nut diameter ≤ 4mm, counterbore depth 1.5mm
• Other
  • Printed using Bambu Lab’s default AI print profile
  • 0.28mm layer height recommended for faster printing
  • Material: PLA; for greater strength or heat resistance, PETG or ABS is recommended
  • Color and reinforcement settings (wall count/infill density) can be customized as preferred
