Welcome to my world, I hope it will be useful and inspiring for you to create new things. Enjoy |

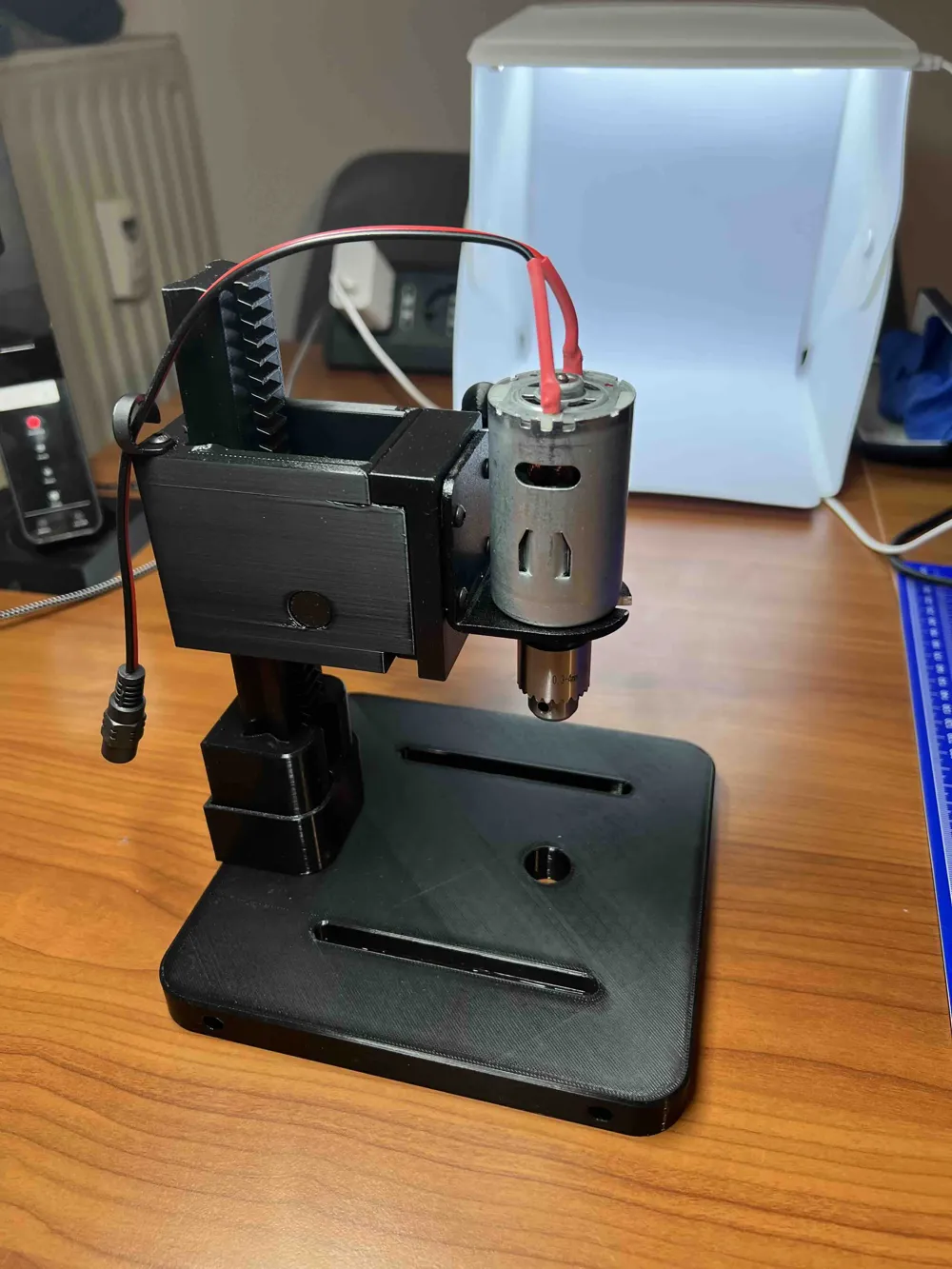

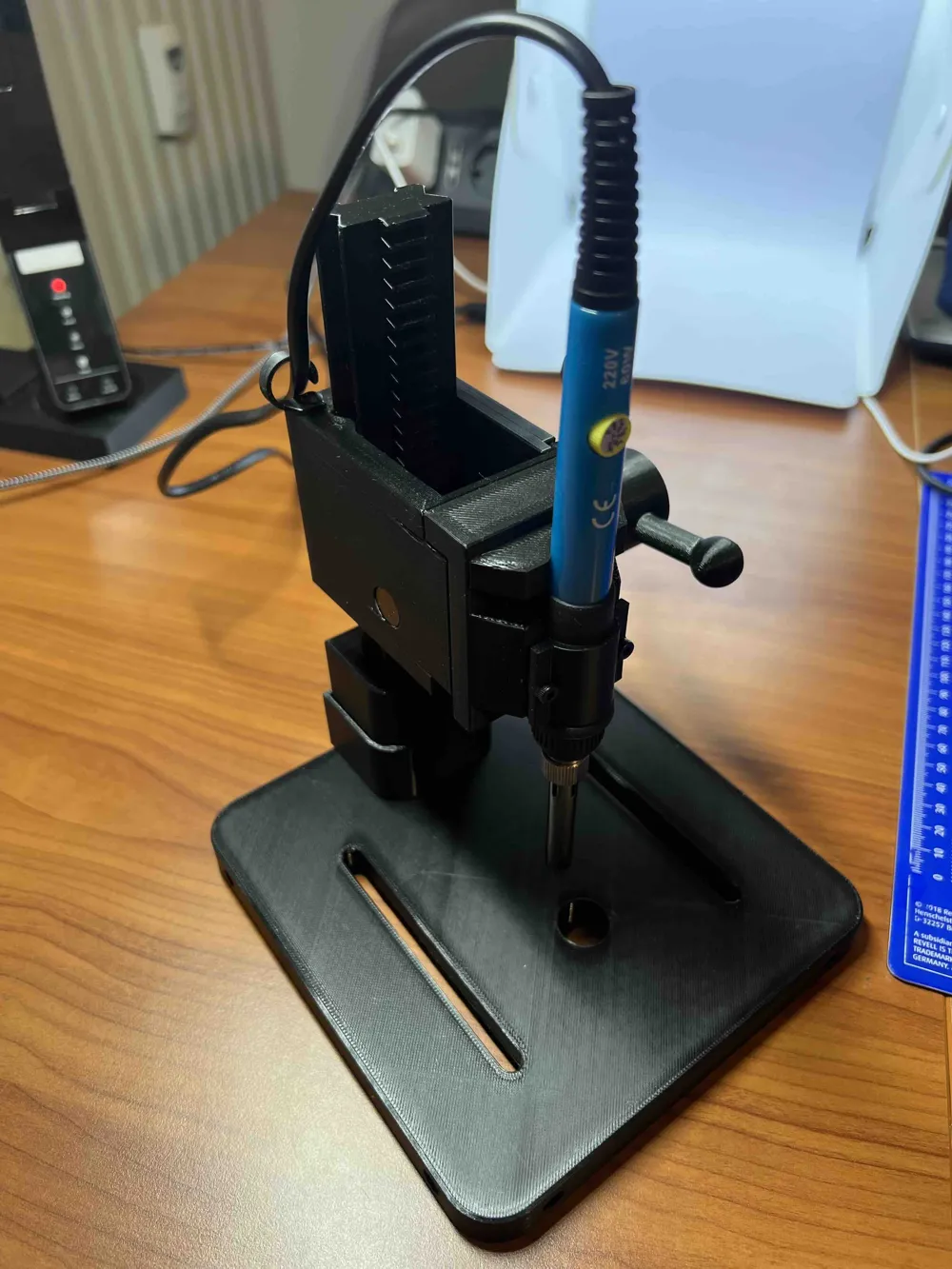

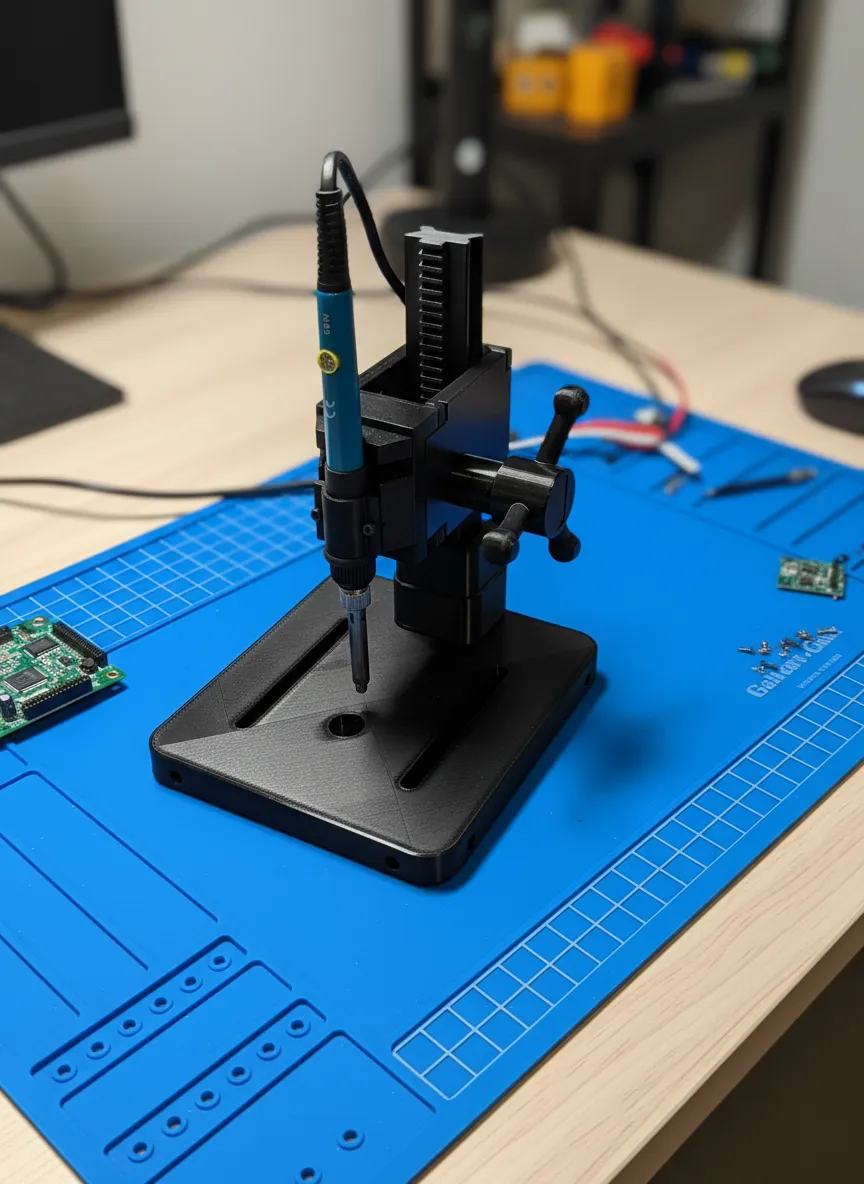

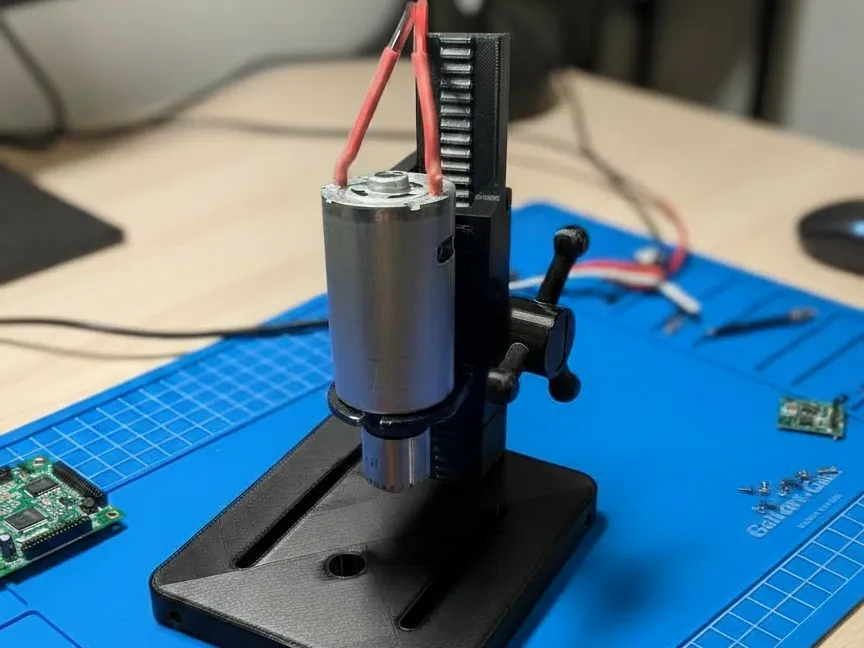

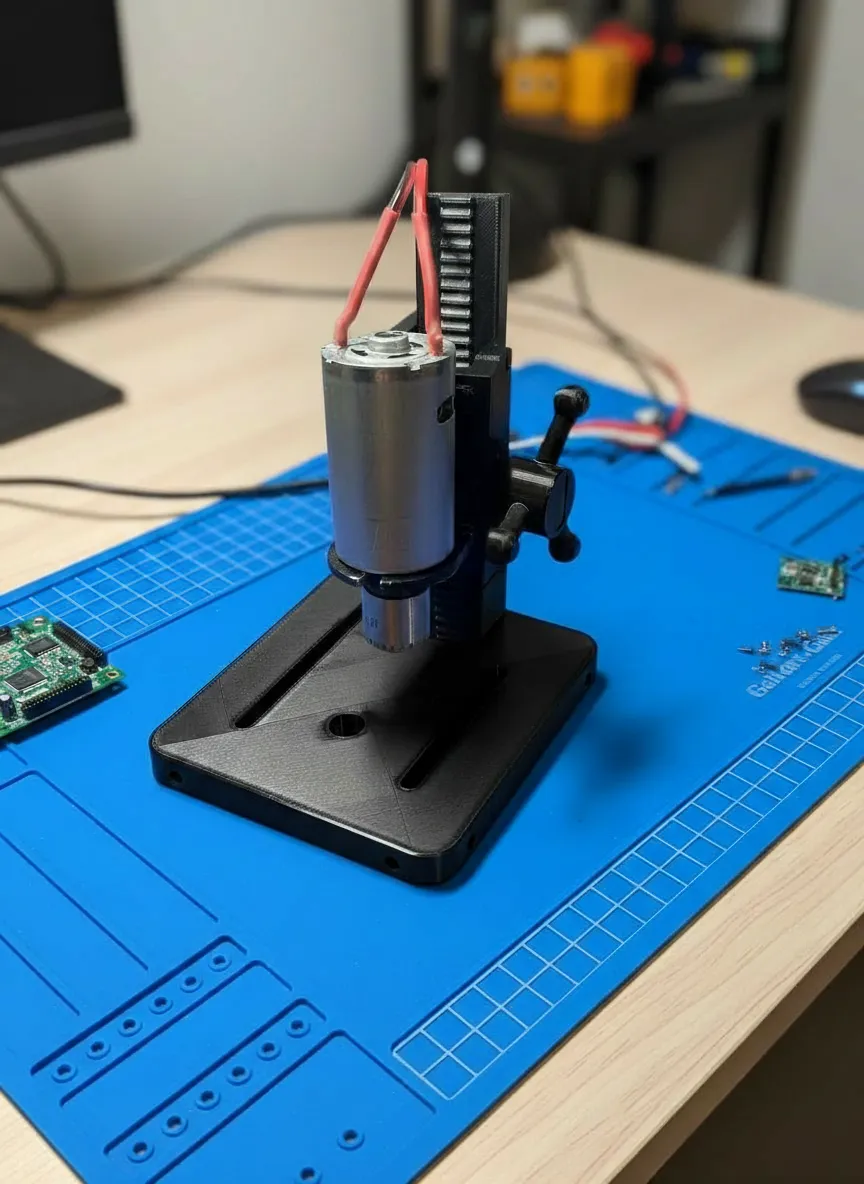

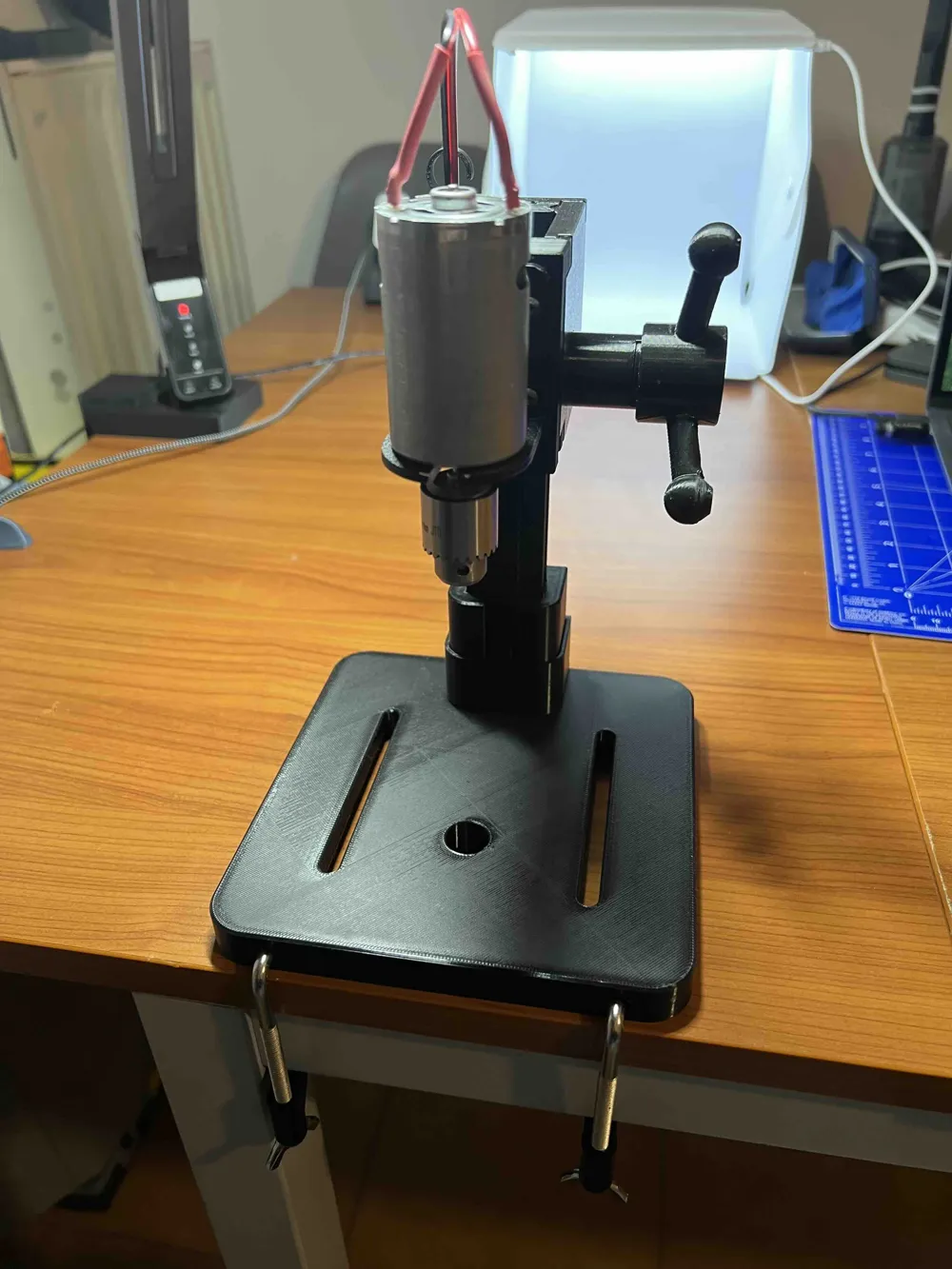

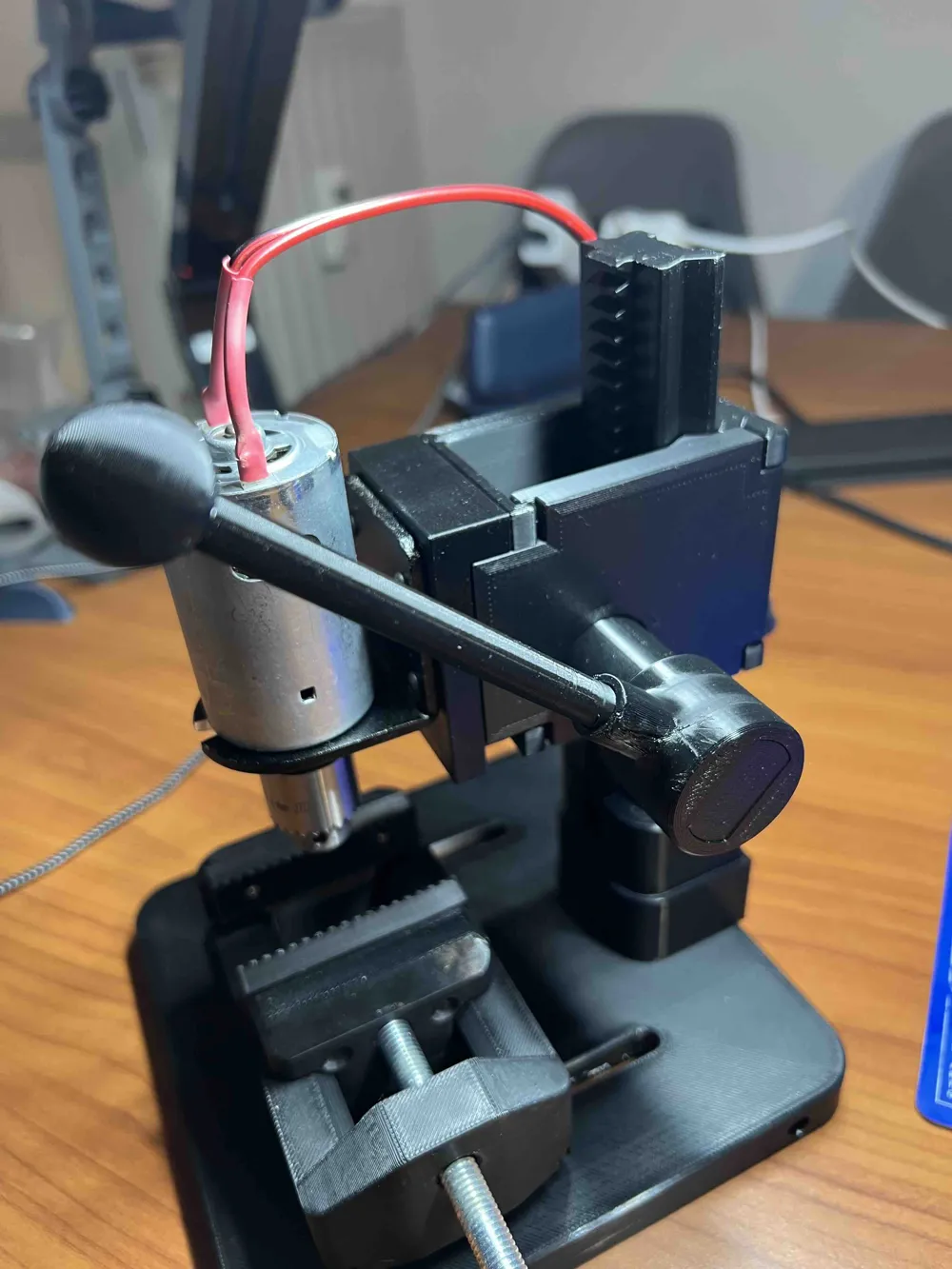

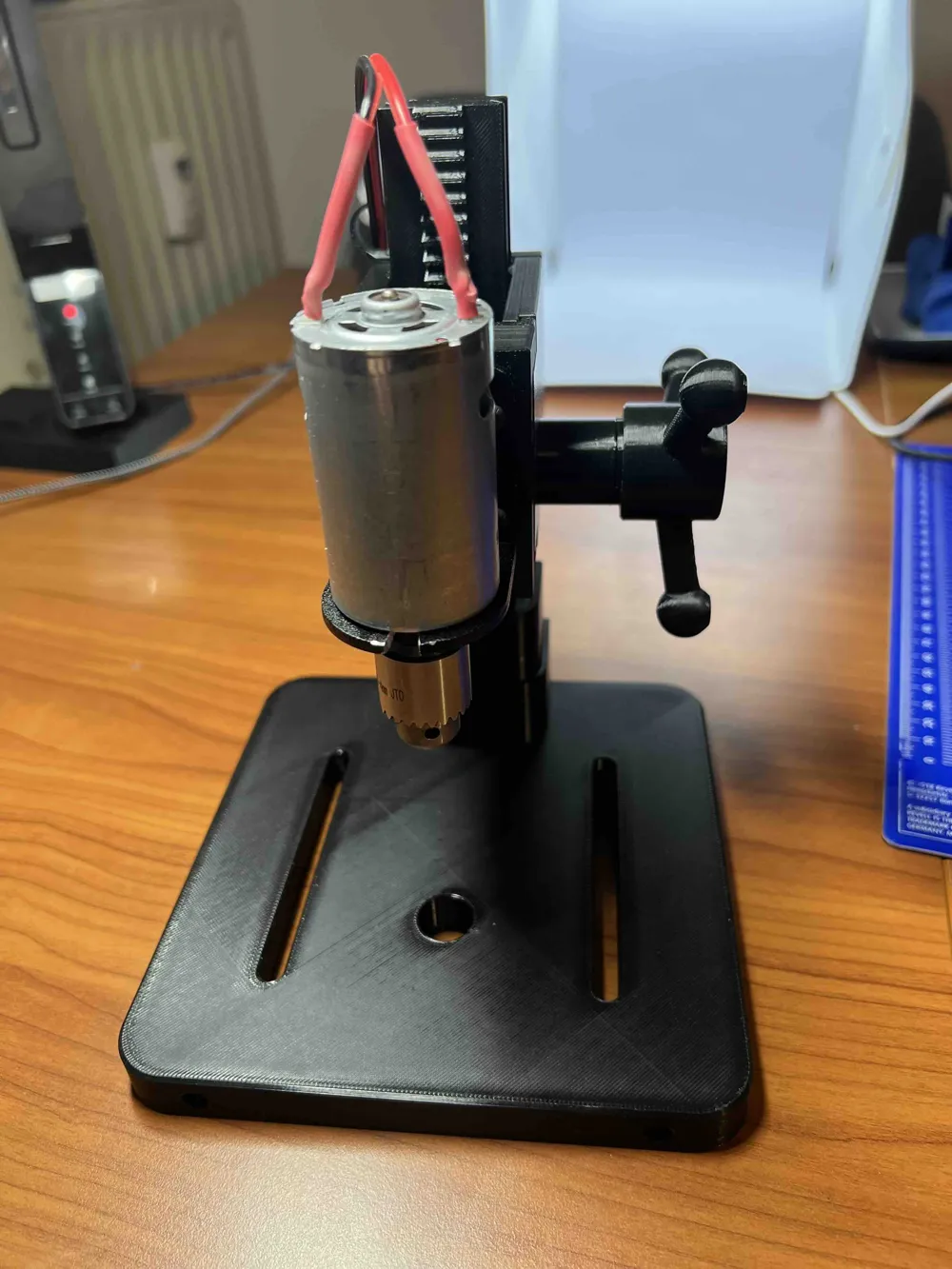

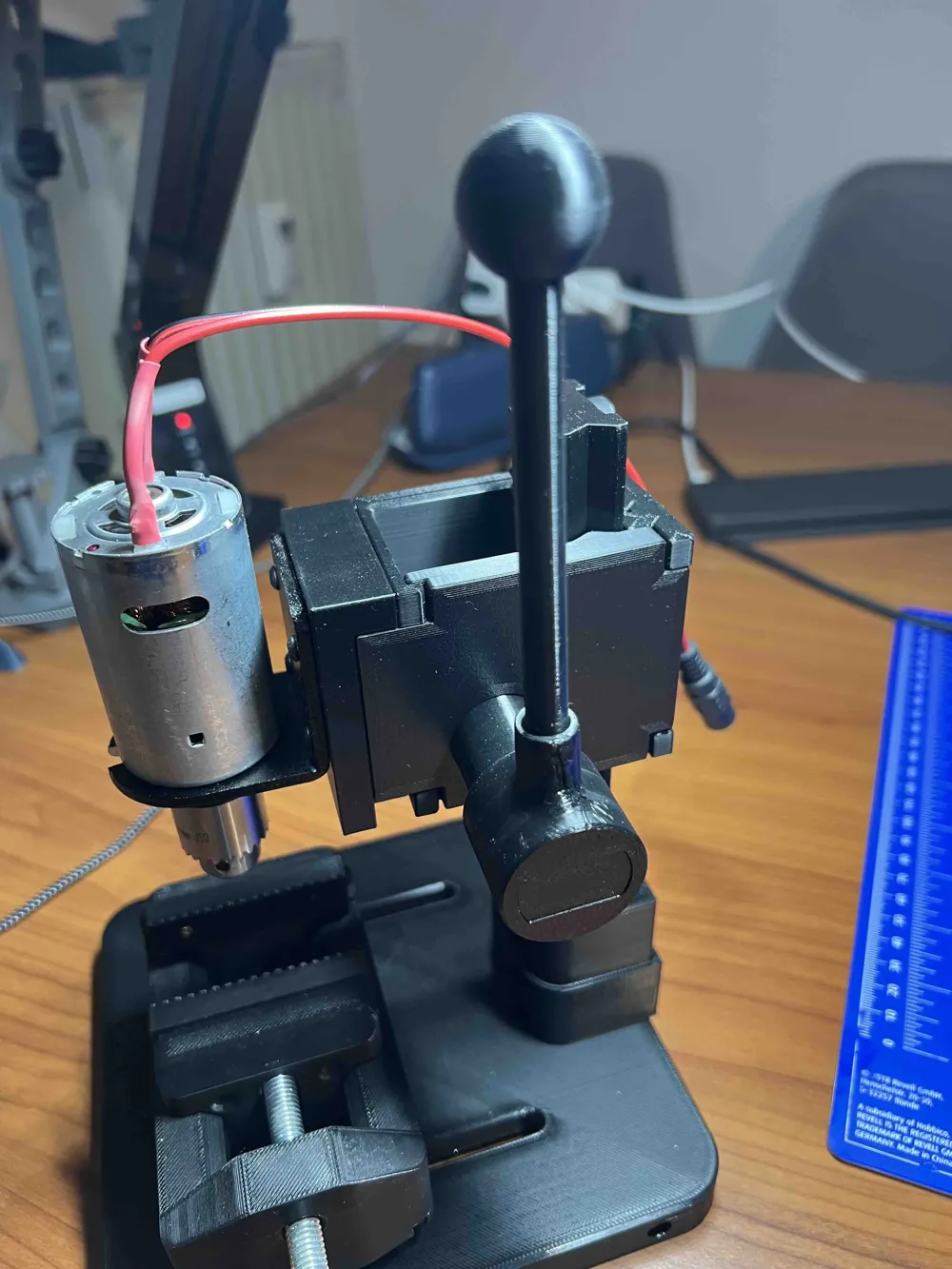

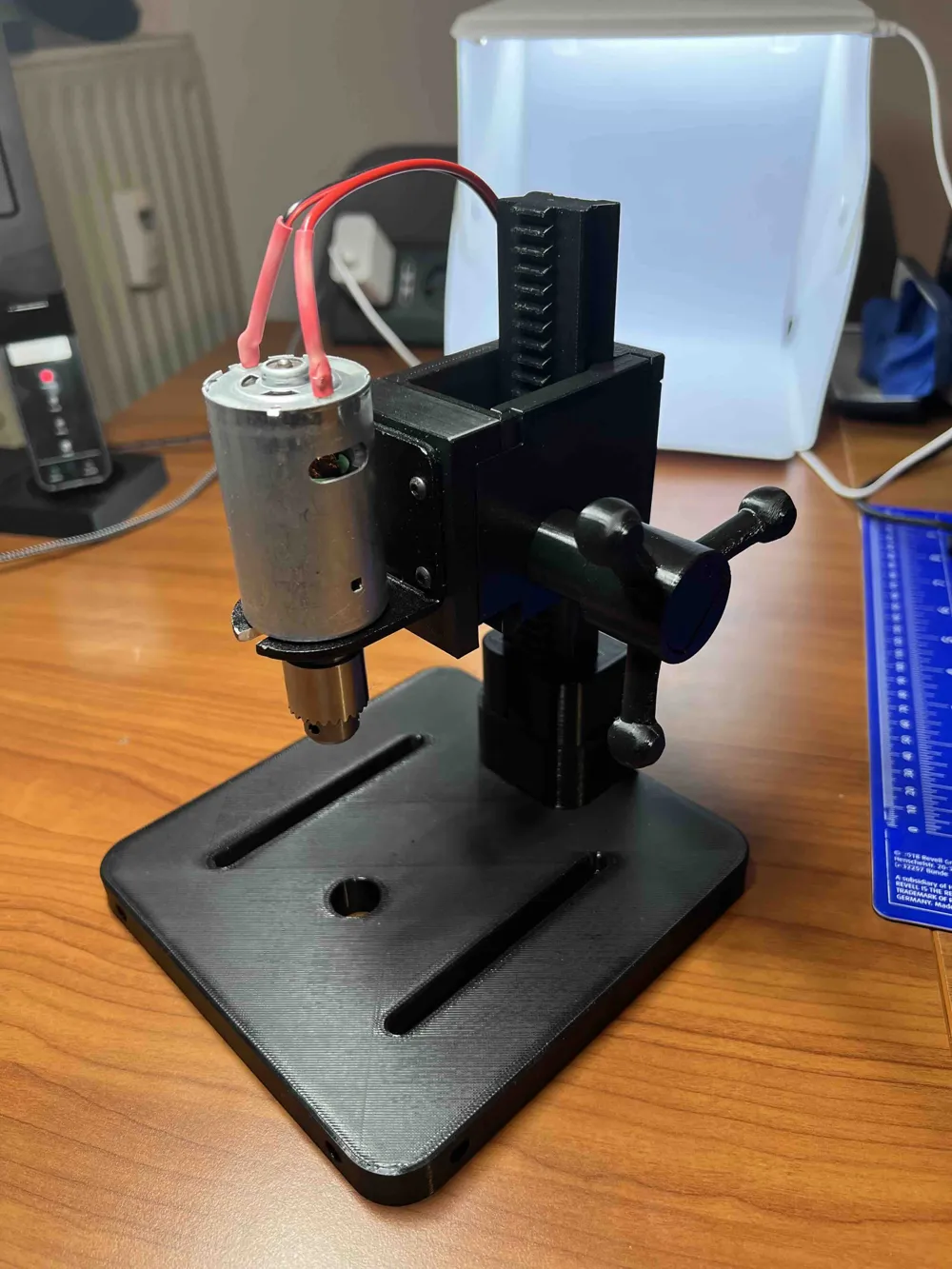

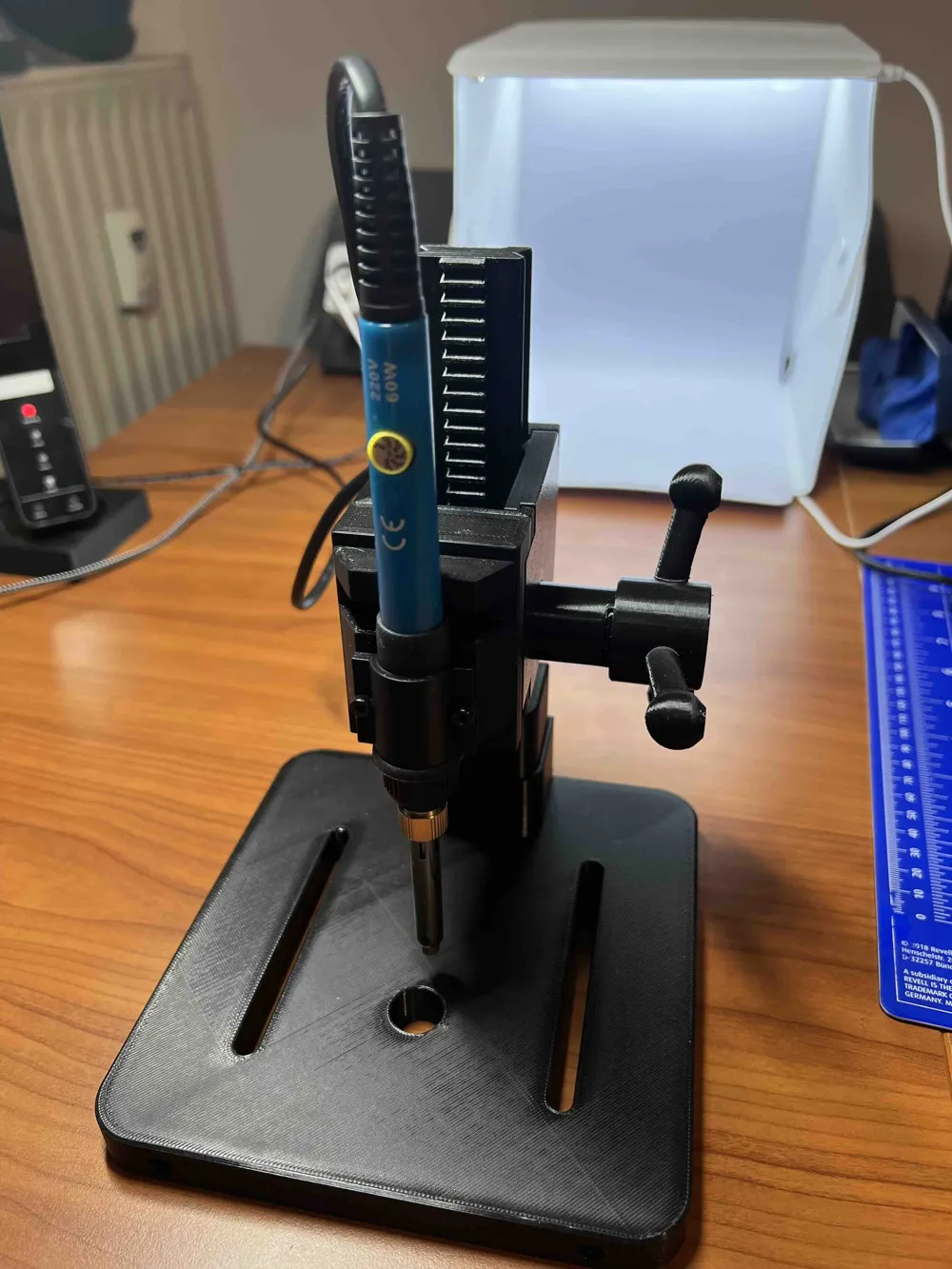

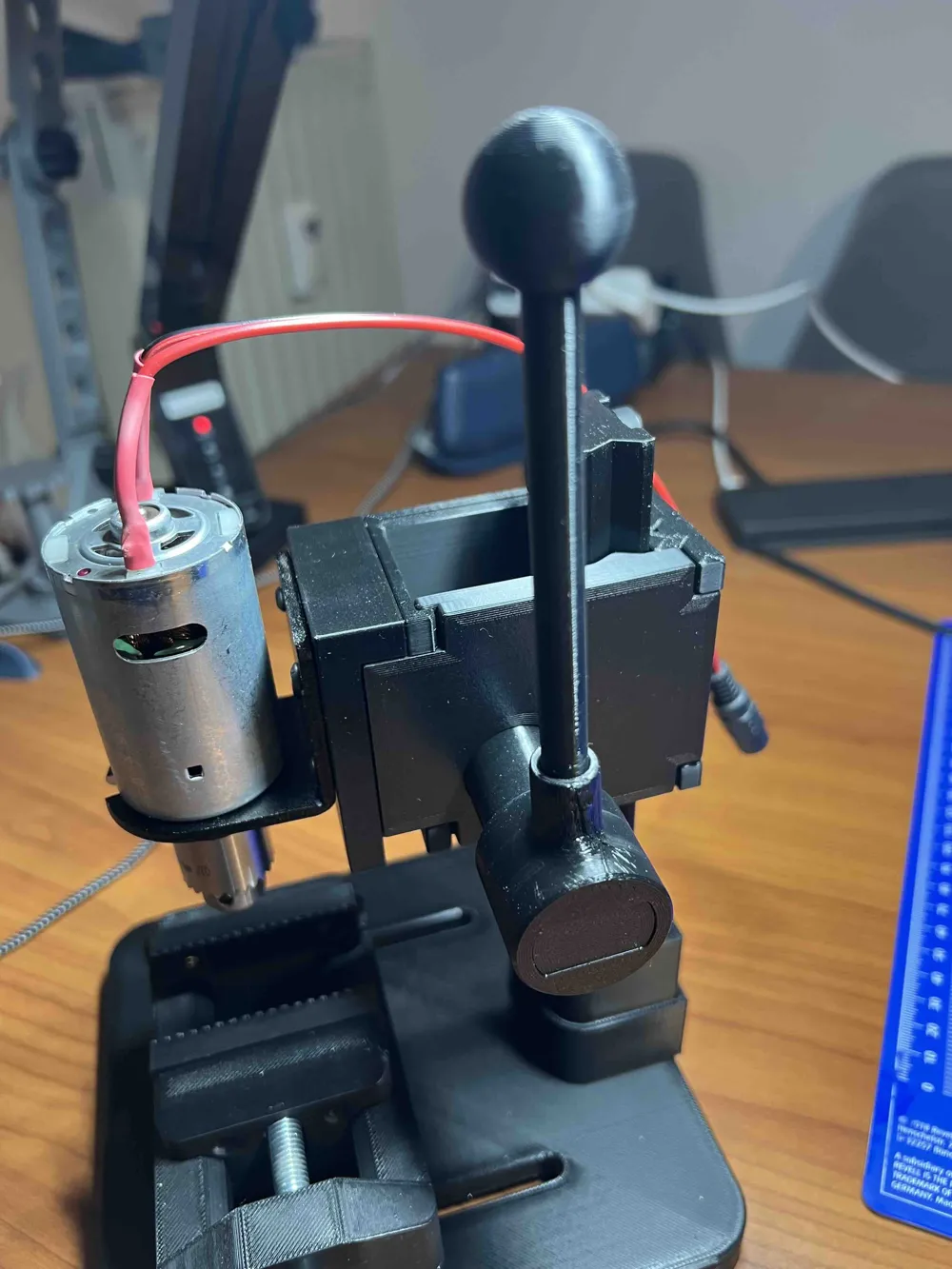

I was looking for a mini drill press to do precision work but what I found was not right for me, but I took it as an idea to do something new and modular, in fact I created this structure where you can mount a drill, a welder for threaded inserts and a sliding vice. I also created another adapter to be able to use tools other than the one I bought, you just have to print some shims if necessary to ensure that your accessory is tightened inside it.
Accessories and assembly parts:

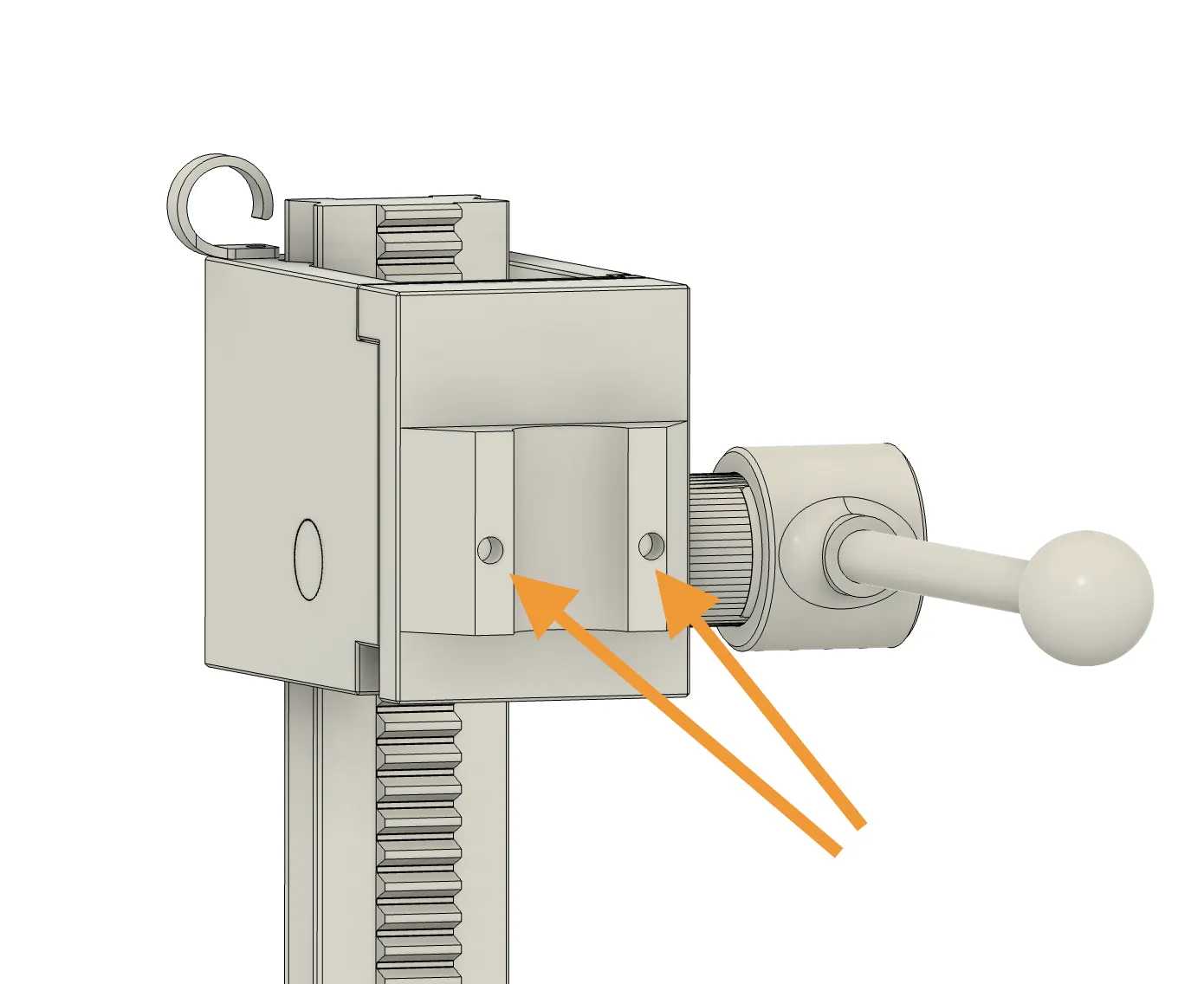

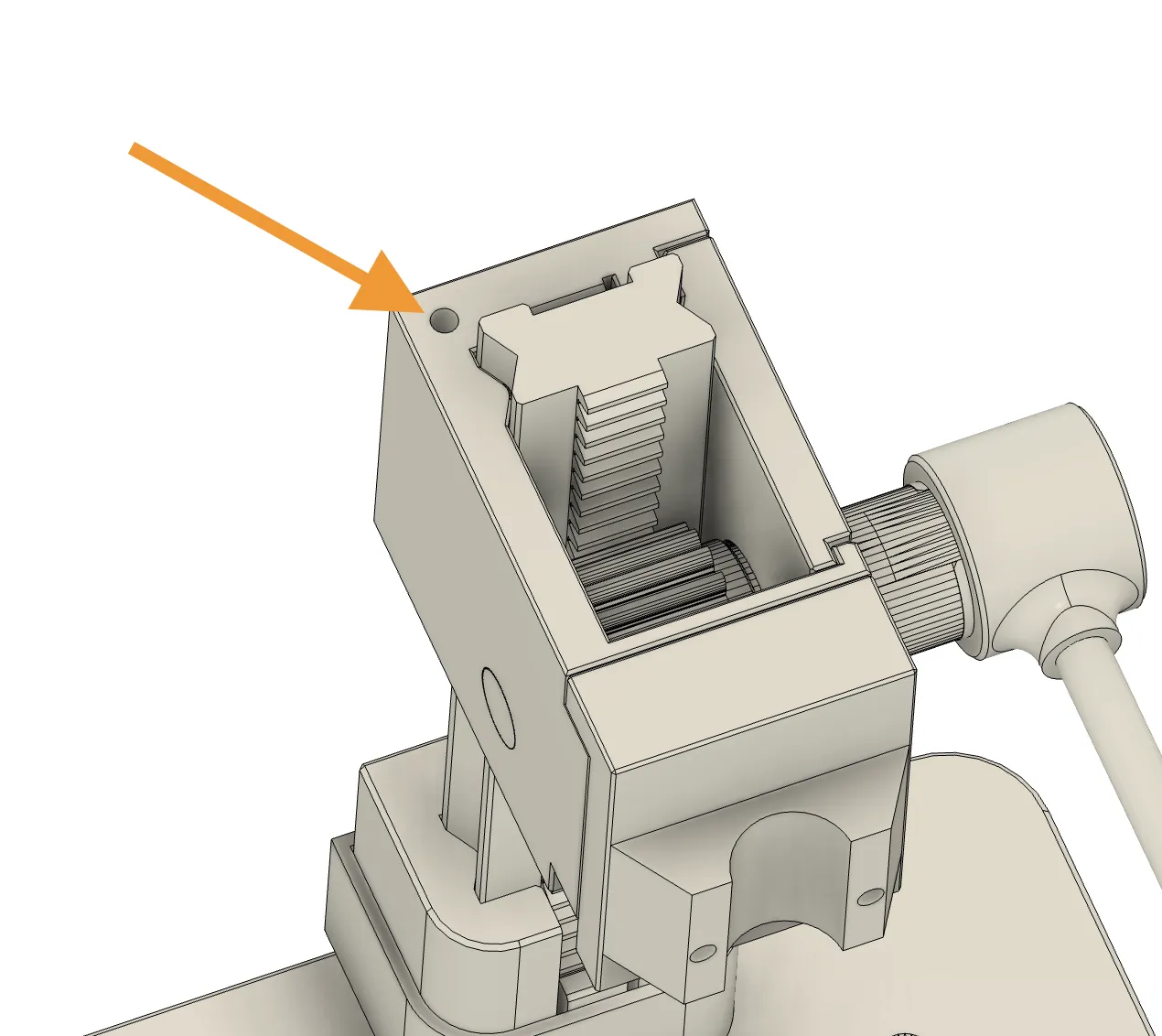

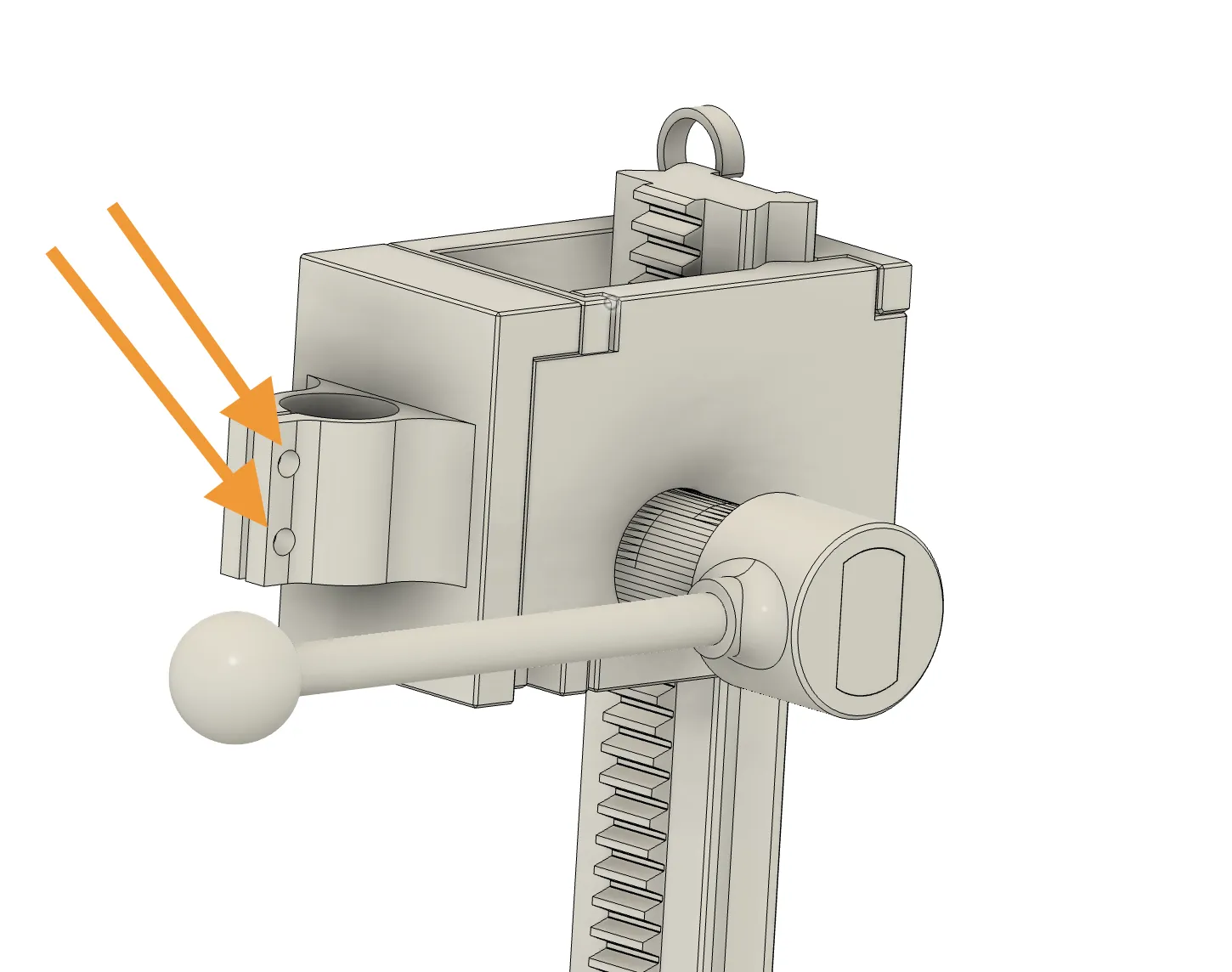

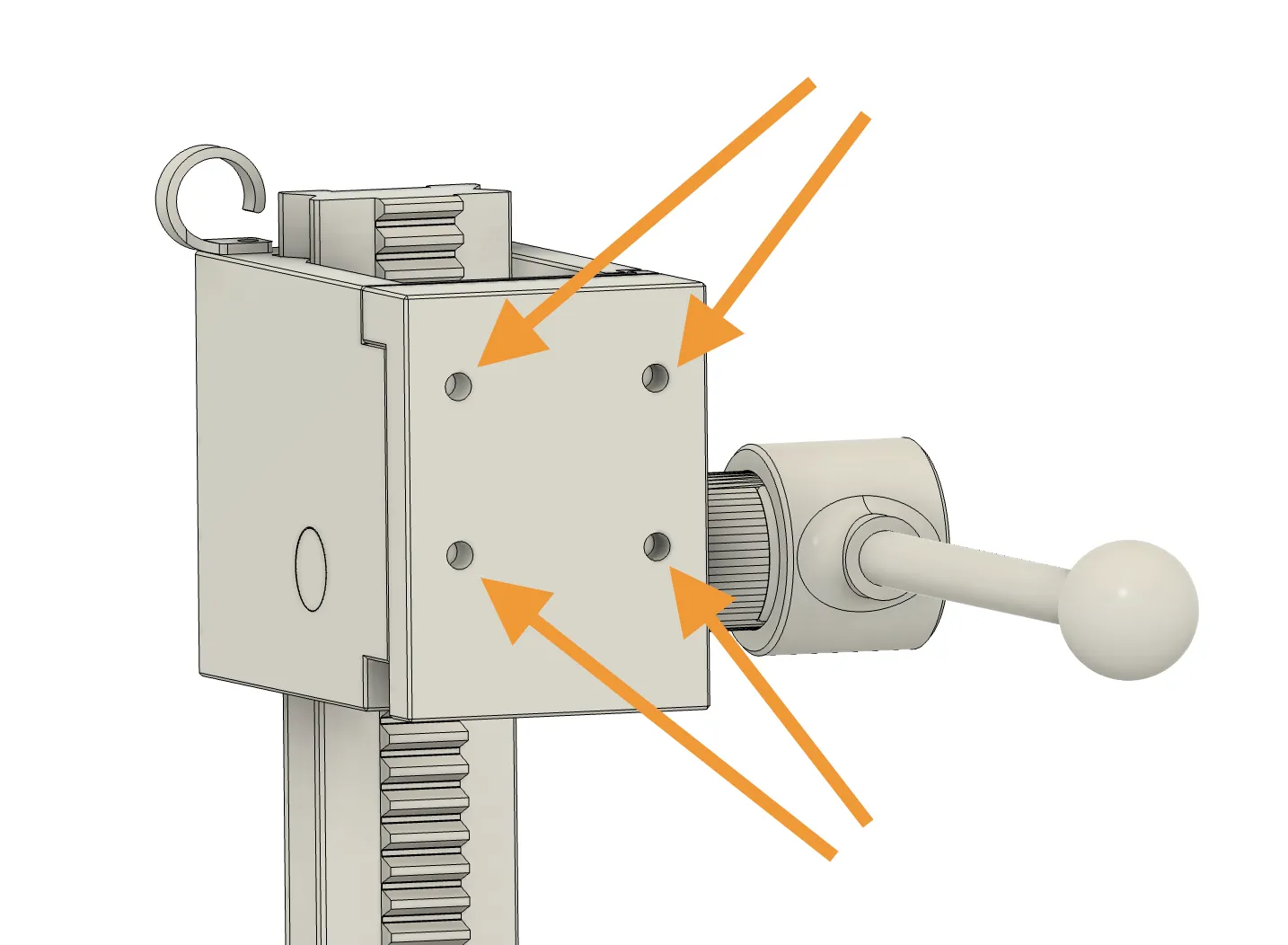

For assembly you will need, depending on the accessory you want to use, from 2 to 4 M3 threaded inserts. Below I will show you where the inserts should be inserted:
 |  |
 |  |

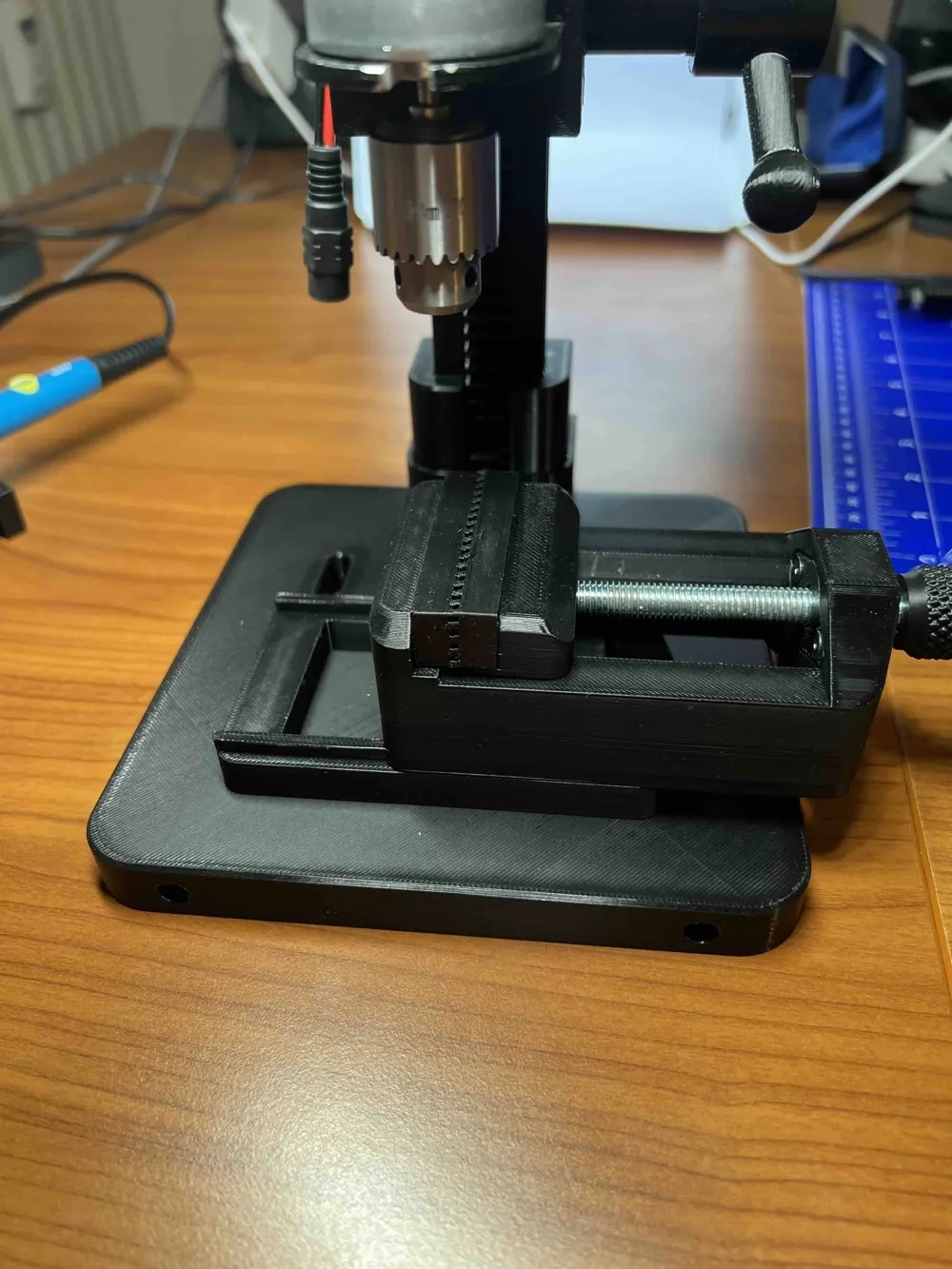

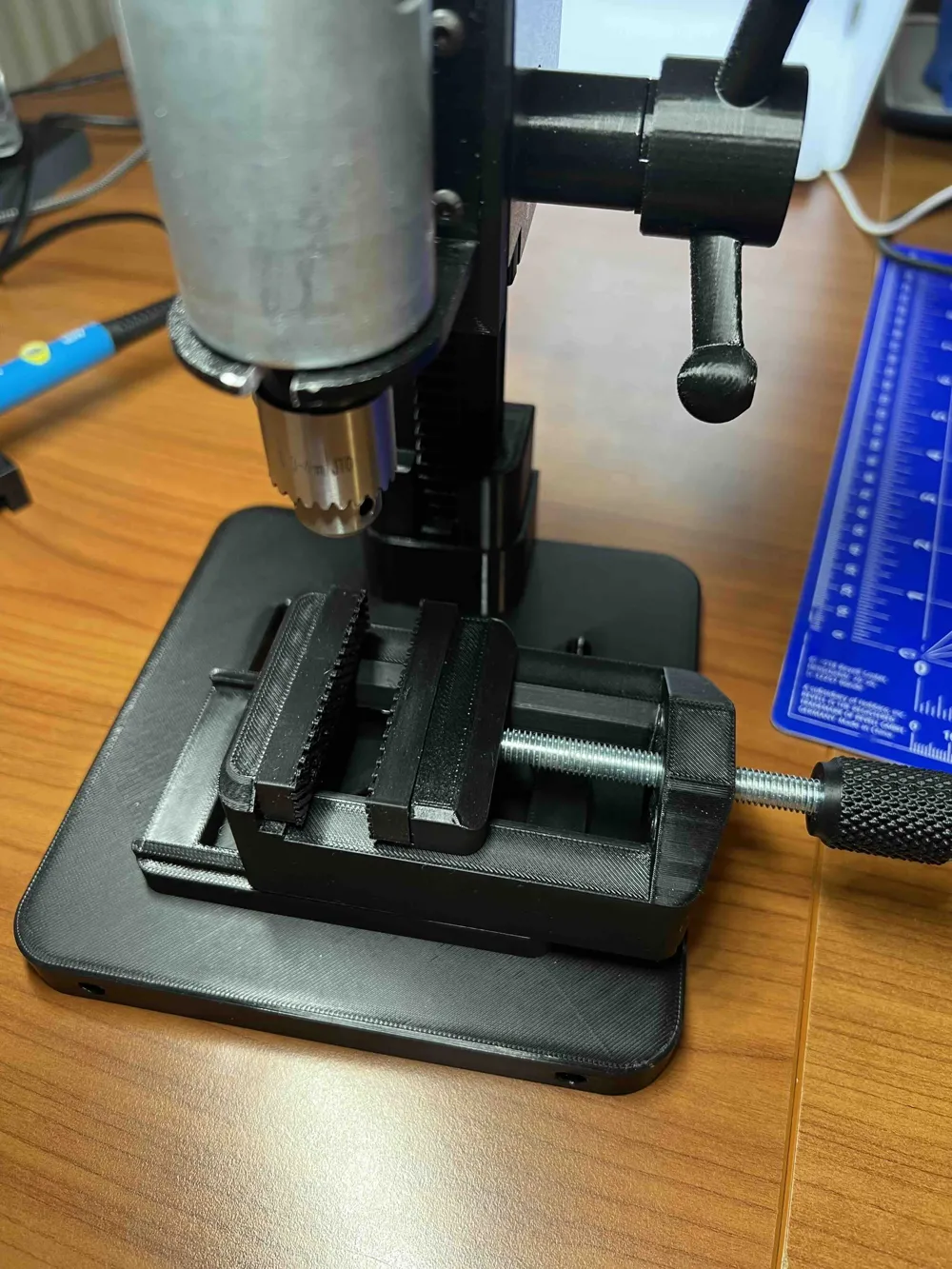

Below is the link to download the mini vice:
https://makerworld.com/it/models/1338052-mini-vice-for-modeling-or-diy#profileId-1377889

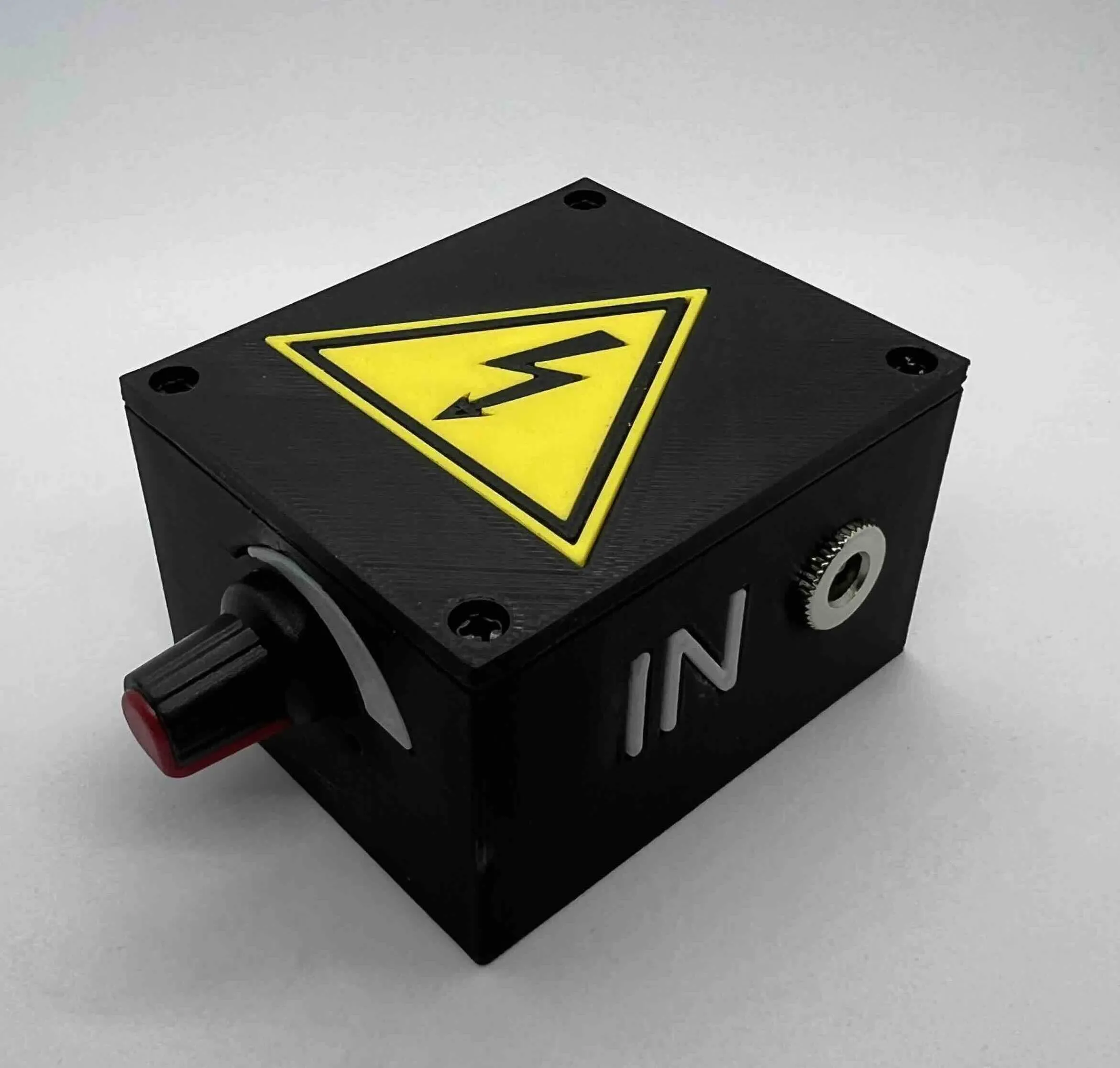

For those interested, I created a speed regulator to match the device, here is the link: Speed regulator
Always remember to keep the print bed clean, keep the printer clean, and perform regular maintenance. A calibration once in a while never hurts. 😜
Come back soon and thanks for the support Boost Me (for free) Please give a 👍 if you like it, it'll help others discover it! If you'd like to take your support to the next level, please give me a 🚀. Thank you so much! 🙏🙏 |
