Description

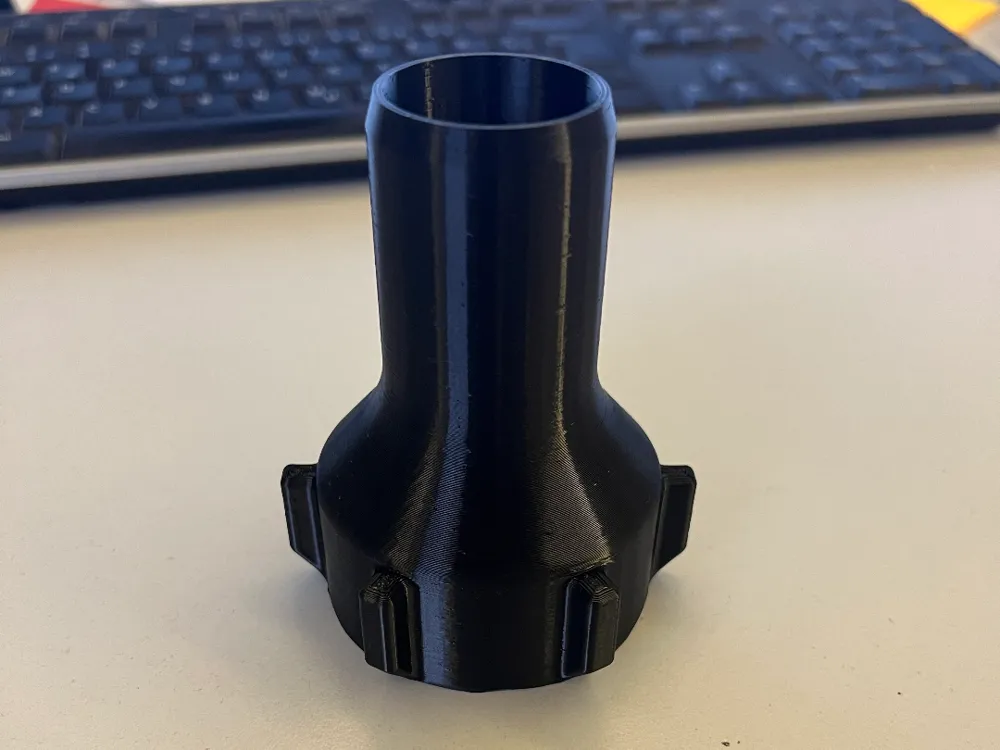

Adapter for connecting various hoses to an IBC tank.

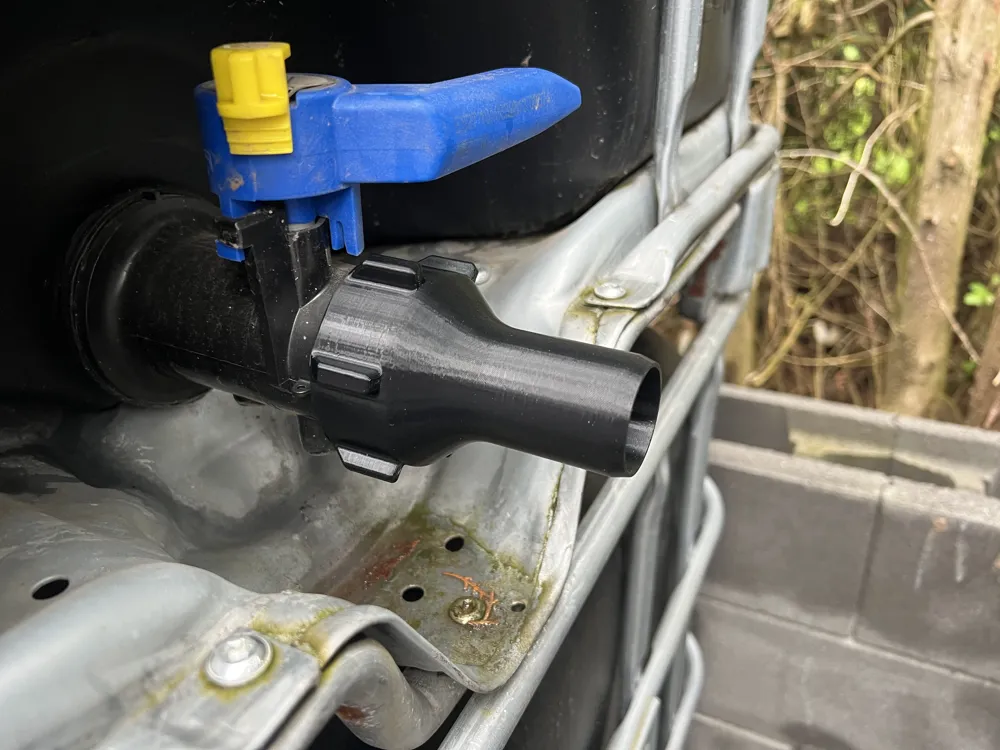

I created it because I couldn't find an adapter to run the small barrels into my large earth tank.
In the actual model, the 38mm pool hoses fit on it. I then made it for the 32mm, ¾" (19mm) and ½" (13mm) nozzles.

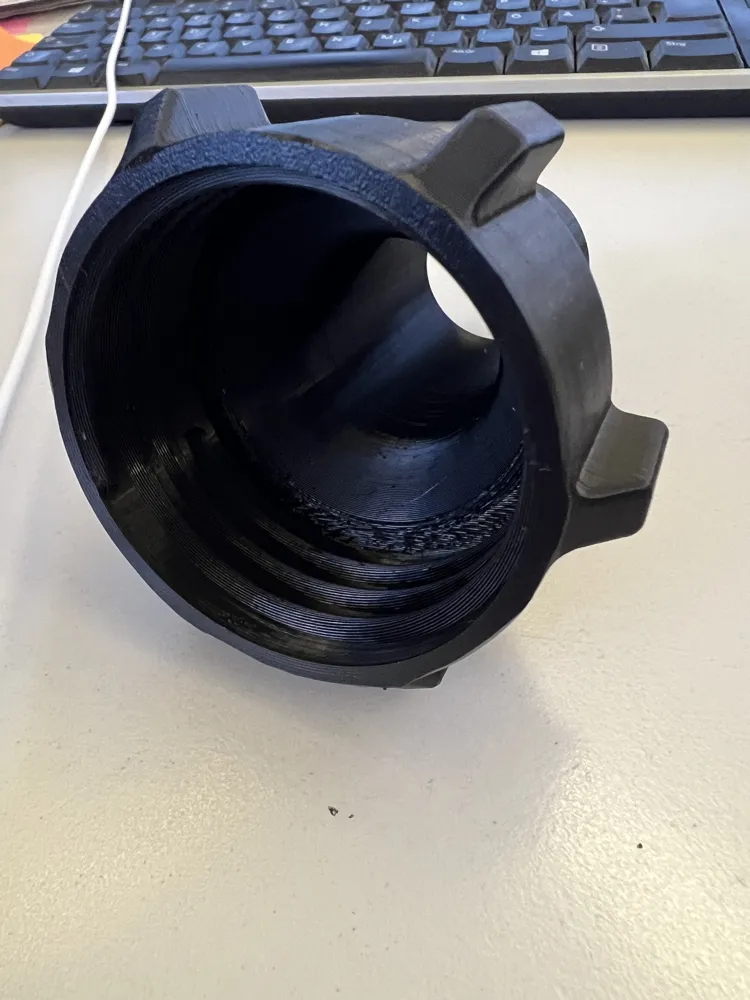

The outer wall is printed with a width of 0.8mm so that the thread is nicely printed. It also worked well.
I set the seam to "random" so that there is no risk of leakage there. If someone intends to permanently mount the adapter and leave the tap open, a seal is absolutely necessary anyway and the model can be printed with 1-2 more walls if necessary.
