good use full but need to resized for bike alignment

0.2mm layer, 3 walls, 50% infill

Hallo Juan,
ja genau, du musst für die andere Seite spiegeln, Modell ist für die Kupplungsseite, also in Fahrrichtung links.
viele Grüße

Hello Juan,

yes, precisely, you need to mirror it for the other side, the model is for the clutch side, thus on the left in the direction of travel

Best regards

enginerico

Juan_285

the print is for left and right? or only one side? so i need to mirror it after the first print for the seccond one?
greats Juan

moin reicht es auch wenn man es aus pla druckt

user_3280488606

Hey,
vielen Dank für die Anmerkung!
Wir haben es im Bekanntenkreis auch schon aus PLA gedruckt, nur die Schmelztemperatur und UV-Beständigkeit ist etwas schlechter.

Viele Grüße

Hey,

Thank you for your comment! We've also printed it in PLA among friends and family, but the melting point and UV resistance are somewhat lower.

Best regards

original_heelguard_screws

cover





<ul><li>50% infill</li><li>4 walls&nbsp;</li></ul>

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

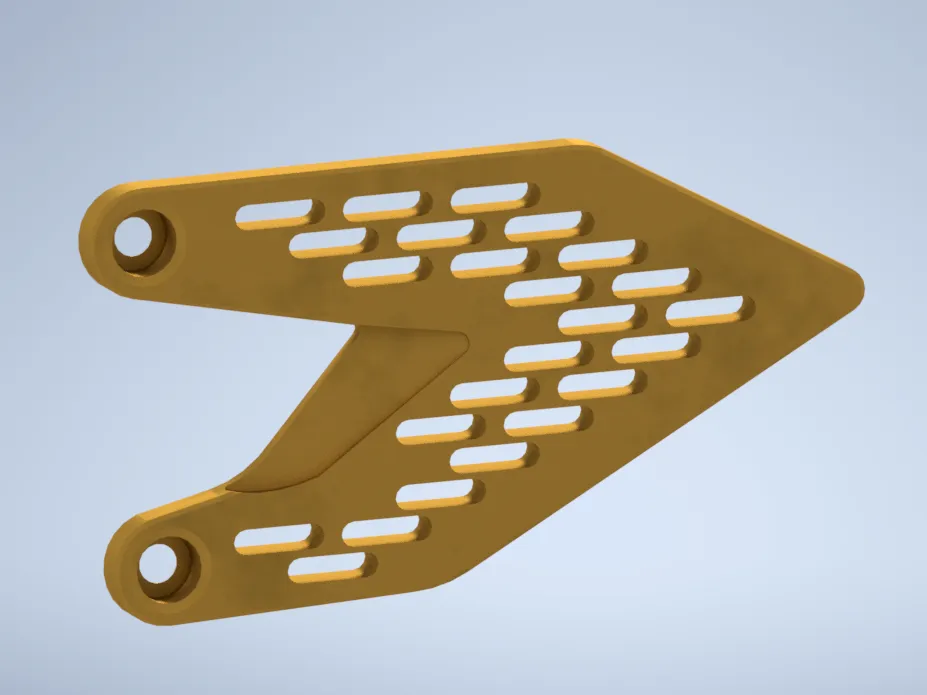

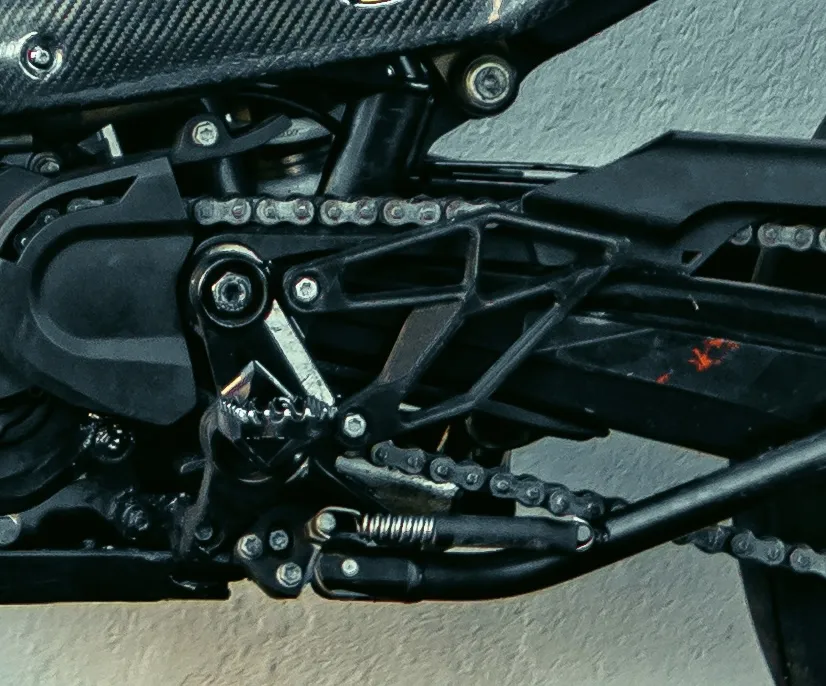

German-Version&nbsp;Hier findest du Fersenschützer, die ich auf einer Husqvarna 701 / KTM 690 Smc-R benutzt habe. Am besten druckst du diese aus PETG oder ABS mit einer 50% Füllung. Im Anhang findest du bilder der montierten Fersenschützer, welche ich damals 5-Achs-CNC gefräst habe. Falls du Fragen hast, hinterlasse bitte einen Kommentar, viel Spaß beim drucken! English-VersionHere you’ll find heel guards that I used on a Husqvarna 701 / KTM 690 SMC-R. Ideally, you should print them in PETG or ABS with 50% infill. Attached are pictures of the mounted heel guards, which I originally machined on a 5-axis CNC. If you have any questions, feel free to leave a comment. Have fun printing!&nbsp;***Patch note***Maybe you have to print youself some sort of spacers to get the right distance between the swingarm and the heelguard.&nbsp;Also have a look for the original lightweight V1: https://makerworld.com/de/models/1333281-heelguard-heel-protector-701-sm-690-smc-r#profileId-1372084

German Version&nbsp;Here you will find heel guards that I used on a Husqvarna 701 / KTM 690 SMC-R. It is best to print these in PETG or ABS with 50% infill. Attached are pictures of the mounted heel guards, which I originally machined using a 5-axis CNC. Should you have any questions, please leave a comment. Happy printing! English VersionHere you will find heel guards that I used on a Husqvarna 701 / KTM 690 SMC-R. It is best to print these in PETG or ABS with 50% infill. Attached are pictures of the mounted heel guards, which I originally machined using a 5-axis CNC. Should you have any questions, please leave a comment. Happy printing!&nbsp;***Patch Note***You may need to print some spacers to achieve the correct distance between the swingarm and the heelguard.&nbsp;Also, check out the original lightweight V1:https://makerworld.com/de/models/1333281-heelguard-heel-protector-701-sm-690-smc-r#profileId-1372084
