Hier findest du Fersenschützer, die ich auf einer Husqvarna 701 / KTM 690 Smc-R benutzt habe. Am besten druckst du diese aus PETG oder ABS mit einer 50% Füllung. Im Anhang findest du bilder der montierten Fersenschützer, welche ich damals 5-Achs-CNC gefräst habe. Falls du Fragen hast, hinterlasse bitte einen Kommentar, viel Spaß beim drucken!

English-Version

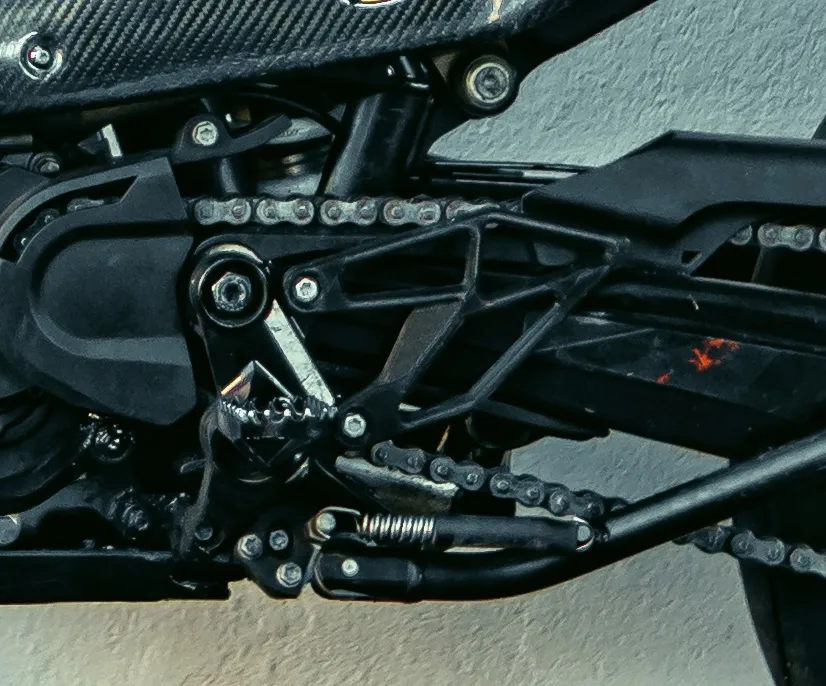

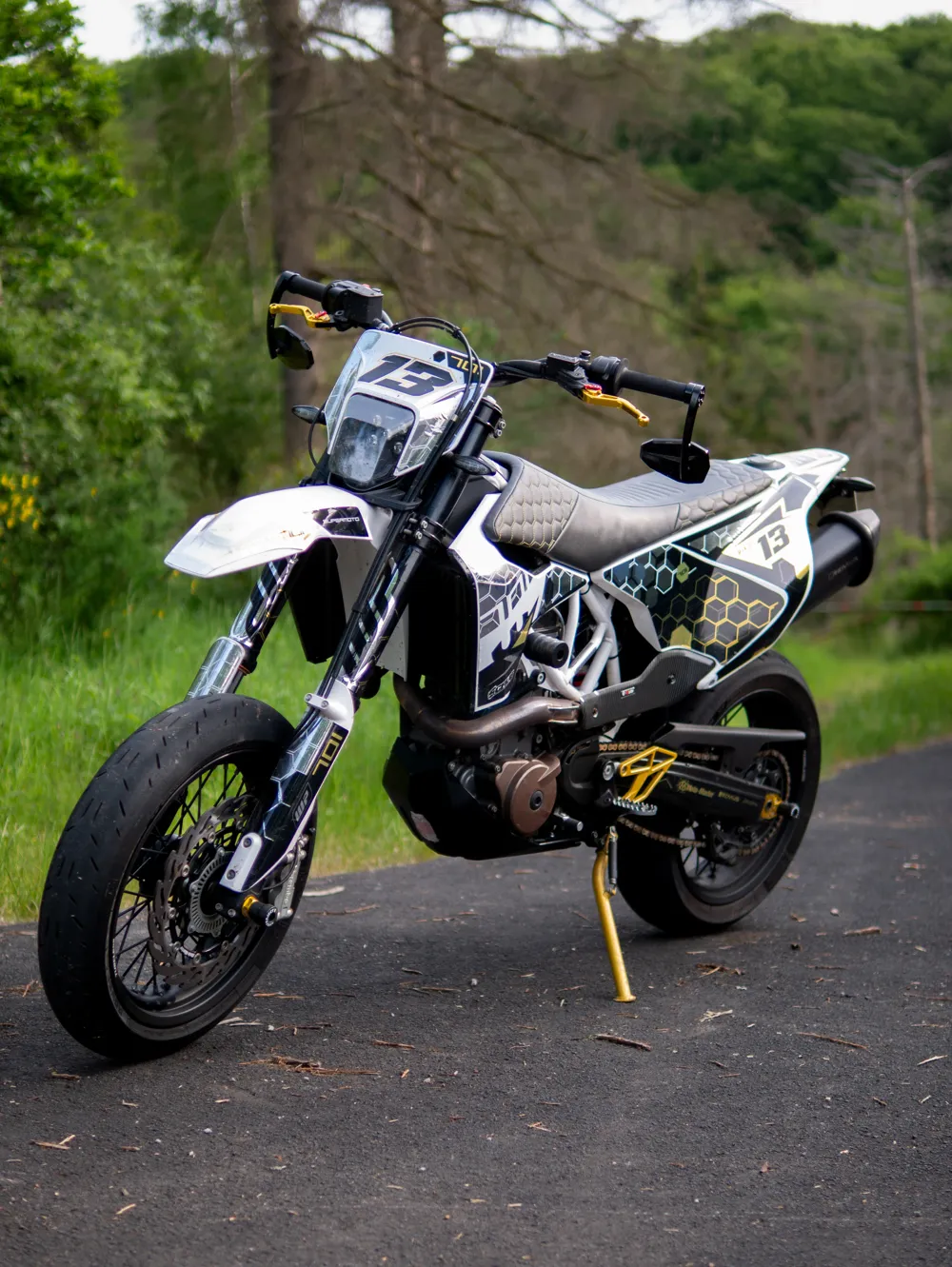

Here you’ll find heel guards that I used on a Husqvarna 701 / KTM 690 SMC-R. Ideally, you should print them in PETG or ABS with 50% infill. Attached are pictures of the mounted heel guards, which I originally machined on a 5-axis CNC. If you have any questions, feel free to leave a comment. Have fun printing!

***Patch note***

2.00 improved Model, so that the Base for the Screw is more stiff and thicker

1.00 Maybe you have to print youself some sort of spacers to get the right distance between the swingarm and the heelguard.
